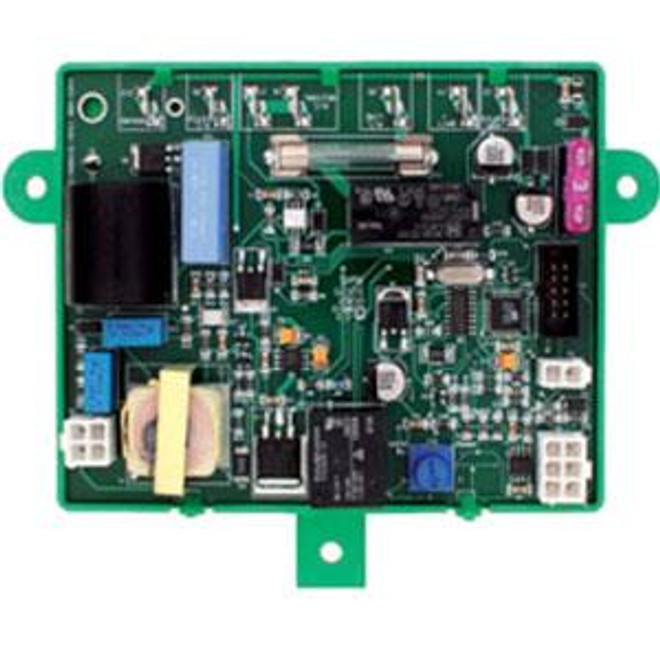

Dometic Board 38507 replacement for 3850712.01 by Dinosaur

*The 3850712.01 is designed to replace Dometic's® part number 3850712-xxx. Do not attempt to replace
any other Black Box Board part number with this board.

• Built-in Ignitor
• 2-Way or 3-Way Operation
• Fuse Protected
• Variable Temperature Adjustment For FIXED "AUTOMATIC" TEMP Refrigerators
• CHECK Light comes on After Each Ignition Try Fails To Sense a Flame
• Repeat the 3-Try Ignitions Cycle at 30 Minute Intervals If No Flame Is Sensed
• In 3-Way Models, the DC Element Will Drop Out and The DC Mode Light Will Flash if The Voltage Level Drops Too Low For More Than 10 Seconds

Troubleshooting

Potential problems that a new power board could solve:

• Refrigerator not sensing AC power
• Refrigerator not sensing AC heating element
• Refrigerator not sensing a flame
• Refrigerator not powering on
• Refrigerator incapable of resetting
• Intermittent issues
• SR code display
• If any electrical burn marks are present anywhere on front or back of power board, you should replace it.

Installation

Time: 30 minutes or less

Tools:

• Ratchet set
• Screwdriver

Steps:

• Turn your battery switch to OFF
• Remove power board cover
• Take a picture of the board before disconnecting any wires
• Disconnect all wires and remove defective board
• Place new board on old board cover base and connect wires
• Before placing board cover on, turn battery switch ON and power up refrigerator to verify everything is connected and that there are no faults present. If everything is working, put cover back on.
