Norcold 1200, 1201, 1210, 1211

Norcold 1200, 1201, 1210, and 1211 Parts and Products for Sale!

The 1200 and 1201 have been superseded by the 1210 and 1211. The 1210 and 1211 are the exact same refrigerator in every way. Click the links in the diagram below or continue scrolling down to categories to hone in on the needed Norcold part.



Norcold 1200/ 1210 Interactive Parts Diagram

Revised version with the discontinued Doors and Water Dispenser sections removed. This guide now focuses on the active / serviceable parts groups: Front & Interior, Rear Cooling, Rear Controls, and Ice Maker.

Front & Interior

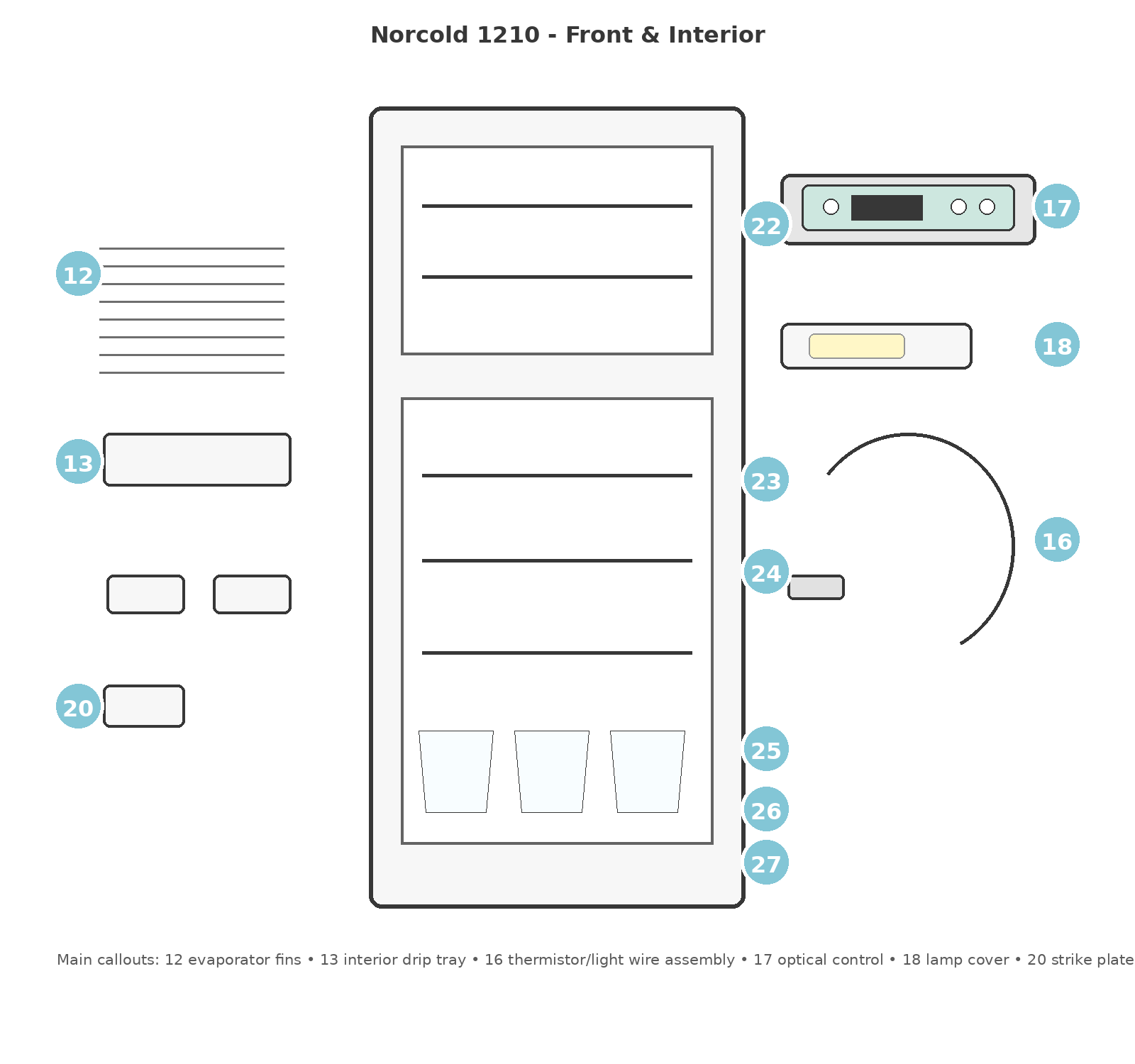

Norcold 1210 front interior parts diagram 17 22 23 24 25 26 27 20
# Part # Description Link
12 618785 / 640283 Fresh-food evaporator fins: 618785 through SN NR02GUW; 640283 from NR02GUX. Browse 1210 Parts
13 618774 Interior drip tray. Browse 1210 Parts

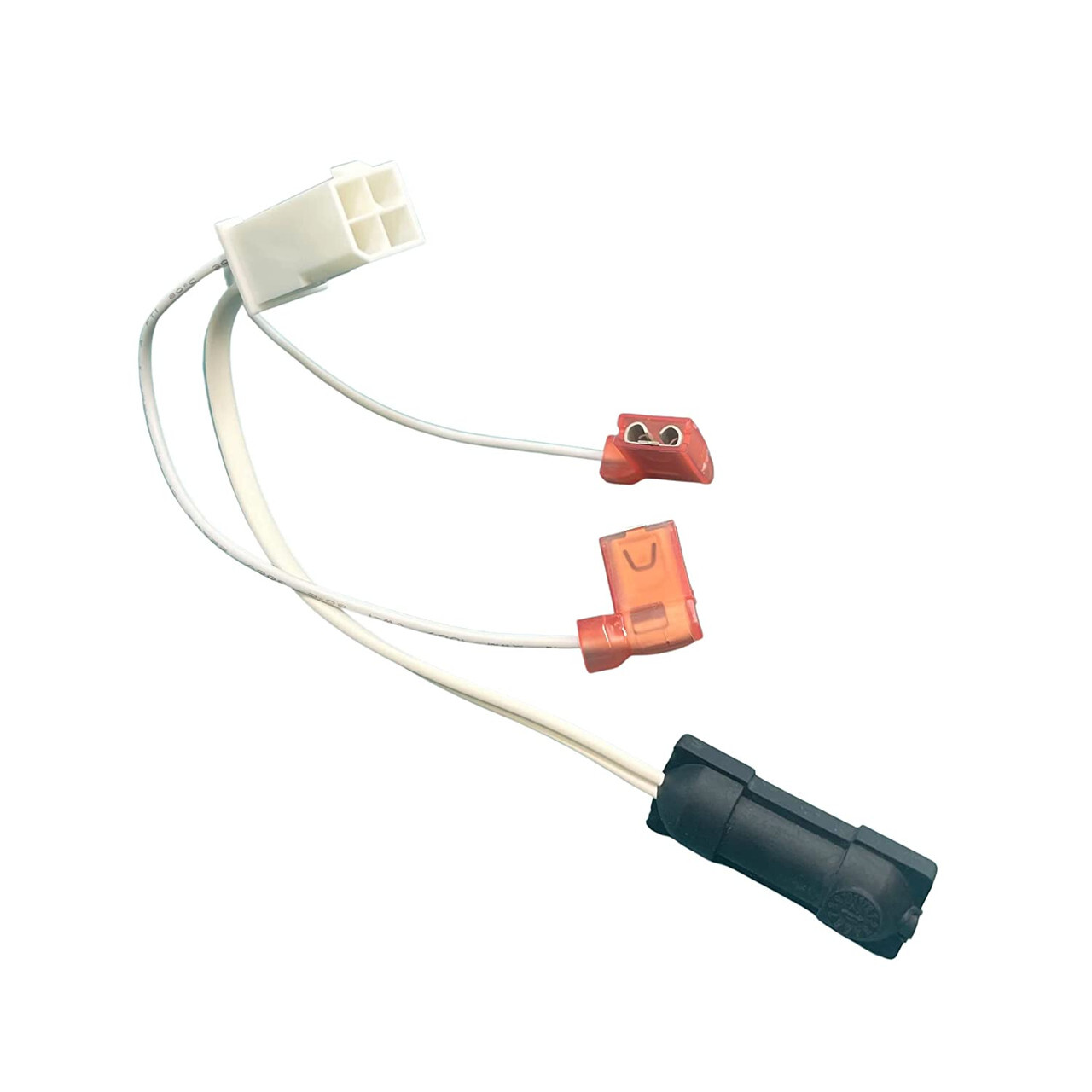

16 636658 Lamp / thermistor wire assembly. View Part

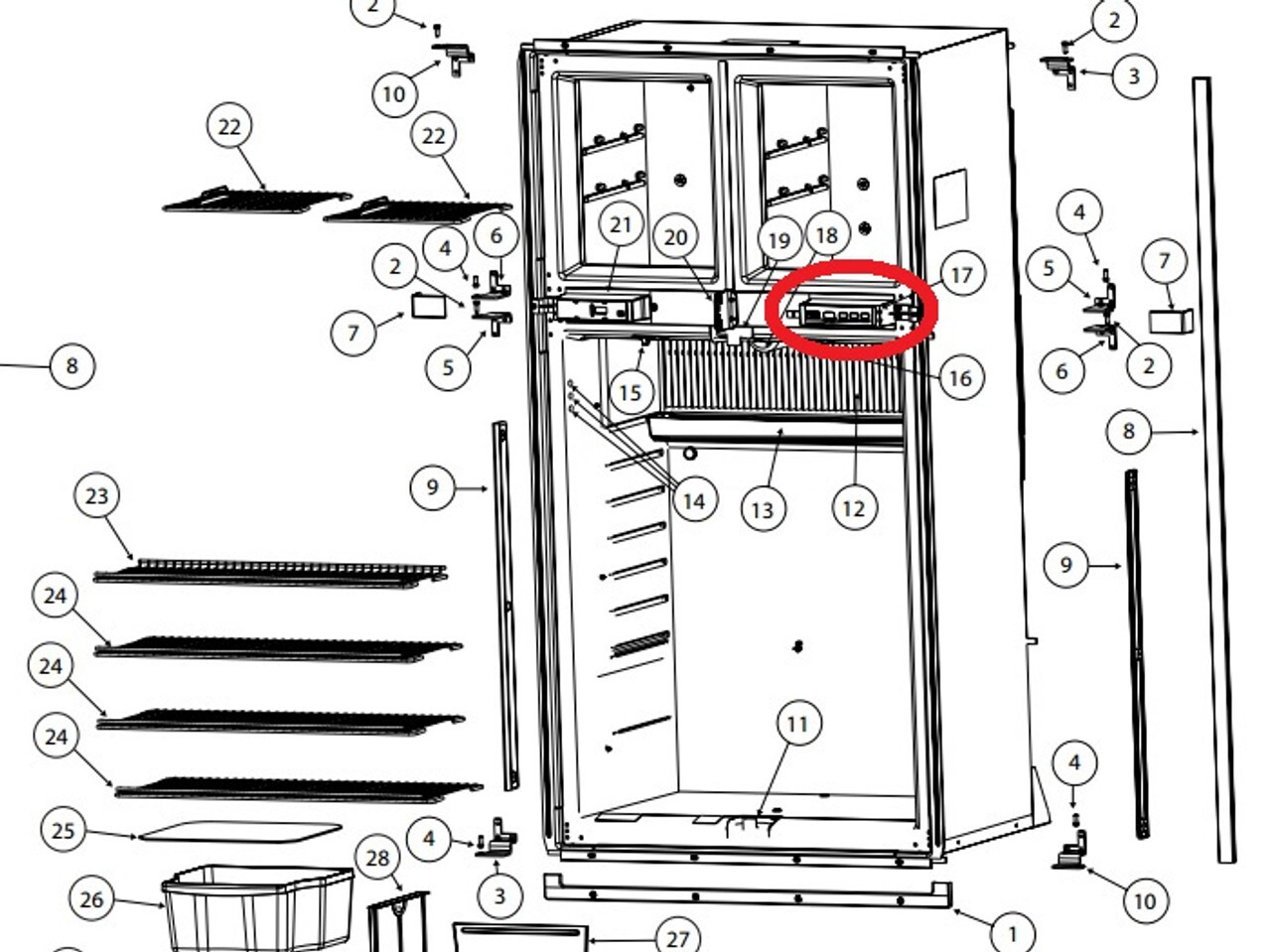

17 629113 / 629817 Optical control: 629113 GE 1210 series; 629817 AC 1210AC. Browse 1210 Parts
18 621827 Lamp bracket cover. Browse 1210 Parts
20 628473 Strike plate, black. View Part
22 632434 Freezer wire shelf. View Part
23 632436 Short wire shelf. View Part
24 618848 / 632435 Long shelf: 618848 through SN 18023741; 632435 from SN 18023742. Browse 1210 Parts
25 618757 Crisper cover glass shelf. View Part

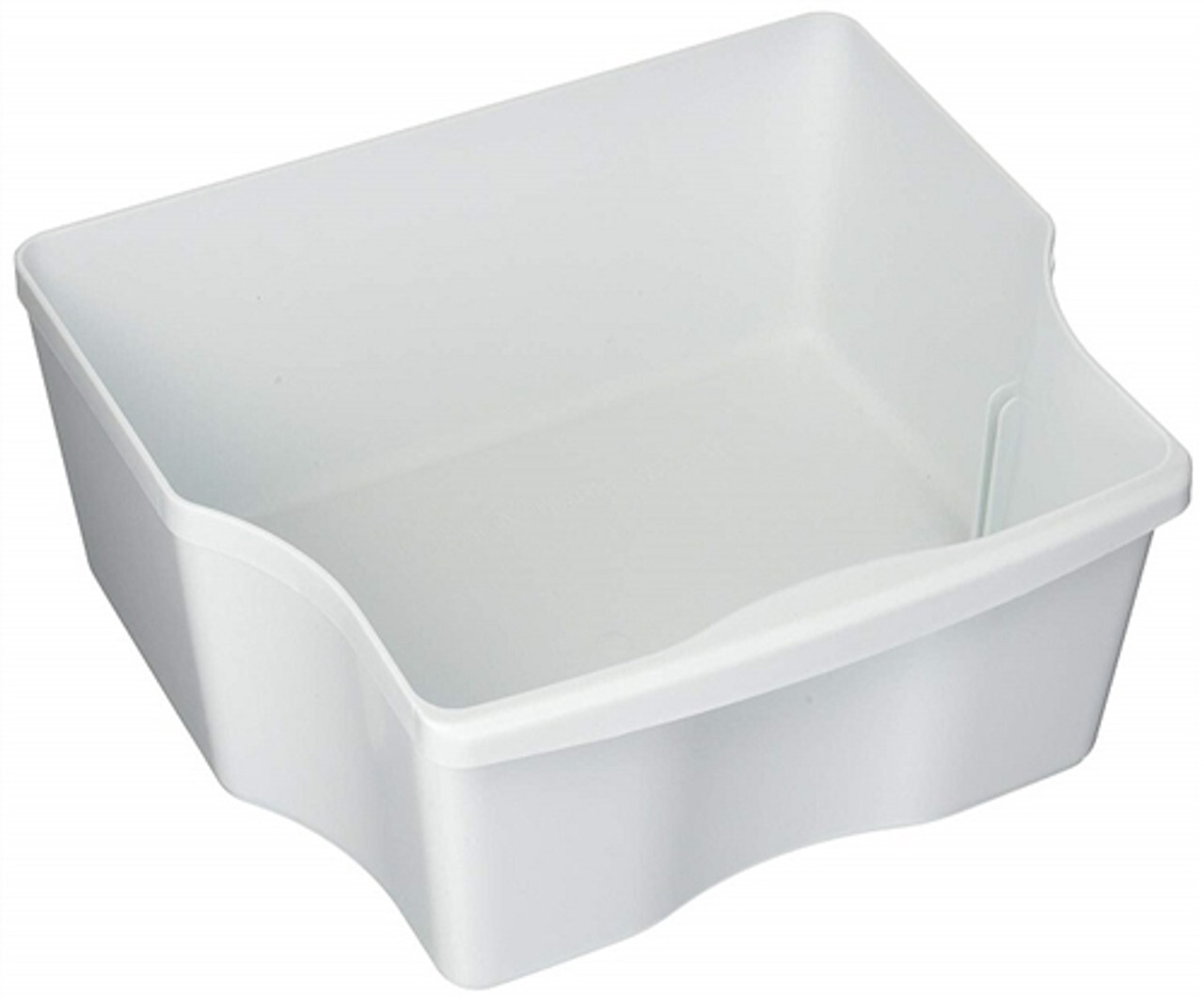

26 628688 Bottle / crisper bin. View Part
27 628694 Crisper divider. View Part
NS 622392 Drain hose assembly. Browse 1210 Parts

Rear Cooling Unit

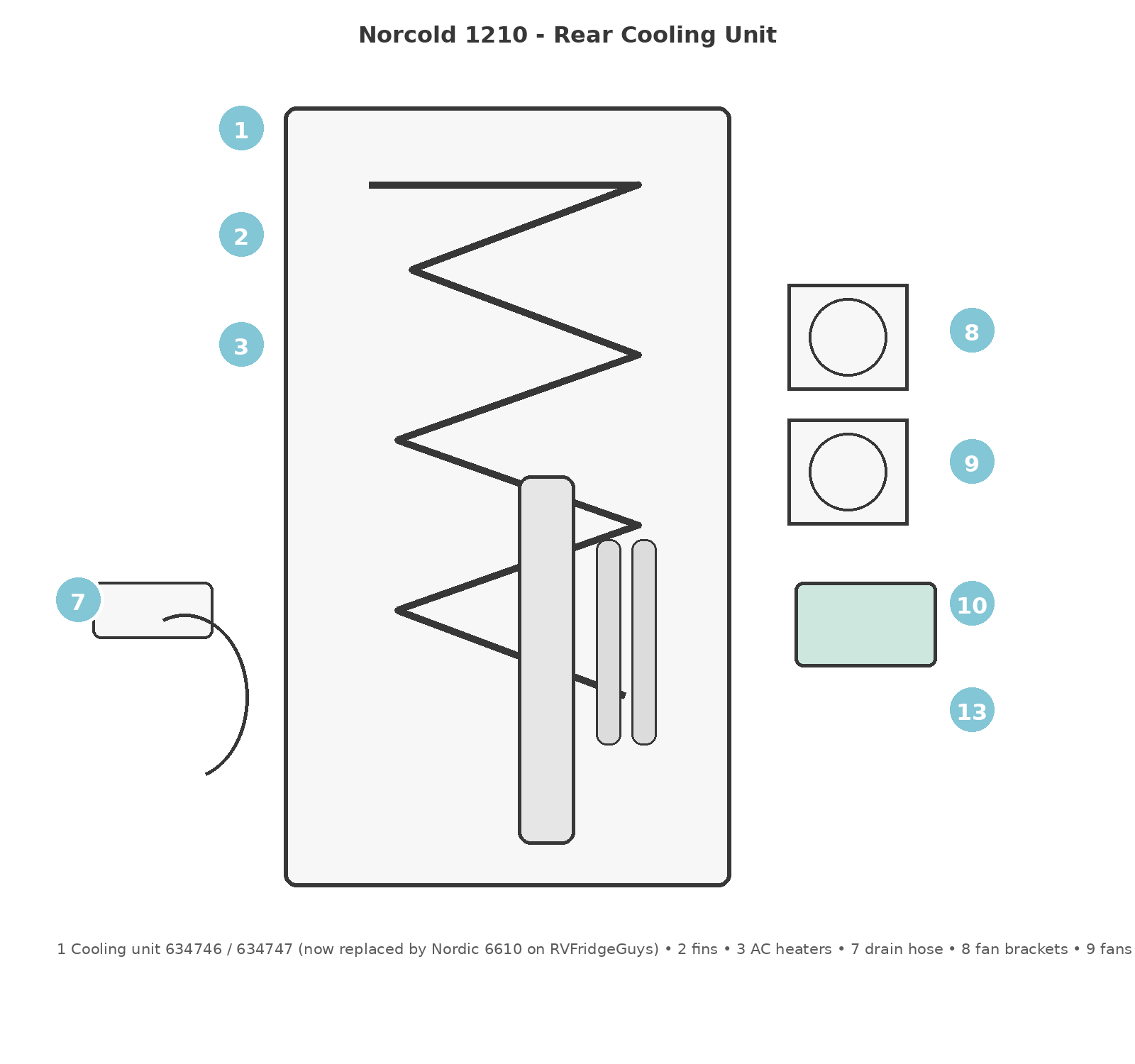

Norcold 1210 rear cooling unit parts diagram 1 8 9 10 13
# Part # Description Link
1 634746 / 634747 Cooling units: step/backer-heater style through SN 14883315; straight style from SN 14883316. RVFridgeGuys lists Nordic 6610 as replacement for both. View Part
2 618785 / 640283 Evaporator fins with NR02GUW / NR02GUX serial break. Browse 1210 Parts

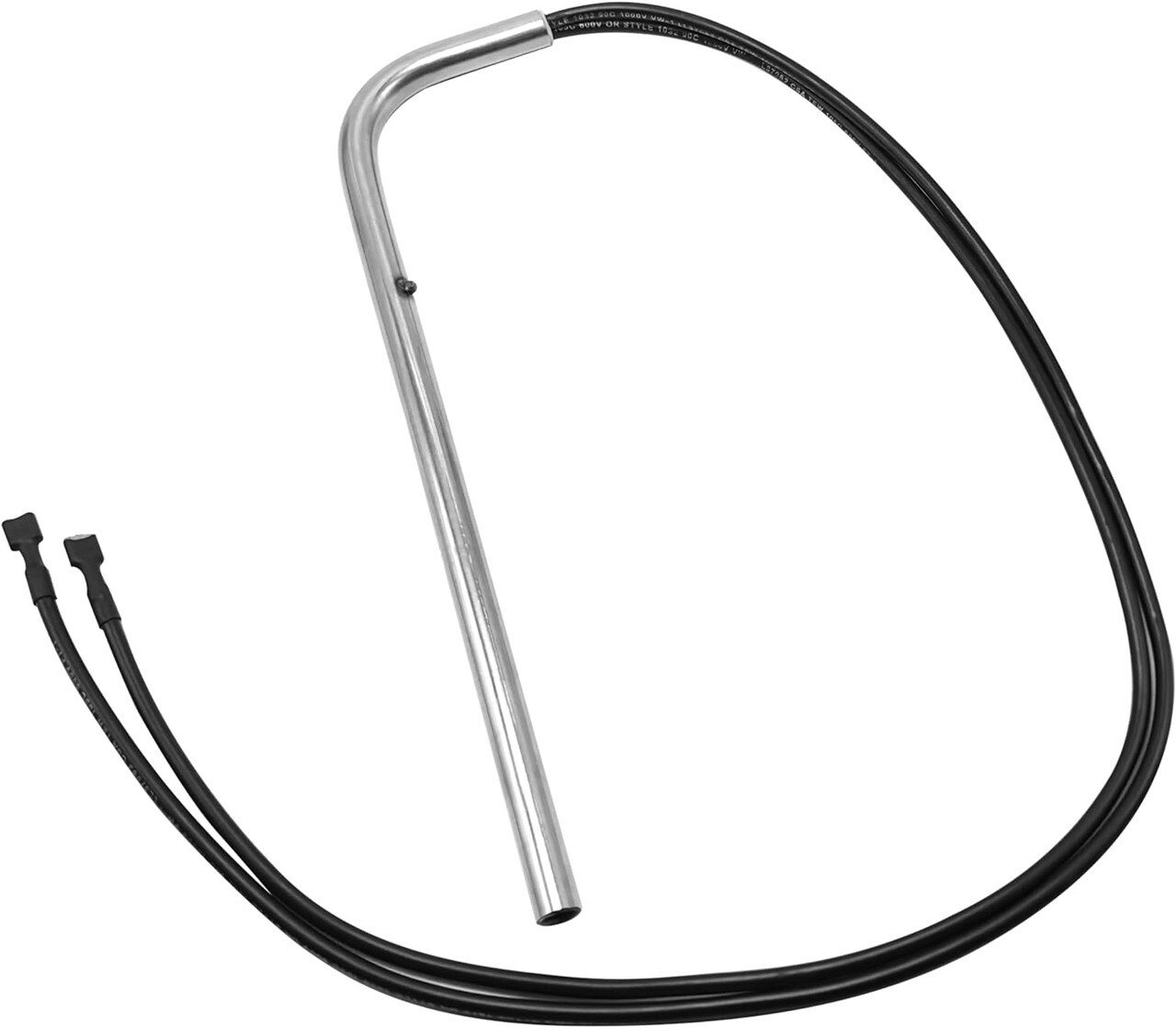

3 618872 / 638372 AC heater; two per cooling unit on original configuration, with service replacement kit listed by Norcold. Browse 1210 Parts
7 622392 / 635407 Drain hose assemblies with SN 16240755 / 16240756 break. Browse 1210 Parts
8 628747 DC fan mounting bracket, two per system. View Part
9 628685 External DC cooling fan, two per system. View Part
10 640235 / 638278 Fan thermostat / service replacement thermostat. Browse 1210 Parts
13 637360 Temperature monitor / high-temperature control. View Part

Rear Controls — Gas / Electric

Norcold 1210 rear controls parts diagram 2 5 7 11
# Part # Description Link
2 628661 Main power board for all 1210 models and 1200 models with a serial above 8981138. If your serial number is below 8981138, you need board 6212XX. View Part
3 628677 Power board cover. Browse 1210 Parts
5 637540 Gas valve service replacement. View Part
6 638982 Gas burner tube service replacement. Browse 1210 Parts
7 629013 / 635614 Burner/orifice adapter assembly; OEM gives a serial break. 635614 is the later 1210 assembly. Browse 1210 Parts
8 61554422 / 621755 / 618406 AC power cords; exact cord depends on ice-maker configuration. Browse 1210 Parts
11 61692222 / 638097 Spark/sense electrode and service replacement kit. View Part

Ice Maker

Norcold 1210 ice maker parts diagram 2 4 9
# Part # Description Link
2 633324 Ice maker kit / assembly. View Part
4 621429 / 625879 Water tube/heater assembly: 621429 without dispenser; 625879 with dispenser. Browse 1210 Parts
7 618407 Ice maker wire harness. Browse 1210 Parts
9 640908 / 637164 Ice maker water valve: 640908 single-port; 637164 dual-port dispenser application. Browse 1210 Parts
13 61656922 Ice maker shutoff arm. Browse 1210 Parts
14 618803 White ice bin. Browse 1210 Parts
15 618847 Freezer wire shelf. Browse 1210 Parts
