Dometic DM2682

Find the part you need on the exploded diagrams of the Dometic DM2682LBF Americana II Plus 6 cu. ft. 2-way RV refrigerator. Click a highlighted number to go straight to that part. A red X means the part is currently unavailable.

Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.

Burner & ElectricalPower Board, Burner & FanCooling Unit & Thermal FuseCabinet & ThermistorInterior Shelves & RailsDoors, Handles & Door Bins

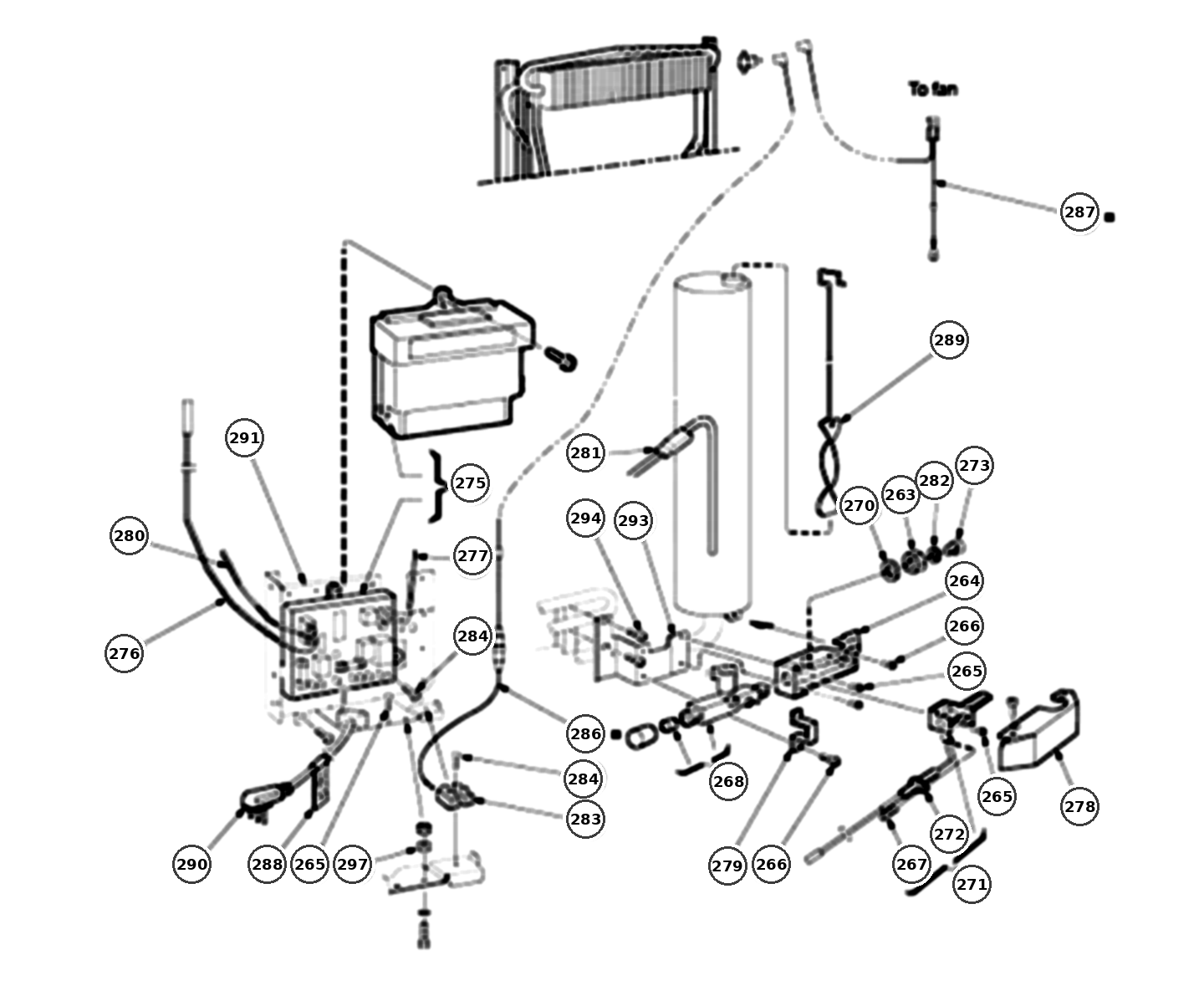

Dometic DM2682 Burner & Electrical Parts

# Part Fits
264 Gas Valve / Burner / Igniter Assembly (also #270, #277, #279, #282) Part # 3850730569 DM2682 View part
272 Electrode with Lead Wire Part # 2932781012 DM2682 View part
275 Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 DM2682 View part
276 Thermistor Kit with Plug and Holder Part # 38510590422 DM2682 View part

Back to top

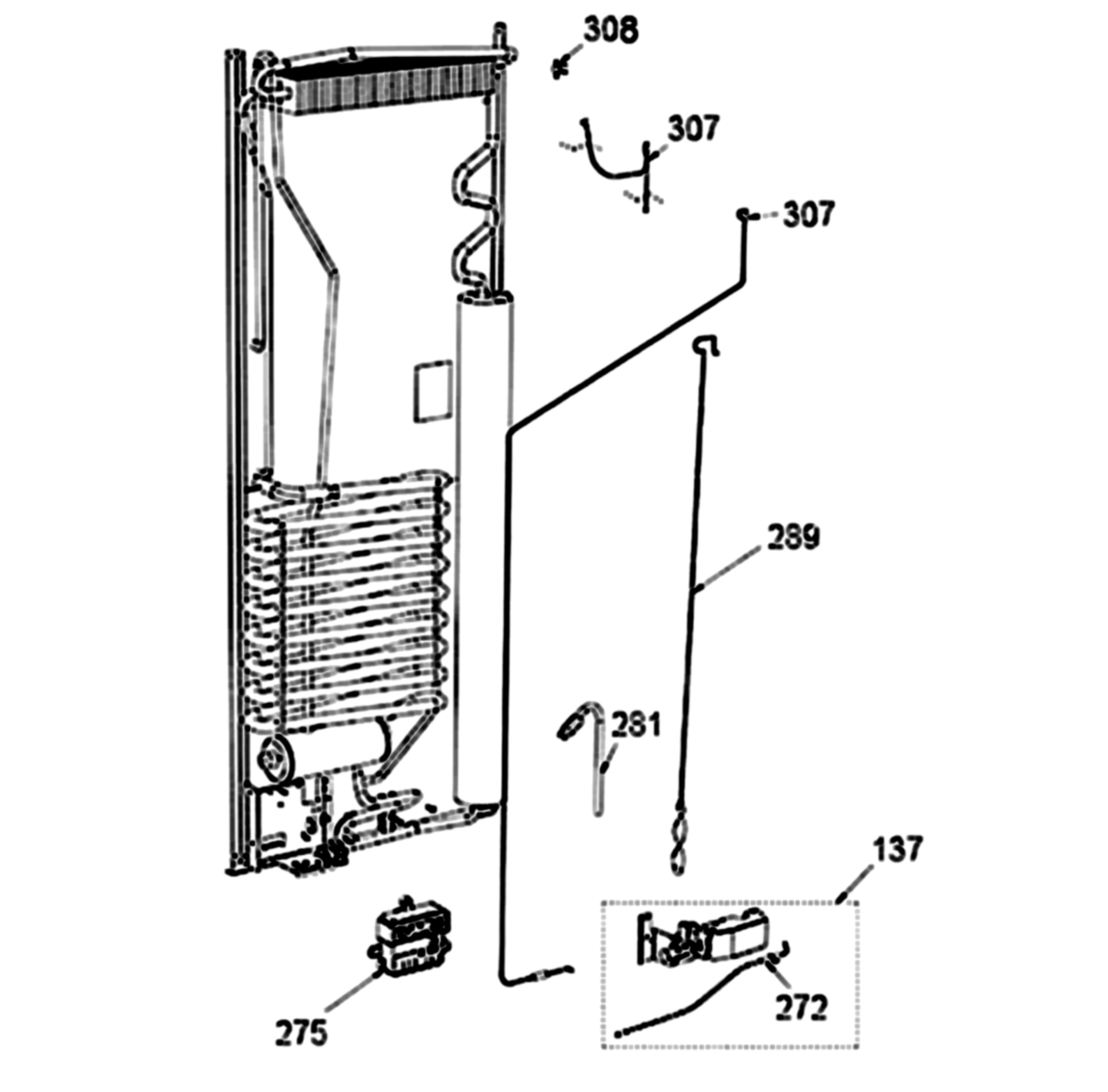

Dometic DM2682 Power Board, Burner & Fan Parts

# Part Fits
137 Gas Valve / Burner / Igniter Assembly Part # 3850730569 DM2682 View part
272 Electrode with Lead Wire Part # 2932781012 DM2682 View part
275 Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 DM2682 View part

Back to top

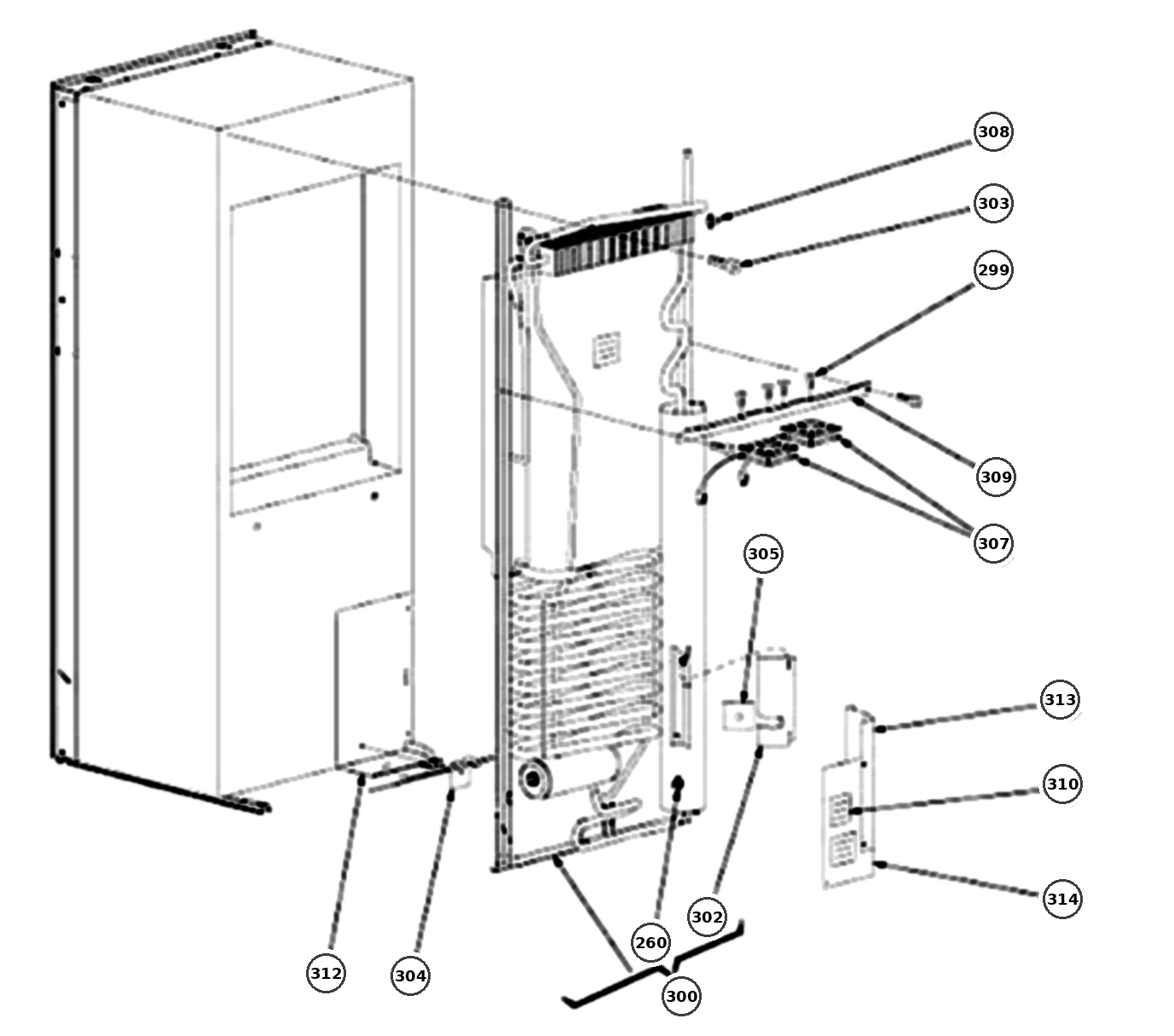

Dometic DM2682 Cooling Unit & Thermal Fuse Parts

# Part Fits
260 Thermal Fuse/Switch Kit (also #304) Part # 38514090155 DM2682 View part
300 Cooling Unit (606/626) Part # 3313470.003 DM2682 View part

Back to top

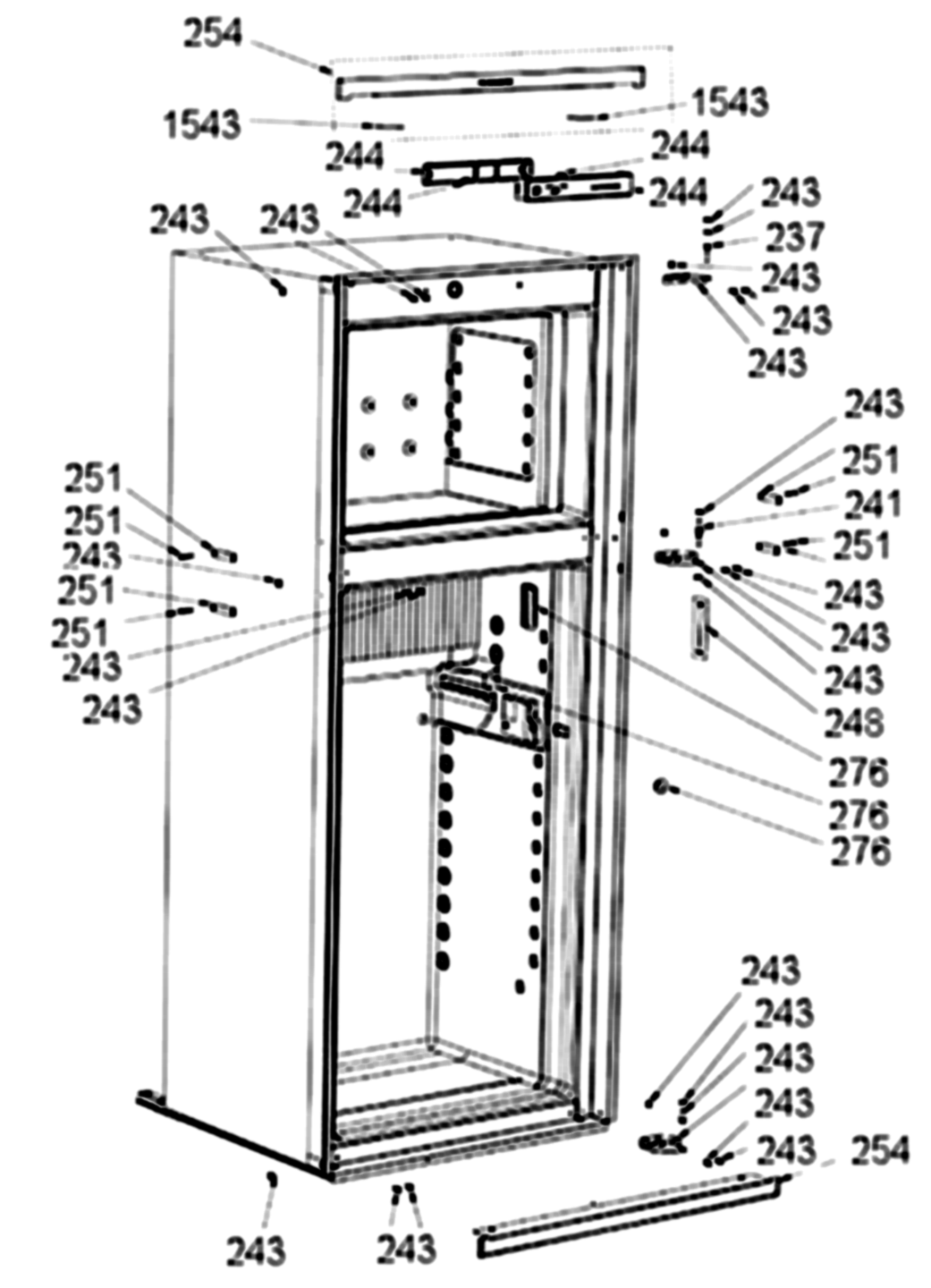

Dometic DM2682 Cabinet & Thermistor Parts

# Part Fits
276 Thermistor Kit with Plug and Holder Part # 38510590422 DM2682 View part

Back to top

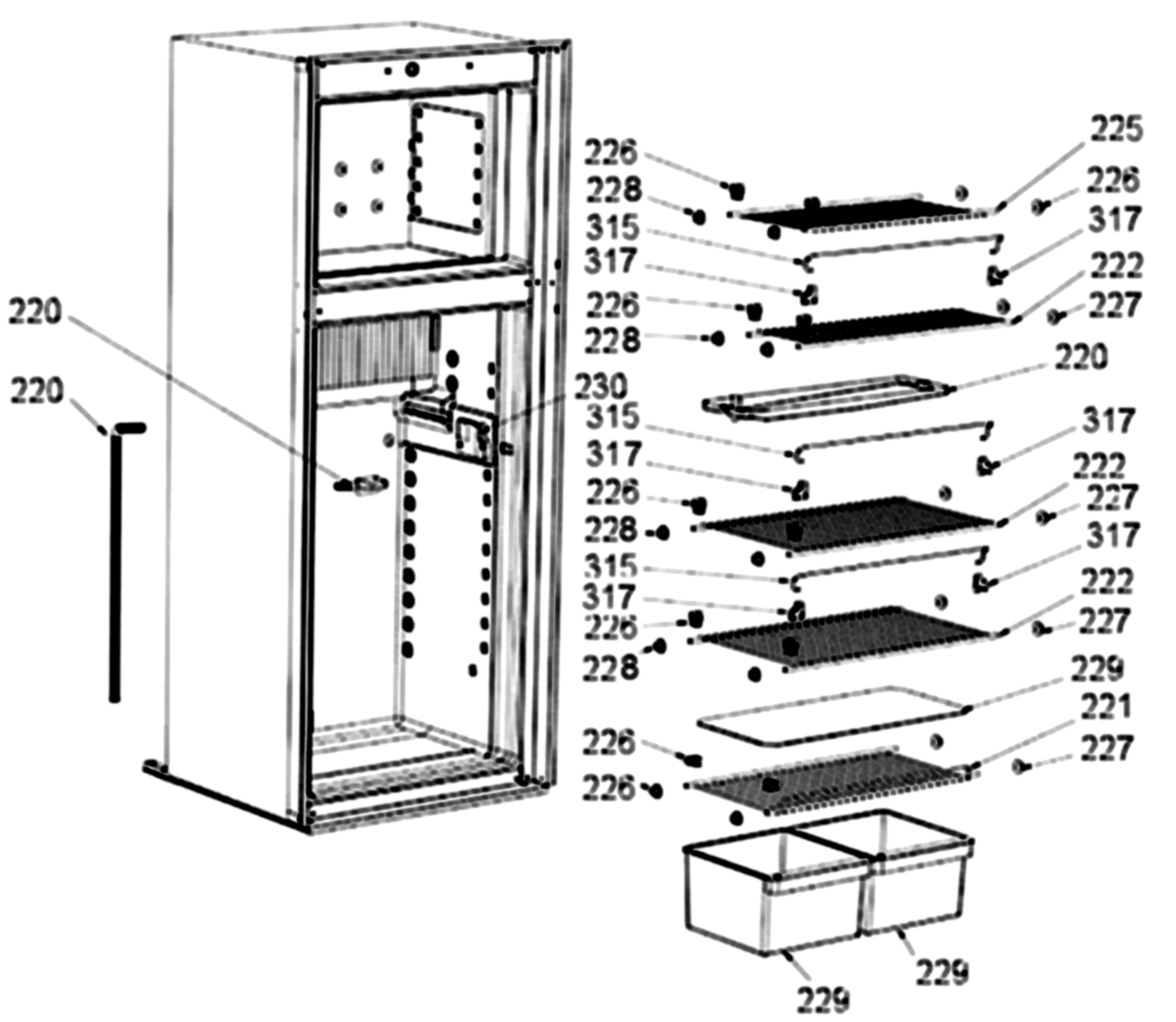

Dometic DM2682 Interior Shelves & Rails Parts

# Part Fits
227 Shelf Plug, Right Side Part # 2932101013 DM2682 View part
228 Shelf Plug, Left Side Part # 2932103019 DM2682 View part
315 Shelf Rail Combo Kit (also #317) Part # 20073372111 DM2682 View part
NS Drain Cup Part # 2932635010 DM2682 View part

Back to top

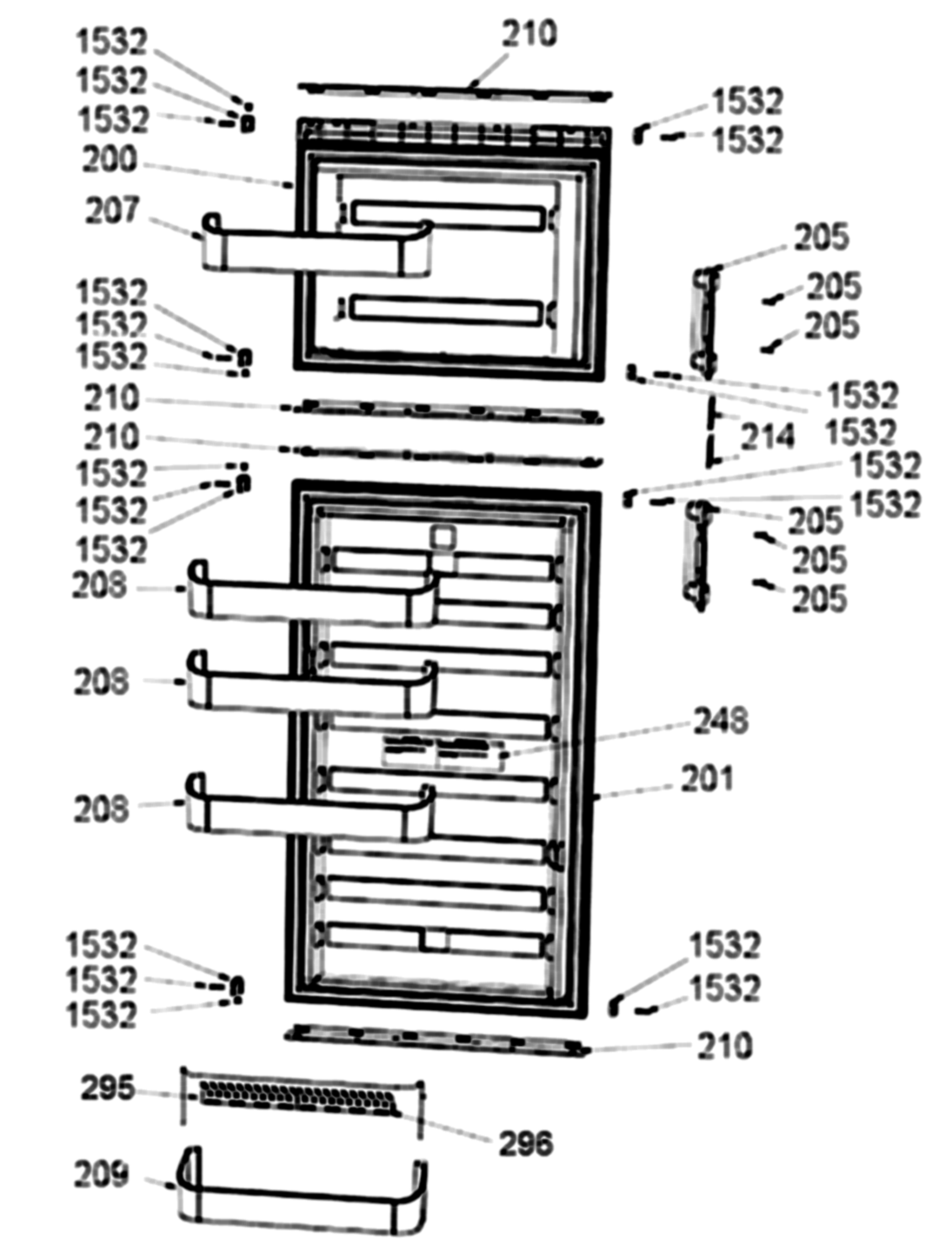

Dometic DM2682 Doors, Handles & Door Bins Parts

# Part Fits
205 Door Handle Set (Americana II 6 & 8 cu. ft.) Part # 3316882.900 DM2682 View part
207 Door Shelf Combo Kit, Clear (5 bins) (also #208, #209, #295, #296) Part # 29325760655 DM2682 View part
210 Door End Caps, Top and Bottom Part # 3316883.900 DM2682 View part
NS Decorative Strip (replaces door panel support pin) Part # 38509191133 DM2682 View part

Back to top

More DM2682 Parts (not shown on diagram)

# Part Fits
NS Door (Panel Type, Lower) Part # 3316889.900 DM2672, DM2682, DM2683 View part
NS Door (Panel Type, Upper/ Freezer) Part # 3316890.900 DM2672, DM2682, DM2683, DM2872 View part
NS Door Hinge Bushing Part # 3316885.900 DM2672, DM2682, DM2683, DM2872 View part

Only parts we currently sell are highlighted. Diagrams and part numbers are based on the Dometic DM2682LBF (product ID 970003862) parts breakdown. Confirm fitment with your model and serial number before ordering.

!
