Find the part you need on the exploded diagrams of the Norcold N4000 series RV refrigerators: the N4104, N4141 and N4150. Click a highlighted number to go straight to that part.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
N4104 & N4150 Control PanelN4104 Cabinet, Door & ShelvesN4104 Rear ComponentsN4150 Cabinet, Door & ShelvesN4150 Rear ComponentsN4141 Control PanelN4141 Cabinet, Doors & ShelvesN4141 Rear Components

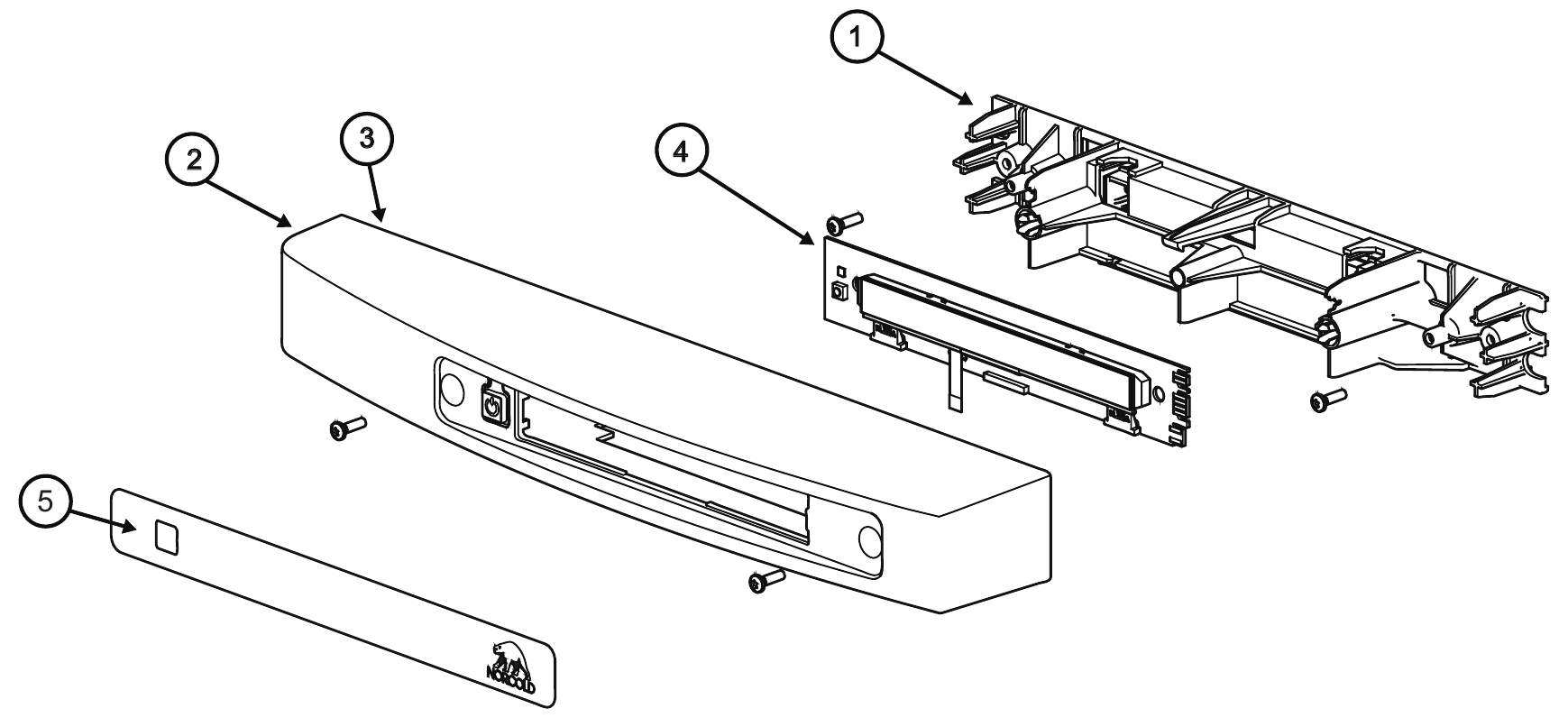

Norcold N4104 & N4150 Control Panel Parts
| # | Part | Fits | |
|---|---|---|---|
| 4 | Control Panel Part # 692246 |
N4104, N4150 | View part |

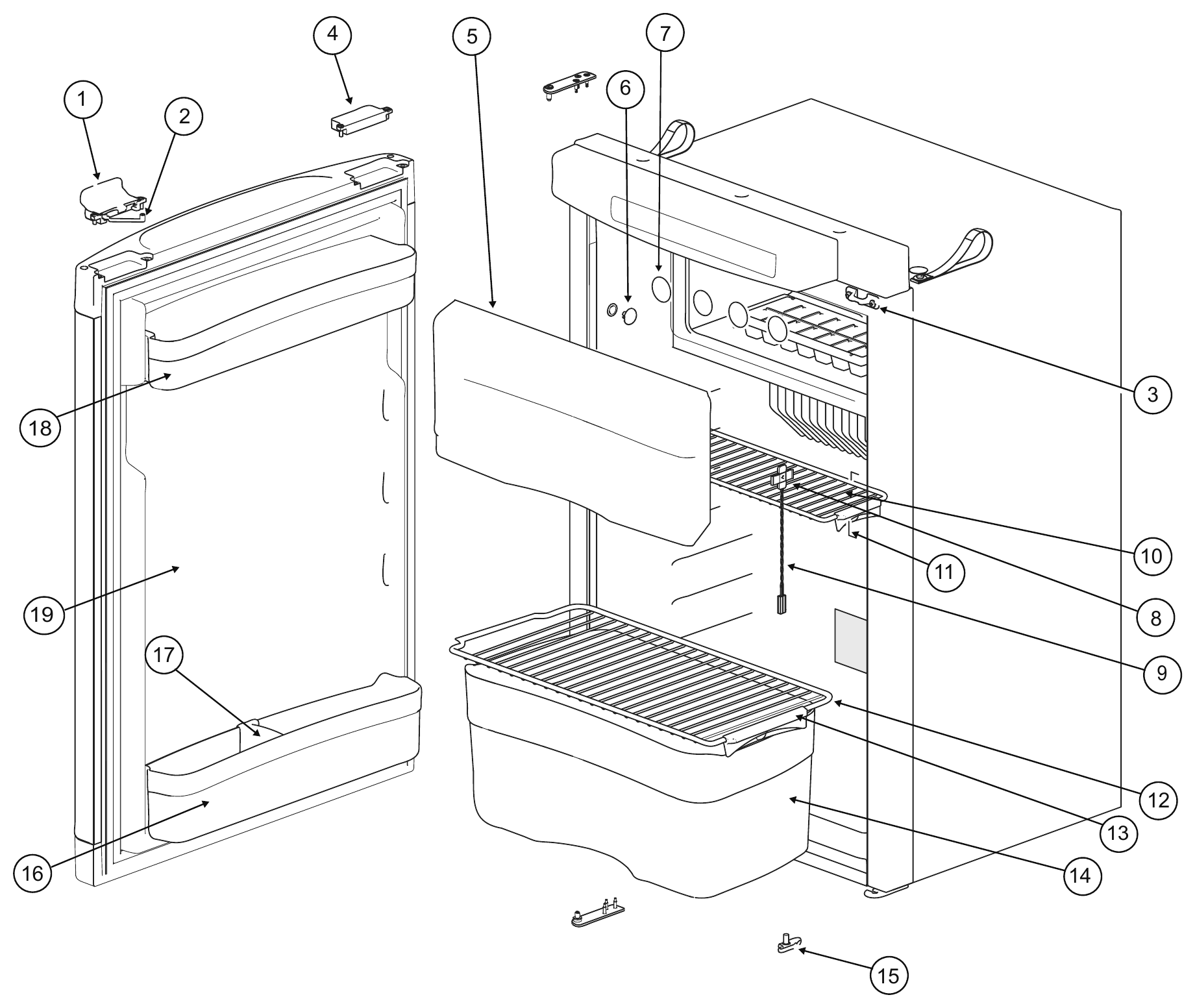

Norcold N4104 Cabinet, Door & Shelves Parts
| # | Part | Fits | |
|---|---|---|---|
| 9 | Thermistor Part # 623077 |
N4104 | View part |
| 10 | Top Shelf (17.9 in. x 5.2 in.) Part # 690815 |
N4104 | View part |
| 12 | Bottom Shelf (17.9 in. x 8.7 in.) Part # 69082808 |
N4104 | View part |
| 16 | Bottom Door Bin Part # 69082408 |
N4104 | View part |
| 19 | Refrigerator Door Part # 690152107R |
N4104 | View part |
| NS | Door Swing Change Kit, Right Hand to Left Hand Part # 69021827 |
N4104 | View part |

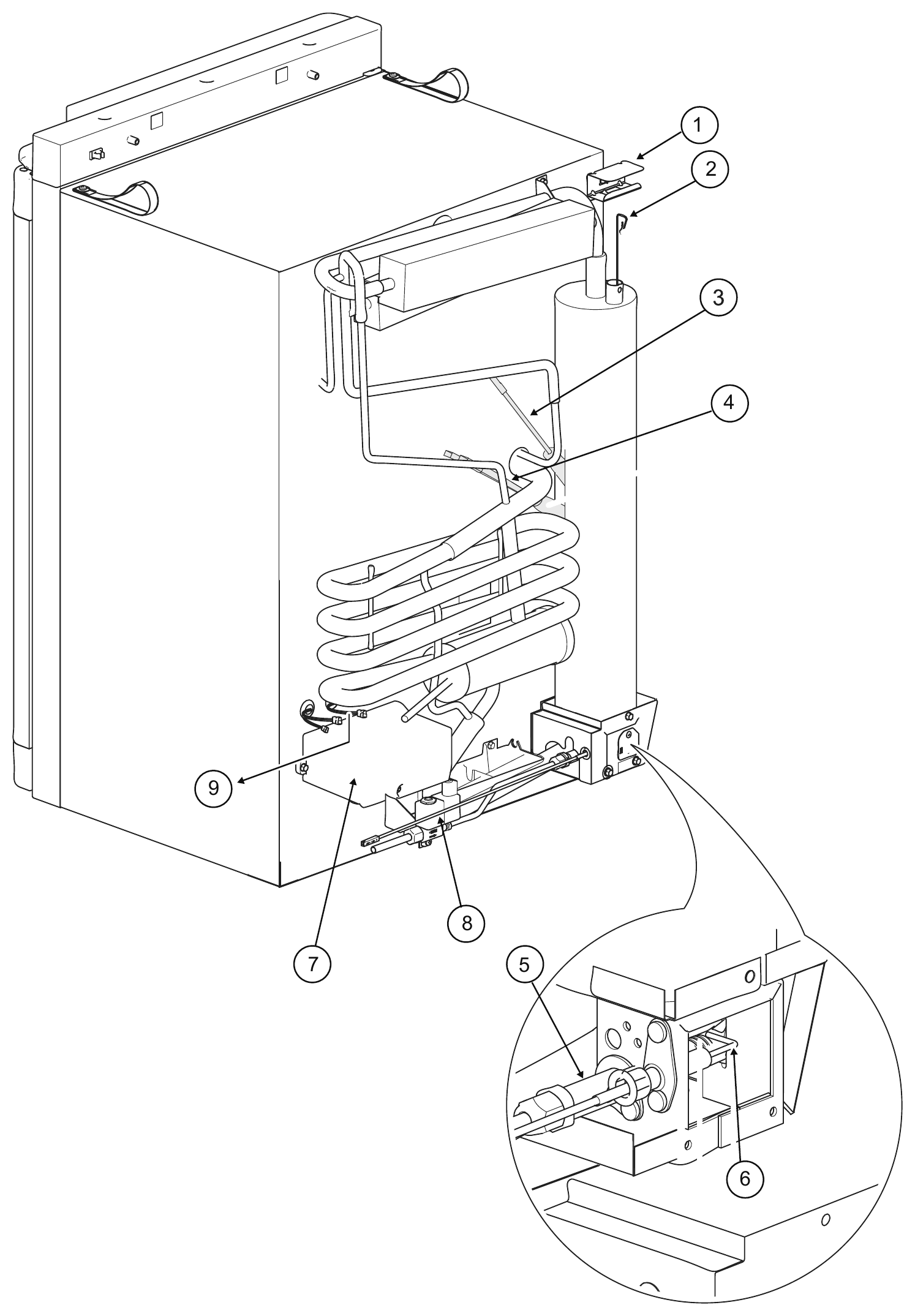

Norcold N4104 Rear Components Parts
| # | Part | Fits | |
|---|---|---|---|
| 7 | Compressor Power Module Part # 692249 |
N4104 | View part |
| 8 | Gas Valve Part # 636873 |
N4104 | View part |

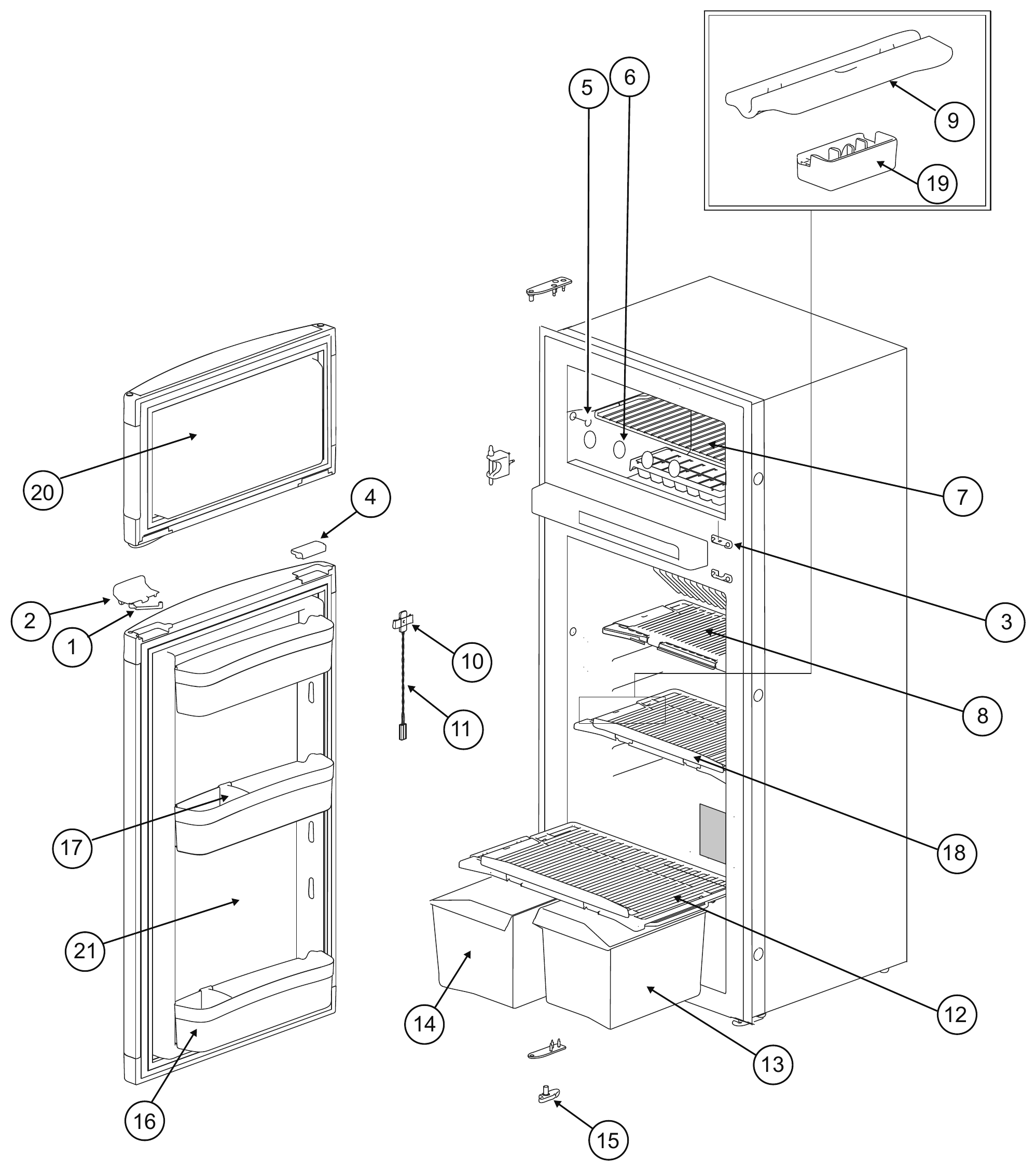

Norcold N4150 Cabinet, Door & Shelves Parts
| # | Part | Fits | |
|---|---|---|---|
| 11 | Thermistor Part # 623077 |
N4150 | View part |
| 16 | Door Bin Part # 692520144 |
N4150 | View part |
| 20 | Freezer Door Part # 692372107R |
N4150 | View part |
| 21 | Refrigerator Door Part # 690153107R |
N4150 | View part |

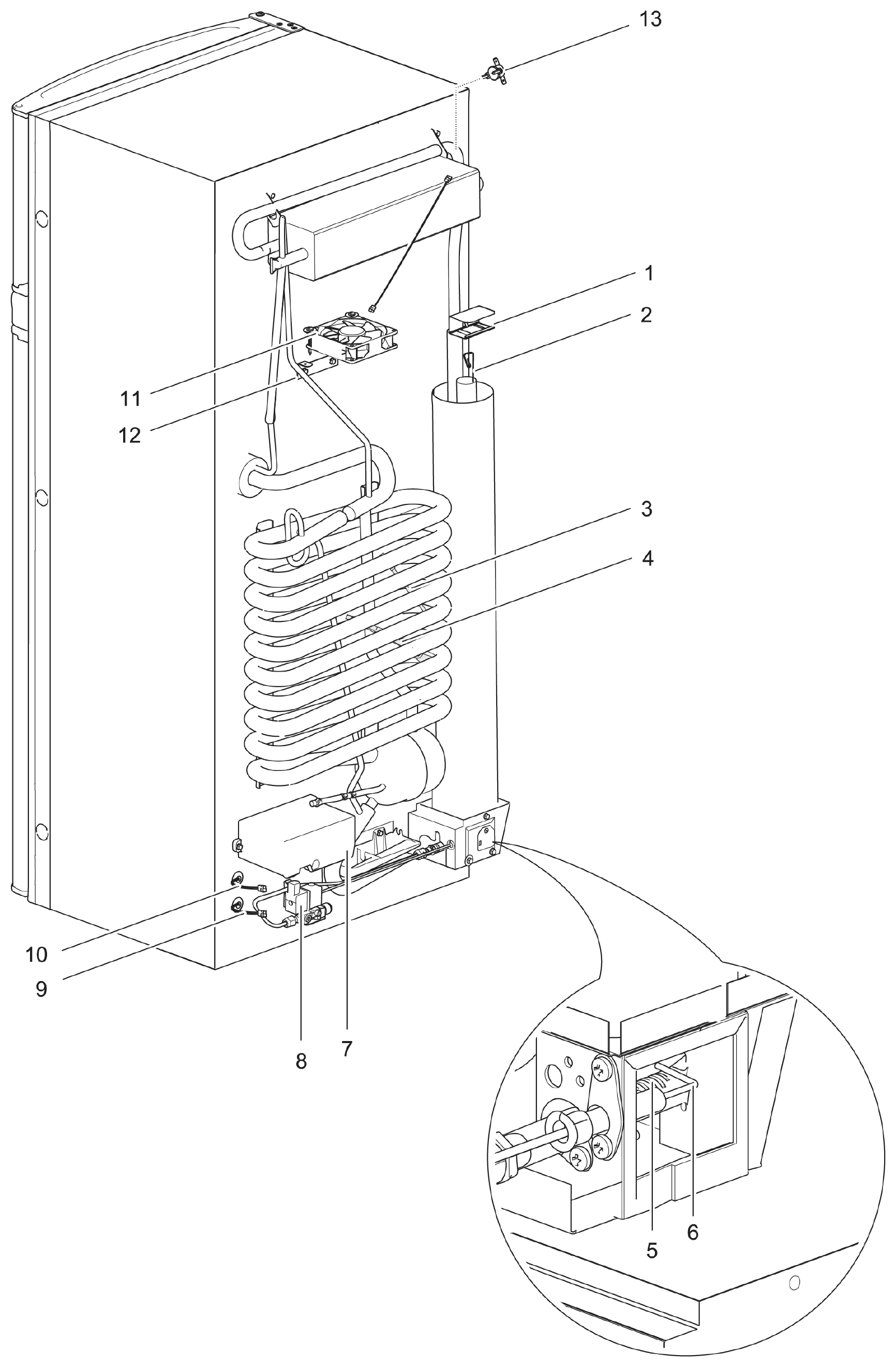

Norcold N4150 Rear Components Parts
| # | Part | Fits | |
|---|---|---|---|
| 3 | AC Heater Part # 638215 |
N4150 | View part |
| 4 | DC Heater Part # 639192 |
N4150 | View part |
| 5 | Burner Assembly Part # 638986 |
N4150 | View part |
| 6 | Spark Electrode Part # 690840 |
N4150 | View part |
| 7 | Compressor Power Module Part # 692249 |
N4150 | View part |
| 8 | Gas Valve Part # 636873 |
N4150 | View part |

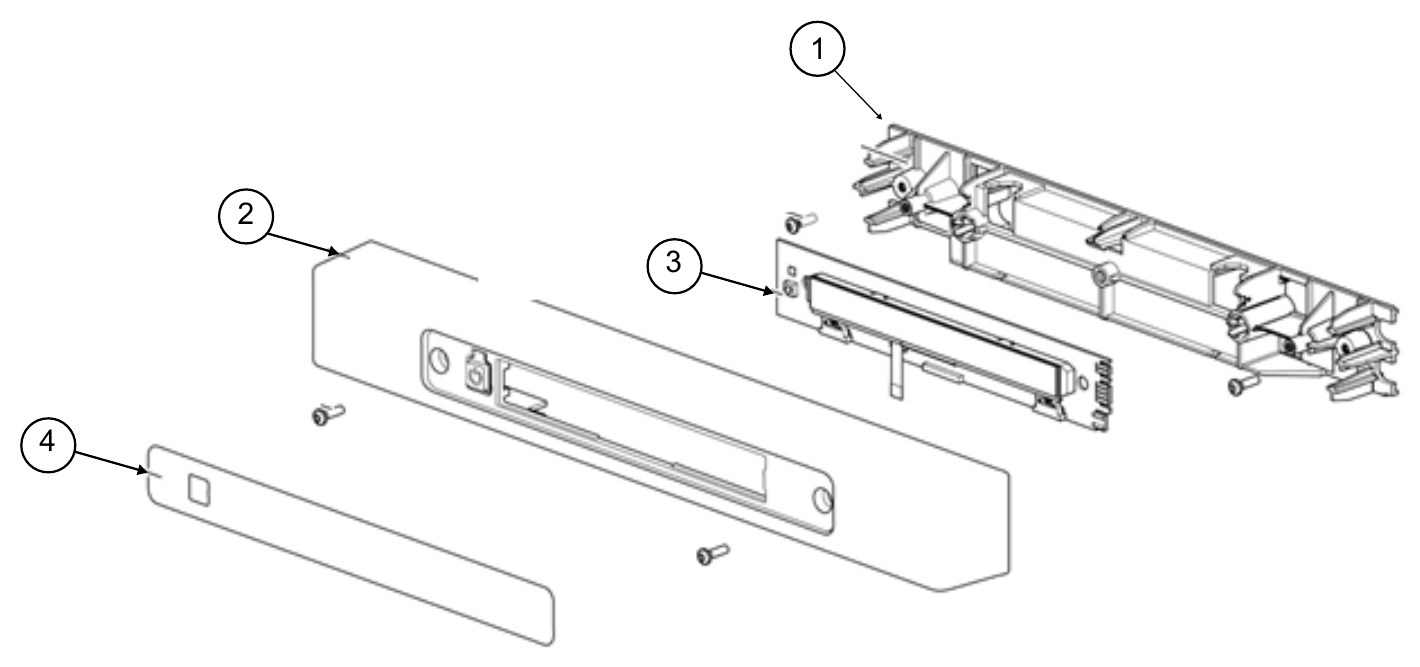

Norcold N4141 Control Panel Parts
| # | Part | Fits | |
|---|---|---|---|
| 3 | Control Panel Part # 692246 |
N4141 | View part |
Norcold N4141 Cabinet, Doors & Shelves Parts

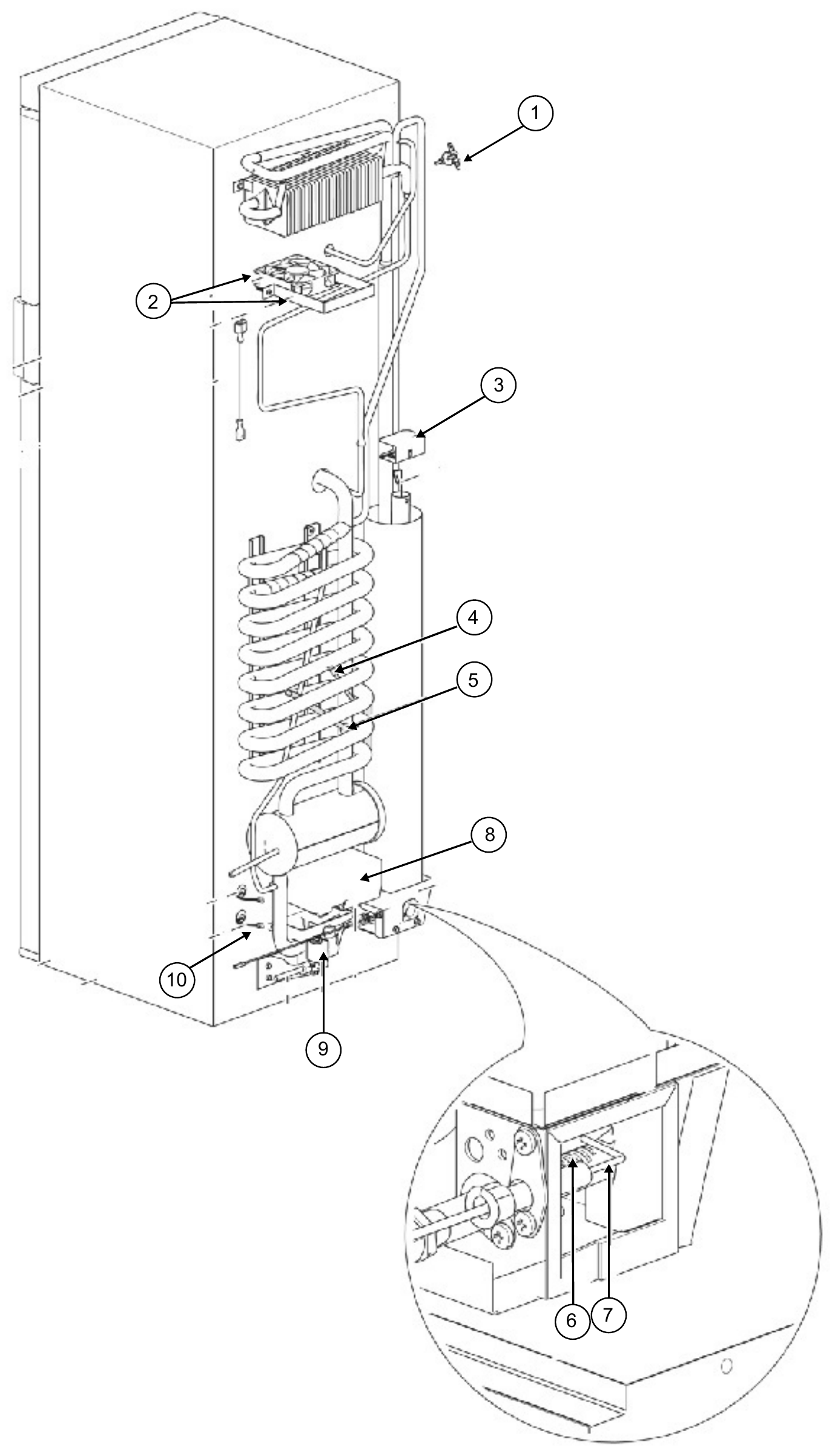

Norcold N4141 Rear Components Parts
| # | Part | Fits | |
|---|---|---|---|
| 4 | AC Heater Part # 638215 |
N4141 | View part |
| 5 | DC Heater Part # 639192 |
N4141 | View part |
| 6 | Burner Assembly Part # 638986 |
N4141 | View part |
| 8 | Compressor Power Module Part # 692249 |
N4141 | View part |
| 9 | Gas Valve Part # 636873 |
N4141 | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N4000 series parts list (640323, 08/20/2025). Confirm fitment with your model and serial number before ordering.
