Outdoor Vents (roof and side)
Genuine Norcold outside side vents, roof vents and vent parts for RV refrigerators. Measure the hole in your sidewall, not the old frame, and match it to the cutout sizes below.
| Vent | Cutout (H × W) | Notes |
|---|---|---|

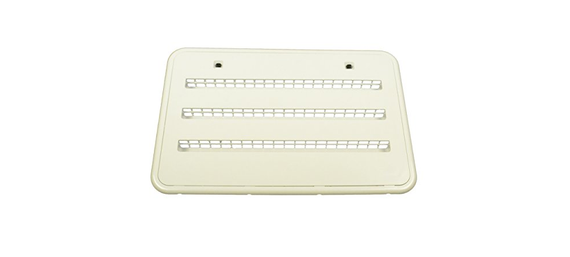

| 621156 side vent door | 13-3/4" × 21-1/2" | Polar white, bright white, black. Latches included. |
| 620505PW side vent | 6-3/16" × 17-3/16" | Polar white, radius corners |
| 69110027 vent | 8-7/8" × 15-11/16" | N3141 / N4141 only, black |
| 616319BWH roof base | About 5-1/4" × 24" | Takes the 622293CBW cap |
Opening doesn’t match? It’s likely a vent your RV manufacturer installed. Call them with your VIN for the part number, and never make the opening smaller; your fridge needs the airflow.

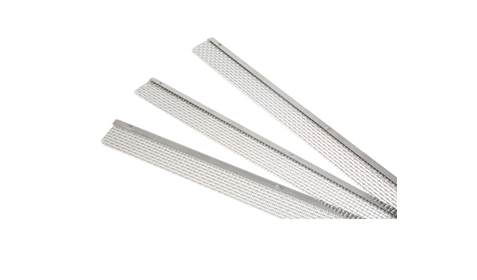

Keeping your old door? Grab a 617772 latch or a R-300 bug screen to keep wasps out of the burner.
Full measuring guide and RV manufacturer contacts: Norcold Vent Cutout Sizes.
