Find the part you need on the exploded diagrams of the Norcold N7 and N8 Polar RV refrigerators (N7V, N8V, N7X, N8X, N7LX, N8LX, NA7, NA8 and their F, C, IM and .3 variants). Click a highlighted number to go straight to that part.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Upper (Freezer) DoorLower (Fresh Food) DoorCabinet, Shelves & InteriorCooling Unit & HeatersRear Controls, Power & GasIce Maker

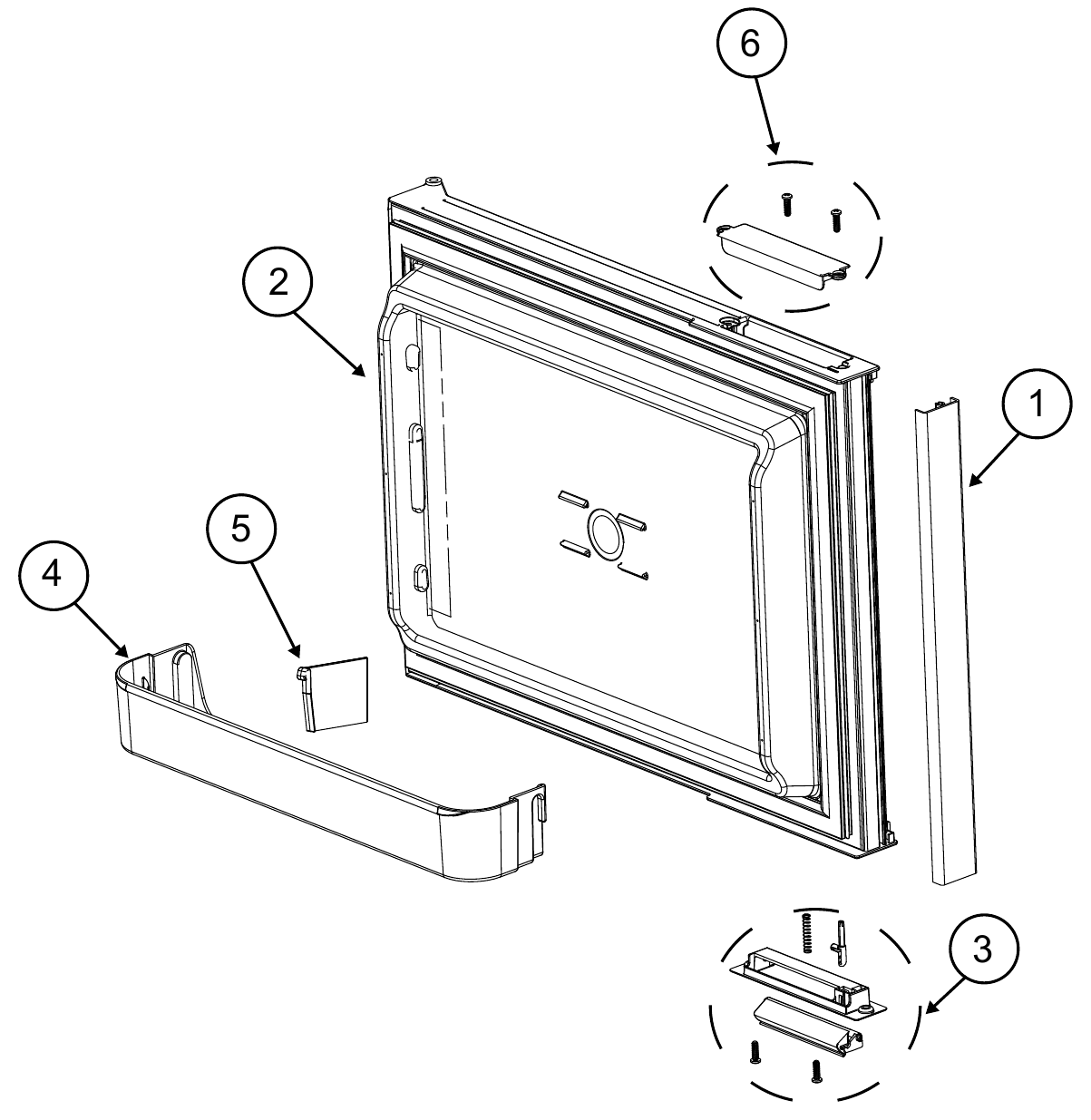

Norcold N7 & N8 Upper (Freezer) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Freezer Door Assembly Part # 638530 |
N7V, N8V, N7X, N8X, N7LX, N8LX | View part |
| 4 | Door Bin, White (qty 1) Part # 624863 |
N7V, N8V, N7X, N8X | View part |

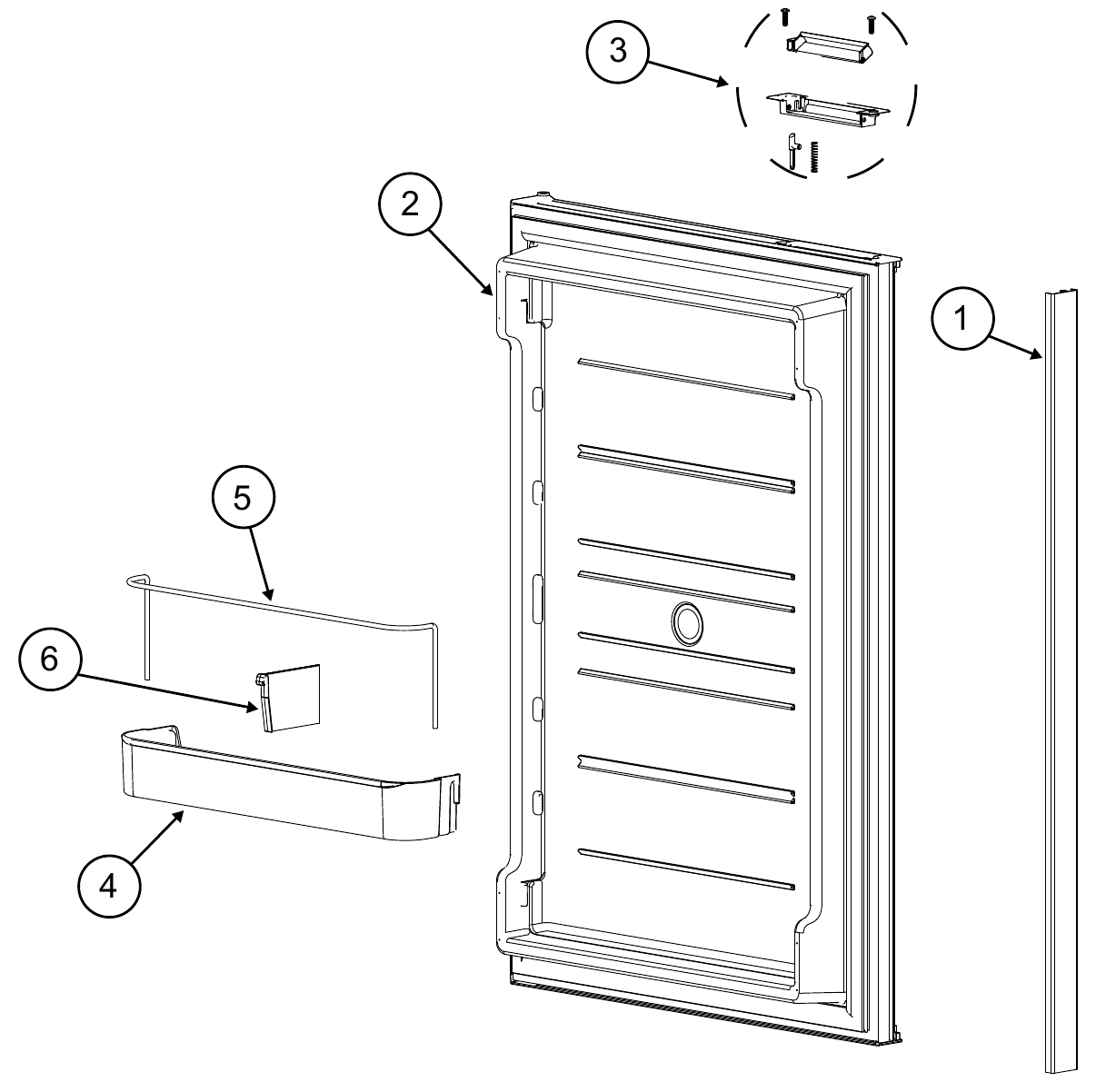

Norcold N7 & N8 Lower (Fresh Food) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Door Assembly, Black Part # 638532 |
N7V, N7X, N7LX | View part |
| 2 | Door Assembly, Black Part # 638534 |
N8V, N8X, N8LX | View part |
| 4 | Door Bin, White (qty 1) Part # 624863 |
N7V (x3), N8V (x4), N7X (x3), N8X (x4) | View part |
| 5 | Door Bin Wire Part # 624866 |
N7V, N8V, N7X, N8X, N7LX, N8LX | View part |
| NS | Decorative Door Panel Adapter Part # 639406 |
NA7LXIM, NA8LXIM, NA8LXIMF, NA7LX.3, NA8LX.3, NA7LX, NA7LXF, NA8LX, NA8LXF | View part |

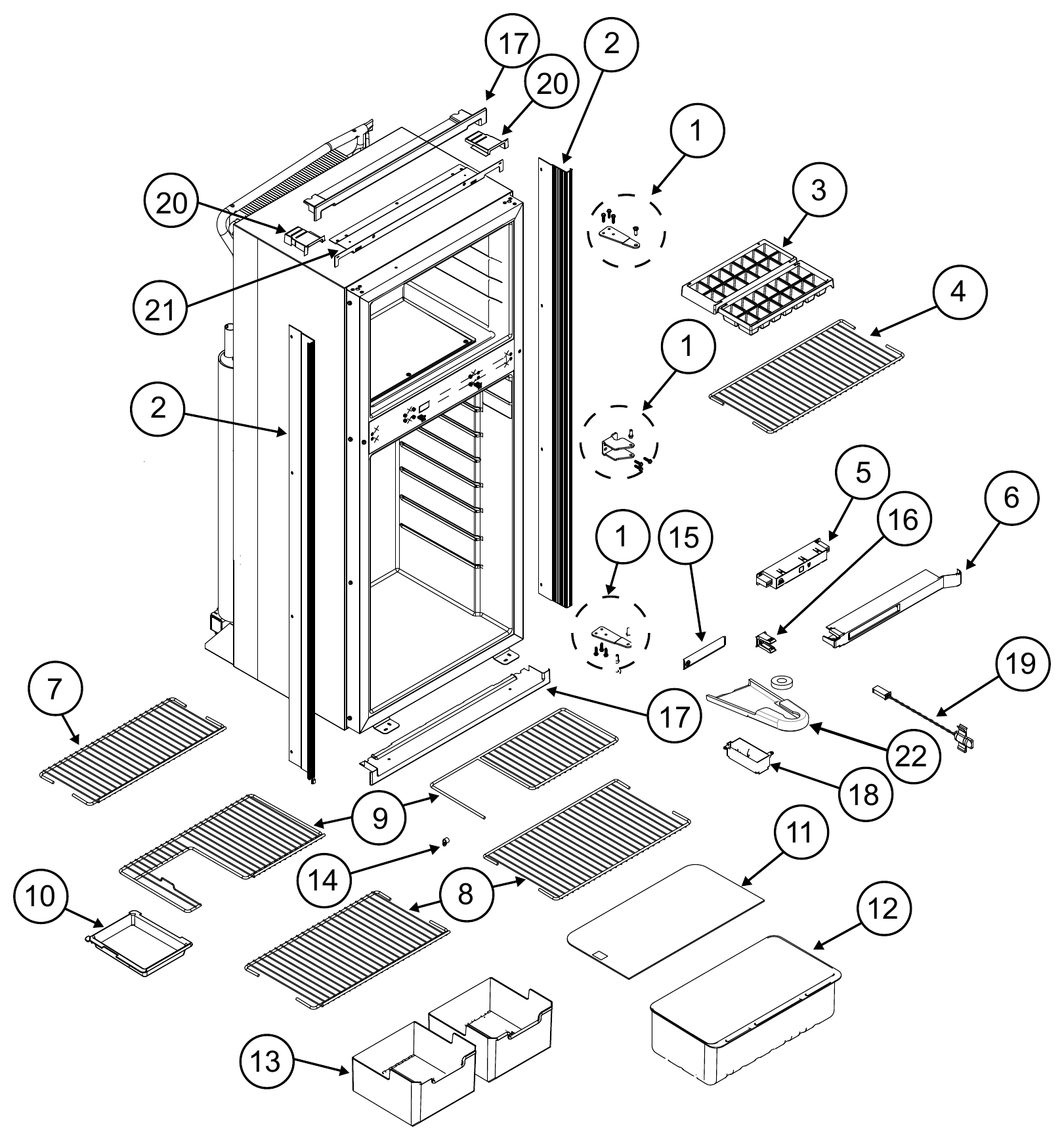

Norcold N7 & N8 Cabinet, Shelves & Interior Parts
| # | Part | Fits | |
|---|---|---|---|
| 4 | Freezer Shelf Part # 638480 |
N7V, N8V, N7X, N8X, N7LX, N8LX, N8LXIMF, N7LXIMF | View part |
| 5 | Control Panel Assembly Part # 639550 |
N7X, N8X | View part |
| 5 | Control Panel Assembly Part # 639551 |
N7LX, N8LX, N8LXIMF, N7LXIMF | View part |
| 6 | Control Panel Housing Part # 639554 |
N7V, N8V, N7X, N8X, N7LX, N8LX, N8LXIMF, N7LXIMF | View part |
| 8 | Shelf Part # 638481 |
N7V (x2), N8V (x3), N7X (x2), N8X (x3) | View part |
| 8 | Shelf Part # 638485 |
N7LX, N8LX (x2), N8LXIMF, N7LXIMF (x2) | View part |
| 11 | Crisper Bin Cover, Glass Part # 618158 |
N7V, N8V, N7X, N8X, N7LX, N8LX, N8LXIMF, N7LXIMF | View part |
| 13 | Small Crisper Bin, Clear Part # 619007 |
N7LX (x2), N8LX (x2), N8LXIMF (x3), N7LXIMF (x3) | View part |
| 16 | Strike Plate Part # 638545 |
N7V, N8V, N7X, N8X, N7LX, N8LX, N8LXIMF, N7LXIMF | View part |
| 17 | Top/Bottom Trim, Black (SN 29460085 and above) Part # 640027 |
N7V, N8V, N7X, N8X, N7LX, N8LX, N8LXIMF, N7LXIMF | View part |
| 18 | LED Light Part # 640615 |
N7V, N8V, N7X, N8X, N7LX, N8LX, N8LXIMF, N7LXIMF | View part |
| 19 | Thermistor Part # 638391 |
N7V, N8V, N7X, N8X, N7LX, N8LX, N8LXIMF, N7LXIMF | View part |

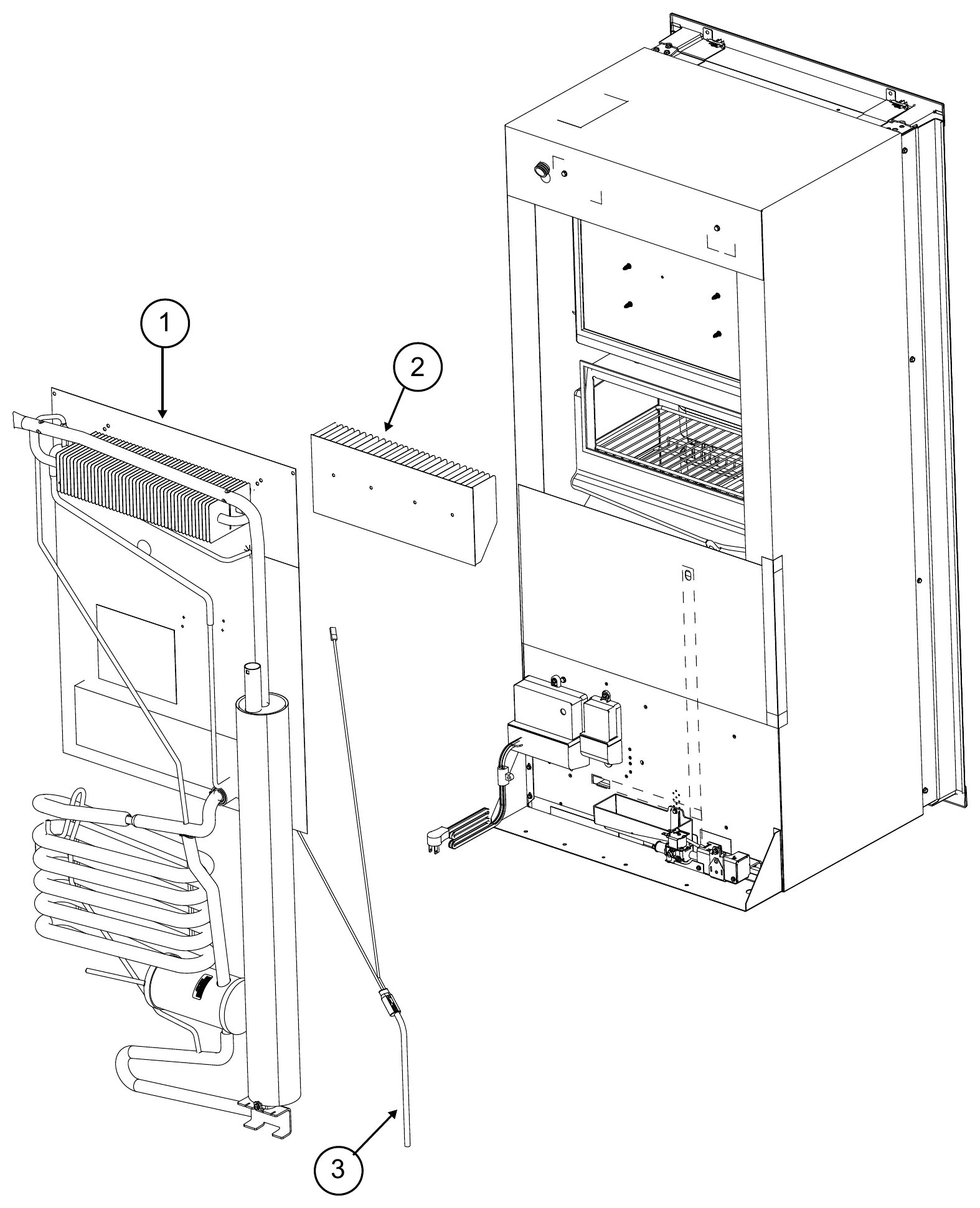

Norcold N7 & N8 Cooling Unit & Heaters Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Cooling Unit Assembly Part # 693298 |
N7V, N7X | View part |
| 1 | Superseded By 693298 Part # 639569 |
N7V, N7X, N7LX | Shop 693298 |
| 1 | Cooling Unit Assembly Part # 693299 |
N8V, N8X, N8LX | View part Or: Nordic 6608 aftermarket cooling unit (N8/NA8) |
| 1 | Superseded By 693299 Part # 639570 |
N8V, N8X, N8LX | Shop 693299 |
| 3 | DC Heater Part # 638375 |
N8XCF, N7LX.3F, N7LX.3, NA7LX.3, N8LX.3, NA8LX.3 | View part |
| 3 | AC Heater Part # 638374 |
N7V, N8V, N7X, N8X, N7LX, N8LX | View part |

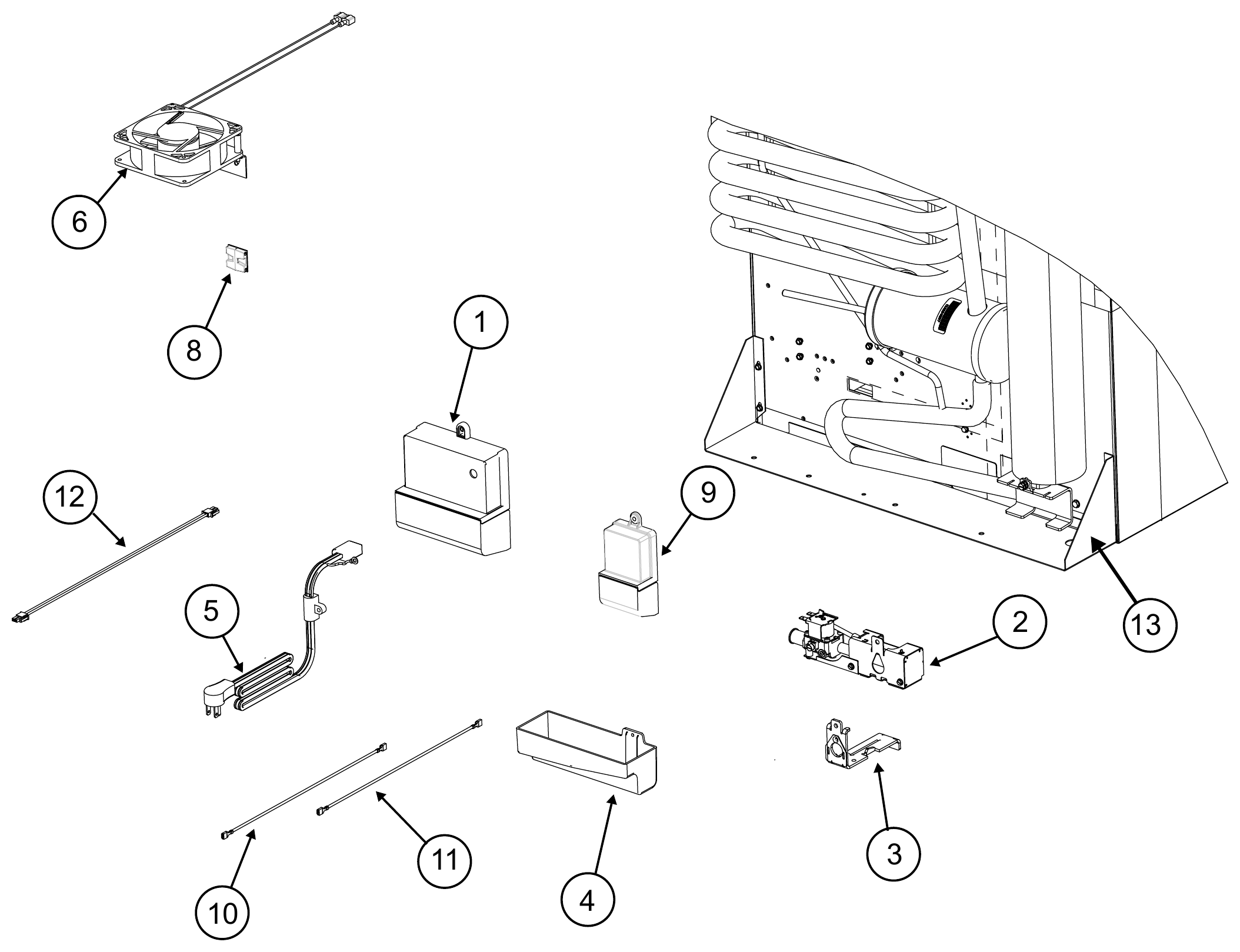

Norcold N7 & N8 Rear Controls, Power & Gas Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Power Module Part # 639593 |
N7V, N8V, N7X, N8X, N7LX, N8LX | View part |
| 2 | Gas Train Assembly Part # 639572 |
N7V, N8V, N7X, N8X, N7LX, N8LX | View part |
| 5 | AC Power Cord Part # 639683 |
N7V, N8V, N7X, N8X, N7LX, N8LX | View part |
| 6 | Condenser Fan Part # 639702 |
N7VF, N8VF, N7X, N8X, N8LXF, N8XCF, N8LXIMF, NA8LXIMF, N7LX.3F, NA7LXF, NA8LXF | View part |
| NS | Thermostat Fan Part # 640235 |
N7VF, N8VF, N7X, N8X, N8LXF, N8XCF, N8LXIMF, NA8LXIMF, N7LX.3F, NA7LXF, NA8LXF | View part |

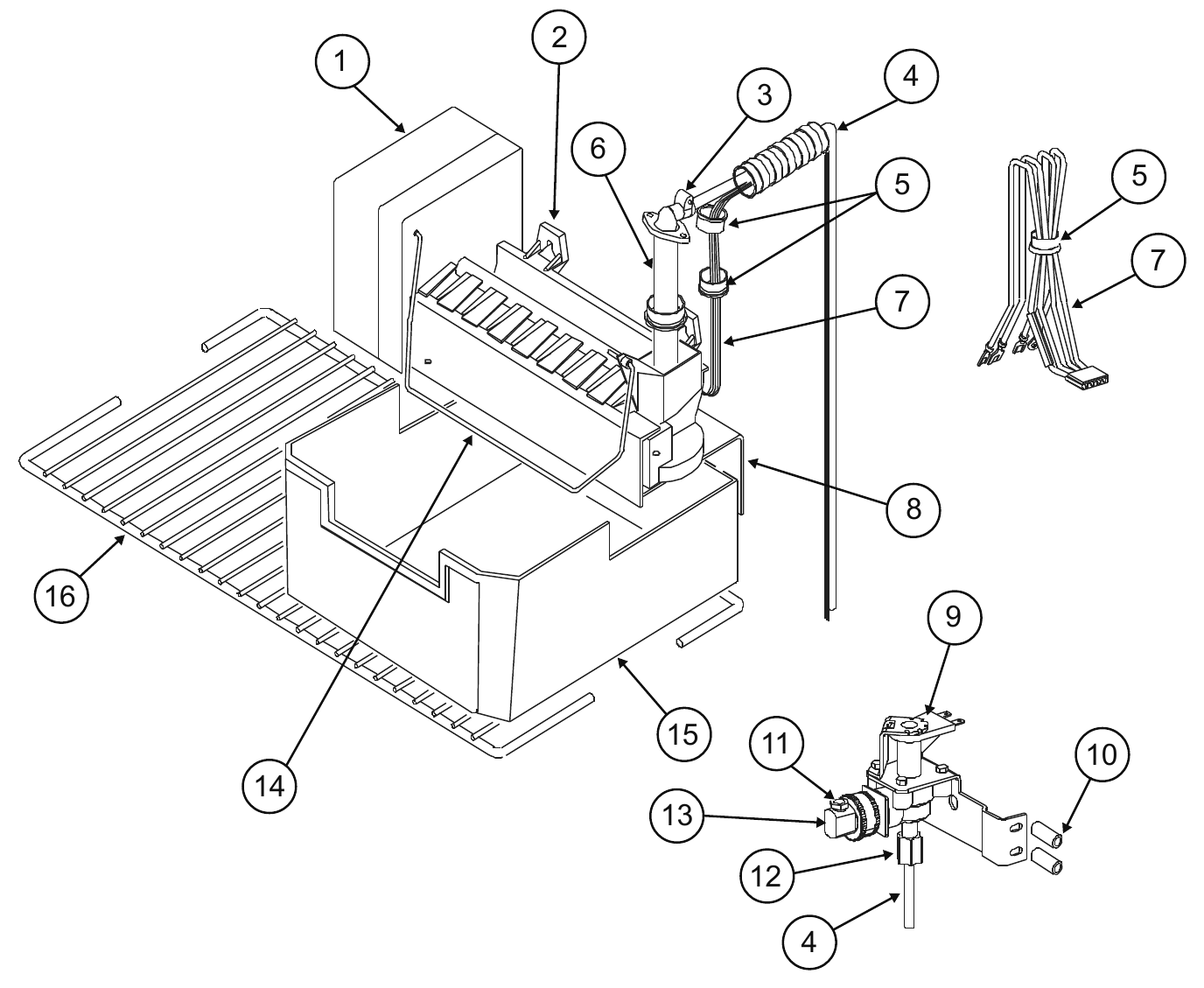

Norcold N7 & N8 Ice Maker Parts
| # | Part | Fits | |
|---|---|---|---|
| 14 | Ice Maker Shut Off Arm Part # 61656922 |
N8LXIMF, NA7LXIMF, NA8LXIMF | View part |
| 15 | Small Crisper Bin, Clear Part # 619007 |
N8LXIMF, NA7LXIMF, NA8LXIMF | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N7 & N8 Polar Series parts list (639735, 08/22/2025); "Fits" lists the models marked in that list, and (x2) means two are used. Confirm fitment with your model and serial number before ordering.
