Find the part you need on the exploded diagrams of the Norcold DC105 12V DC RV refrigerator (3.7 cu. ft.). Click a highlighted number to go straight to that part.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.

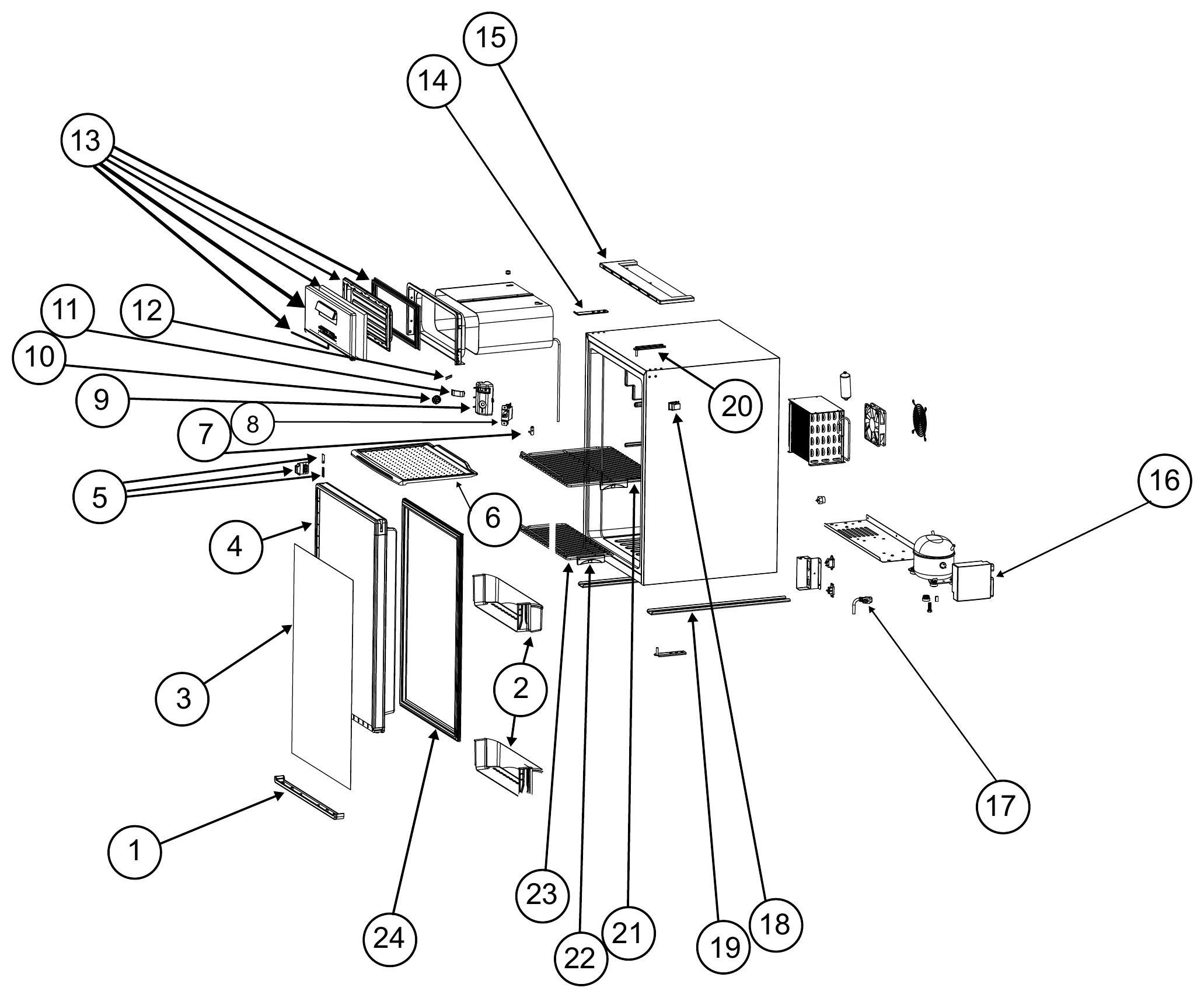

Norcold DC105 Full Assembly Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Door Bin Part # 640658 |
DC105 | View part |
| 4 | Door Assembly (panel not included) Part # 640660 |
DC105 | View part |
| 8 | Thermostat Part # 640664 |
DC105 | View part |
| 21 | Top Wire Shelf Part # 640678 |
DC105 | View part |
| 24 | Door Gasket Part # 640681 |
DC105 | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold DC105 parts list (641481, 08/20/2025); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
