Find the part you need on the exploded diagrams of the Norcold N8DC and N10DC 12V DC RV refrigerators (stainless, black stainless and black models). Click a highlighted number to go straight to that part.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Cabinet, Controls & ShelvesRear ComponentsUpper (Freezer) DoorLower (Fresh Food) Door

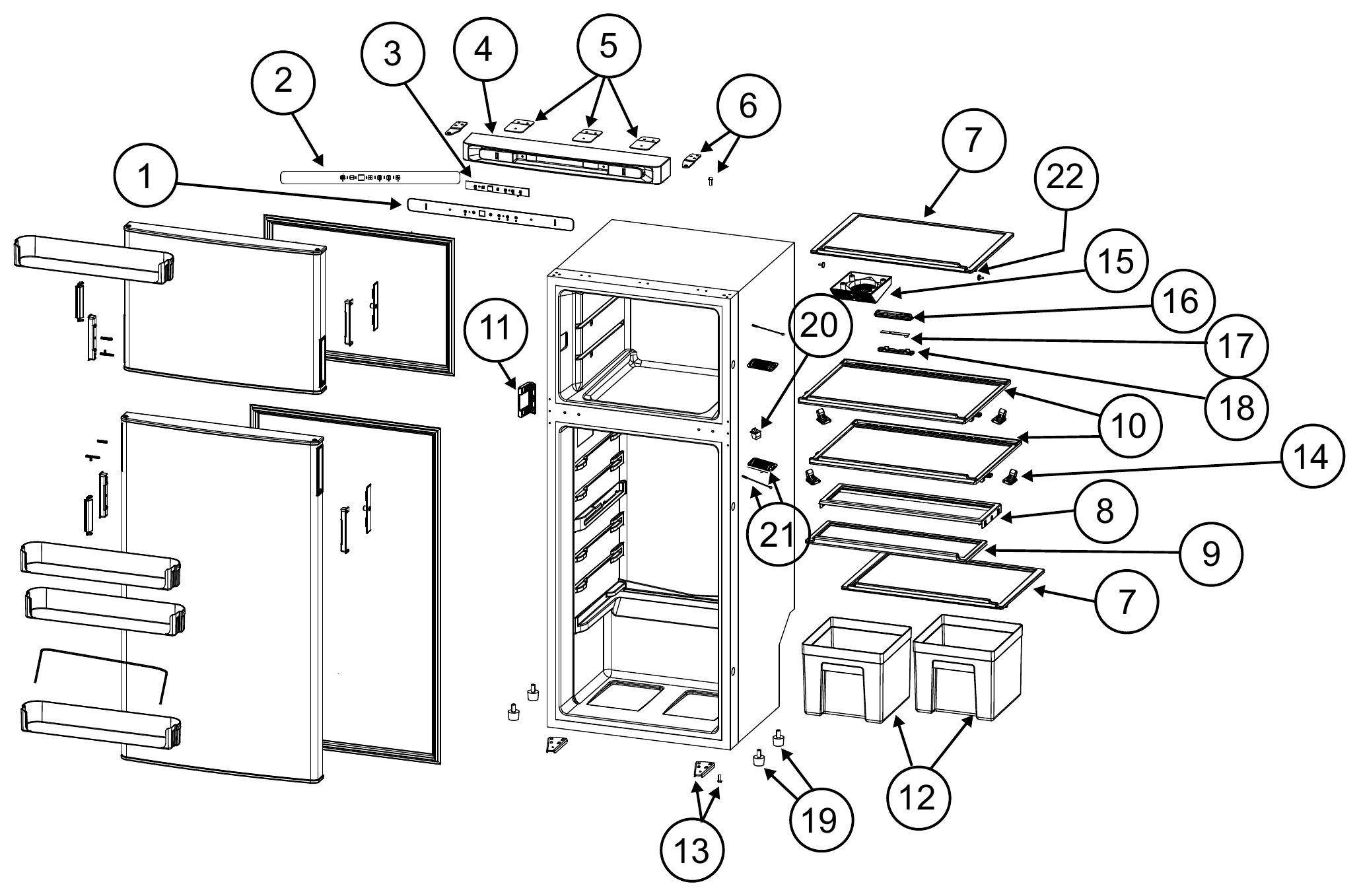

Norcold Cabinet, Controls & Shelves Parts
| # | Part | Fits | |
|---|---|---|---|
| 1-3 | Control Panel Assembly (SN SE79WDW00190 & above) Part # 641592 | All models | View part |
| 2 | Control Panel Sticker Part # 640085 | All models | View part |
| 4-5 | Control Panel Housing & Bracket Kit (3 brackets) Part # 641593 | All models | View part |
| 7 | Freezer Shelf, Glass Part # 640168 | N10DC models | View part |
| 7 | Freezer Shelf, Wire Part # 640469 | N8DC models | View part |
| 8 | Rear Slide Out Shelf, Glass Part # 640174 | N10DC models | View part |
| 8 | Rear Slide Out Shelf, Wire Part # 640474 | N8DC models | View part |
| 9 | Front Slide Out Shelf, Glass Part # 640175 | N10DC models | View part |
| 9 | Front Slide Out Shelf, Wire Part # 640475 | N8DC models | View part |
| 10 | Shelf, Glass Part # 640172 | N10DC models | View part |
| 10 | Shelf, Wire Part # 640471 | N8DC models | View part |
| 11 | Door Latch / Strike Plate Part # 640151 | All models | View part |
| 12 | Crisper Bin Part # 640176 | All models | View part |
| 17 | LED Light Part # 640099 | All models | View part |
| 21 | Thermistor and Cover Part # 640149 | All models | View part |
| NS | Cabinet Fan (not shown) Part # 640093 | All models | View part |

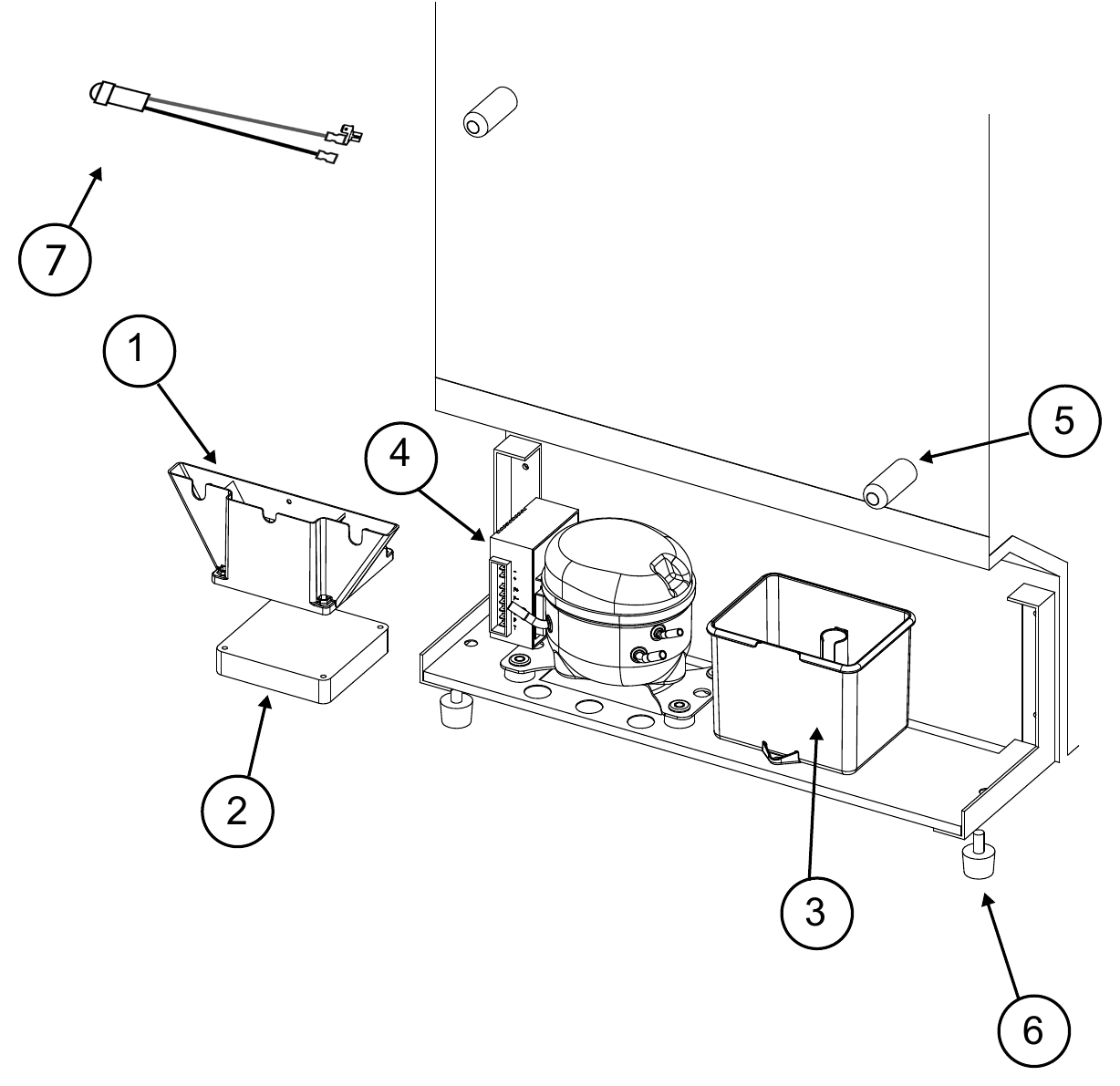

Norcold Rear Components Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Condenser Fan Part # 640103 | All models | View part |
| 4 | Compressor Power Module Part # 640178 | All models | View part |
| 7 | DC Troubleshooting LED for Compressor Power Module Part # 641315 | All models | View part |

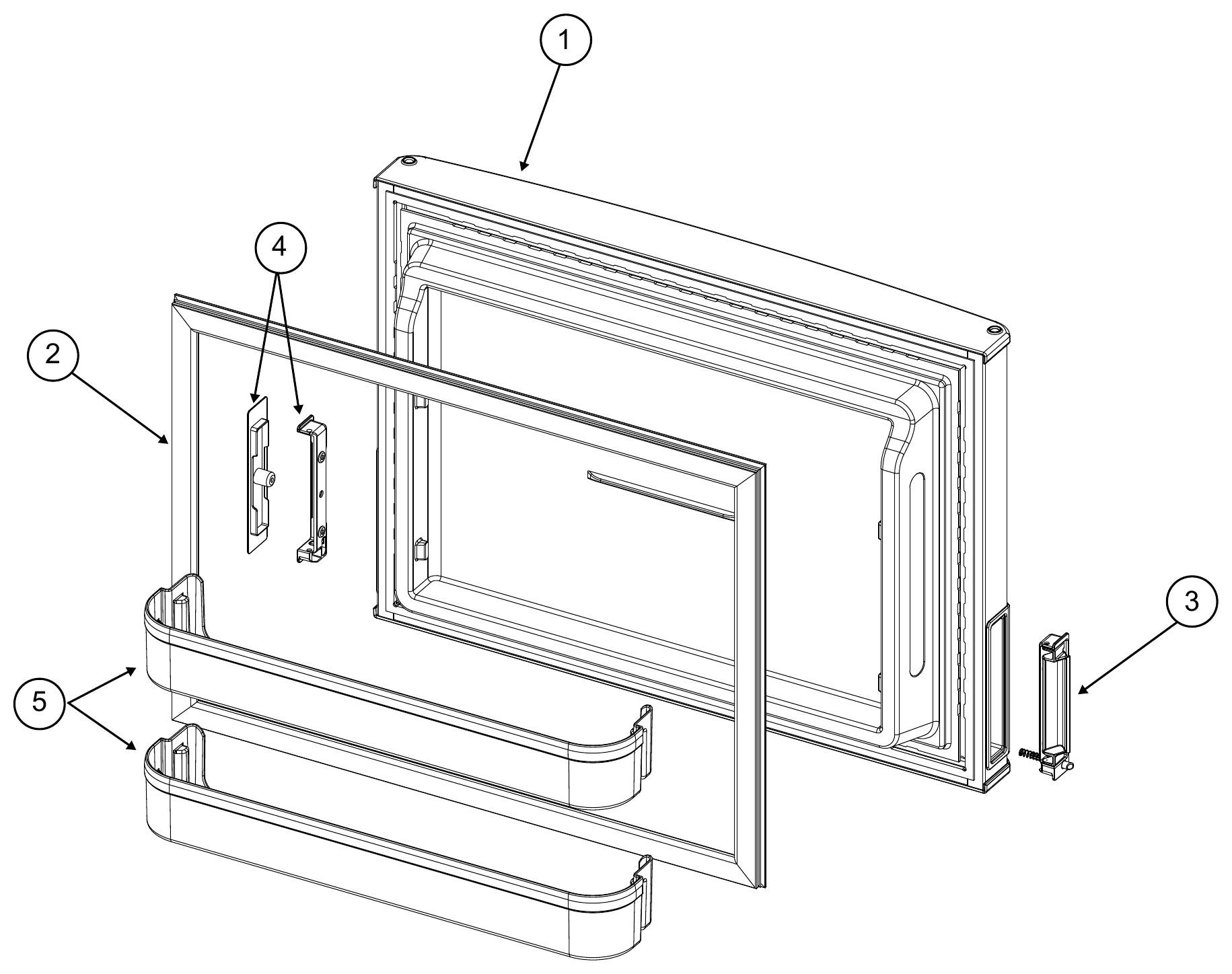

Norcold Upper (Freezer) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Freezer Door Assembly with Gasket, Stainless Steel Part # 640153 | N10DCSS, N8DCSS | View part |
| 3 | Handle Assembly (replaces 640156 & 640160) Part # 641545 | All models | View part |
| 5 | Door Bin, Clear Part # 640155 | All models | View part |

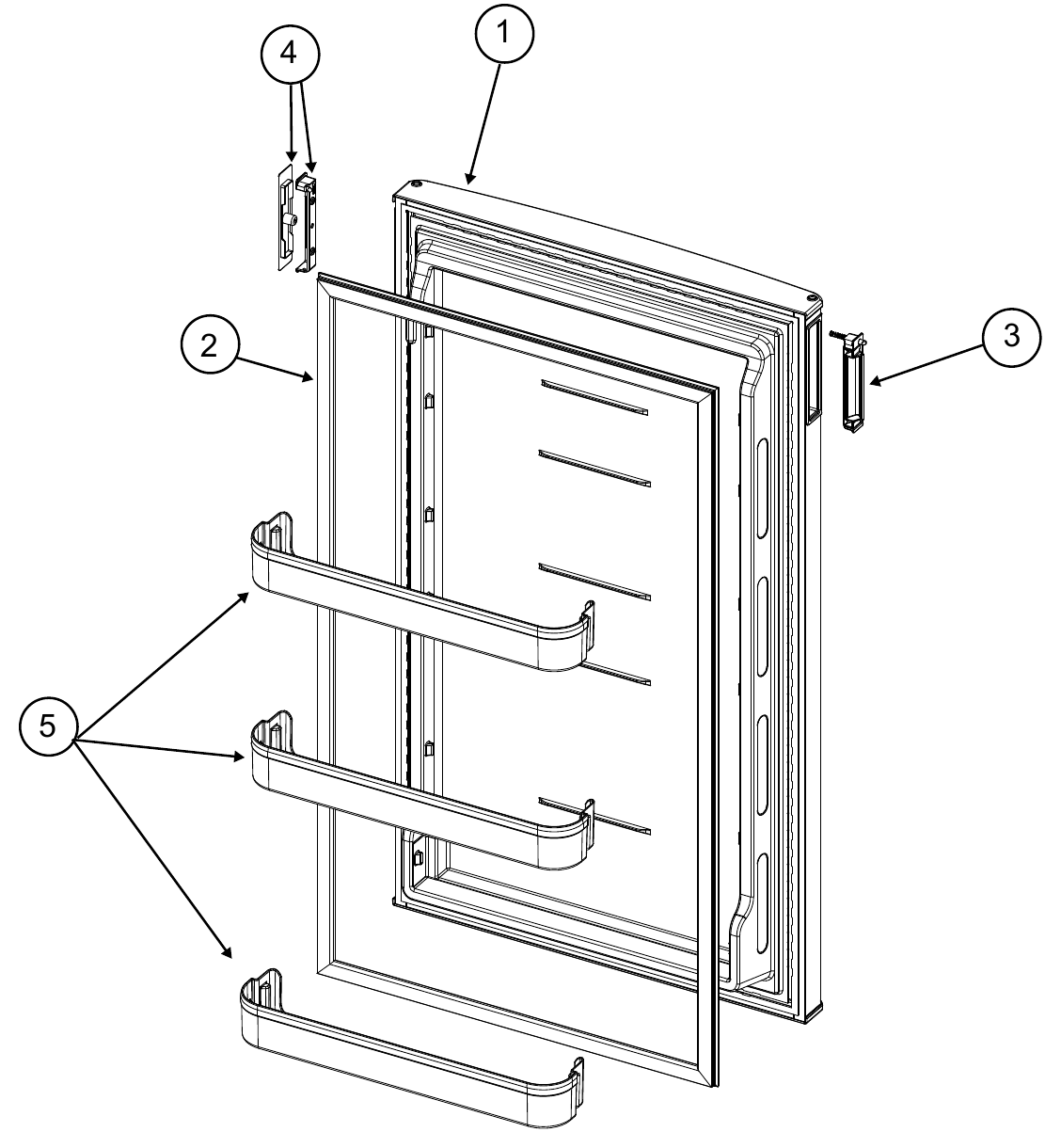

Norcold Lower (Fresh Food) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Door Assembly with Gasket, Stainless Steel Part # 640158 | N10DCSS | View part |
| 1 | Door Assembly with Gasket, Stainless Steel Part # 640467 | N8DCSS | View part |
| 3 | Handle Assembly (replaces 640156 & 640160) Part # 641545 | All models | View part |
| 5 | Door Bin, Clear Part # 640155 | All models | View part |
| NS | Door Bin Retainer (not shown) Part # 640161 | All models | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N8DC & N10DC parts list (640138, 08/20/2025); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
