Find the part you need on the exploded diagrams of the Norcold N1095 series RV refrigerators (N1095, N1095C, N1095IM, N1095IMC, N1095V and N1095IMV, with panel or black, stainless or white wrapped doors). Click a highlighted number to go straight to that part. A red X means the part has been discontinued.
The N1095 has been replaced by the Norcold N8XF.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Cabinet (Front View)Cooling Unit & RearRear Controls & Power BoardUpper (Freezer) DoorLower (Fresh Food) DoorIce Maker (IM models)Interior Light & Thermistor

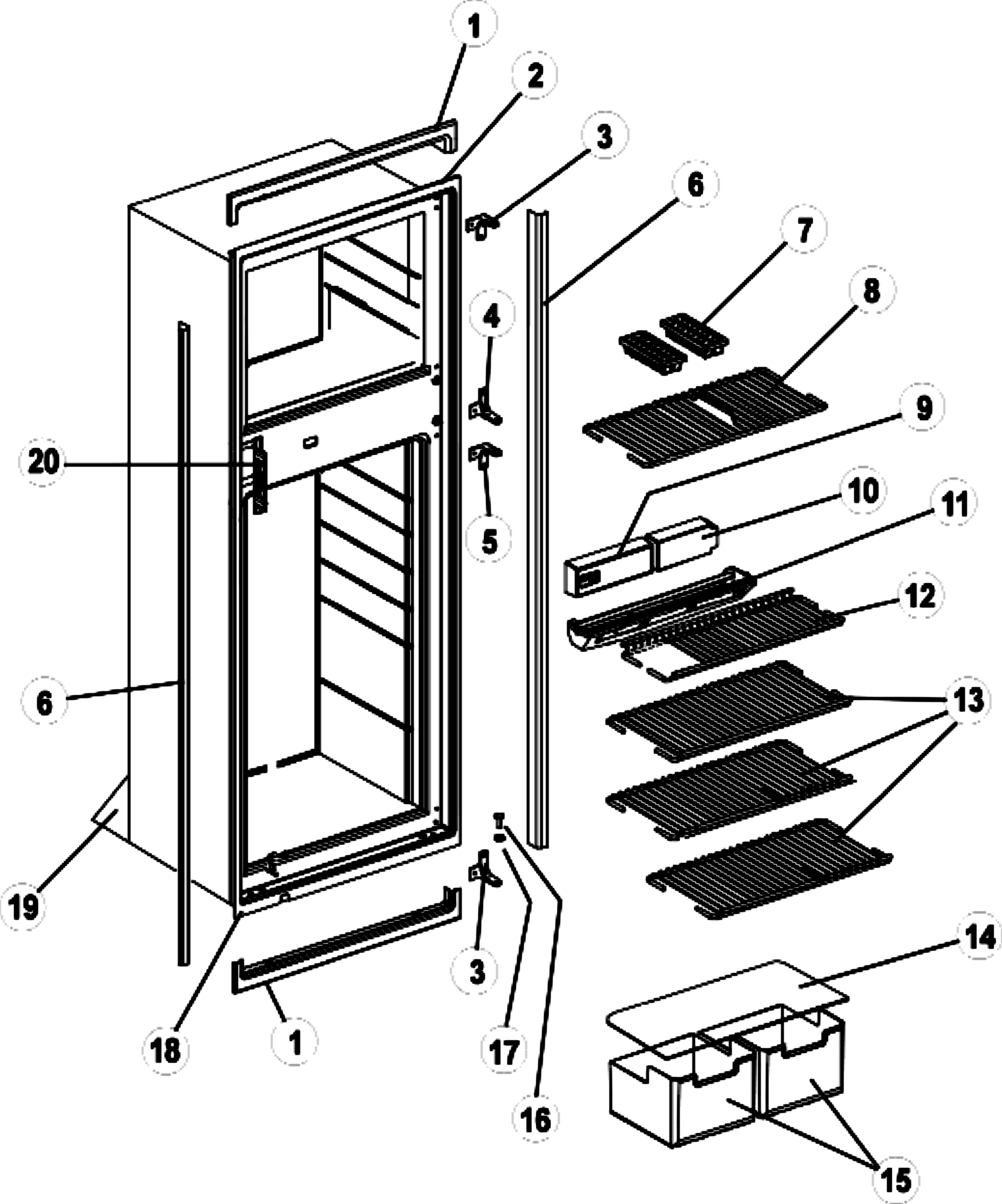

Norcold Cabinet (Front View) Parts
| # | Part | Fits | |
|---|---|---|---|
| 17 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |
| 20 | Strike Plate, Black Part # 618167 |
All models | View part |

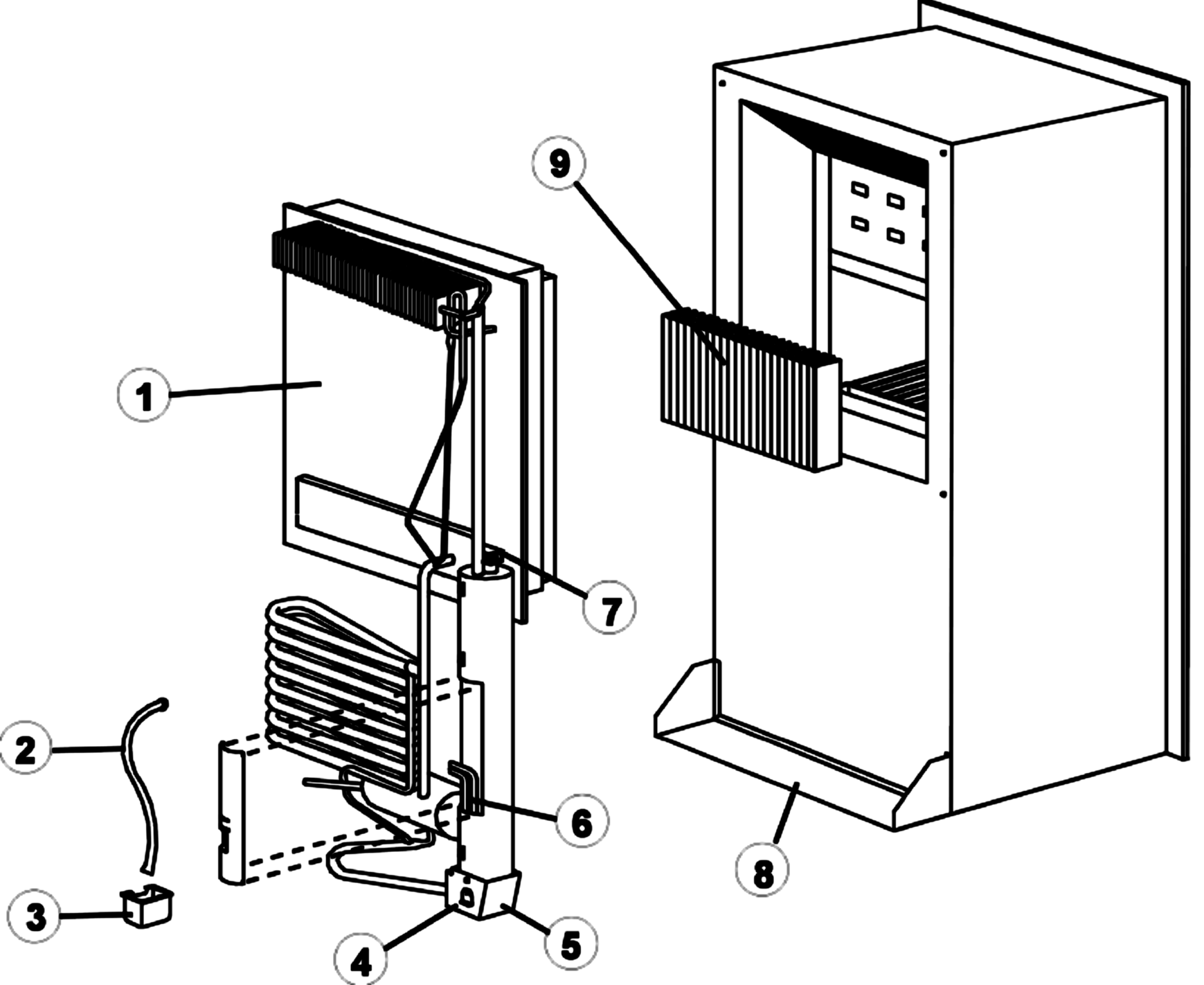

Norcold Cooling Unit & Rear Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Drain Hose Part # 622391 |
All models | View part |
| 6 | AC Heater (cooling unit SN 11232007 & below) Part # 621702 |
All models | View part |
| 6 | AC Heater Kit (cooling unit SN 11232008 & above) Part # 638374 |
All models | View part |

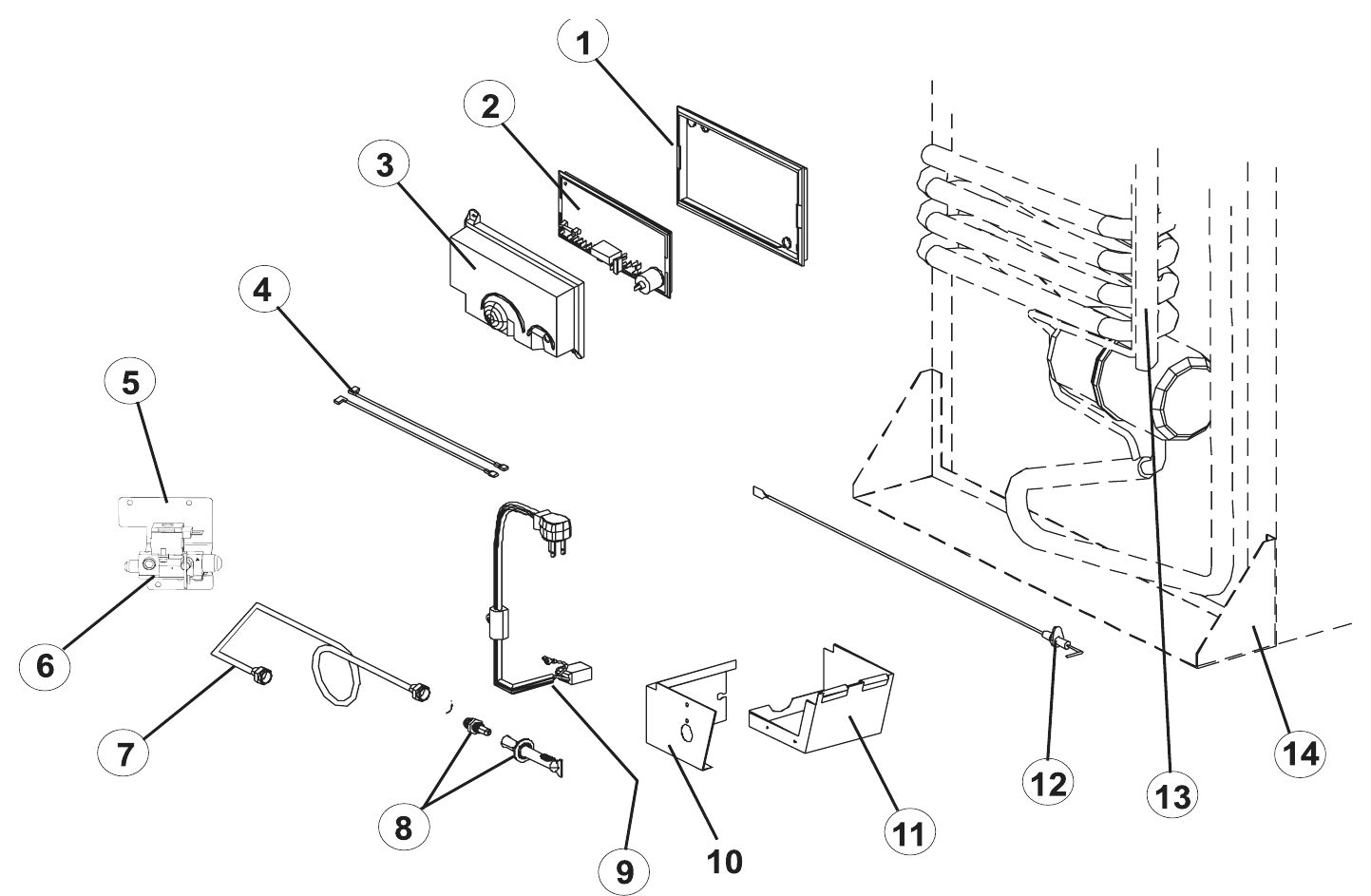

Norcold Rear Controls & Power Board Parts
Power board by serial number: SN 9045738 & above uses the 628661. SN 9045737 & below originally used the 621269001 kit, which has been replaced by the 6212XX.
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board Kit, replaced by the 6212XX (SN 9045737 & below) Part # 621269001 |
All models | Shop 6212XX |
| 2 | Power Board (SN 9045738 & above) Part # 628661 |
All models | View part |
| 3 | Power Board Cover (SN 9045737 & below) Part # 618185 |
All models | View part |
| 8 | Burner / Orifice Adapter Kit Part # 621957 |
All models | View part |
| 12 | Spark / Sense Electrode Part # 61692222 |
All models | View part |

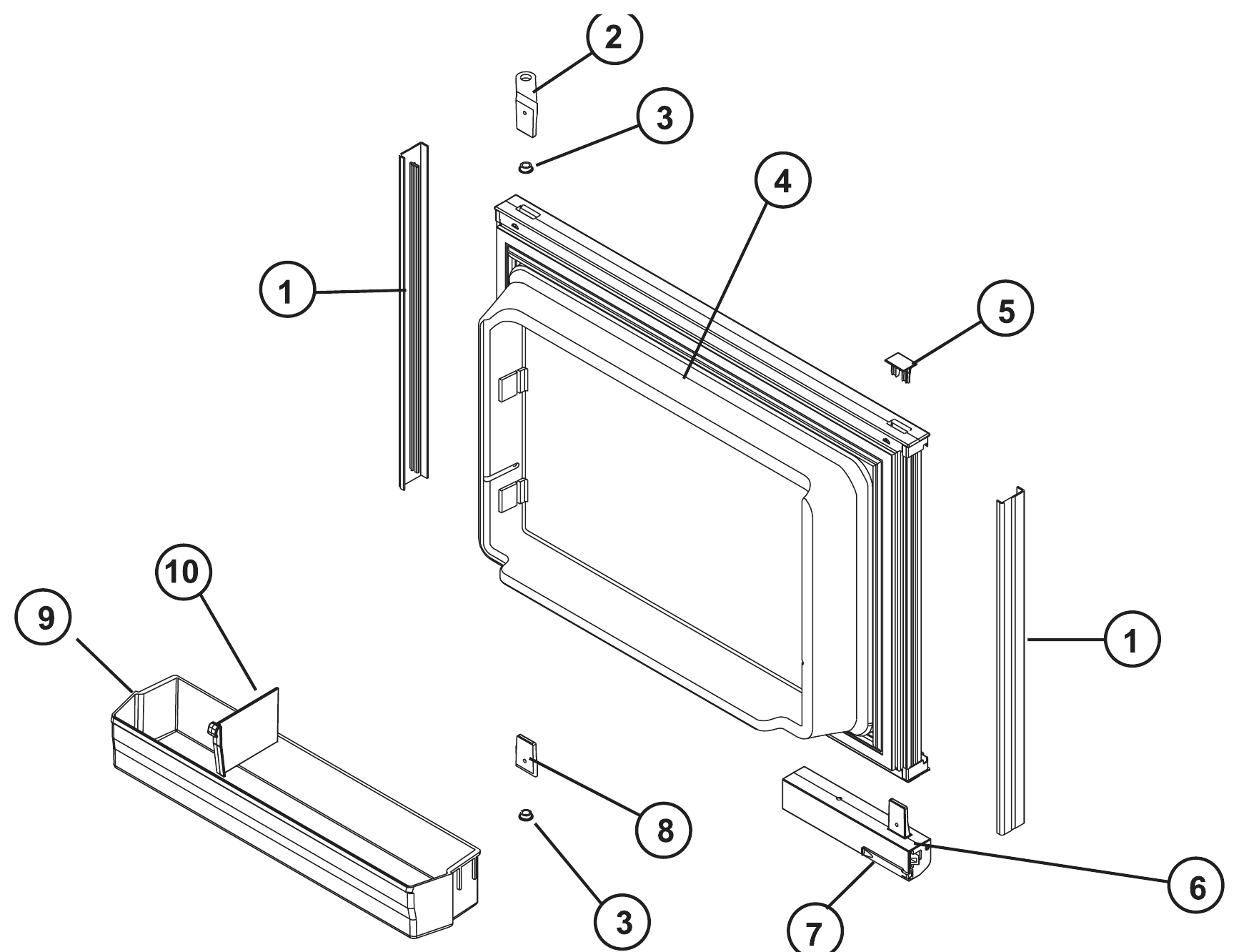

Norcold Upper (Freezer) Door Parts
Shown with a panel-type door. Black, stainless and white wrapped-door models use the same hinges, bushings, handles and bins. The door assemblies themselves are discontinued.
| # | Part | Fits | |
|---|---|---|---|
| 1 | Upper Door Panel Retainer, Black (smooth door) Part # 623943 |
All models | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |

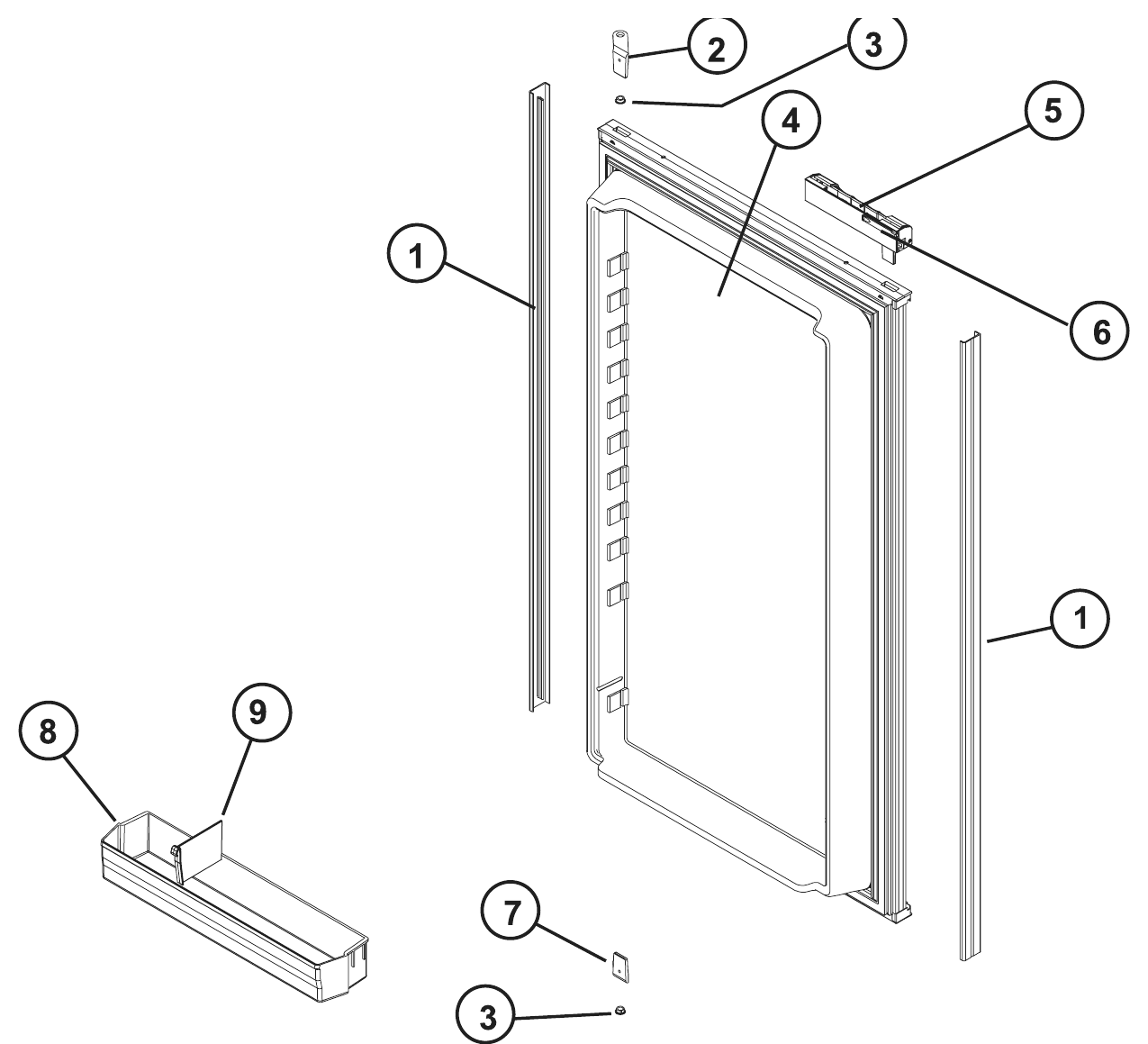

Norcold Lower (Fresh Food) Door Parts
Shown with a panel-type door. Wrapped-door models use the same hinges, bushings, handles and bins.
| # | Part | Fits | |
|---|---|---|---|
| 1 | Lower Door Panel Retainer, 8′, Black (smooth door) Part # 623760 |
All models | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |
| NS | Door Bin Wire Rack (now 624866, not shown) Part # 632458 |
All models | Shop 624866 |

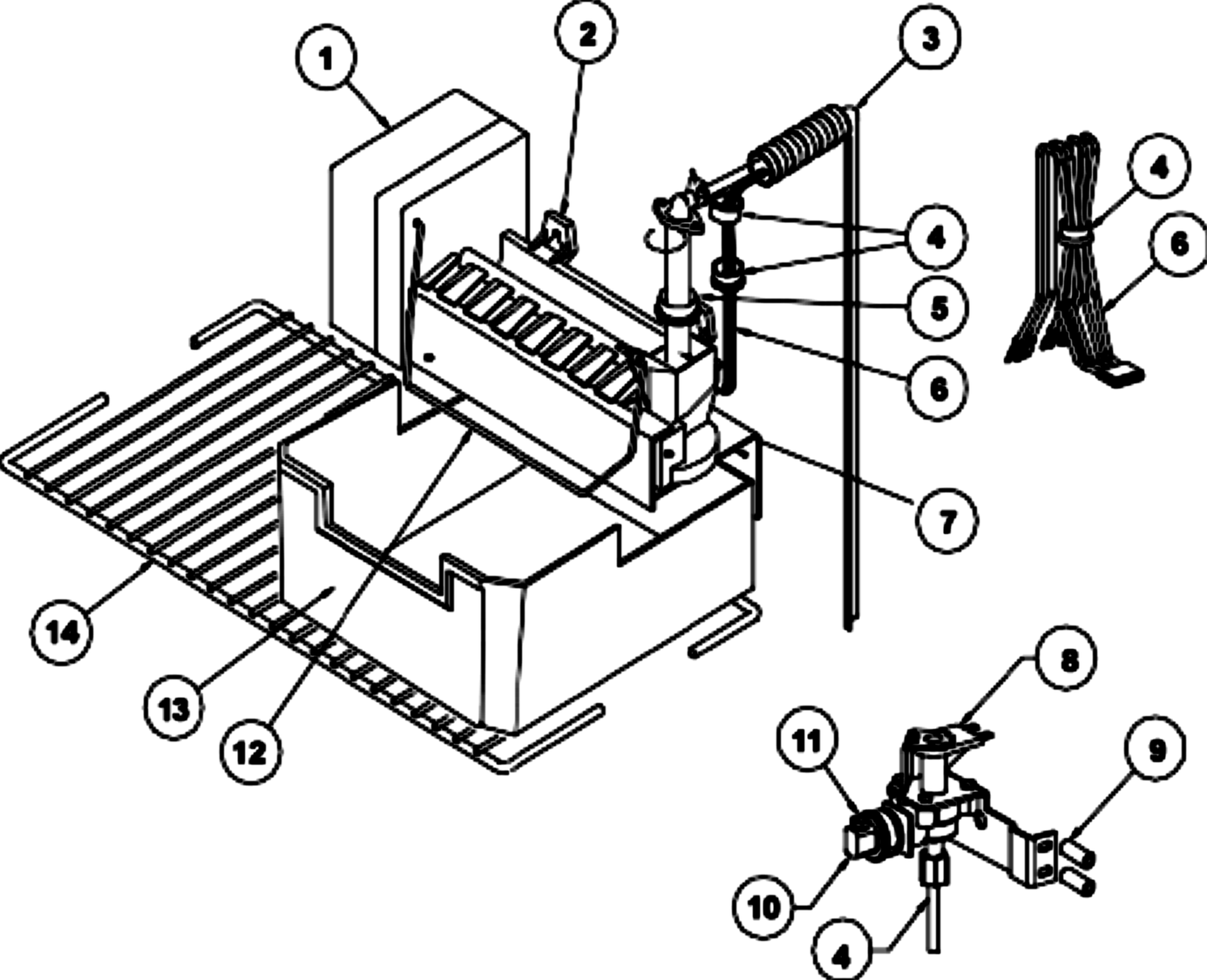

Norcold Ice Maker (IM models) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Ice Maker Kit Part # 633324 |
N1095IM, N1095IMC | View part |
| 12 | Ice Maker Shut-Off Arm Part # 61656922 |
N1095IM, N1095IMC | View part |
| 13 | Ice Bin, Clear Part # 619007 |
N1095IM, N1095IMC | View part |

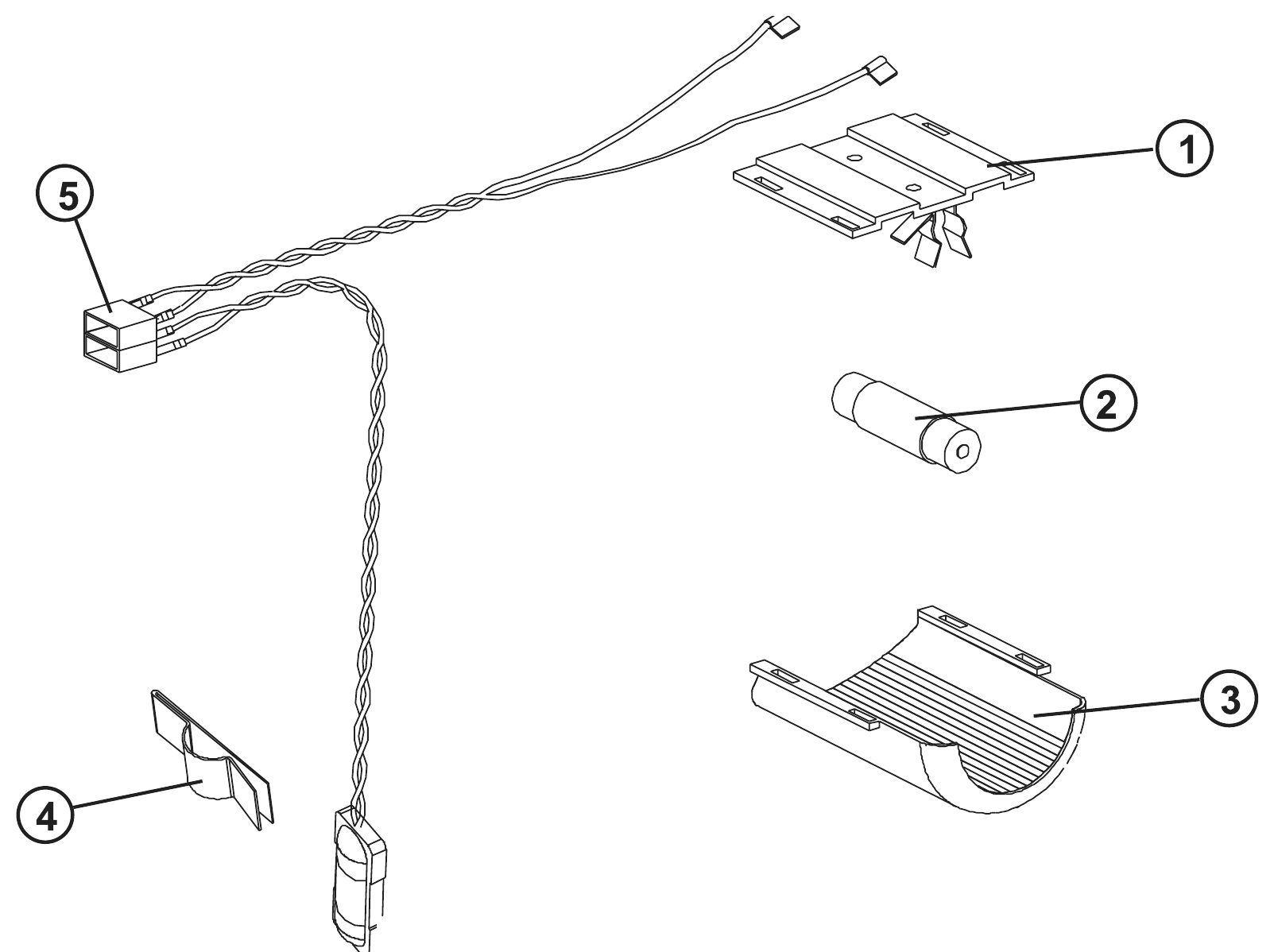

Norcold Interior Light & Thermistor Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | DC Light Bulb Part # 632545 |
All models | View part |
| 5 | Thermistor (now 621742) Part # 620871 |
All models | Shop 621742 |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N1095 series parts list (624870); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
