Find the part you need on the exploded diagrams of the Norcold N61 and N81 series RV refrigerators (N610, N611, N611V, N810, N811, N811V and their C, F, J and VF versions). Click a highlighted number to go straight to that part. A red X means the part has been discontinued.
The N611 refrigerator has been replaced by the Norcold N7X.
The N811 refrigerator has been replaced by the Norcold N8X.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Cabinet (Front View)Cooling Unit & RearRear ControlsUpper (Freezer) DoorLower (Fresh Food) DoorInterior Light & Thermistor

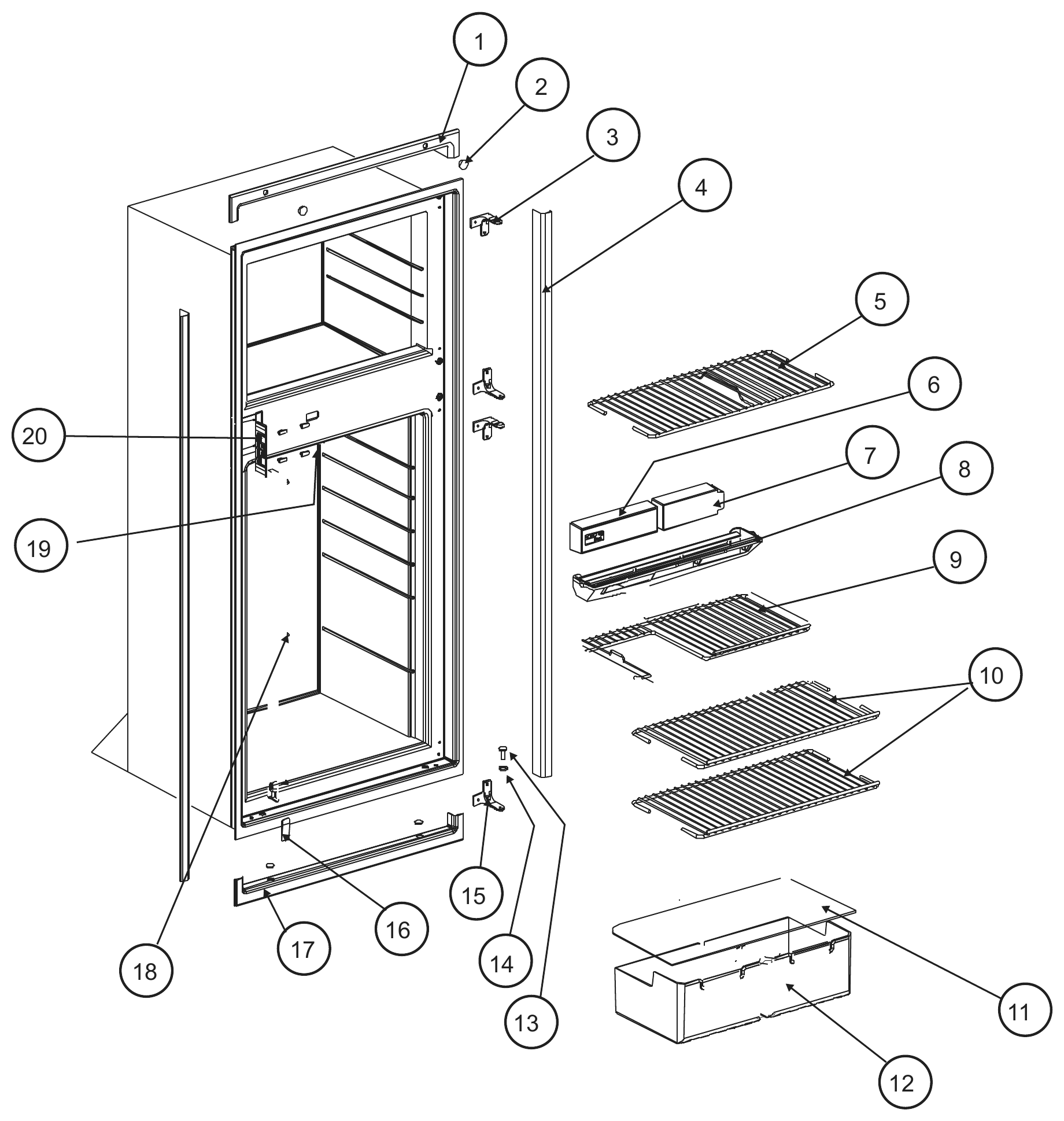

Norcold Cabinet (Front View) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Top Trim Hole Plug, Black (2 per cabinet) Part # 618170 |
N611, N611v, N811, N811v | View part |
| 5 | Freezer Wire Shelf Part # 632446 |
N610, N611, N810, N811 | View part |
| 10 | Full Wire Shelf Part # 638481 |
All models | View part |
| 11 | Crisper Cover Glass Shelf Part # 618158 |
All models | View part |
| 14 | Door Hinge Bushing, Warm Gray Part # 619671 |
N610, N611, N810, N811 (waffle door liner) | View part |
| 20 | Strike Plate, Black Part # 618167 |
N611, N611v, N811, N811v | View part |
| NS | Freezer Wire Shelf Part # 632446 |
N611v, N811v | View part |

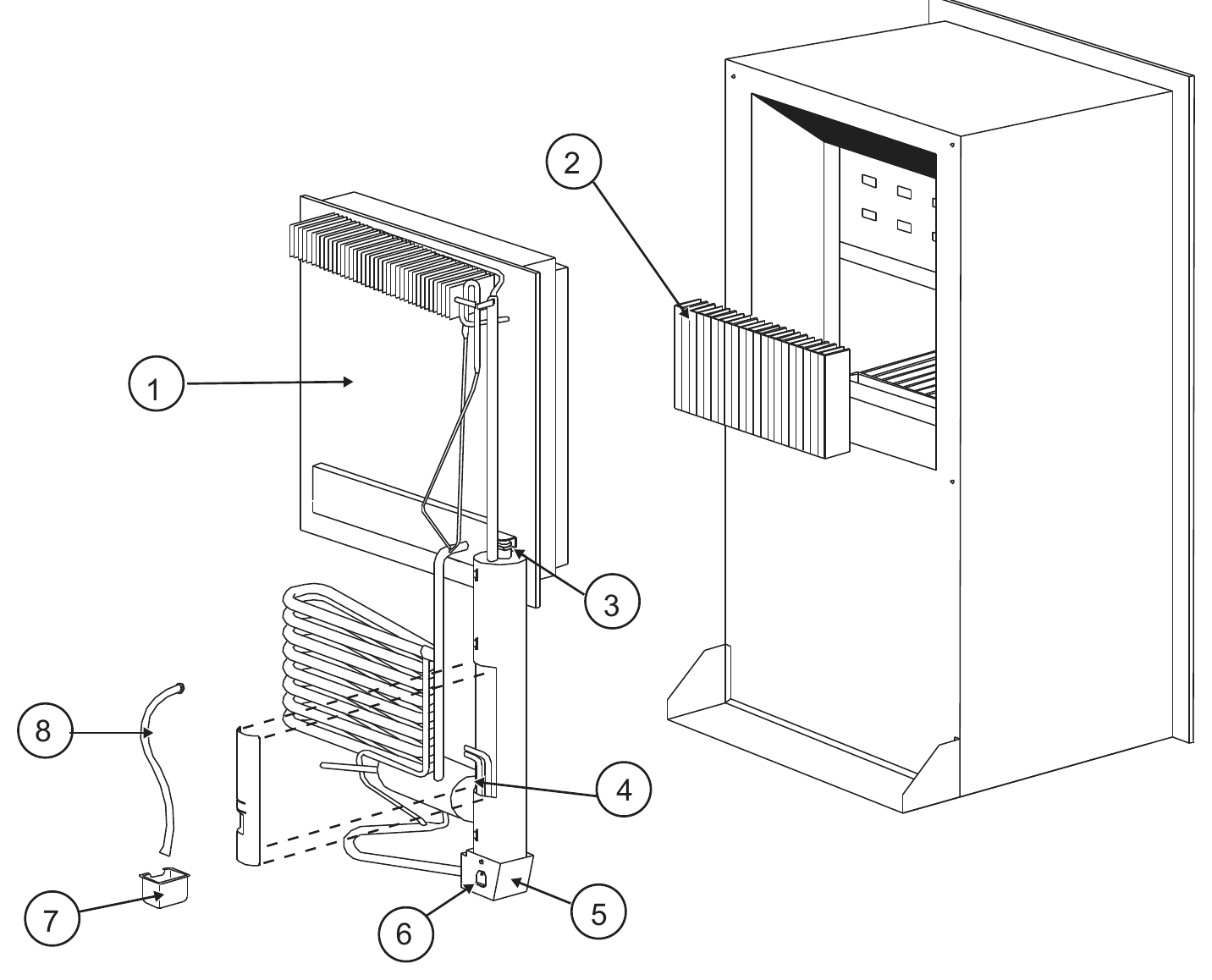

Norcold Cooling Unit & Rear Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Cooling Unit, N61 series Part # 632307 |
N610, N611, N611v | Shop Nordic 3361A |
| 1 | Cooling Unit, N81 series Part # 632314 |
N810, N811, N811v | Shop Nordic 3381A |
| 4 | AC Heater (cooling unit SN 11231023 / 11232007 & below) Part # 621702 |
View part | |
| 4 | AC Heater Kit (cooling unit SN 11231024 / 11232008 & above) Part # 638374 |
All models | View part |
| 8 | Drain Hose, N61 series Part # 622390 |
N610, N611, N611v | View part |
| 8 | Drain Hose, N81 series Part # 622391 |
N810, N811, N811v | View part |

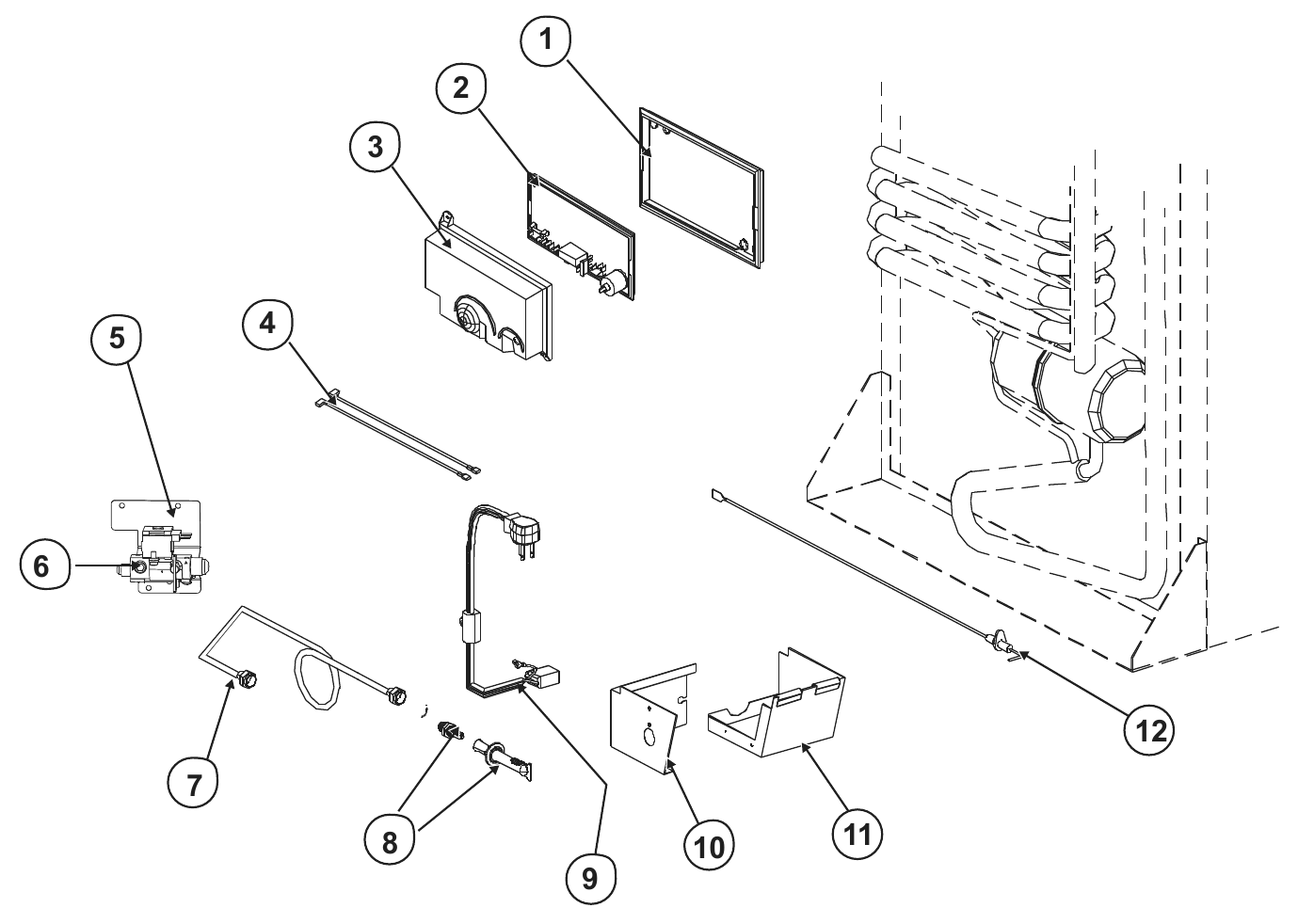

Norcold Rear Controls Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board Kit (SN 9056491 & below) Part # 621991001 |
N610, N611, N810, N811 | View part |
| 2 | Power Board (SN 9056492 & above) Part # 628661 |
All models | View part |
| 3 | Power Supply Cover (SN 9056491 & below) Part # 618185 |
N610, N611, N810, N811 | View part |
| 8 | Burner / Orifice Adapter Assembly Part # 621957 |
All models | View part |
| 12 | Spark / Sense Electrode Part # 61692222 |
All models | View part |

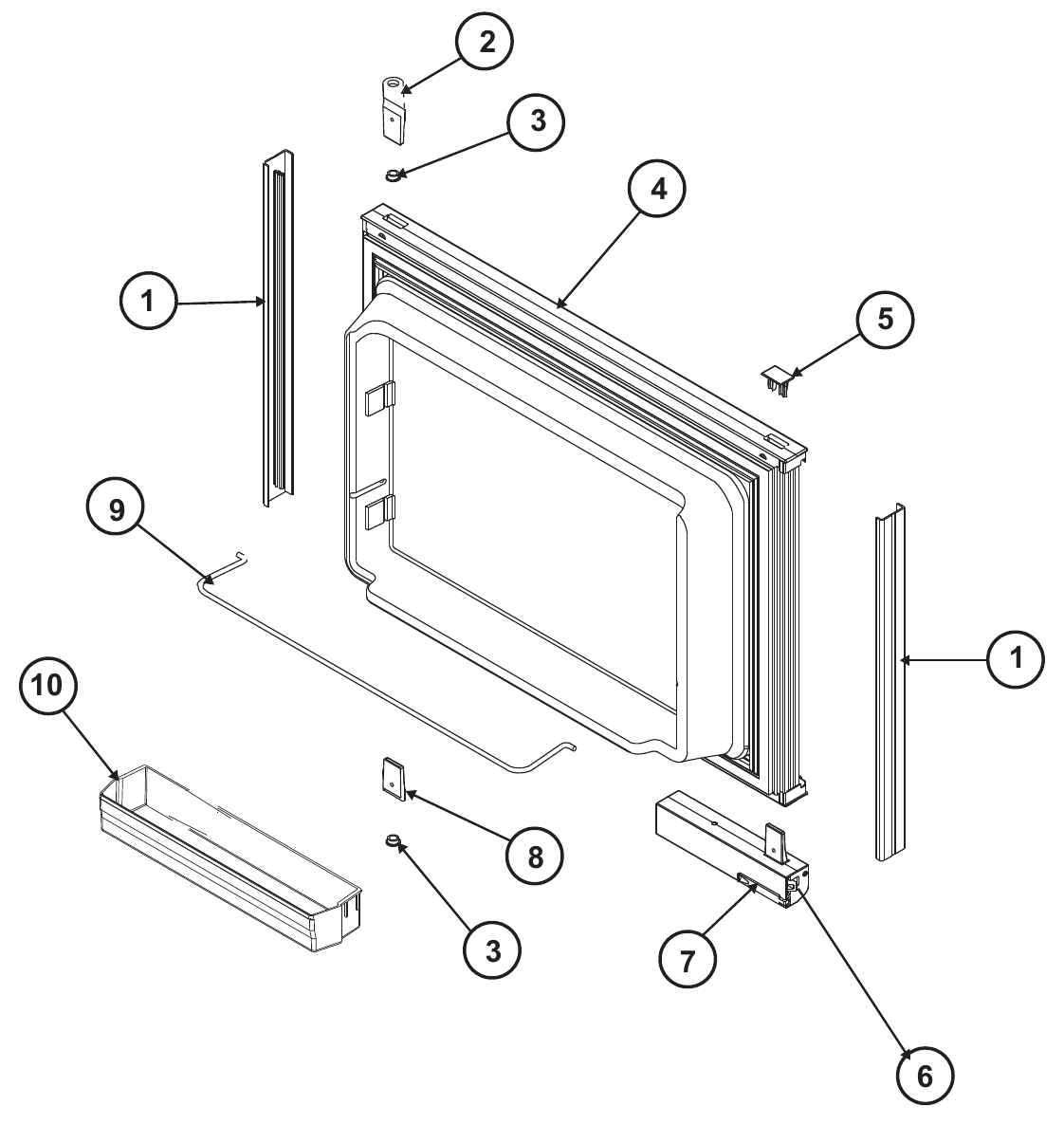

Norcold Upper (Freezer) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Upper Door Panel Retainer, Black (2 per door) Part # 623943 |
N611, N611v, N811, N811v (smooth door liner) | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
N610, N611, N810, N811 (waffle door liner) | View part |
| 10 | Door Bin, White Part # 624863 |
All models (smooth door liner) | View part |

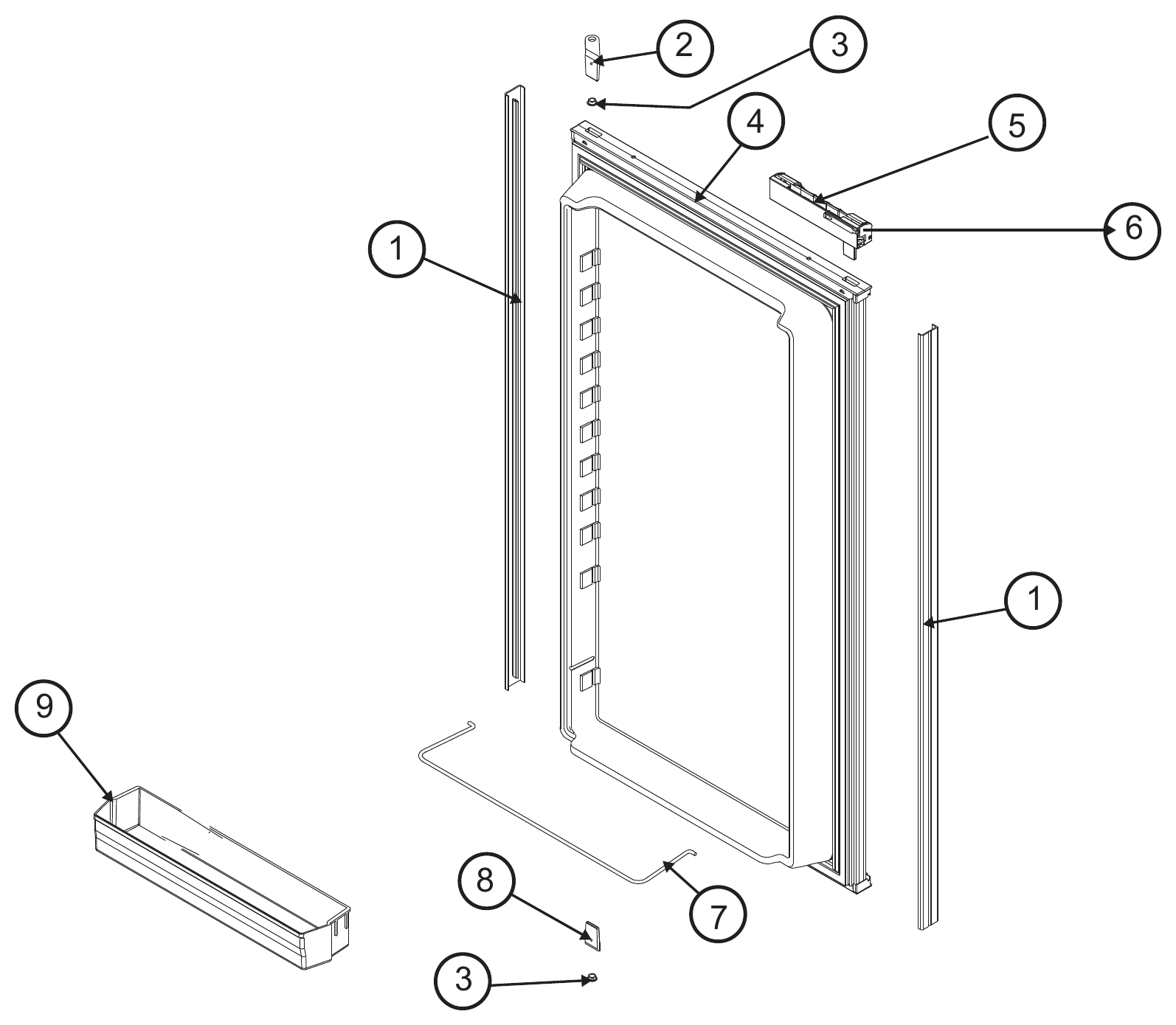

Norcold Lower (Fresh Food) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Lower Door Panel Retainer, 6′, Black Part # 623948 |
N611, N611v, N811, N811v (smooth door liner) | View part |
| 1 | Lower Door Panel Retainer, 8′, Black Part # 623760 |
N611, N611v, N811, N811v (smooth door liner) | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
N610, N611, N810, N811 (waffle door liner) | View part |
| 7 | Door Bin Wire Rack Part # 624866 |
All models (smooth door liner) | View part |
| 9 | Door Bin, White Part # 624863 |
All models (smooth door liner) | View part |

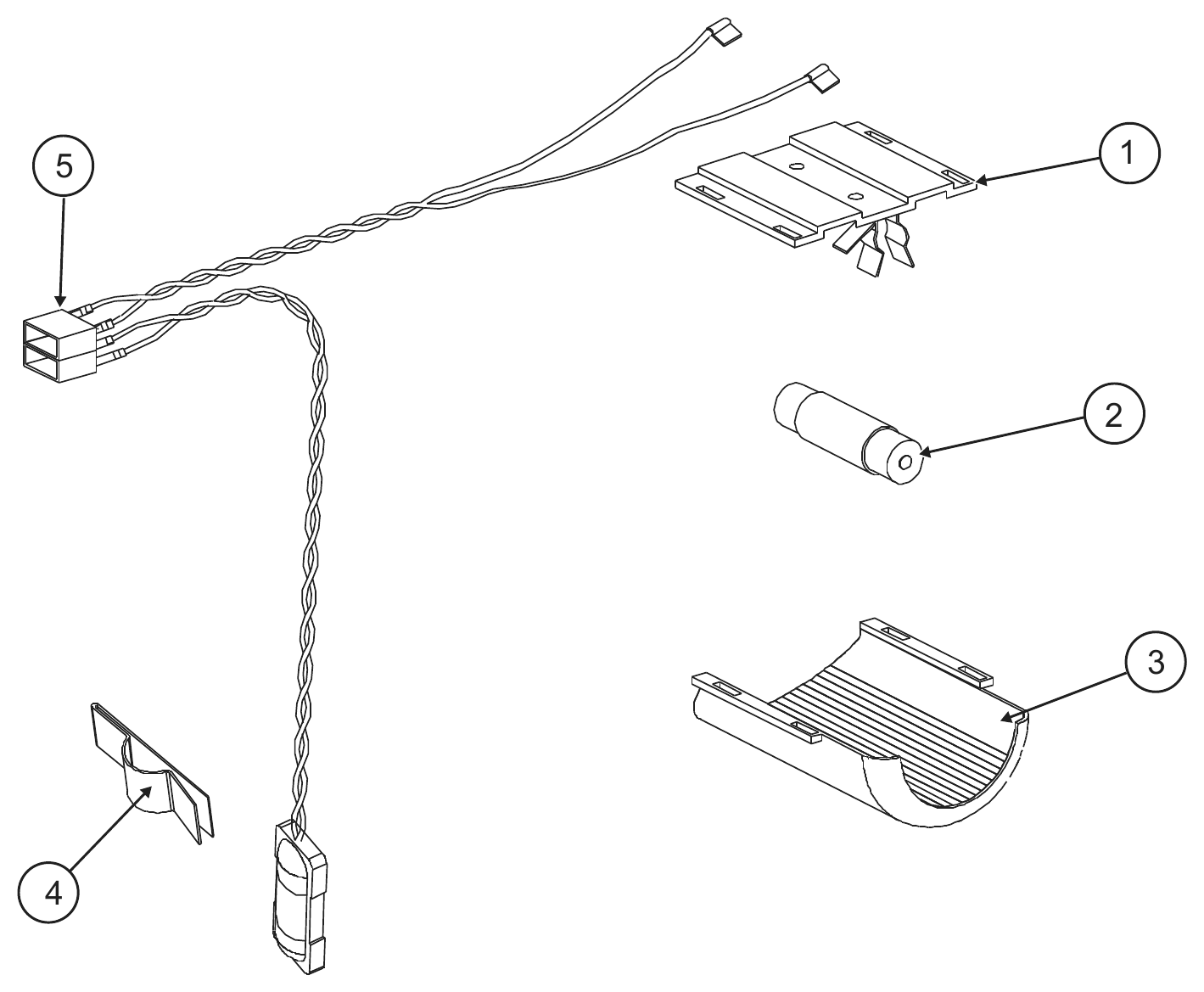

Norcold Interior Light & Thermistor Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | DC Light Bulb Part # 632545 |
All models | View part |
| 5 | Lamp / Thermistor Wire Assembly Part # 618548 |
All models | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N61/N81 series parts list (623421, 02/21/2022); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
