Norcold N611 and N811 Power Board Kit 621991001

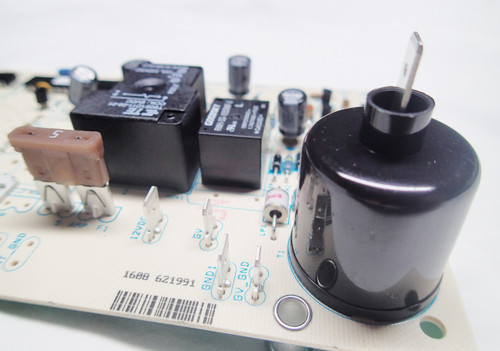

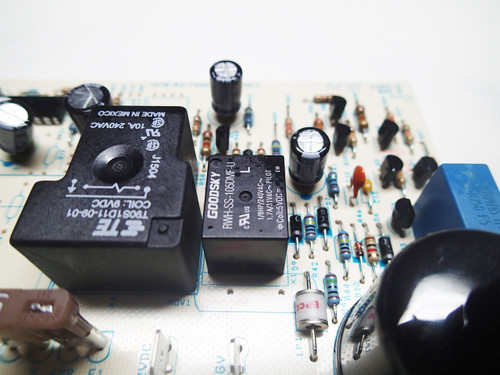

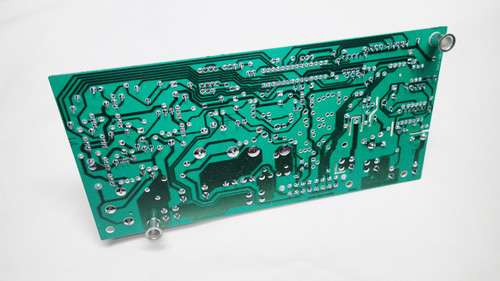

Fits all N611, N610, N811, & N810 models with a serial number below 9056491. This board replaces 621991. If you match the picture of the board up with your current one, it will be very evident if this is not the board you need! If you need the new style board, click the link below:

Norcold Board 628661 <-click

Troubleshooting

Potential problems that a new power board could solve:

• Refrigerator not sensing AC power
• Refrigerator not sensing AC heating element
• Refrigerator not sensing a flame
• Refrigerator not powering on
• Refrigerator incapable of resetting
• Intermittent issues
• SR code display
• If any electrical burn marks are present anywhere on front or back of power board, you should replace it.

Installation

Time:

• 30 minutes or less

Tools:

• Ratchet set
• Screwdriver

Steps:

• Turn your battery switch to OFF
• Remove power board cover
• Take a picture of the board before disconnecting any wires
• Disconnect all wires and remove defective board
• Place new board on old board cover base and connect wires
• Before placing board cover on, turn battery switch ON and power up refrigerator to verify everything is connected and that there are no faults present. If everything is working, put cover back on.
