Find the part you need on the exploded diagrams of the Norcold N64 and N84 series RV refrigerators (N640, N641, N841, N842, N843 with panel or black, stainless or white wrapped doors, including .3, F and IM versions). Click a highlighted number to go straight to that part. A red X means the part has been discontinued.
The N641 refrigerator has been replaced by the Norcold N7X.
The N841 refrigerator has been replaced by the Norcold N8X.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Cabinet (Front View)Cooling Unit & RearRear Controls & Power BoardUpper (Freezer) DoorLower (Fresh Food) DoorIce Maker (IM models)Interior Light & Thermistor

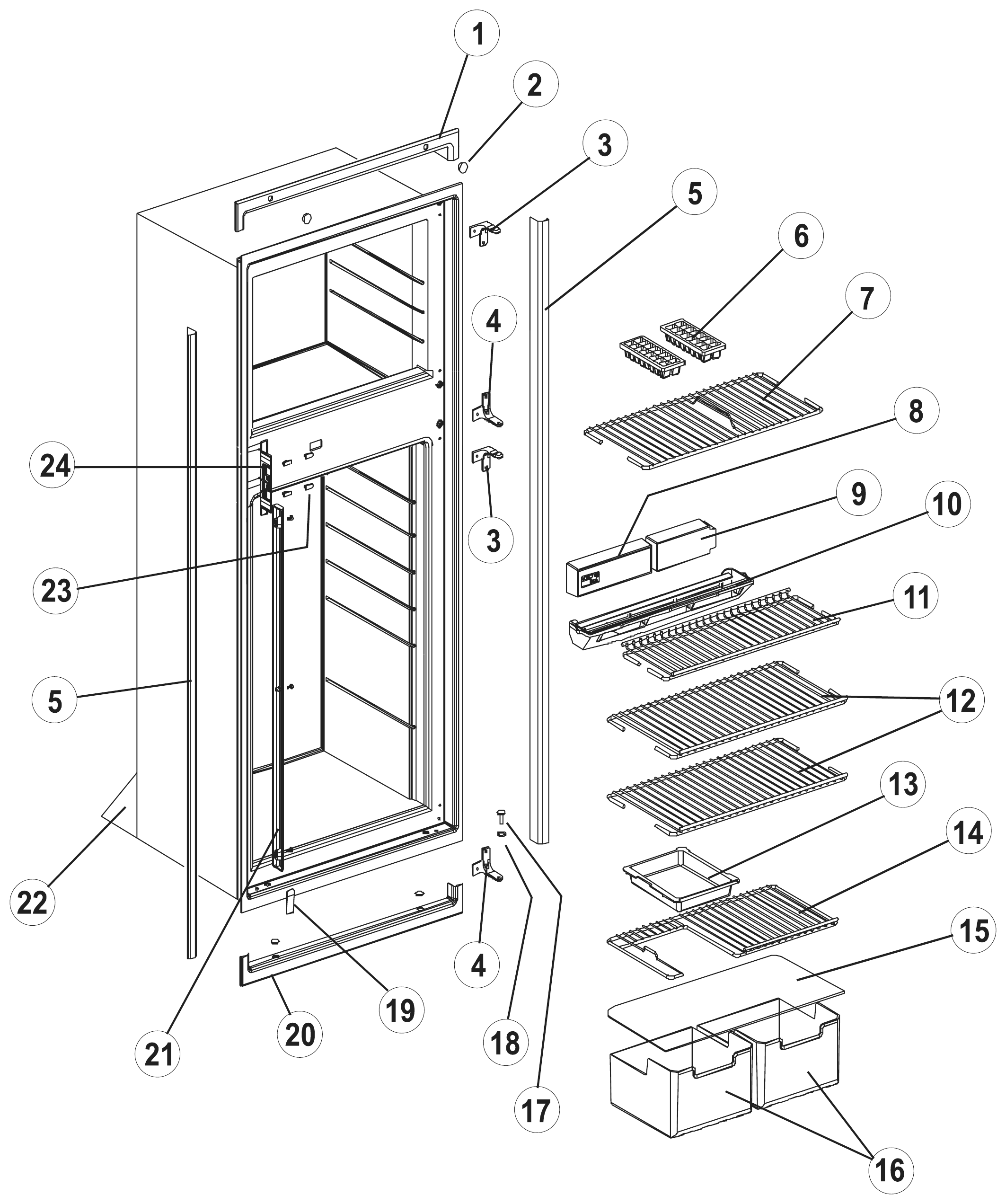

Norcold Cabinet (Front View) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Top Trim Hole Plug, Black (2 per cabinet) Part # 618170 |
All models | View part |
| 7 | Freezer Wire Shelf (non ice maker, SN 17945281 & above) Part # 632446 |
N640/N641, N841, N842 | View part |
| 13 | Cut-Out Shelf Tray, White Part # 617756 |
All models | View part |
| 15 | Crisper Cover Glass Shelf Part # 618158 |
All models | View part |
| 16 | Ice / Crisper Bin, Clear Part # 619007 |
All models | View part |
| 18 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |
| 21 | Shelf Retainer (SN 926964 & above) Part # 622033 |
All models | View part |
| 24 | Strike Plate, Black Part # 618167 |
All models | View part |

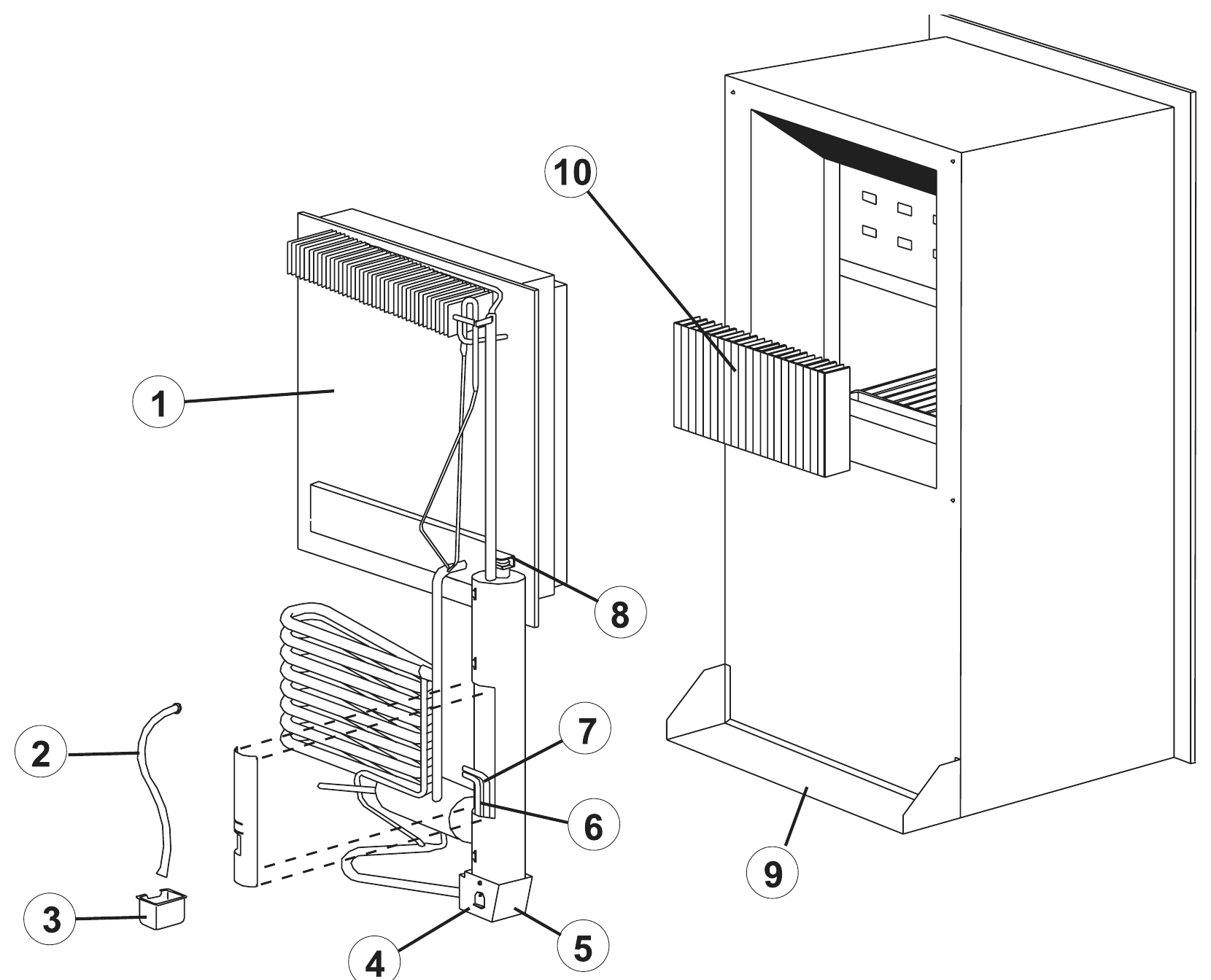

Norcold Cooling Unit & Rear Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Cooling Unit, N64 series Part # 632307 |
N640/N641 | Shop Nordic 3361A |
| 1 | Cooling Unit, N84 series Part # 632314 |
N841, N842, N843 | Shop Nordic 3381A |
| 2 | Drain Hose, N64 series Part # 622390 |
N640/N641 | View part |
| 2 | Drain Hose, N84 series Part # 622391 |
N841, N842, N843 | View part |
| 6 | AC Heater (cooling unit SN 11231023 / 11232007 & below) Part # 621702 |
N640/N641 | View part |

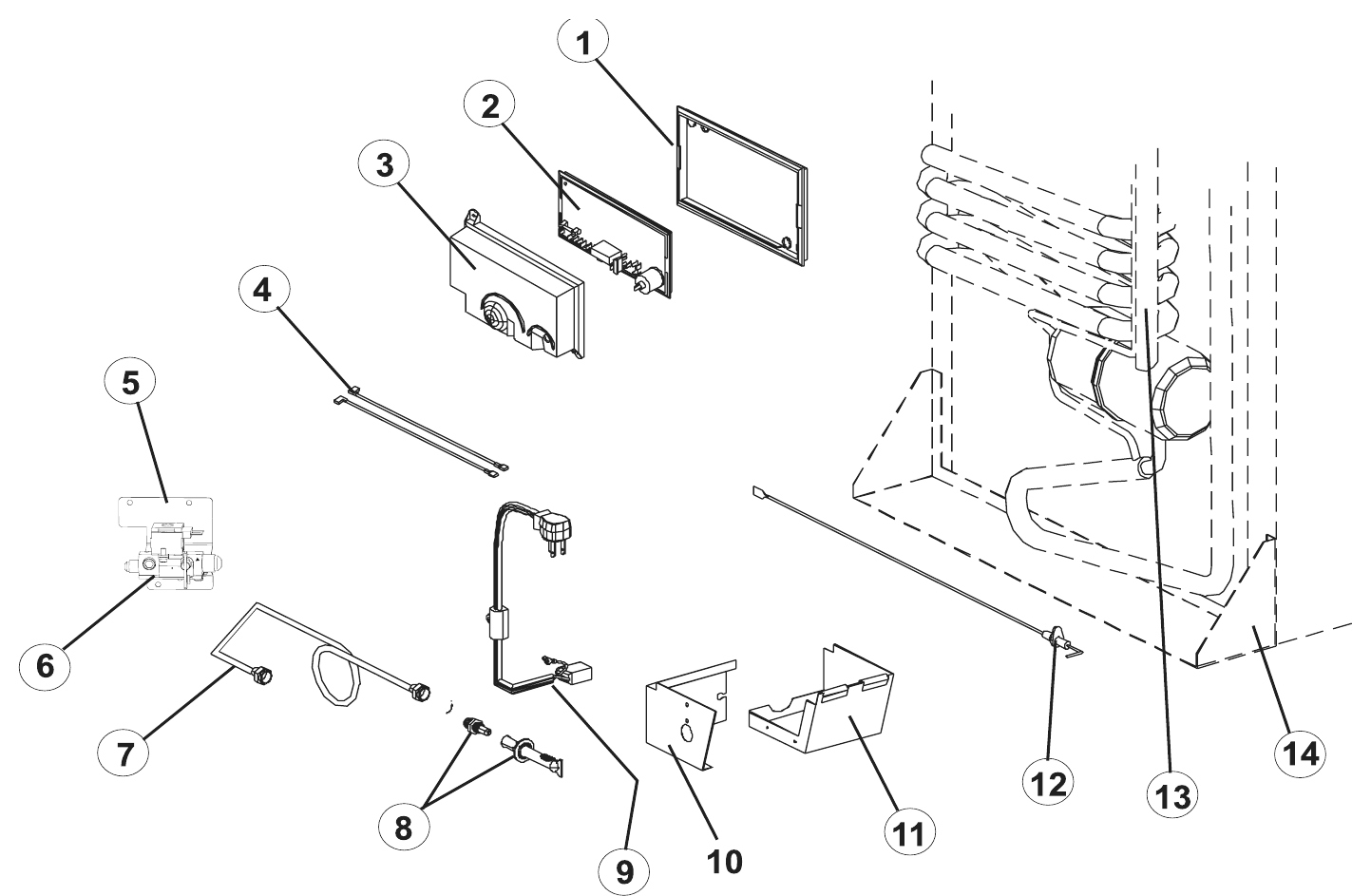

Norcold Rear Controls & Power Board Parts
Power board by serial number: EG2 models SN 9044284 & above and EG3 models SN 8938728 & above use the 628661. Below those numbers, the original 621269001 (EG2) or 621270001 (EG3) kit has been replaced by the 6212XX. Older units (SN 656979 & below) have a separate manual shut-off valve, but the board, cover, burner, electrode, cords and cooling unit are the same parts listed here.
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board Kit EG2, replaced by the 6212XX (SN 9044283 & below) Part # 621269001 |
All models | Shop 6212XX |
| 2 | Power Board Kit EG3, replaced by the 6212XX (SN 8938727 & below) Part # 621270001 |
N641, N841 | Shop 6212XX |
| 2 | Power Board (EG2 SN 9044284 & above; EG3 SN 8938728 & above) Part # 628661 |
All models | View part |
| 3 | Power Supply Cover (EG2 SN 9044283 & below; EG3 SN 8938727 & below) Part # 618185 |
All models | View part |
| 8 | Burner / Orifice Adapter Kit Part # 621957 |
All models | View part |
| 9 | AC Power Cord, Ice Maker Models Part # 618406 |
N640/N641, N841, N842 | View part |
| 12 | Spark / Sense Electrode Part # 61692222 |
All models | View part |
| 13 | Cooling Unit, N64 series Part # 632307 |
N640/N641 | Shop Nordic 3361A |
| 13 | Cooling Unit, N84 series Part # 632314 |
N841, N842, N843 | Shop Nordic 3381A |

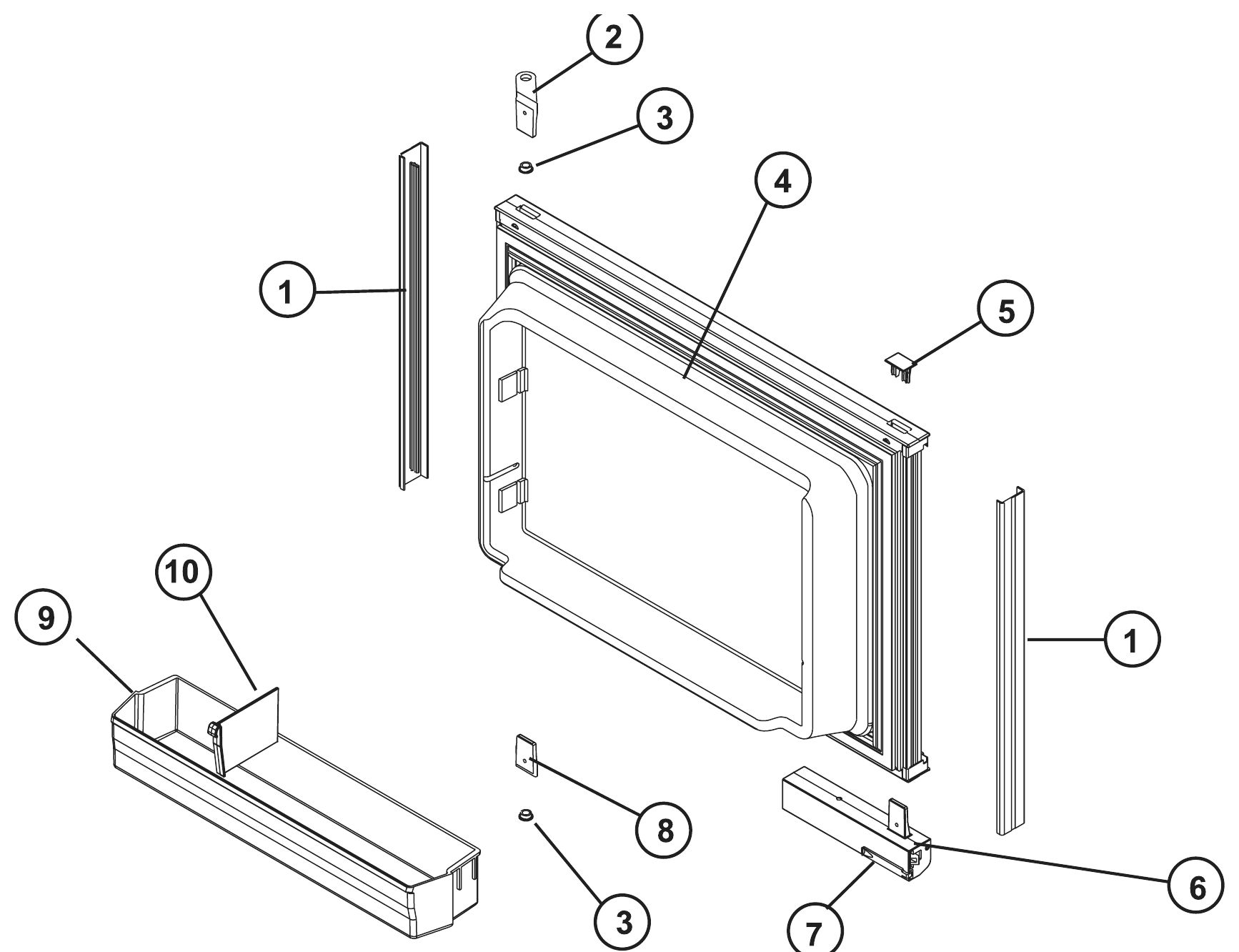

Norcold Upper (Freezer) Door Parts
Shown with a panel-type door. Black, stainless and white wrapped-door models use the same hinges, bushings, handles and bins. The door assemblies themselves are discontinued.
| # | Part | Fits | |
|---|---|---|---|
| 1 | Upper Door Panel Retainer, Black (smooth door, 2 per door) Part # 623943 |
All models | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |

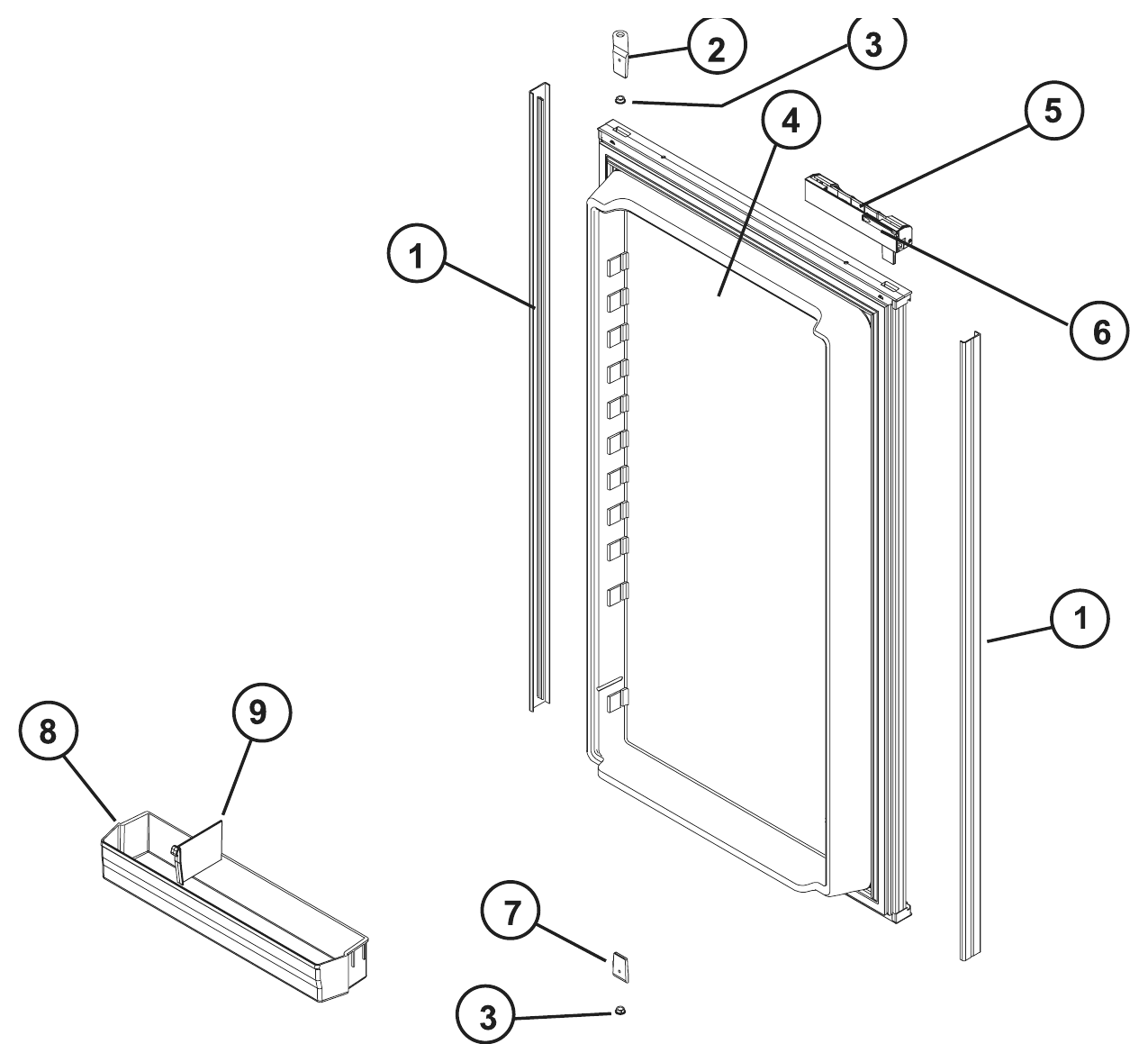

Norcold Lower (Fresh Food) Door Parts
Shown with a panel-type door. Wrapped-door models use the same hinges, bushings, handles and bins.
| # | Part | Fits | |
|---|---|---|---|
| 1 | Lower Door Panel Retainer, 6′, Black (smooth door) Part # 623948 |
N641 | View part |
| 1 | Lower Door Panel Retainer, 8′, Black (smooth door) Part # 623760 |
N841, N842, N843 | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |
| NS | Door Bin Wire Rack (smooth door, not shown) Part # 624866 |
All models | View part |

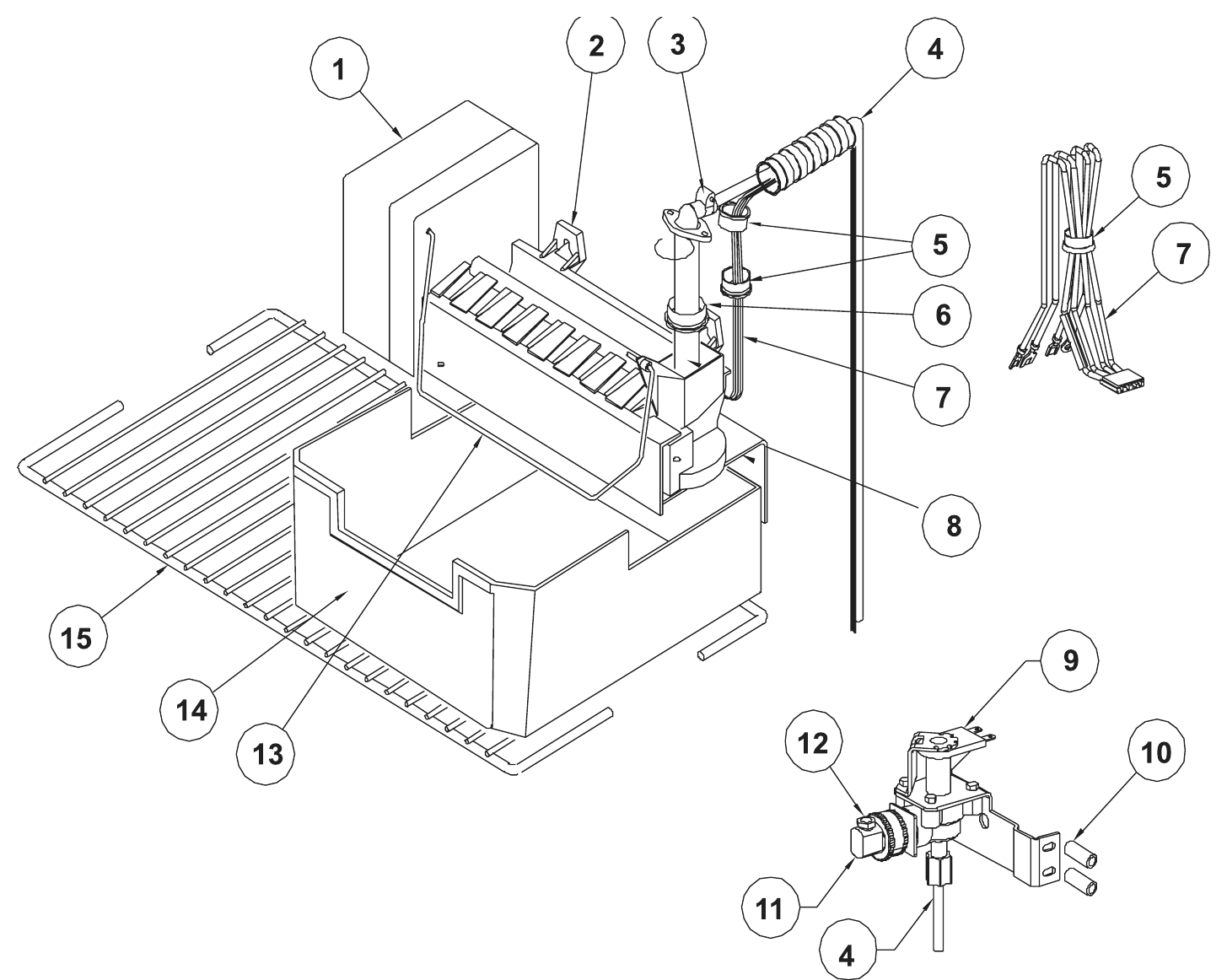

Norcold Ice Maker (IM models) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Ice Maker Kit Part # 633324 |
All ice maker models | View part |
| 13 | Ice Maker Shut-Off Arm Part # 61656922 |
All ice maker models | View part |
| 14 | Ice / Crisper Bin, Clear Part # 619007 |
All ice maker models | View part |

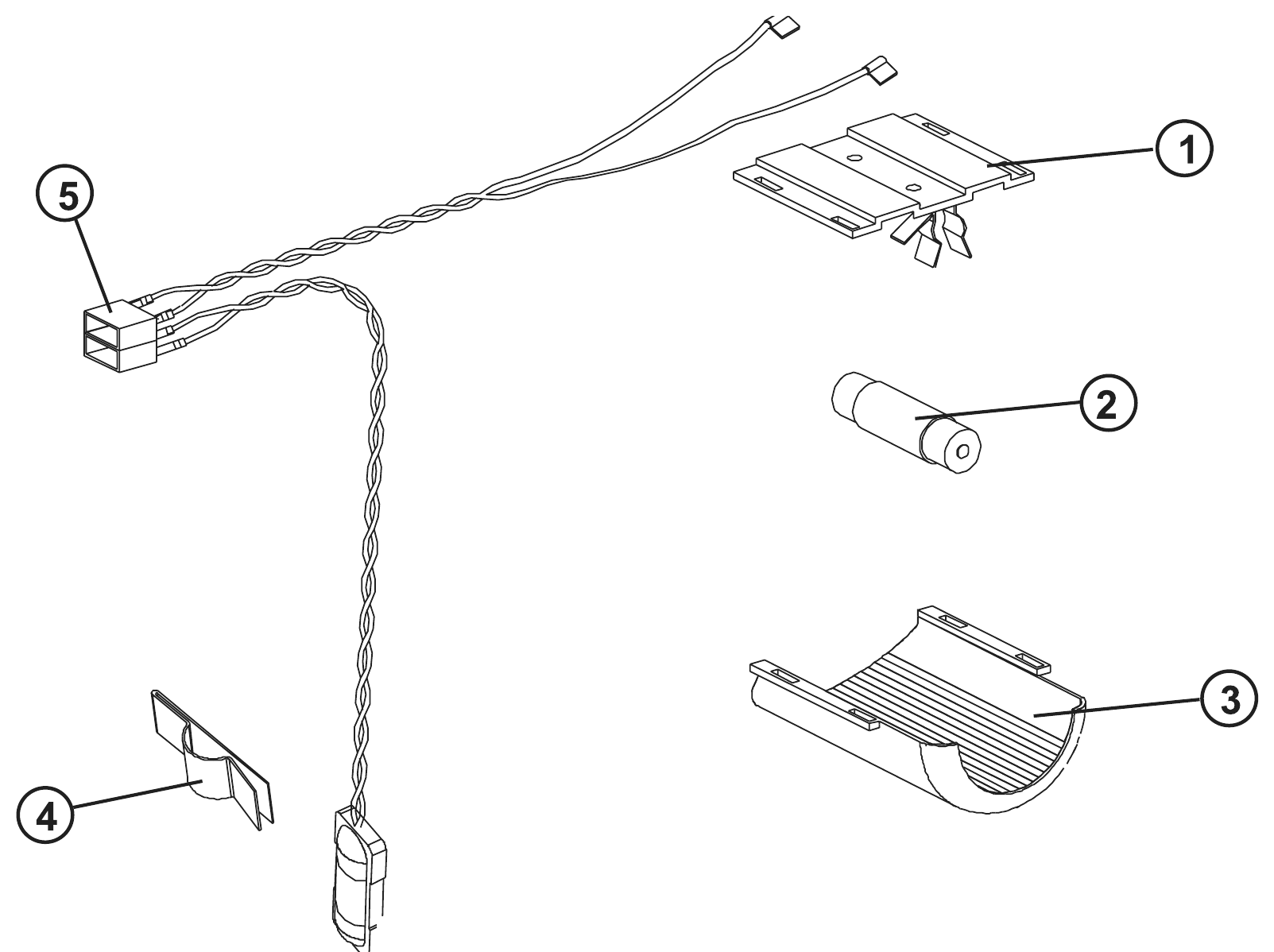

Norcold Interior Light & Thermistor Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | DC Light Bulb Part # 632545 |
All models | View part |
| 5 | Lamp / Thermistor Wire Assembly Part # 618548 |
All models | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N64/N84 series parts list (623423); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
