Find the part you need on the exploded diagrams of the Norcold N62 and N82 series RV refrigerators (N621, N621C, N621SS, N623, N624, N821, N821C, N821BK, N821SS, N821V, N822, N823, N824 and their F versions). Click a highlighted number to go straight to that part. A red X means the part has been discontinued.
The N621 refrigerator has been replaced by the Norcold N7X.
The N821 refrigerator has been replaced by the Norcold N8X.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Cabinet (Front View)Cooling Unit & RearRear Controls (SN 656980 & above)Rear Controls (SN 656979 & below)Upper (Freezer) DoorLower (Fresh Food) DoorInterior Light & Thermistor

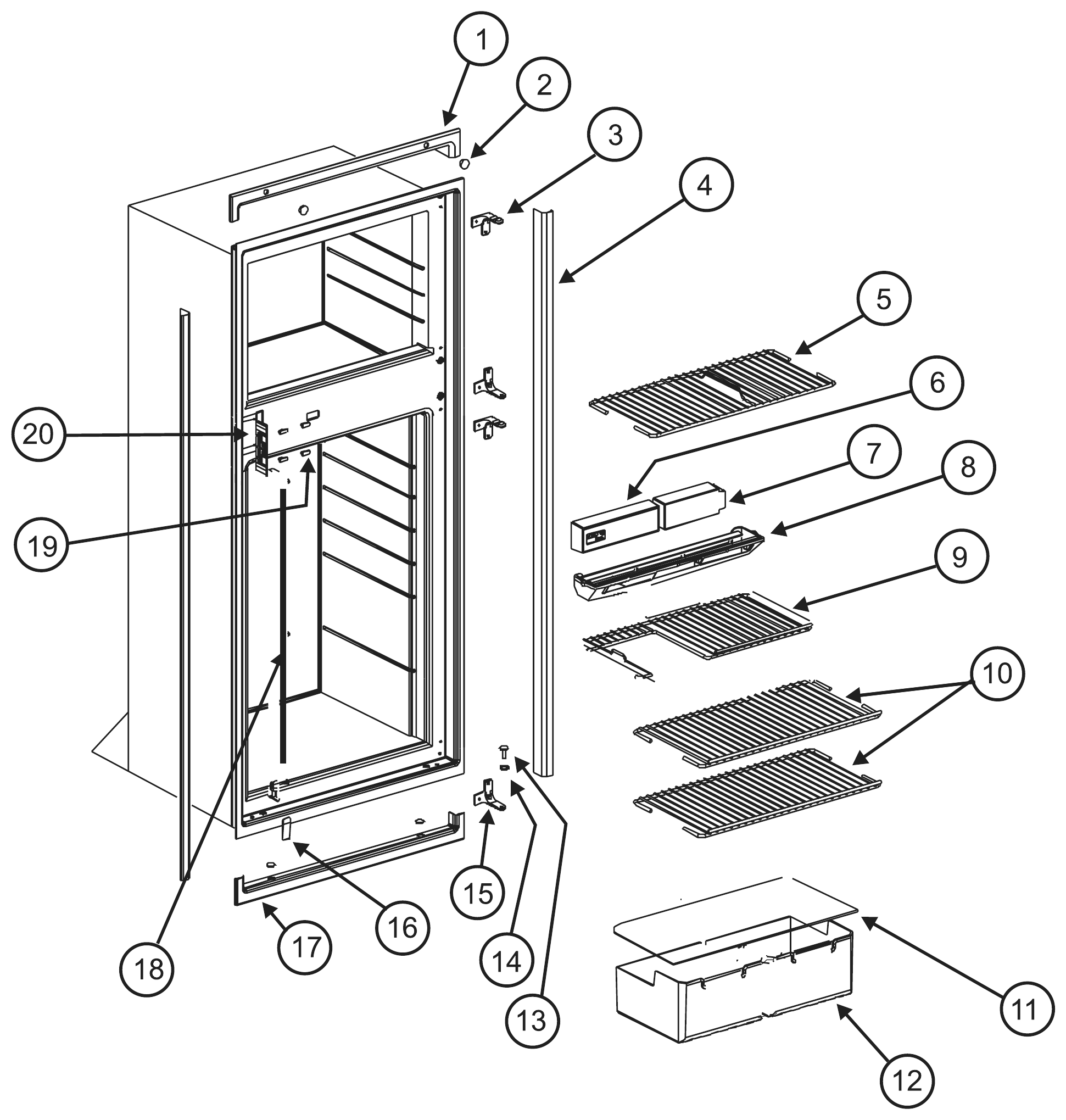

Norcold Cabinet (Front View) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Hole Plug, Black (2 per cabinet) Part # 618170 |
All models | View part |
| 5 | Freezer Wire Shelf (SN 17945281 & above) Part # 632446 |
All models | View part |
| 11 | Crisper Cover Glass Shelf Part # 618158 |
All models | View part |
| 14 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |
| 18 | Shelf Retainer (SN 926964 & after) Part # 622033 |
All models | View part |
| 20 | Strike Plate Part # 618167 |
All models | View part |

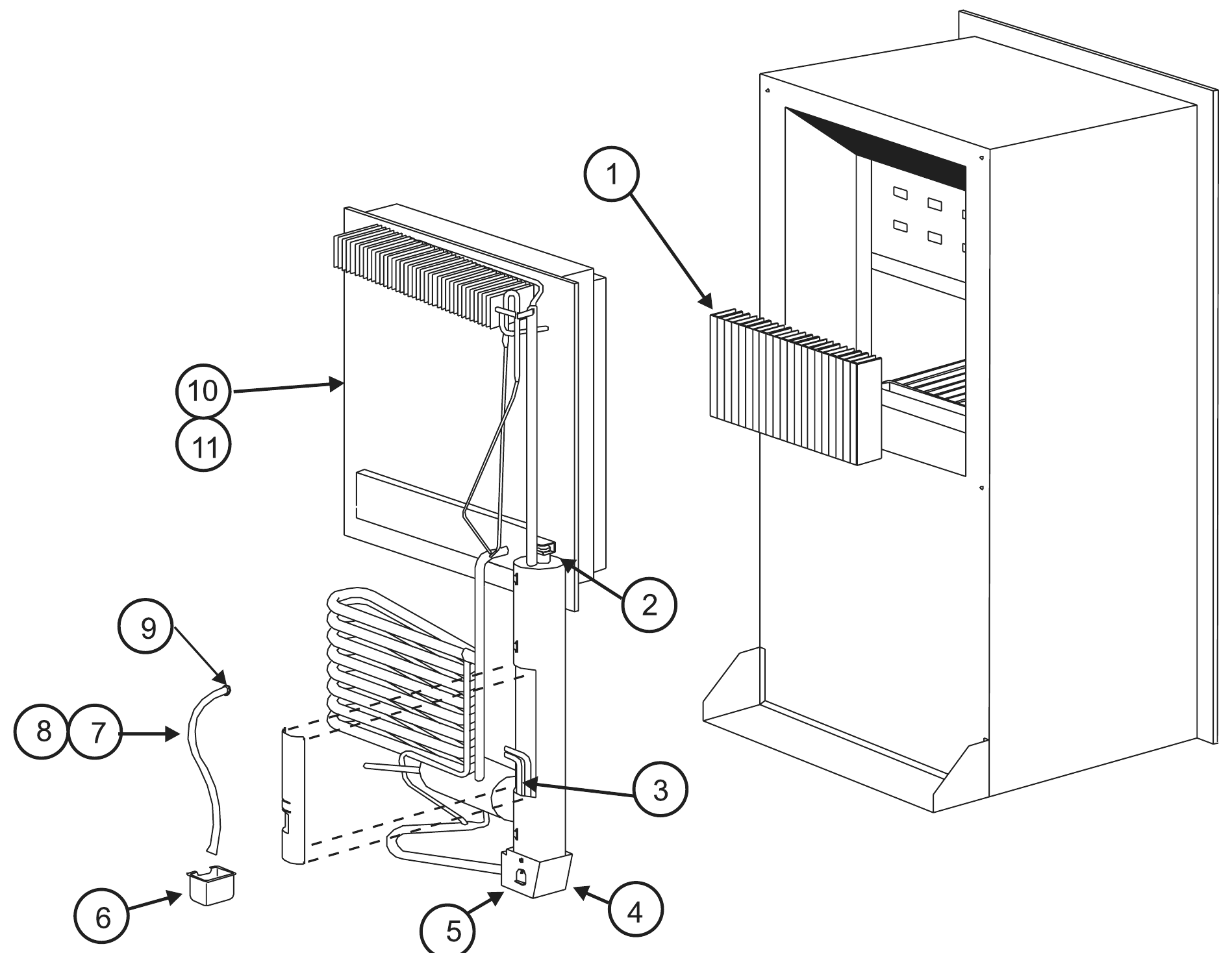

Norcold Cooling Unit & Rear Parts
| # | Part | Fits | |
|---|---|---|---|
| 3 | AC Heater (cooling unit SN 11231023 / 11232007 & below) Part # 621702 |
View part | |
| 3 | AC Heater Kit (cooling unit SN 11231024 / 11232008 & above) Part # 638374 |
All models | View part |
| 7 | Drain Hose, N62 series Part # 622390 |
N62 series | View part |
| 8 | Drain Hose, N82 series Part # 622391 |
N82 series | View part |
| 10 | Cooling Unit, N62 series Part # 632307 |
N62 series | Shop Nordic 3361A |
| 11 | Cooling Unit, N82 series Part # 632314 |
N82 series | Shop Nordic 3381A |

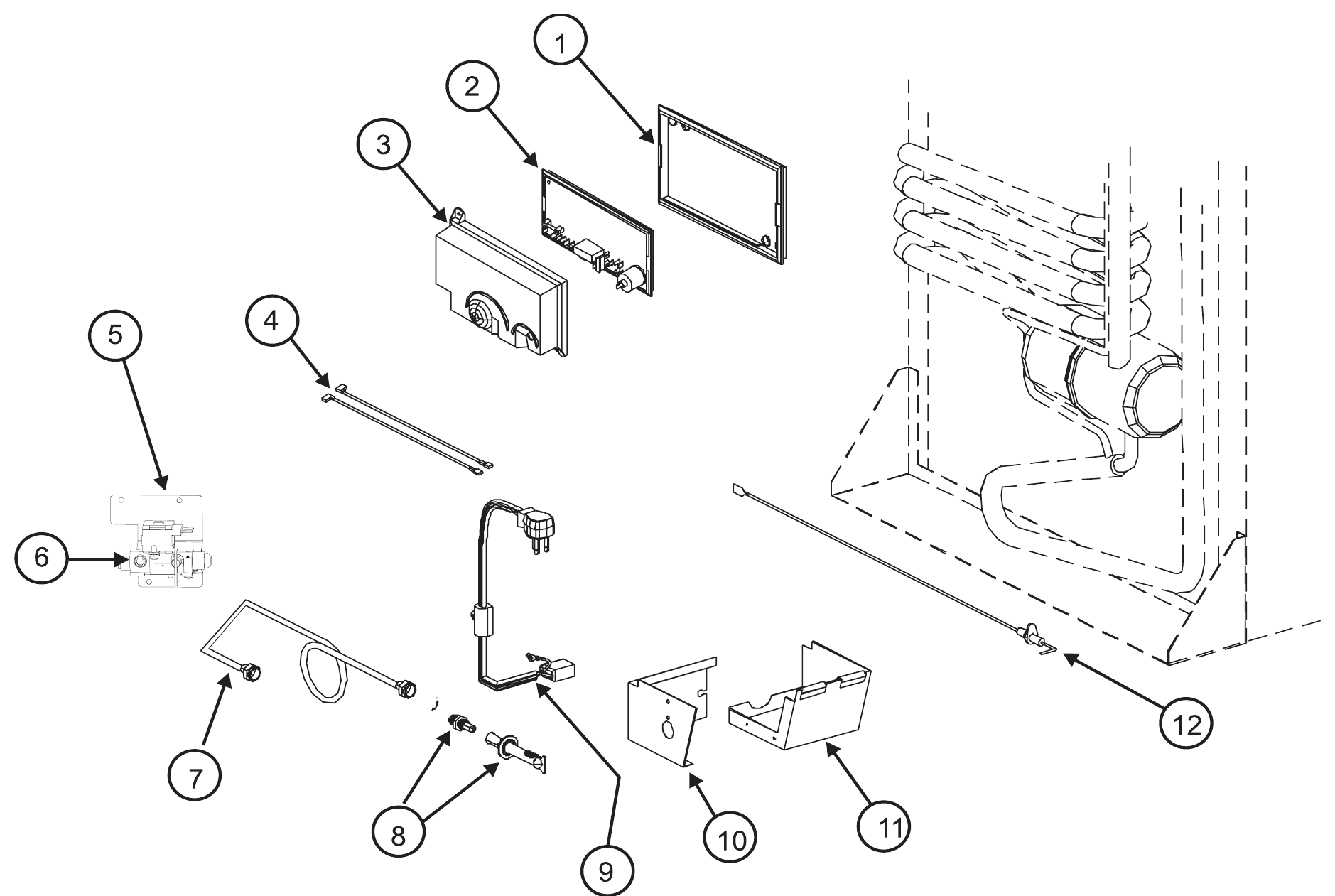

Norcold Rear Controls (SN 656980 & above) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board (N621/N821/N822 SN 9126825 & above; N623/N823 SN 8970881 & above) Part # 628661 |
All models | View part |
| 2 | Power Board Kit, replaced by the 6212XX (N621/N821/N822 SN 9126824 & below; N623/N823 SN 8970880 & below) Part # 632168001 |
All models | Shop 6212XX |
| 3 | Power Board Cover (N621/N821/N822 SN 9126824 & below; N623/N823 SN 8970880 & below) Part # 618185 |
All models | View part |
| 8 | Burner / Orifice Adapter Kit Part # 621957 |
All models | View part |
| 12 | Spark / Sense Electrode Part # 61692222 |
All models | View part |

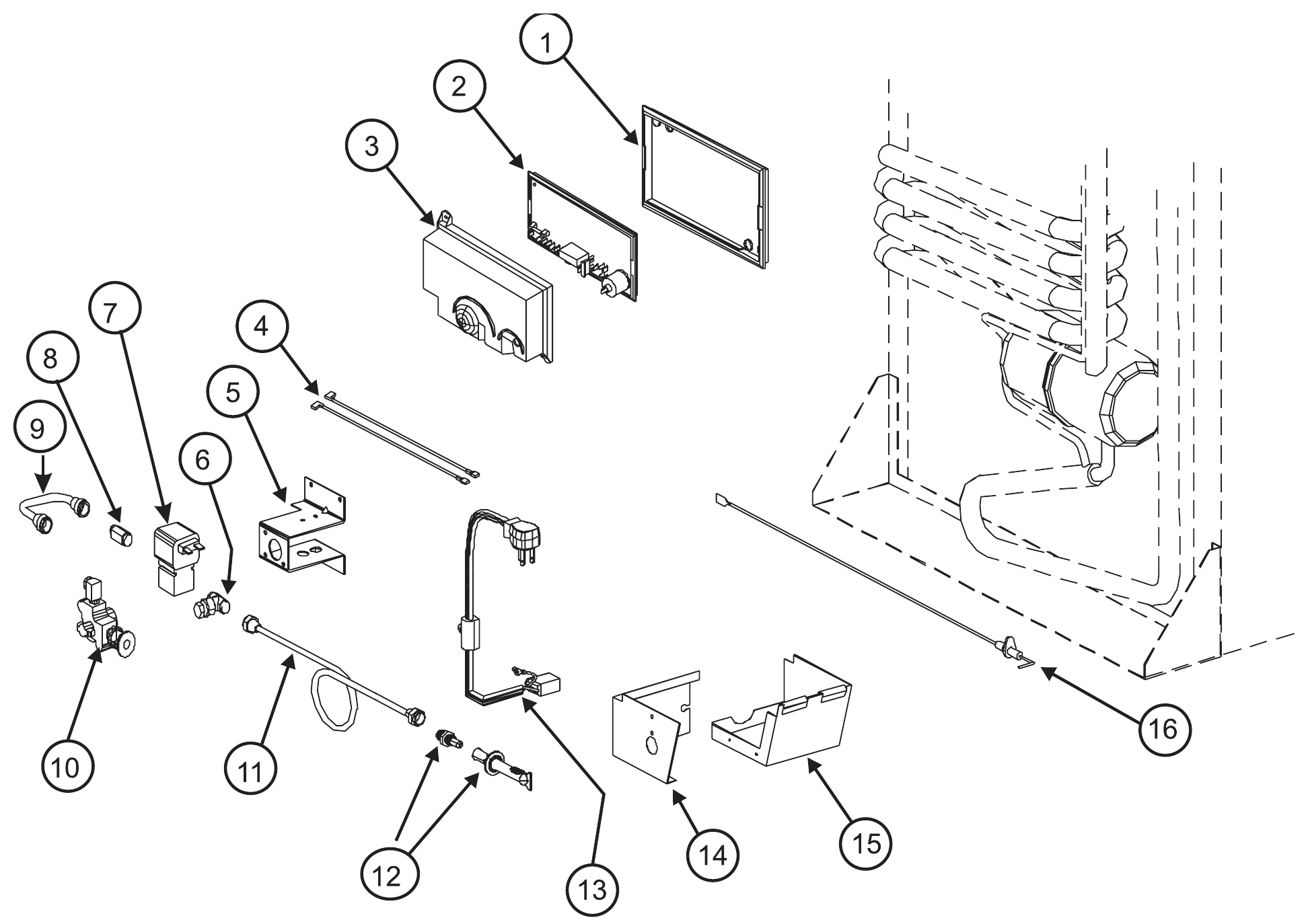

Norcold Rear Controls (SN 656979 & below) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board Kit, replaced by the 6212XX (N621/N821/N822 SN 9126824 & below; N623/N823 SN 8970880 & below) Part # 632168001 |
All models | Shop 6212XX |
| 3 | Power Board Cover (N621/N821/N822 SN 9126824 & below; N623/N823 SN 8970880 & below) Part # 618185 |
All models | View part |
| 12 | Burner / Orifice Adapter Kit Part # 621957 |
All models | View part |

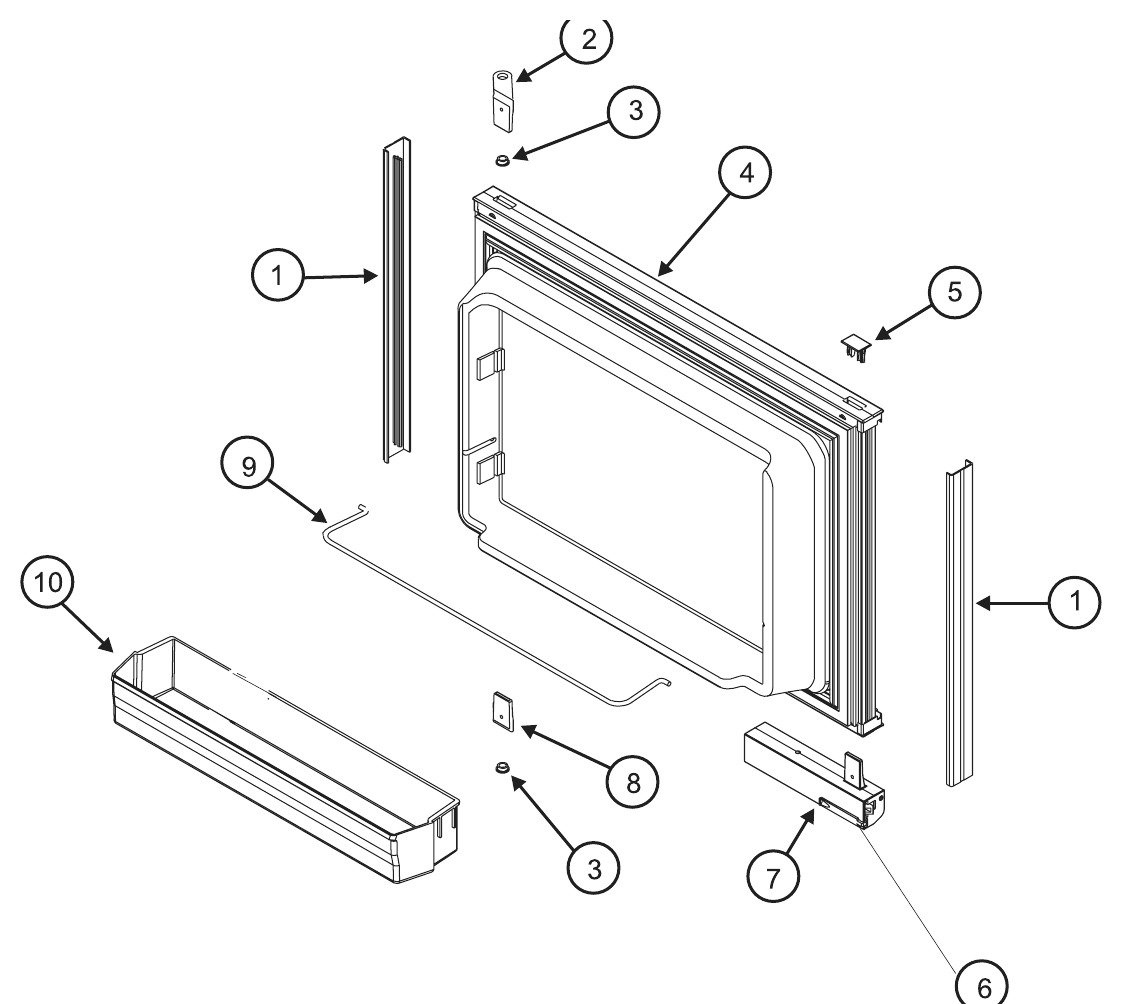

Norcold Upper (Freezer) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Upper Door Panel Retainer, Black (smooth door) Part # 623943 |
All models | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |
| 10 | Door Bin, White (smooth door) Part # 624863 |
All models | View part |

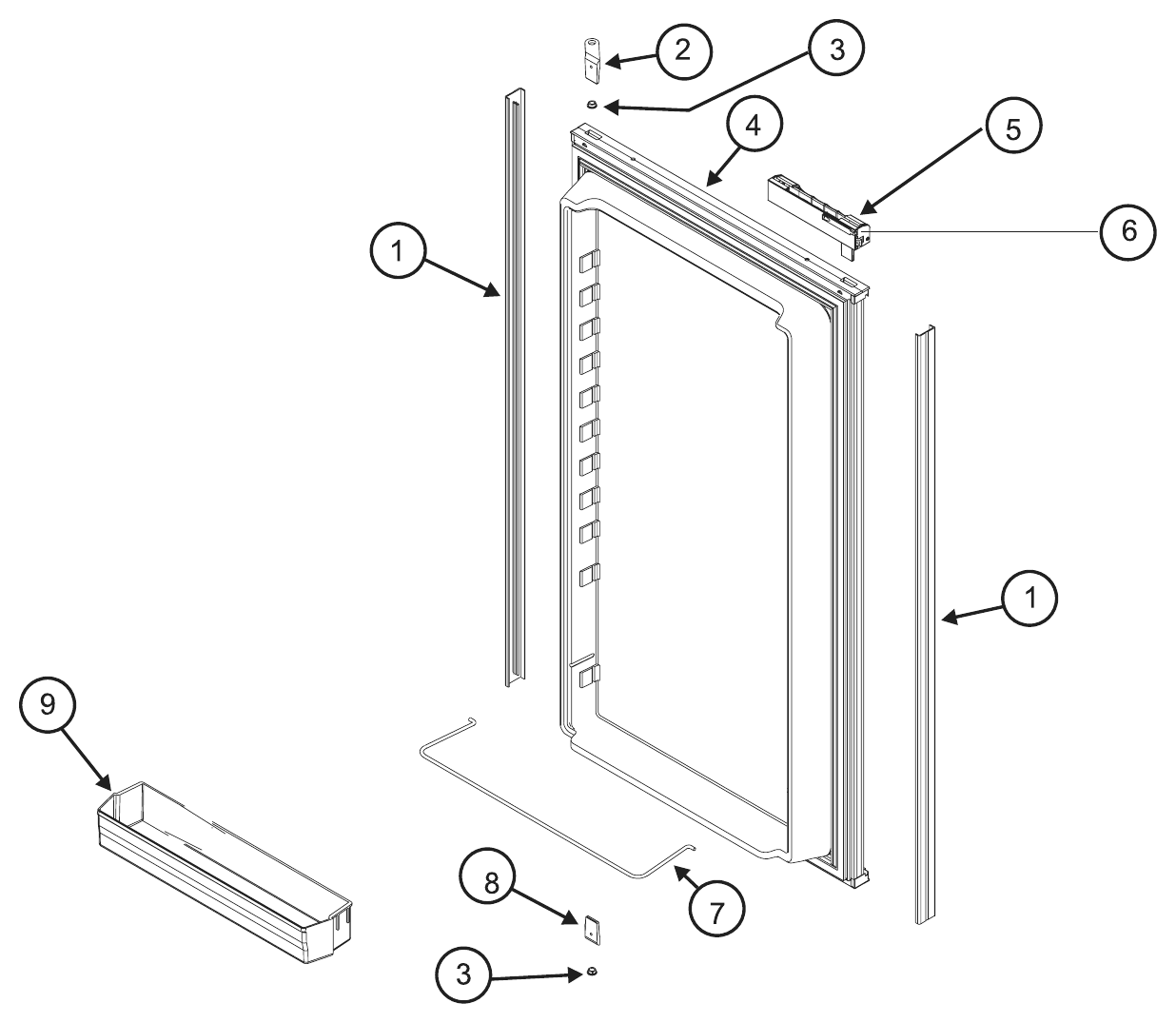

Norcold Lower (Fresh Food) Door Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Lower Door Panel Retainer, 6′, Black (smooth door) Part # 623948 |
N62 series | View part |
| 1 | Lower Door Panel Retainer, 8′, Black (smooth door) Part # 623760 |
N82 series, N822/N822F | View part |
| 3 | Door Hinge Bushing, Warm Gray Part # 619671 |
All models | View part |
| 7 | Door Bin Wire Rack (smooth door) Part # 624866 |
All models | View part |
| 9 | Door Bin, White (smooth door) Part # 624863 |
All models | View part |

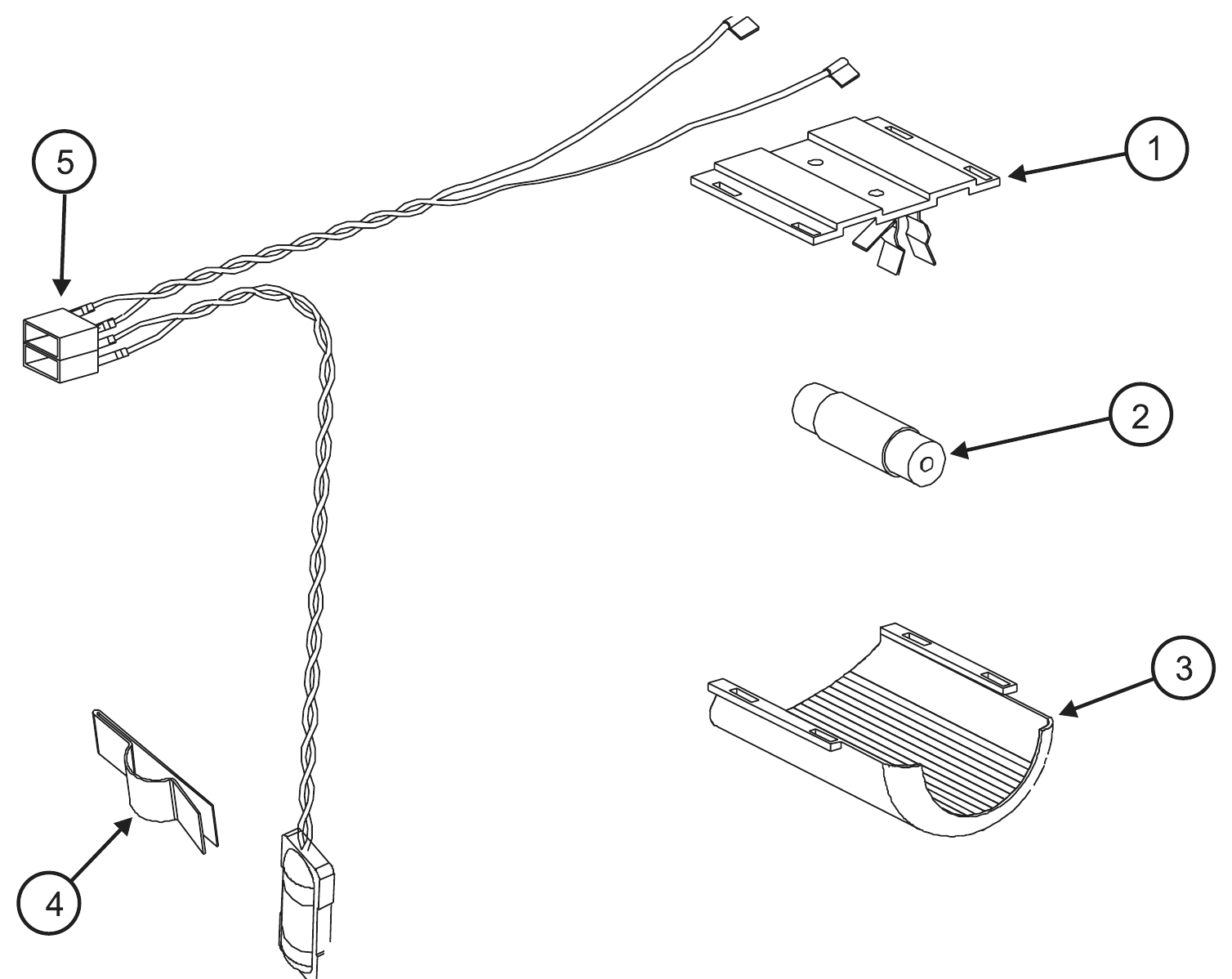

Norcold Interior Light & Thermistor Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | DC Light Bulb Part # 632545 |
All models | View part |
| 5 | Lamp / Thermistor Wire Assembly Part # 618548 |
All models | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N62/N82 series parts list (623422); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
