Find the part you need on the exploded diagrams of the Dometic DM2882RB Americana II Plus 8 cu. ft. 2-way RV refrigerator. Click a highlighted number to go straight to that part. A red X means the part is currently unavailable.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Burner & ElectricalPower Board, Heater & Burner AssemblyCooling Unit & Thermal FuseCabinet, Door Catch & ThermistorInterior Shelves, Rails & DrainDoors & Door Bins

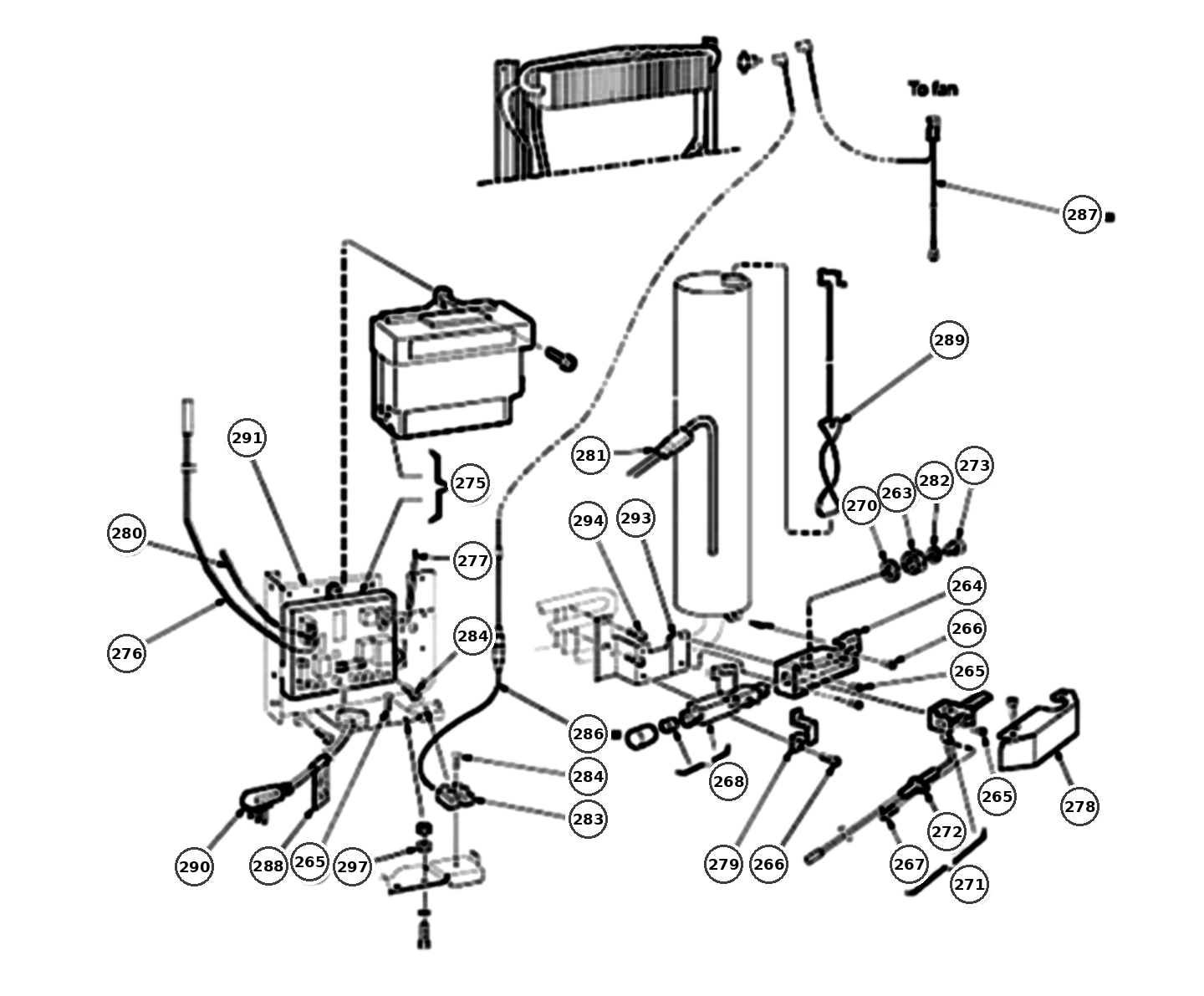

Dometic DM2882 Burner & Electrical Parts
| # | Part | Fits | |
|---|---|---|---|
| 264 | Gas Valve / Burner / Igniter Assembly (also #270, #277, #279, #282) Part # 3850730569 |
DM2882 | View part |
| 272 | Electrode with Lead Wire Part # 2932781012 |
DM2882 | View part |
| 275 | Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 |
DM2882 | View part |
| 276 | Thermistor Kit with Plug and Holder Part # 38510590422 |
DM2882 | View part |
| 281 | AC Heater, 325W 120V (replaces 3850644422) Part # 3313107.039 |
DM2882 | View part |

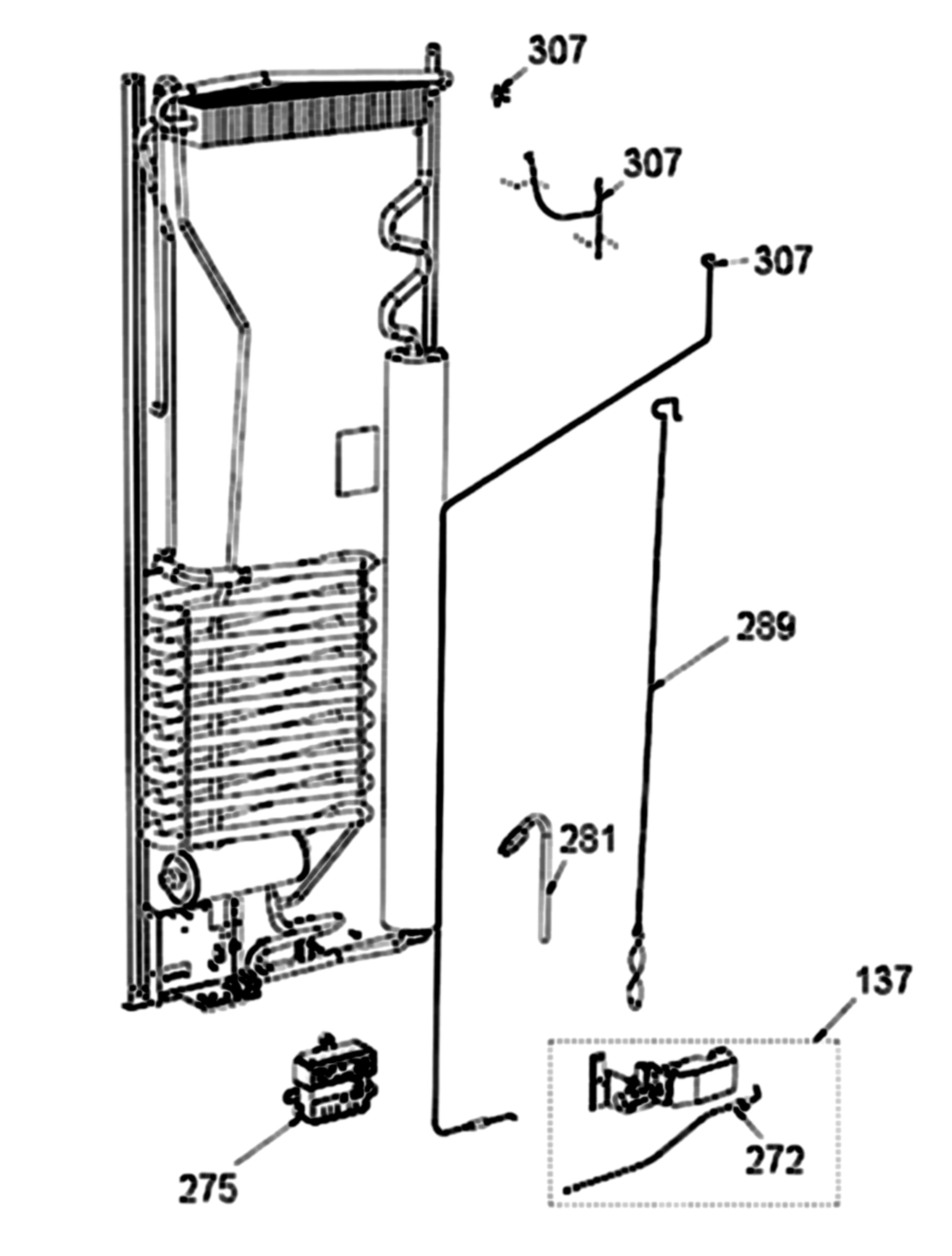

Dometic DM2882 Power Board, Heater & Burner Assembly Parts
| # | Part | Fits | |
|---|---|---|---|
| 137 | Gas Valve / Burner / Igniter Assembly Part # 3850730569 |
DM2882 | View part |
| 272 | Electrode with Lead Wire Part # 2932781012 |
DM2882 | View part |
| 275 | Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 |
DM2882 | View part |
| 281 | AC Heater, 325W 120V (replaces 3850644422) Part # 3313107.039 |
DM2882 | View part |

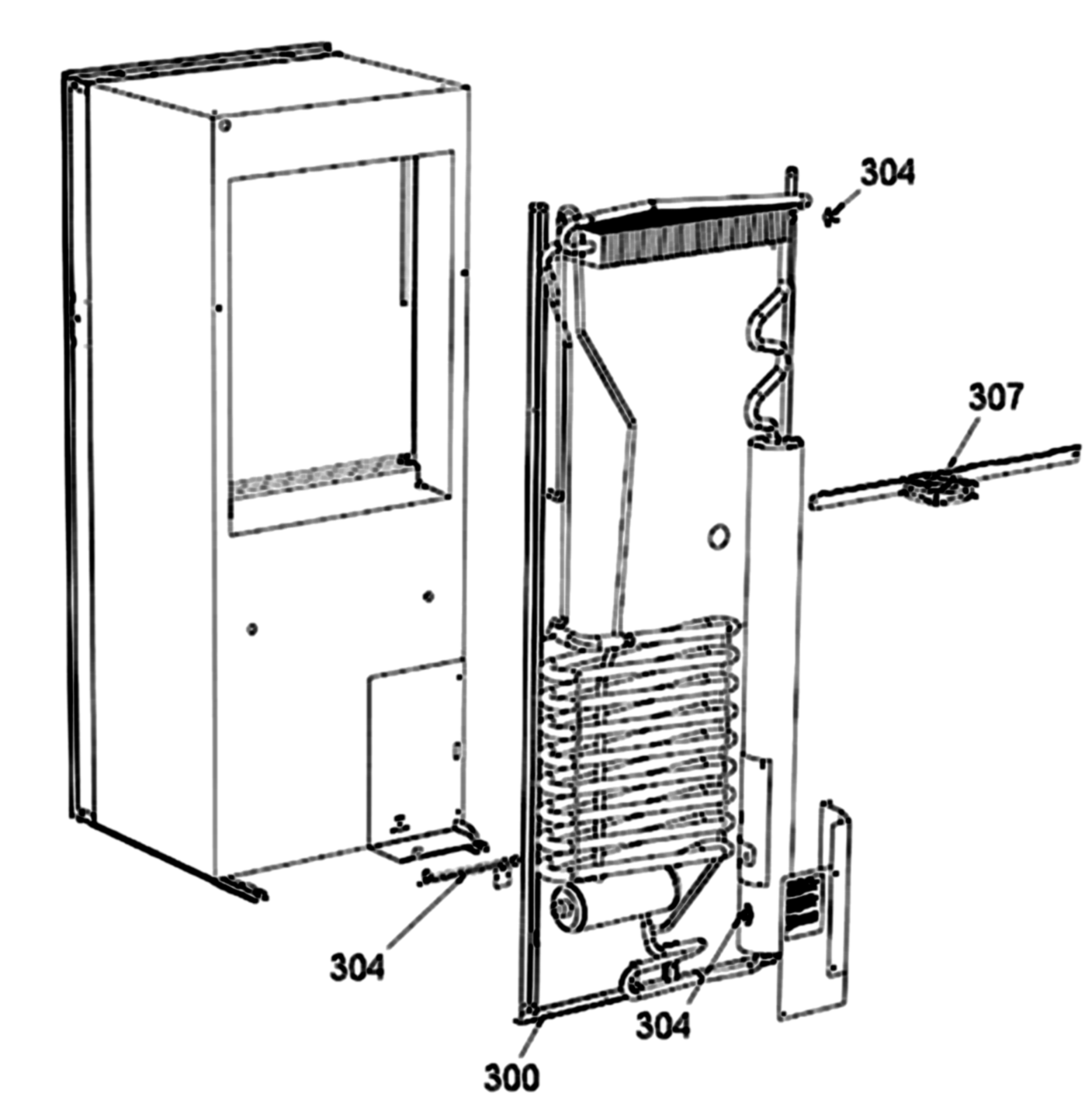

Dometic DM2882 Cooling Unit & Thermal Fuse Parts
| # | Part | Fits | |
|---|---|---|---|
| 300 | Cooling Unit (806/826) Part # 3313470.008 |
DM2882 | View part |
| 304 | Thermal Fuse/Switch Kit Part # 38514090155 |
DM2882 | View part |

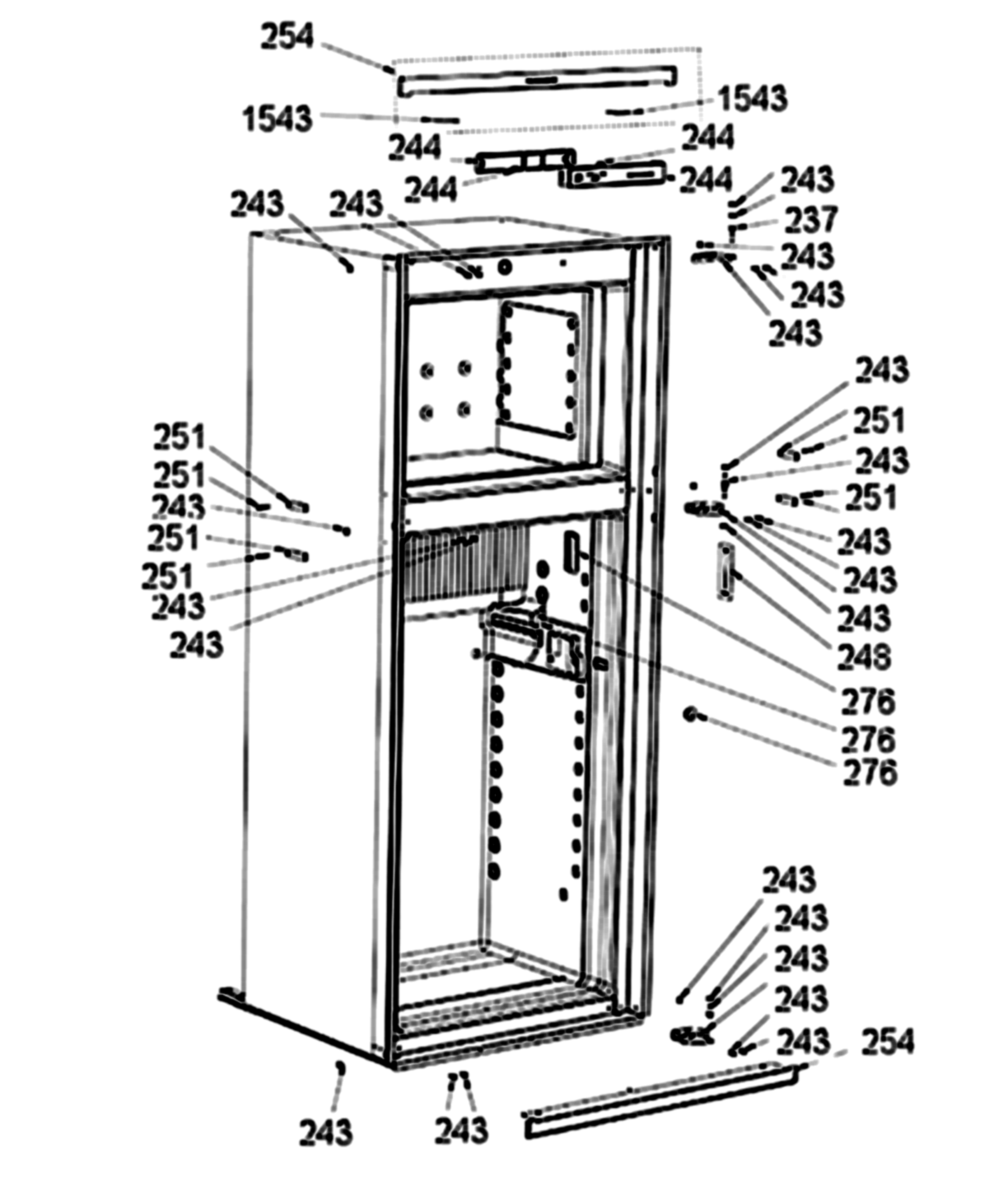

Dometic DM2882 Cabinet, Door Catch & Thermistor Parts
| # | Part | Fits | |
|---|---|---|---|
| 251 | Lever Catch Part # 2932855014 |
DM2882 | View part |
| 276 | Thermistor Kit with Plug and Holder Part # 38510590422 |
DM2882 | View part |

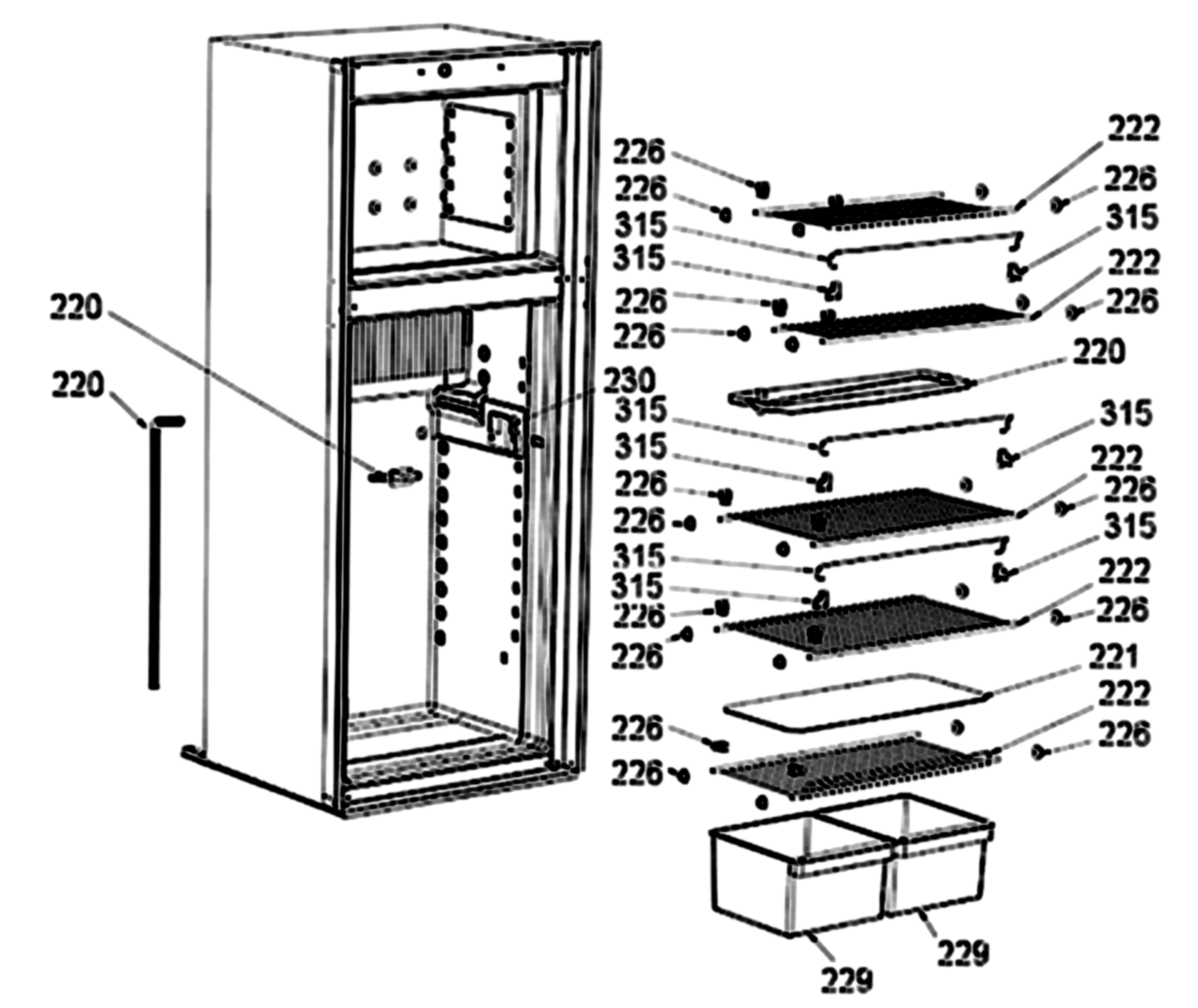

Dometic DM2882 Interior Shelves, Rails & Drain Parts
| # | Part | Fits | |
|---|---|---|---|
| 220 | Drain Cup Part # 2932635010 |
DM2882 | View part |
| 226 | Shelf Plug, Right Side Part # 2932101013 |
DM2882 | View part |
| 226 | Shelf Plug, Left Side Part # 2932103019 |
DM2882 | View part |
| 315 | Shelf Rail Combo Kit Part # 20073372111 |
DM2882 | View part |

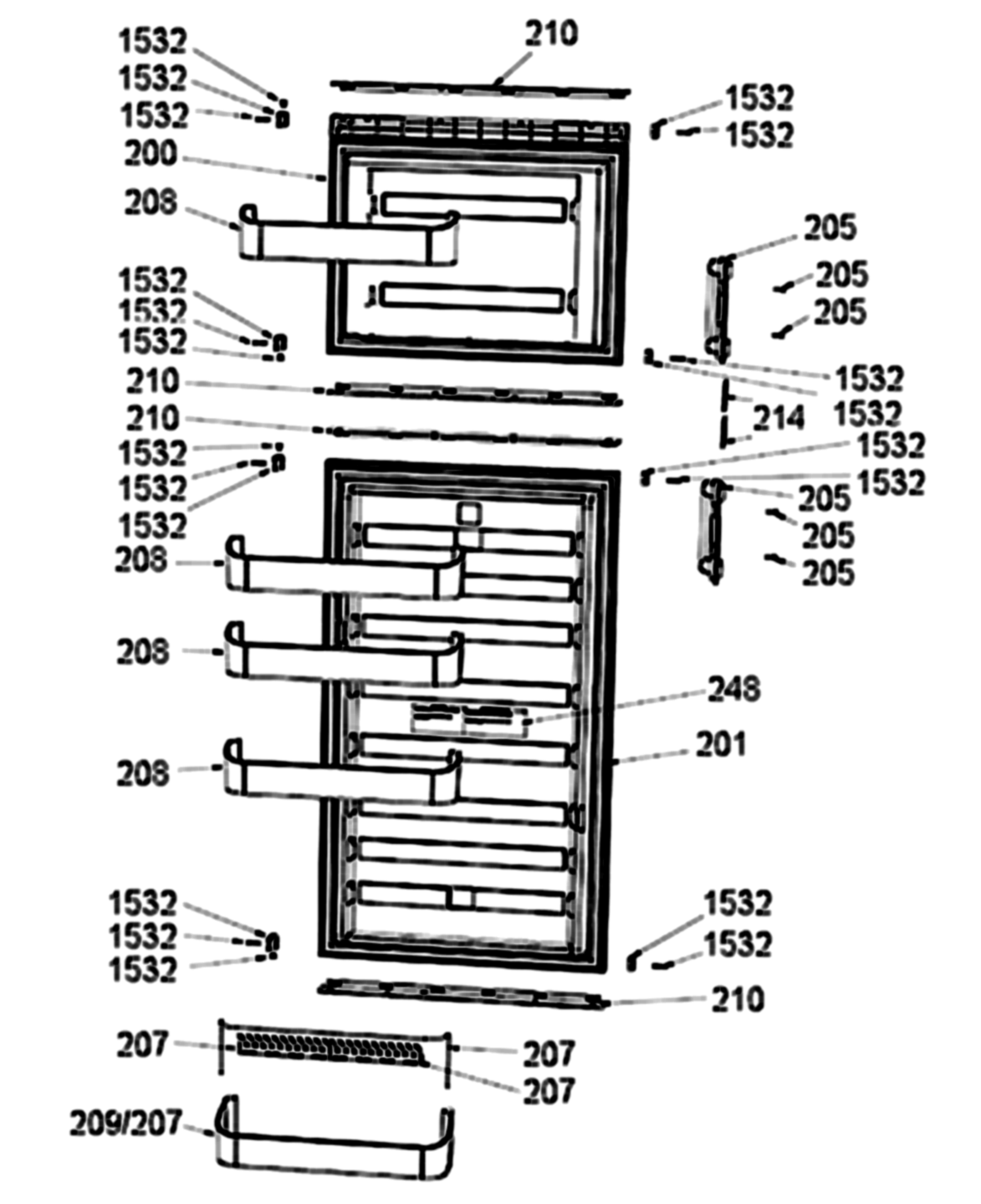

Dometic DM2882 Doors & Door Bins Parts
| # | Part | Fits | |
|---|---|---|---|
| 207 | Door Shelf Combo Kit, Clear (5 bins) (also #208, #209) Part # 29325760655 |
DM2882 | View part |
| 210 | Door End Caps, Top and Bottom Part # 3316883.900 |
DM2882 | View part |
| NS | Decorative Strip (replaces door panel support pin) Part # 38509191133 |
DM2882 | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are based on the Dometic DM2882RB (product ID 958704471) parts breakdown. Confirm fitment with your model and serial number before ordering.
