Norcold N15DC/ N20DC

Find the part you need on the exploded diagrams of the Norcold N15DC and N20DC 12V DC RV refrigerators (stainless and matte black, with or without ice maker). Click a highlighted number to go straight to that part.

Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.

Cabinet, Controls & Shelves Rear Components Upper Right Door Upper Left Door Freezer Drawer

Norcold Cabinet, Controls & Shelves Parts

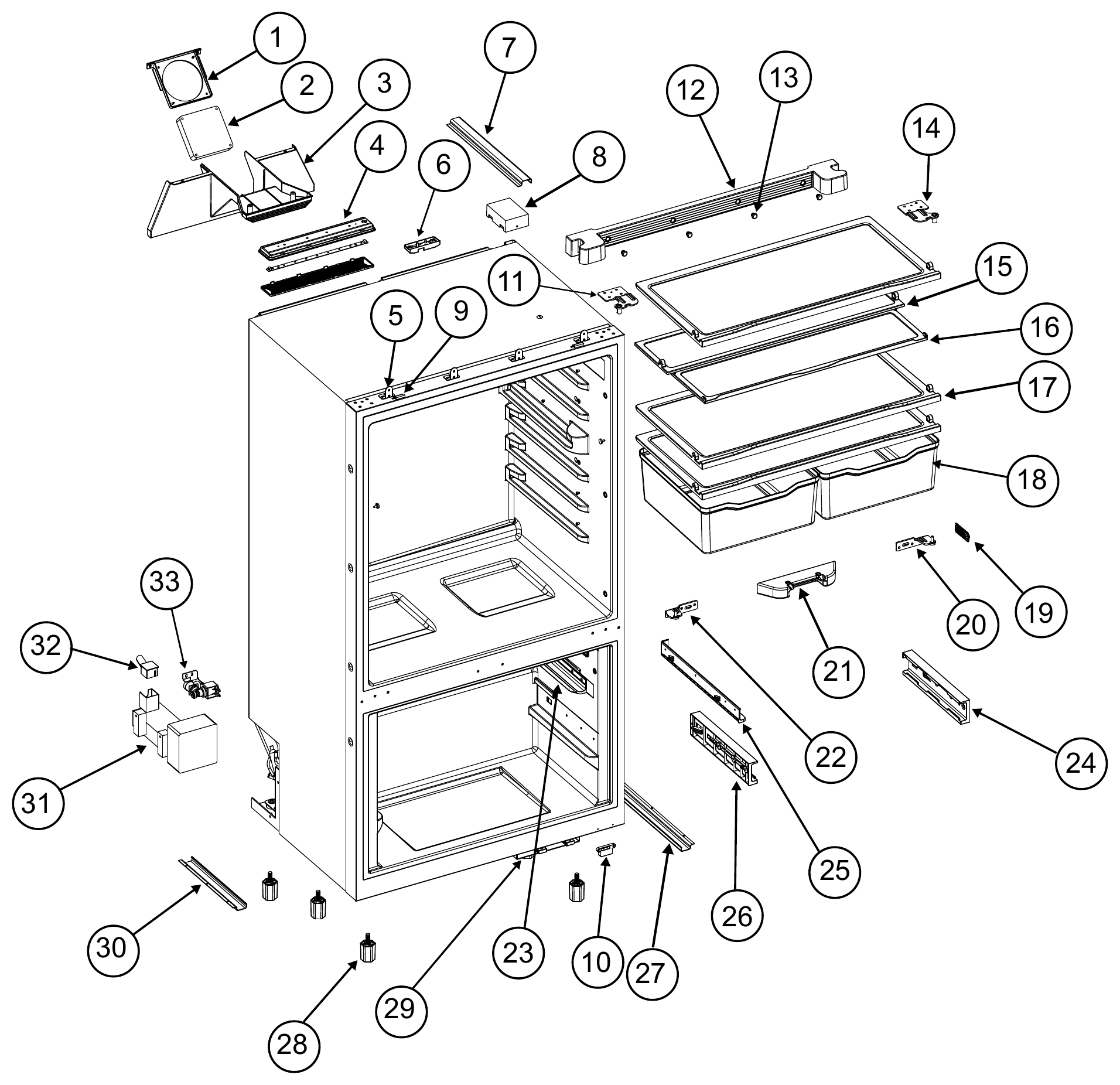

Norcold Cabinet, Controls & Shelves exploded parts diagram

1 2 3 4 6 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 25 26 31 32 33

#	Part	Fits
1	Cabinet Fan Cover Part # 640928	All models	View part
2	Cabinet Fan Part # 641042	All models	View part
3	Cabinet Fan Housing Part # 640929	All models	View part
4	LED Light Assembly Part # 640933	All models	View part
6	Flapper Guide Part # 640932	All models	View part
8	Control Panel Board Part # 641043	All models	View part
9-10	Magnet Door Switch and Freezer Door Sensor Part # 641587	All models	View part
11	Top Hinge, Left Part # 640940	All models	View part
12	Top Vent Part # 640926	N15DC models	View part
12	Top Vent Part # 641054	N20DC models	View part
13	Vent Hole Plug Part # 641032	All models	View part
14	Top Hinge, Right Part # 640941	N15DC models	View part
15	Rear Slide Out Shelf Part # 641056	N20DC models	View part
16	Front Slide Out Shelf Part # 641057	N20DC models	View part
17	Shelf, Glass Part # 641055	N20DC models	View part
18	Crisper Bin, Clear Part # 640937	N15DC models	View part
18	Crisper Bin, Clear Part # 641058	N20DC models	View part
19	Thermistor and Cover Part # 640149	All models	View part
20-22	Middle Hinges with Latch Plate Kit Part # 641588	All models	View part
20	Middle Hinge, Right Part # 640939	All models	View part
22	Middle Hinge, Left Part # 640938	All models	View part
25	Top Freezer Drawer Mount, Left Part # 640946	All models	View part
26	Bottom Freezer Drawer Mount, Left Part # 640943	All models	View part
31-32	Ice Maker Assembly Part # 641591	Ice maker (IM) models	View part
31	Ice Maker Part # 641033	Ice maker (IM) models	View part
33	Water Valve Part # 641035	Ice maker (IM) models	View part
NS	Shelf Divider (not shown) Part # 641096	N20DC models	View part

Norcold Rear Components Parts

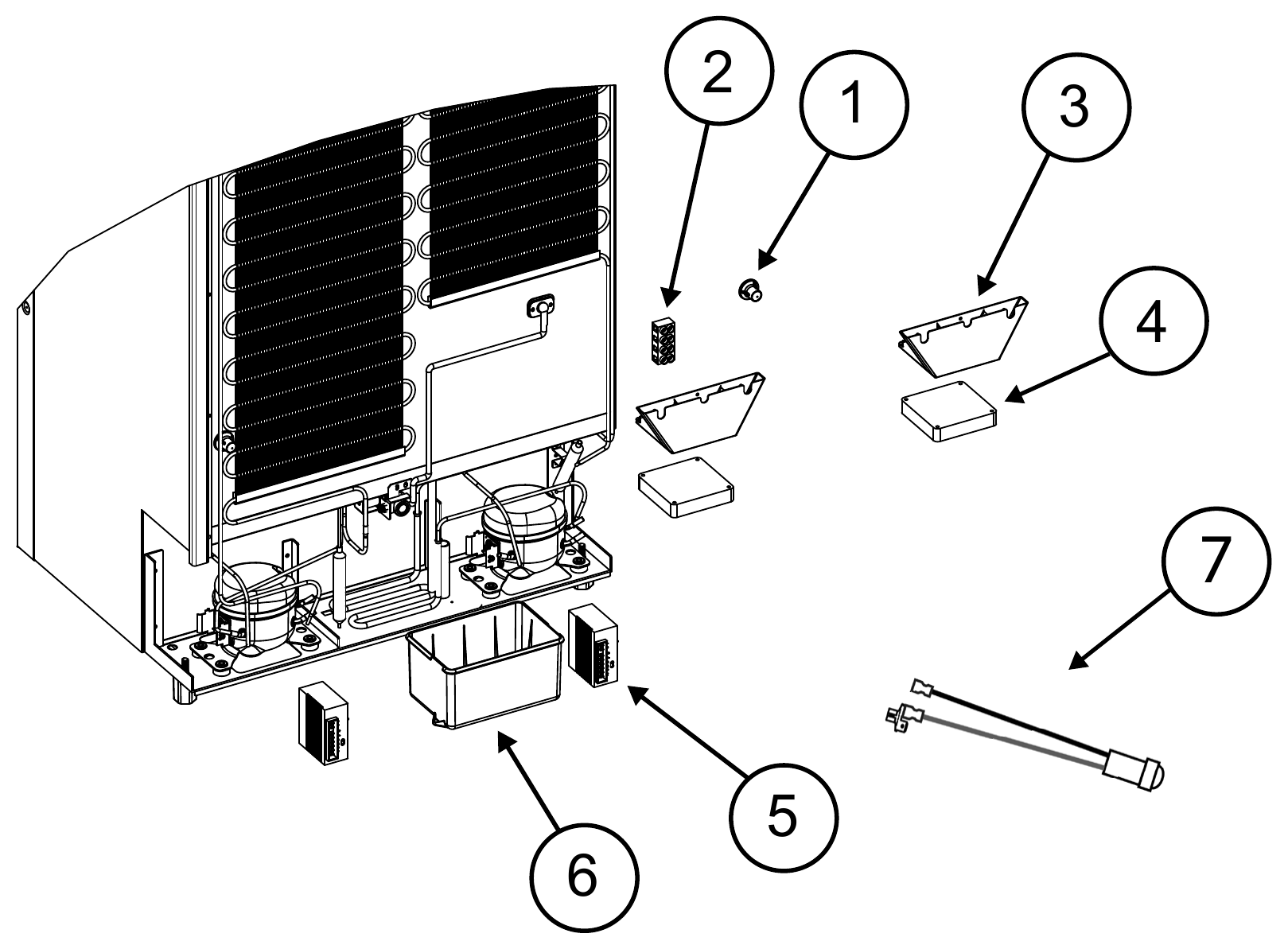

Norcold Rear Components exploded parts diagram

2 5 7

#	Part	Fits
2	Terminal Block Part # 640986	All models	View part
5	Compressor Power Module (N20DC: SN SE185ACDW01540086 & below) Part # 640178	All models	View part
5	Compressor Power Module (SN SE185ACDW01540087 & above) Part # 641548	N20DC models	View part
7	DC Troubleshooting LED for Compressor Power Module Part # 641315	All models	View part

Norcold Upper Right Door Parts

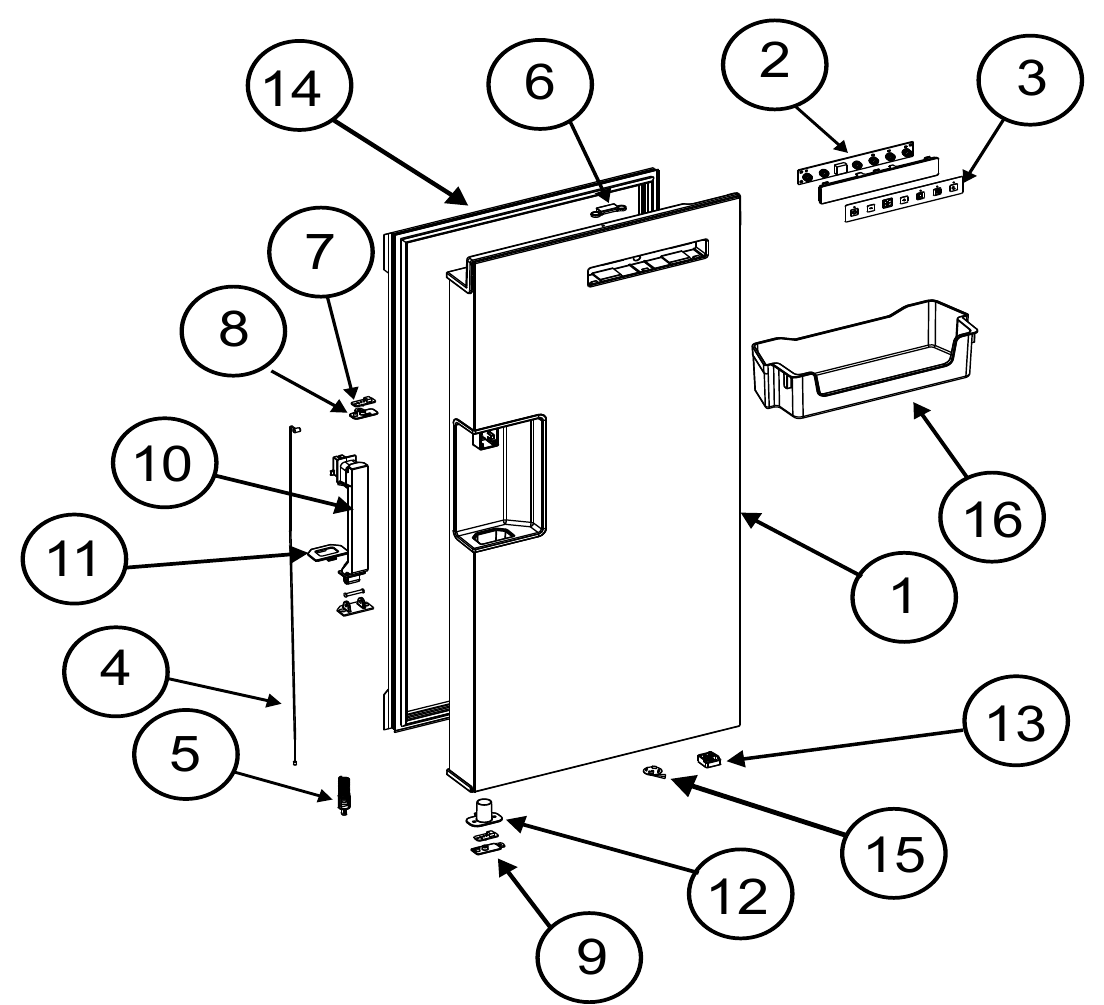

Norcold Upper Right Door exploded parts diagram

1 2 3 4 5 6 7 8 10 14 15 16

#	Part	Fits
1	Right Door Assembly, Stainless Steel Part # 641324	N15DCSS, N15DCIMSS	View part
1	Right Door Assembly, Stainless Steel Part # 641329	N20DCSS, N20DCIMSS	View part
2	Control Panel Part # 640964	All models	View part
3	Control Panel Cover Part # 640963	All models	View part
4	Door Latch Cable Part # 640973	All models	View part
5	Door Latch Part # 640975	All models	View part
6	Door Magnet Switch Sensor and Housing Part # 640958	All models	View part
7	Door Handle LED Part # 640969	All models	View part
8	Door Handle LED Cover Part # 640970	All models	View part
10	Door Handle Assembly Part # 640972	All models	View part
14	Door Gasket Part # 641325	N15DC models	View part
14	Door Gasket (SN Se069Aadw00860002 and Above) Part # 641330	N20DC models	View part
15	Screw Hole Plug Part # 640979	All models	View part
16	Door Bin Part # 640968	N15DC models	View part
16	Door Bin Part # 641064	N20DC models	View part
NS	Freezer Drawer Handle LED (not shown) Part # 641091	All models	View part

Norcold Upper Left Door Parts

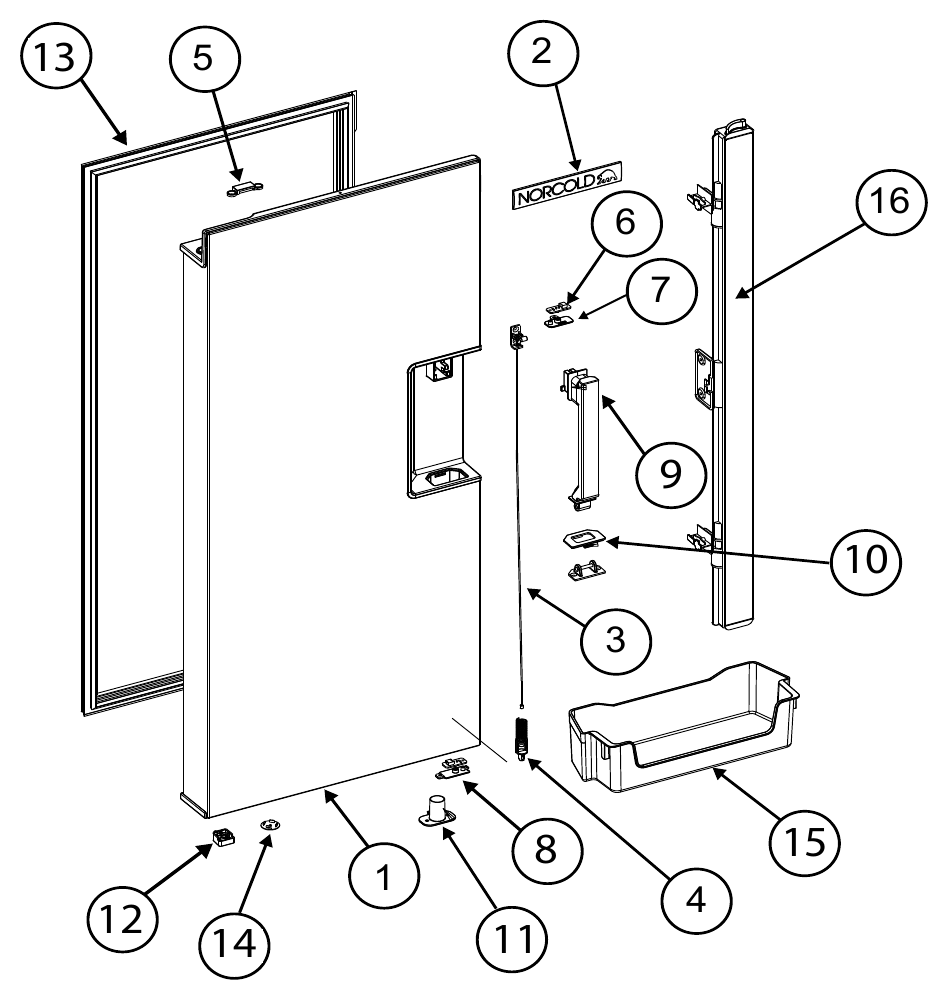

Norcold Upper Left Door exploded parts diagram

1 2 3 4 5 6 7 9 13 14 15 16

#	Part	Fits
1	Left Door Assembly, Stainless Steel Part # 641322	N15DCSS, N15DCIMSS	View part
1	Left Door Assembly, Stainless Steel Part # 641327	N20DCSS, N20DCIMSS	View part
2	Control Panel Assembly Logo Part # 640990	All models	View part
3	Door Latch Cable Part # 640973	All models	View part
4	Door Latch Part # 640975	All models	View part
5	Door Magnet Switch Sensor and Housing Part # 640958	All models	View part
6	Door Handle LED Part # 640969	All models	View part
7	Door Handle LED Cover Part # 640970	All models	View part
9	Door Handle Assembly Part # 640972	All models	View part
13	Door Gasket Part # 641325	N15DC models	View part
13	Door Gasket (SN Se069Aadw00860002 and Above) Part # 641330	N20DC models	View part
14	Screw Hole Plug Part # 640979	All models	View part
15	Door Bin Part # 640968	N15DC models	View part
15	Door Bin Part # 641064	N20DC models	View part
16	Flapper Assembly Part # 641040	N15DC models	View part
16	Flapper Assembly Part # 641167	N20DC models	View part
NS	Freezer Drawer Handle LED (not shown) Part # 641091	All models	View part

Norcold Freezer Drawer Parts

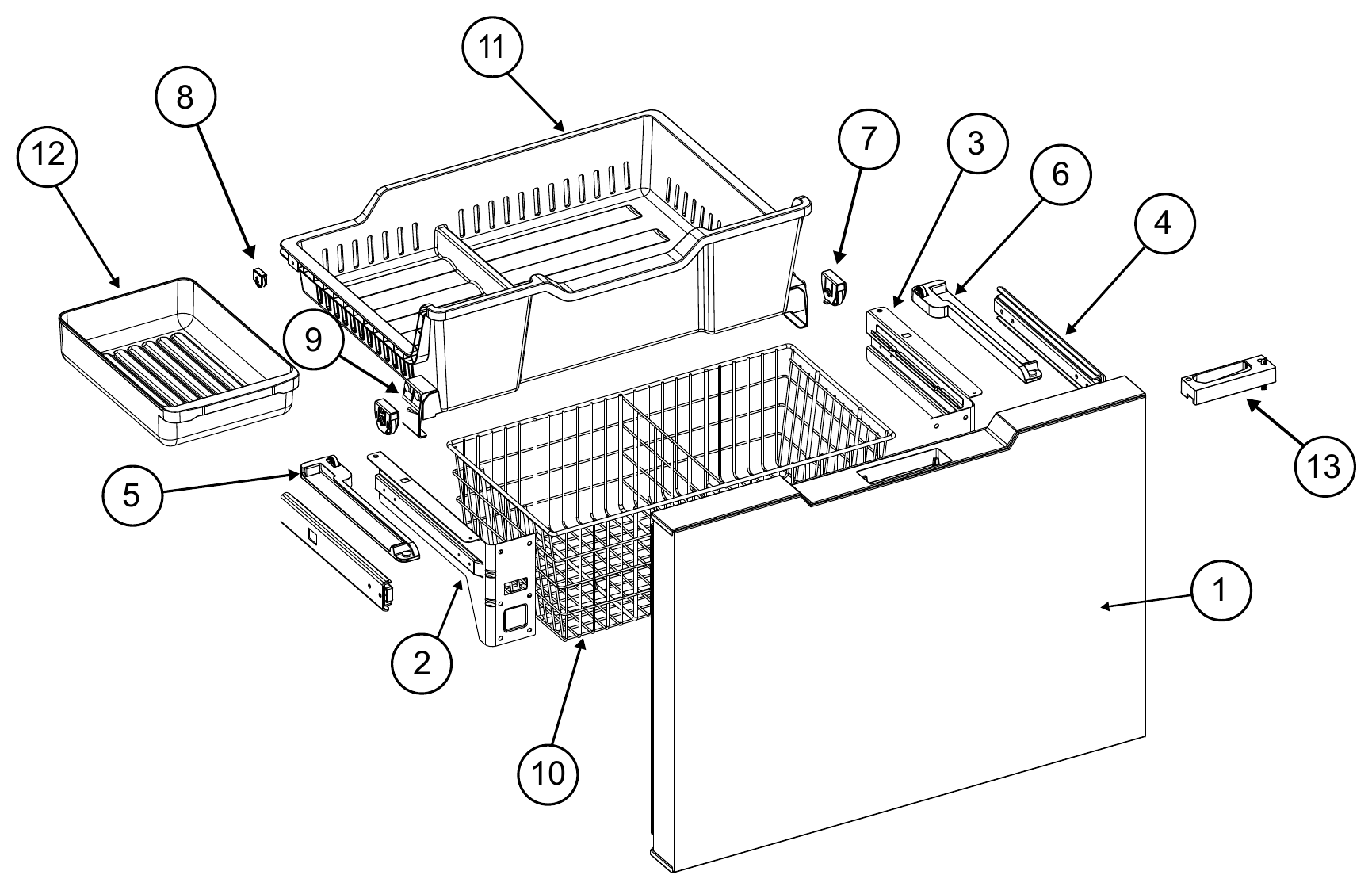

Norcold Freezer Drawer exploded parts diagram

1 2 3 4 5 6 7 8 9 10 11 12 13

#	Part	Fits
1	Freezer Door Assembly, Stainless Steel Part # 640981	N15DCSS, N15DCIMSS	View part
1	Freezer Door Assembly, Stainless Steel Part # 641067	N20DCSS, N20DCIMSS	View part
2-9	Freezer Drawer Bracket & Guide Rail Kit Part # 641586	All models	View part
2	Left Freezer Drawer Bracket Part # 640956	All models	View part
3	Right Freezer Drawer Bracket Part # 640957	All models	View part
4	Freezer Drawer Slide (QTY - 2) Part # 640945	All models	View part
5	Left Freezer Drawer Guide Rail Part # 640948	All models	View part
6	Right Freezer Drawer Guide Rail Part # 640949	All models	View part
7	Top Freezer Bin Wheels, Front Part # 640953	All models	View part
8	Top Freezer Bin Wheels, Rear Part # 640952	All models	View part
9	Top Bin Restraint Part # 640951	All models	View part
10	Bottom Freezer Bin, Wire Part # 640955	N15DC models	View part
10	Bottom Freezer Bin, Wire Part # 641060	N20DC models	View part
11	Top Freezer Bin, White Part # 641041	N15DC models	View part
11	Top Freezer Bin, White Part # 641168	N20DC models	View part
12	Ice Bin, White Part # 640954	All models	View part
13	Freezer Drawer Handle Assembly Part # 640983	All models	View part
NS	Freezer Door Gasket (not shown) Part # 640982	N15DC models	View part
NS	Freezer Door Gasket (not shown) Part # 641066	N20DC models	View part
NS	Freezer Bin Divider (not shown) Part # 641098	N20DC models	View part

Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold N15DC & N20DC parts list (641044, 08/20/2025); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
