Find the part you need on the exploded diagrams of the Dometic DM2872RB Americana II 2-way RV refrigerator. Click a highlighted number to go straight to that part. A red X means the part is currently unavailable.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Burner & ElectricalPower Board & Burner AssemblyCooling Unit & Thermal FuseCabinet, Interface Board & HingesInterior Shelves & CrisperDoors, Handles & Door Bins
Dometic DM2872 Burner & Electrical Parts
| # | Part | Fits | |
|---|---|---|---|
| 264 | Gas Valve / Burner / Igniter Assembly (also #270, #277, #279, #282) Part # 3850730569 |
DM2872 | View part |
| 272 | Electrode with Lead Wire Part # 2932781012 |
DM2872 | View part |
| 275 | Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 |
DM2872 | View part |
| 276 | Thermistor Kit with Plug and Holder Part # 38510590422 |
DM2872 | View part |

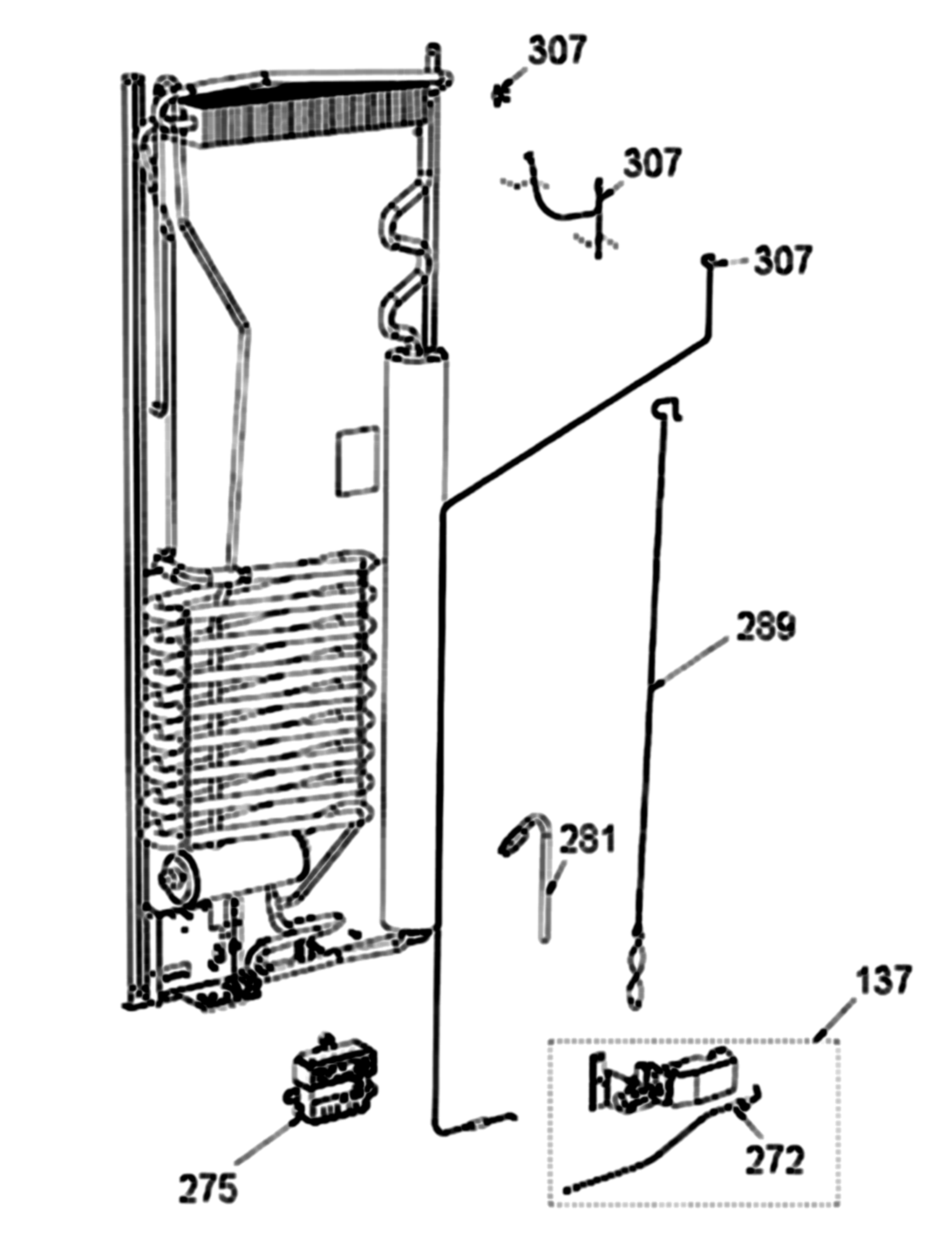

Dometic DM2872 Power Board & Burner Assembly Parts
| # | Part | Fits | |
|---|---|---|---|
| 137 | Gas Valve / Burner / Igniter Assembly Part # 3850730569 |
DM2872 | View part |
| 272 | Electrode with Lead Wire Part # 2932781012 |
DM2872 | View part |
| 275 | Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 |
DM2872 | View part |

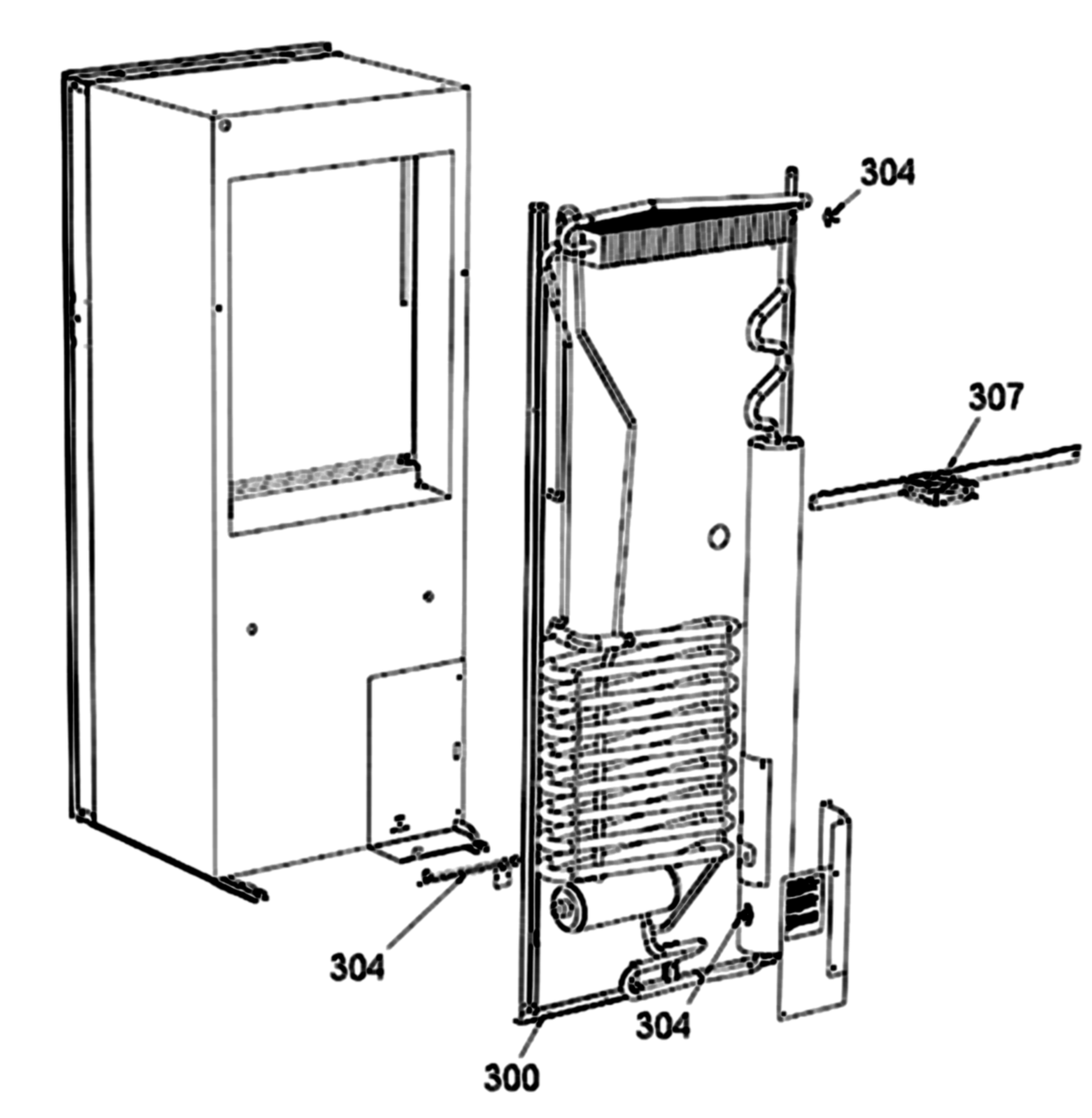

Dometic DM2872 Cooling Unit & Thermal Fuse Parts
| # | Part | Fits | |
|---|---|---|---|
| 300 | Cooling Unit (806/826) Part # 3313470.008 |
DM2872 | View part |
| 304 | Thermal Fuse/Switch Kit Part # 38514090155 |
DM2872 | View part |

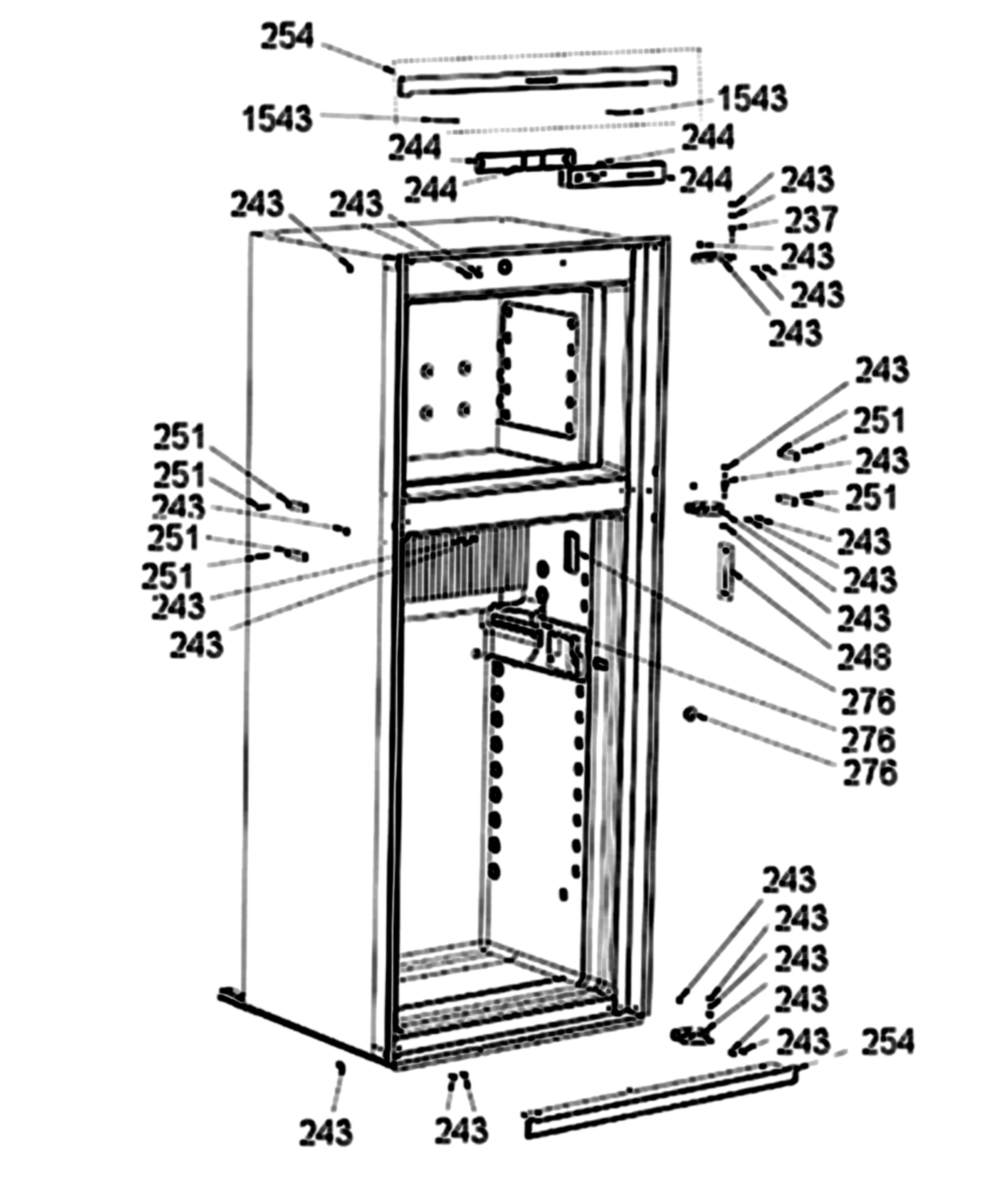

Dometic DM2872 Cabinet, Interface Board & Hinges Parts
| # | Part | Fits | |
|---|---|---|---|
| 244 | Front Interface Control Display, 2-Way Part # 3316872.900 |
DM2872 | View part |
| 251 | Lever Catch Part # 2932855014 |
DM2872 | View part |
| 276 | Thermistor Kit with Plug and Holder Part # 38510590422 |
DM2872 | View part |

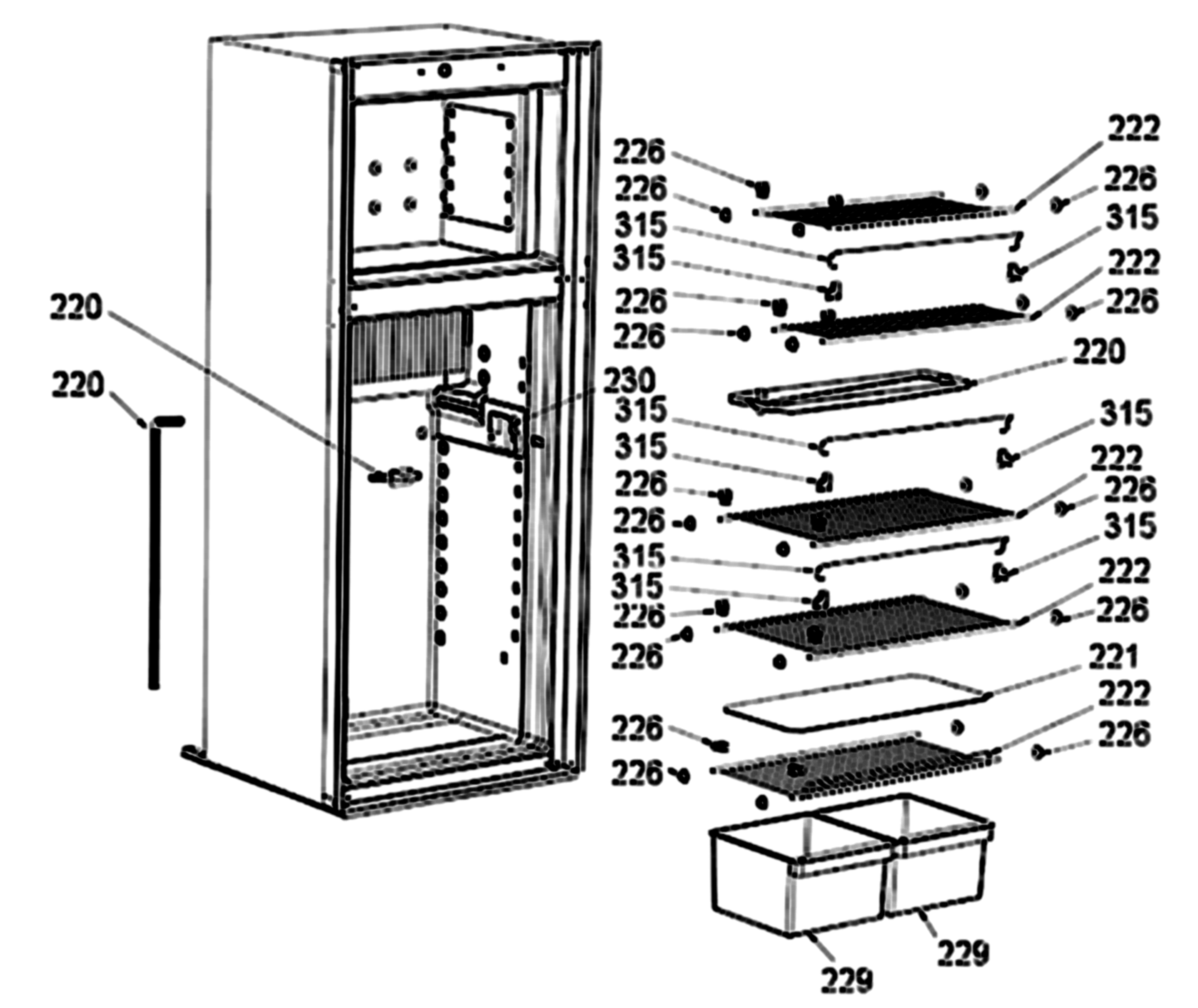

Dometic DM2872 Interior Shelves & Crisper Parts
| # | Part | Fits | |
|---|---|---|---|
| 220 | Drain Cup Part # 2932635010 |
DM2872 | View part |
| 226 | Shelf Plug, Right Side Part # 2932101013 |
DM2872 | View part |
| 226 | Shelf Plug, Left Side Part # 2932103019 |
DM2872 | View part |
| 229 | Crisper Bin Part # 29326210100 |
DM2872 | View part |

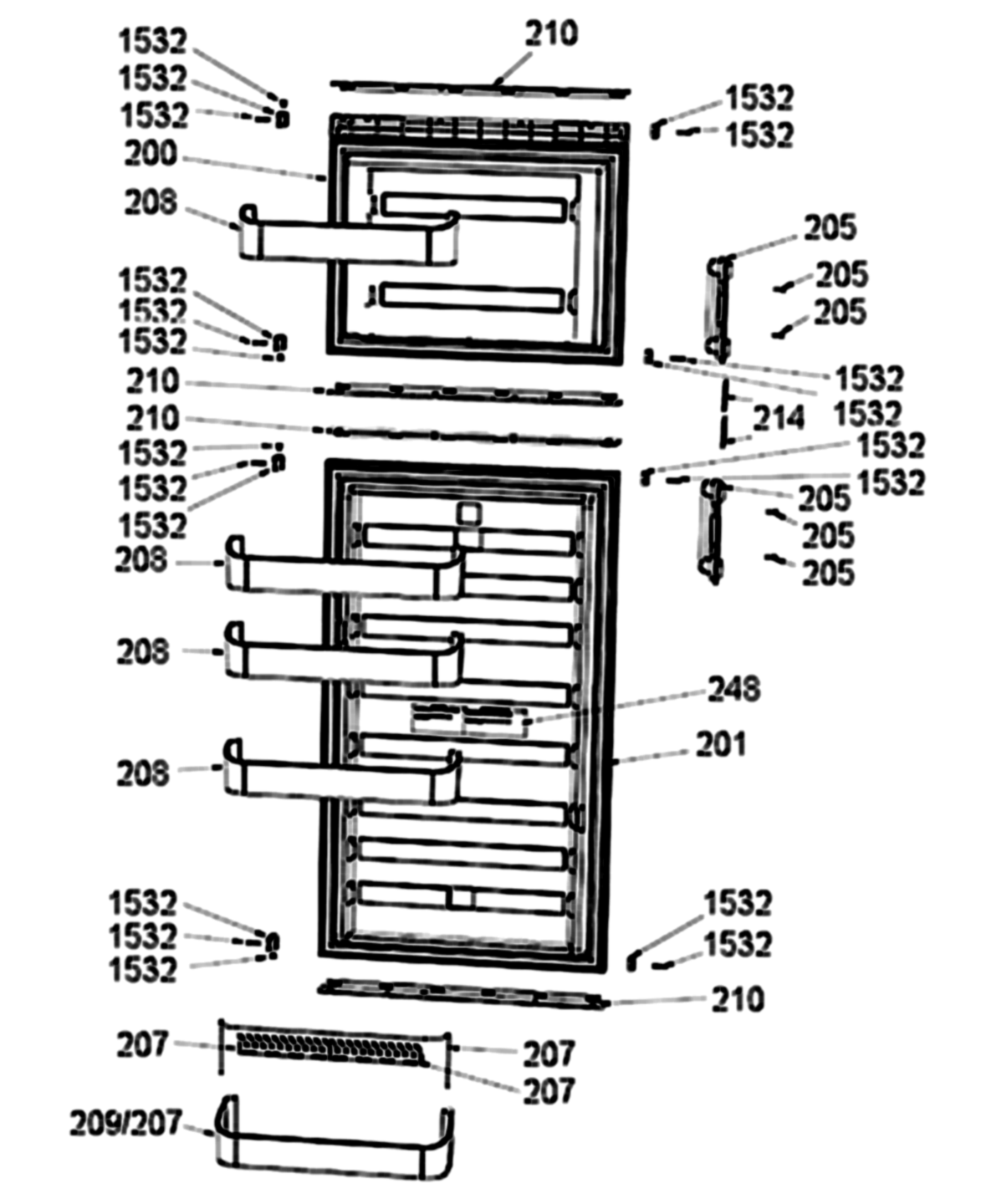

Dometic DM2872 Doors, Handles & Door Bins Parts
| # | Part | Fits | |
|---|---|---|---|
| 205 | Door Handle Set (Americana II 6 & 8 cu. ft.) Part # 3316882.900 |
DM2872 | View part |
| 210 | Door End Caps, Top and Bottom Part # 3316883.900 |
DM2872 | View part |
| NS | Decorative Strip (replaces door panel support pin) Part # 38509191133 |
DM2872 | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are based on the Dometic DM2872RB (product ID 936002970) parts breakdown. Confirm fitment with your model and serial number before ordering.
