Dometic DM2852

Find the part you need on the exploded diagrams of the Dometic DM2852LB Americana 8 cu. ft. 2-way RV refrigerator. Click a highlighted number to go straight to that part. A red X means the part is currently unavailable.

Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.

Burner, Gas Valve & ElectricalCooling Unit & Thermal FuseInterior Shelves & CrisperDoors & Door Bins

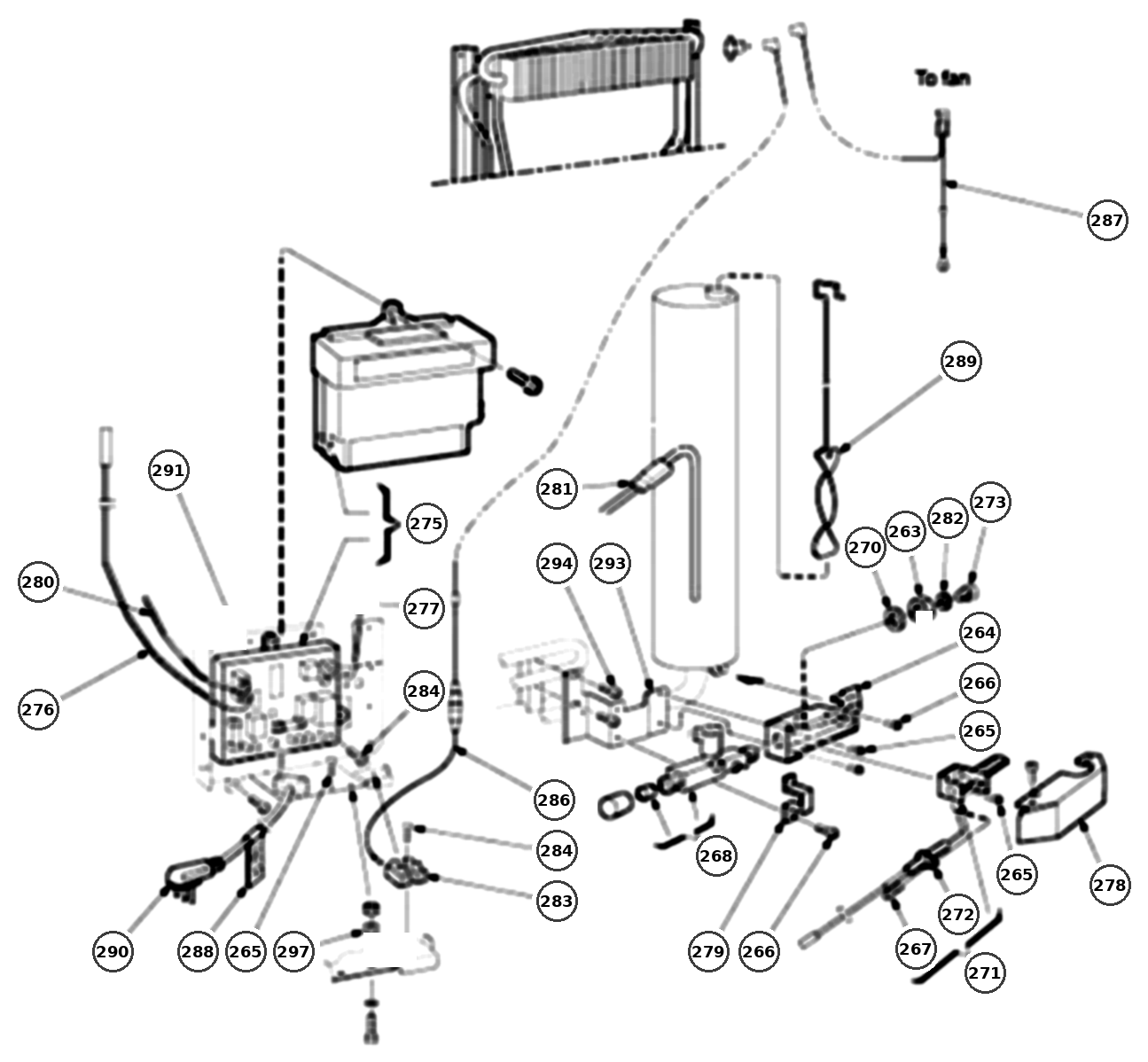

Dometic DM2852 Burner, Gas Valve & Electrical Parts

# Part Fits
264 Gas Valve / Burner / Igniter Assembly (also #273, #277) Part # 3850730569 DM2852 View part
272 Electrode with Lead Wire Part # 2932781012 DM2852 View part
275 Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 DM2852 View part
281 AC Heater, 325W 120V (replaces 3850644422) Part # 3313107.039 DM2852 View part

Back to top

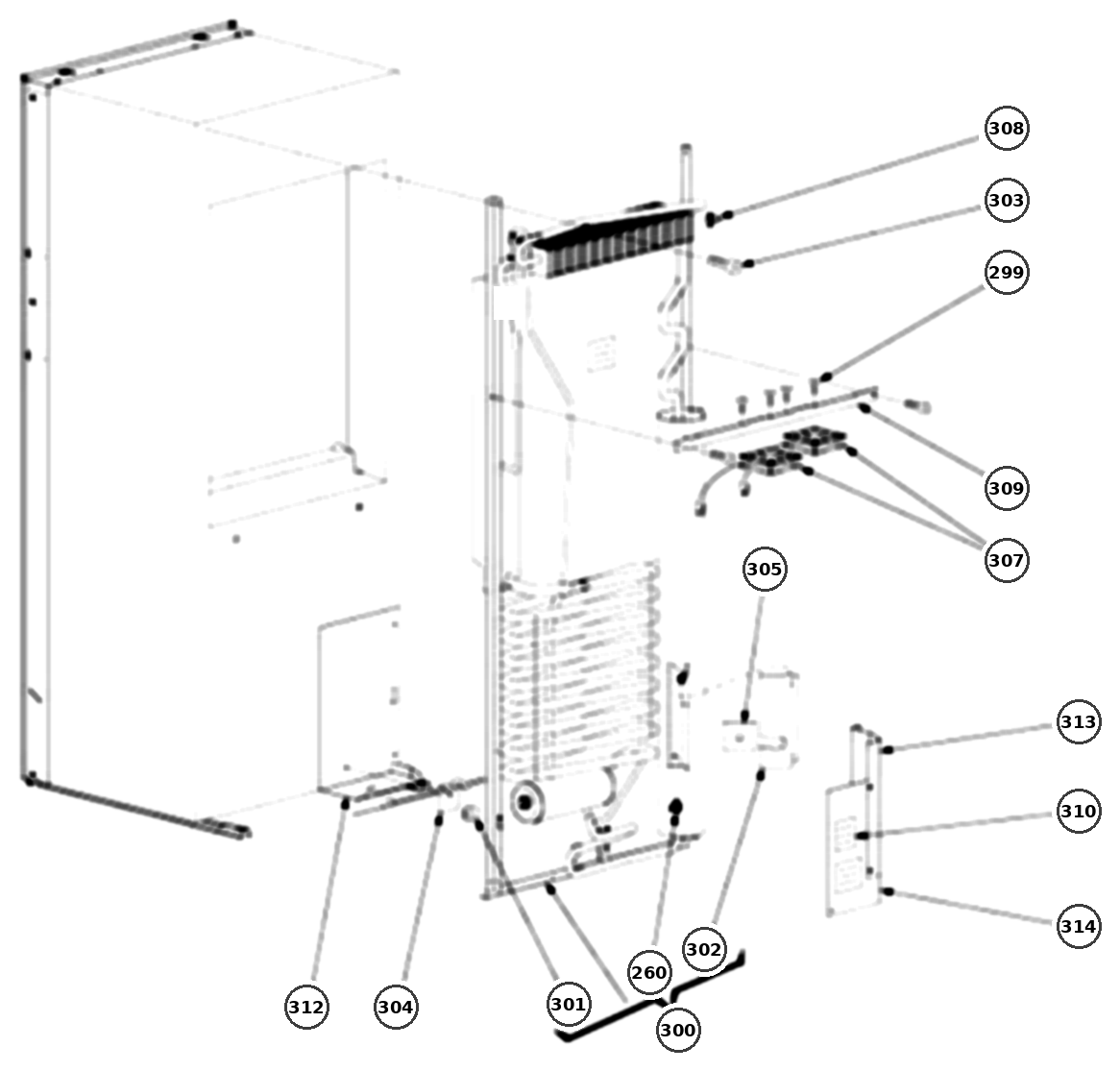

Dometic DM2852 Cooling Unit & Thermal Fuse Parts

# Part Fits
304 Thermal Fuse/Switch Kit Part # 38514090155 DM2852 View part

Back to top

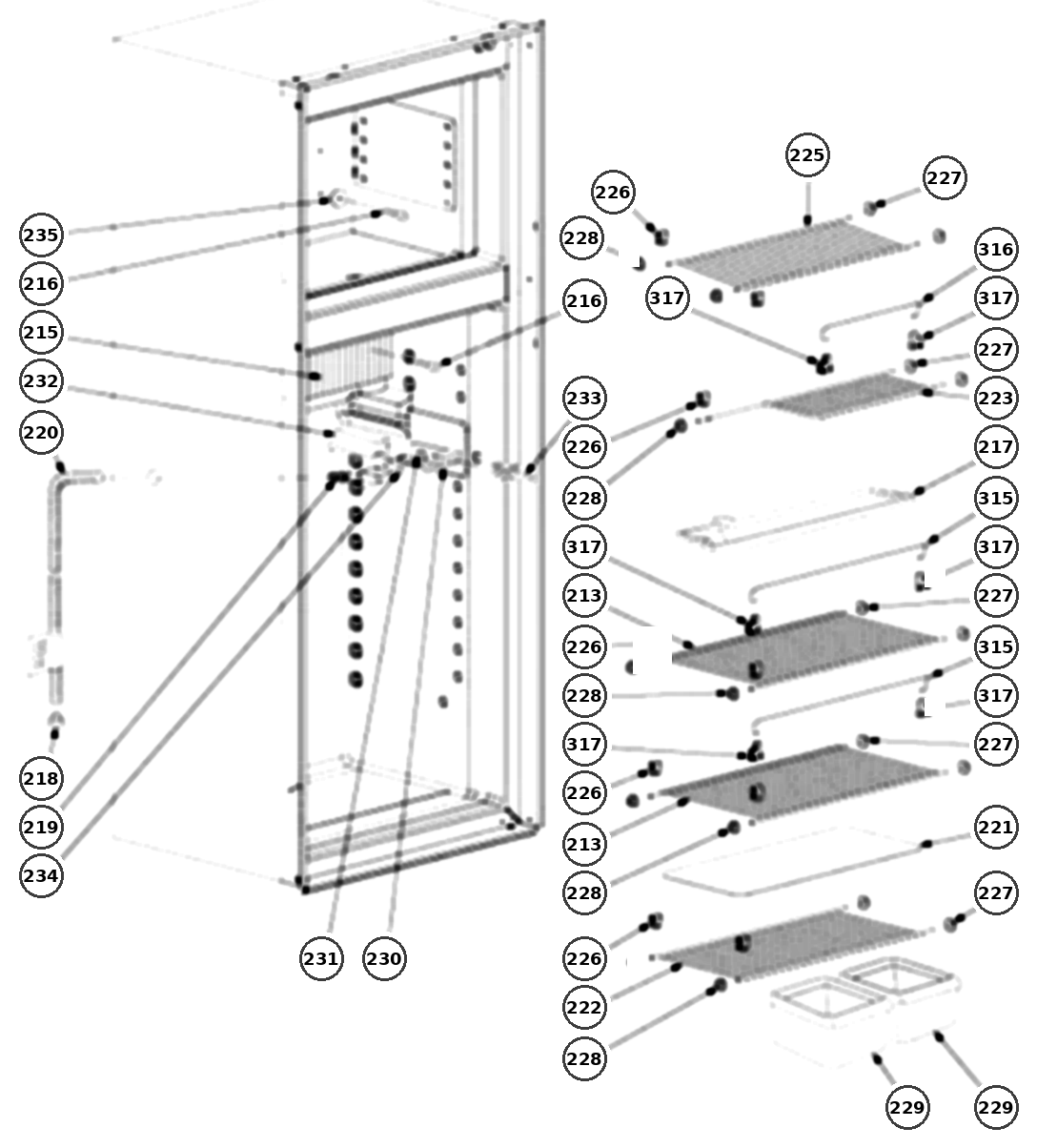

Dometic DM2852 Interior Shelves & Crisper Parts

# Part Fits
221 Crisper Bin Combo (also #229) Part # 29326210100 DM2852 View part
227 Shelf Plug, Right Side Part # 2932101013 DM2852 View part
228 Shelf Plug, Left Side Part # 2932103019 DM2852 View part
315 Shelf Rail Combo Kit (also #317) Part # 20073372111 DM2852 View part

Back to top

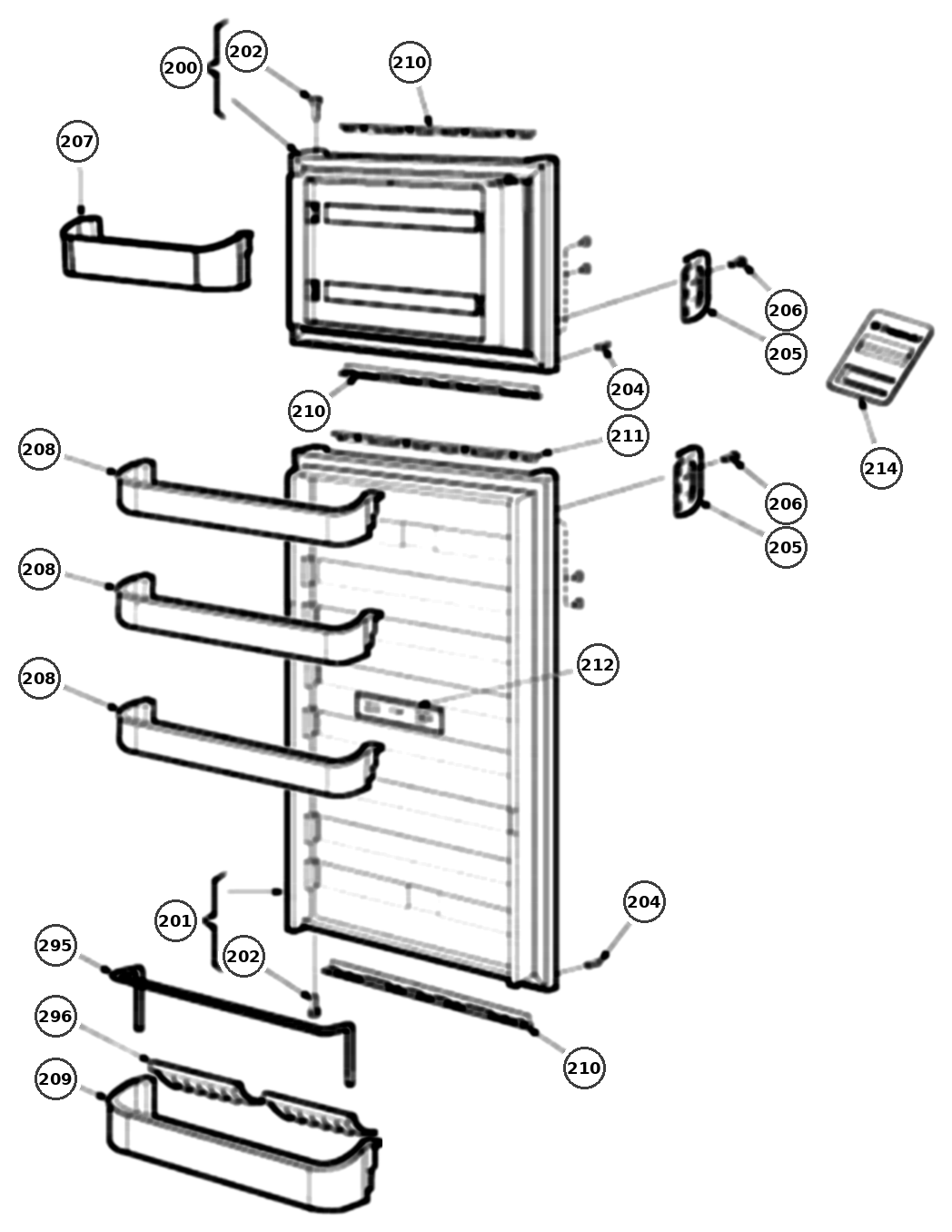

Dometic DM2852 Doors & Door Bins Parts

# Part Fits
201 Lower Refrigerator Door, Left Hand (black) Part # 2932562057 DM2852 View part
204 Decorative Strip, Black (replaces door panel support pin) (also #210, #211) Part # 38509191133 DM2852 View part

Back to top

More DM2852 Parts (not shown on diagram)

# Part Fits
NS Cooling Unit Baffle Diffuser Part # 2932667047 DM2852 View part
NS Door (Upper Door) Part # 2932561307 DM2852 View part
NS Eyebrow Power Control Circuit Board Part # 3316996.900 DM2652, DM2852 View part
NS Optical Control Board Housing (Black) Part # 29326410833 DM2852, DM2862 View part

Only parts we currently sell are highlighted. Diagrams and part numbers are based on the Dometic DM2852LB (product ID 958688816) parts breakdown. Confirm fitment with your model and serial number before ordering.

!
