Find the part you need on the exploded diagrams of the Norcold 1200 series 4-door RV refrigerators (1200AC, 1200LR and 1201LR, including IM, dispenser and wrapped-door versions). Click a highlighted number to go straight to that part. A red X means the part has been discontinued.
The Norcold 1200 models have been replaced by the Norcold N15DC.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Cabinet (Front View)Cooling Unit & RearRear Controls & Power BoardIce MakerInterior Light & ThermistorWater Dispenser

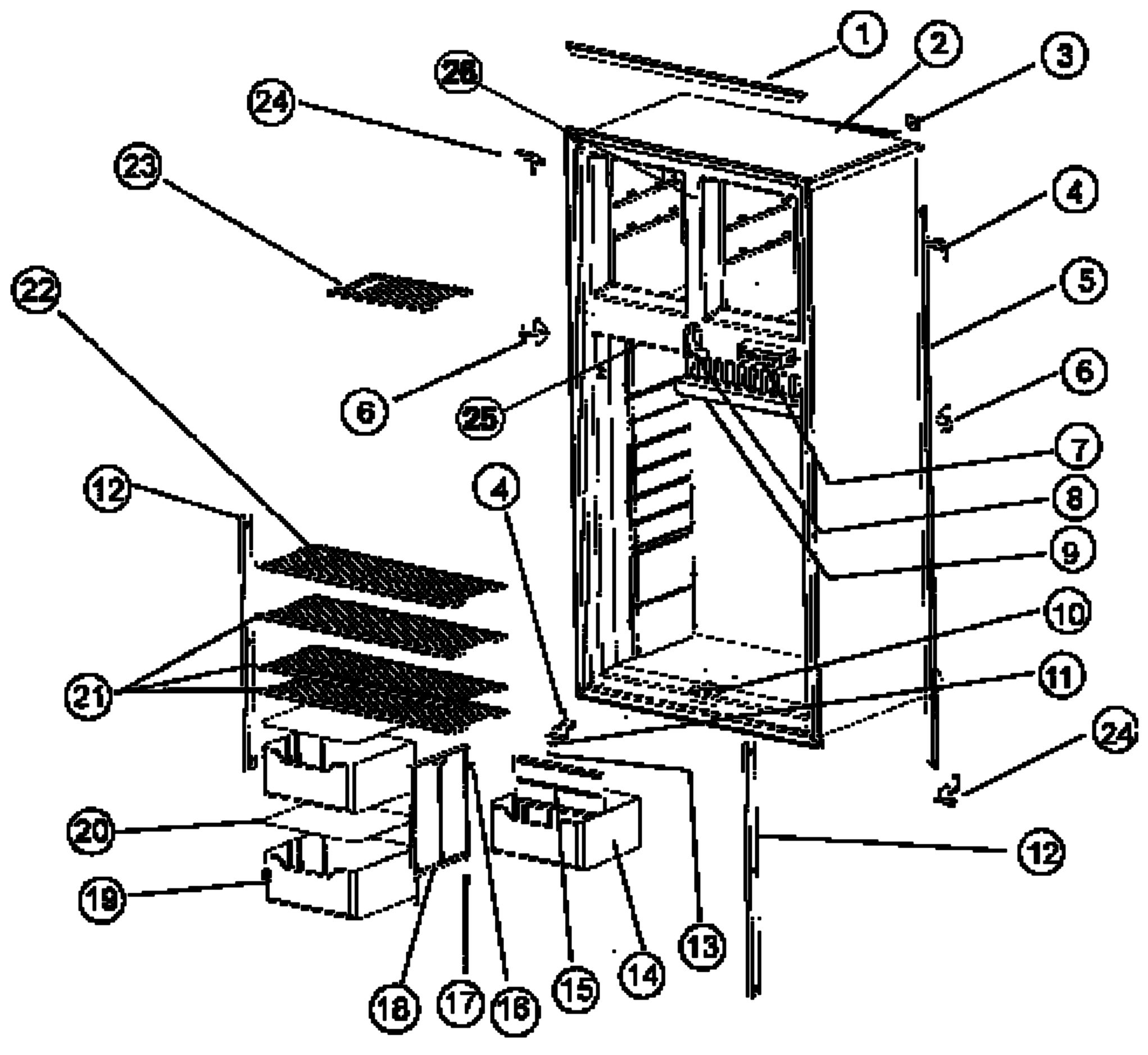

Norcold Cabinet (Front View) Parts
| # | Part | Fits | |
|---|---|---|---|
| 4 | Cabinet Hinge, Top RH / Bottom LH (panel doors) Part # 618798 |
All models (panel doors) | View part |
| 7 | Gray Control/Power Board Kit, replaced by the 6212XX (SN 657909 to 832170) Part # 624869 |
1200LR, 1201LR | Shop 6212XX |
| 10 | Guide Block, Top, White (SN 540295 to 1291390) Part # 620041 |
1200LR, 1201LR | View part |
| 12 | Shelf Retainer (SN 926685 & above) Part # 622033 |
All models | View part |
| 20 | Crisper Cover Glass Shelf Part # 618757 |
All models | View part |
| 21 | Long Wire Shelf Part # 632435 |
All models | View part |
| 22 | Short Wire Shelf Part # 632436 |
All models | View part |
| 24 | Cabinet Hinge, Top LH / Bottom RH (panel doors) Part # 618796 |
All models (panel doors) | View part |

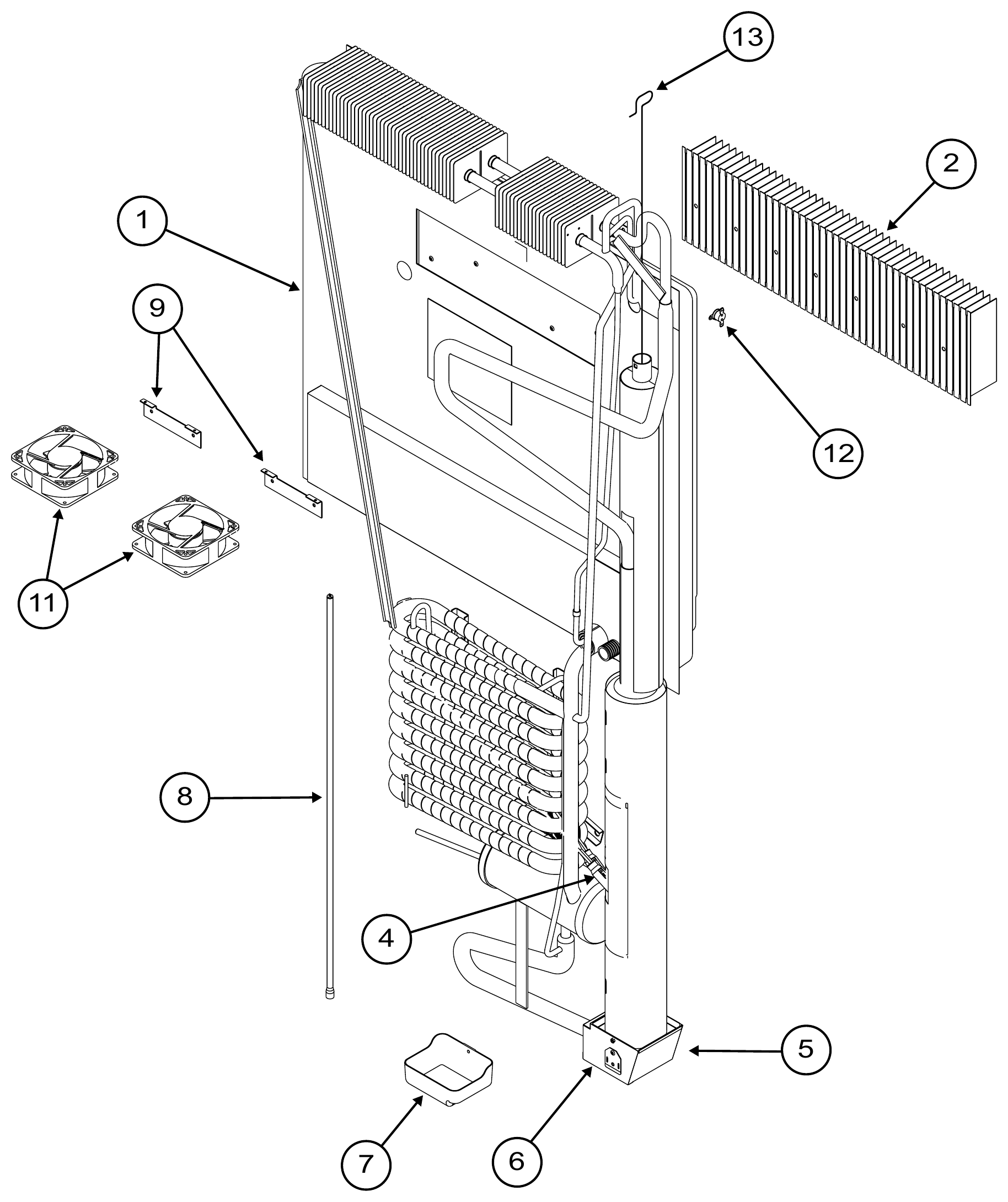

Norcold Cooling Unit & Rear Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Cooling Unit, Step (SN 8835499 & above) Part # 634746 |
All models | Shop Nordic 6610 |
| 1 | Cooling Unit (SN 8835498 & below) Part # 634747 |
All models | Shop Nordic 6610 |
| 4 | AC Heater, 2 per system (cooling unit SN 11231145 & below) Part # 618872 |
All models | View part |
| 4 | AC Heater, 2 per system (cooling unit SN 11231146 & above) Part # 630807 |
All models | View part |
| 8 | Drain Hose (SN 16240755 & below) Part # 622392 |
All models | View part |
| 9 | DC Fan Bracket (2 per system) Part # 628747 |
All models | View part |

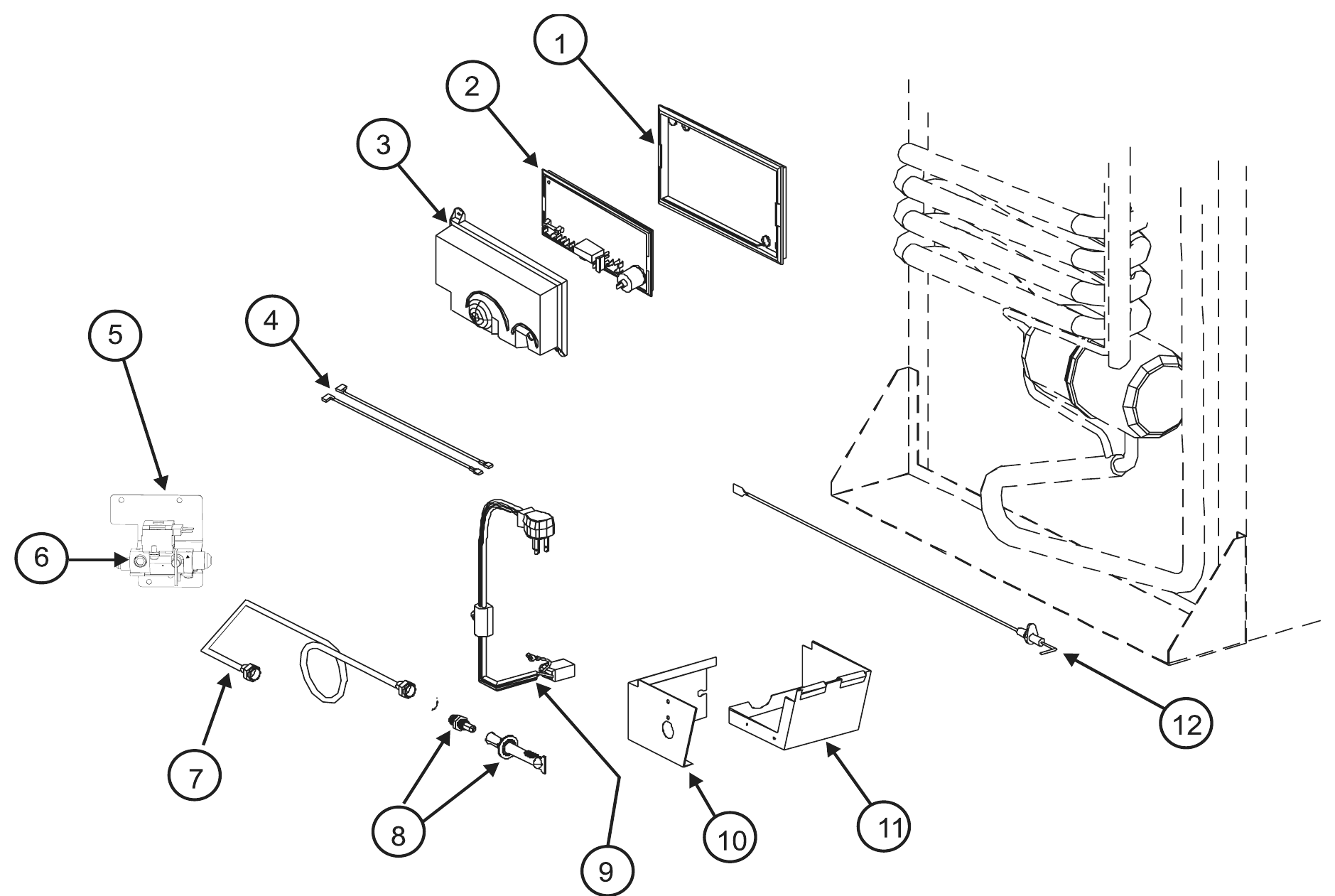

Norcold Rear Controls & Power Board Parts
Power board by serial number: 1200LR/1201LR SN 8981139 & above and 1200AC SN 9098172 & above use the 628661. SN 832171 to 8981138 use the 621271001 kit (or the upgraded 6212XX). Older gray-board units (SN 657909 to 832170) use the 6212XX, which replaces the discontinued 624869 kit. Units with a separate manual shut-off valve (SN 657908 & below) use the same board, cover, cord and electrode.
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board (1200LR SN 8981139 & above; 1200AC SN 9098172 & above) Part # 628661 |
1200LR, 1201LR | View part |
| 2 | Power Board Kit (SN 832171 to 8981138) Part # 621271001 |
1200LR, 1201LR | View part |
| 2 | Gray Control/Power Board Kit, replaced by the 6212XX (SN 657909 to 832170) Part # 624869 |
1200LR, 1201LR | Shop 6212XX |
| 3 | Power Board Cover (older boards) Part # 618185 |
1200LR, 1201LR | View part |
| 9 | AC Power Cord, Ice Maker Models Part # 618406 |
1200LR, 1201LR | View part |
| 12 | Spark / Sense Electrode Part # 61692222 |
1200LR, 1201LR | View part |

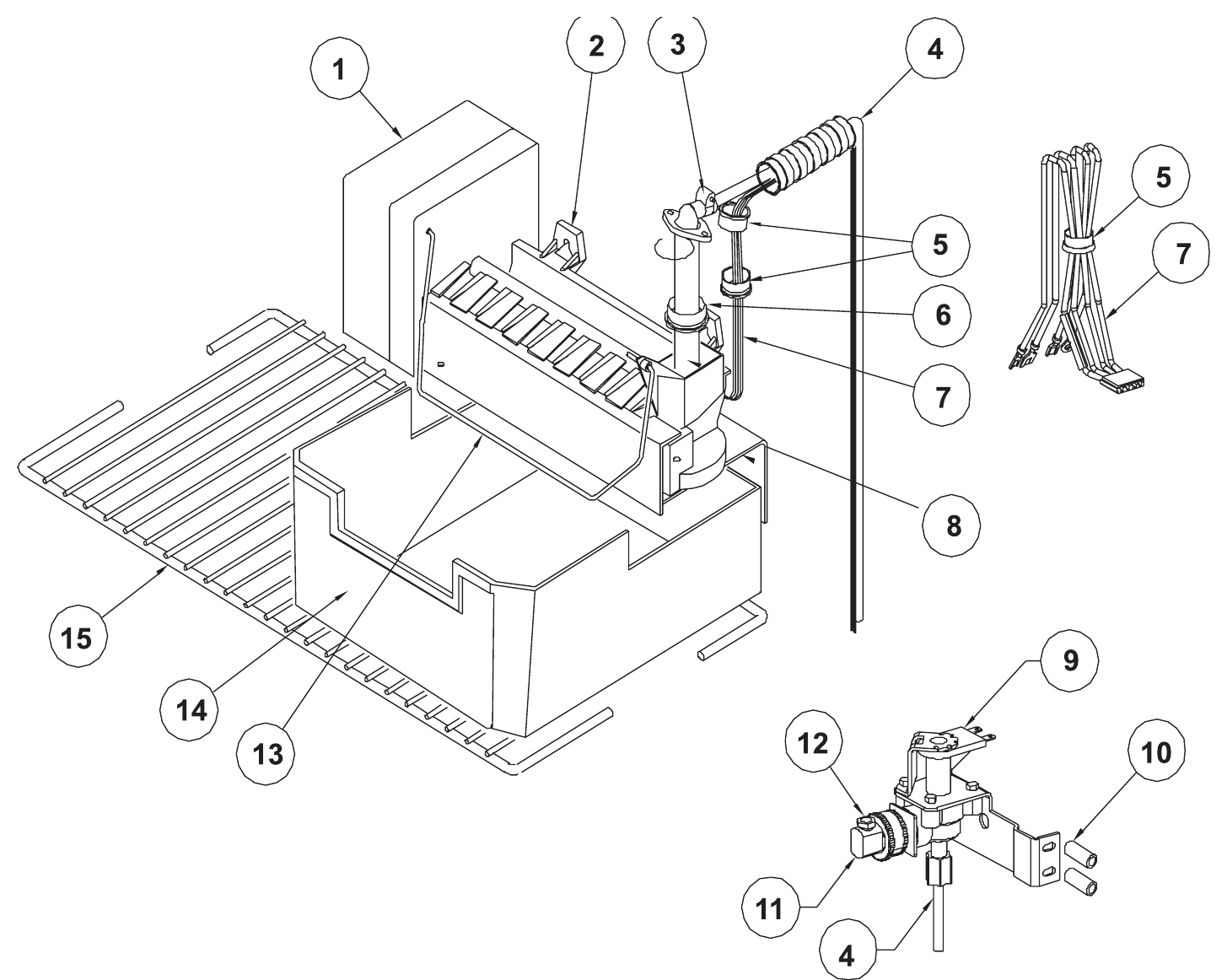

Norcold Ice Maker Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Ice Maker Kit Part # 633324 |
All models | View part |
| 6 | Water Tube Fitting (4.17 in.) Part # 620039 |
All models | View part |
| 13 | Ice Maker Shut-Off Arm Part # 61656922 |
All models | View part |

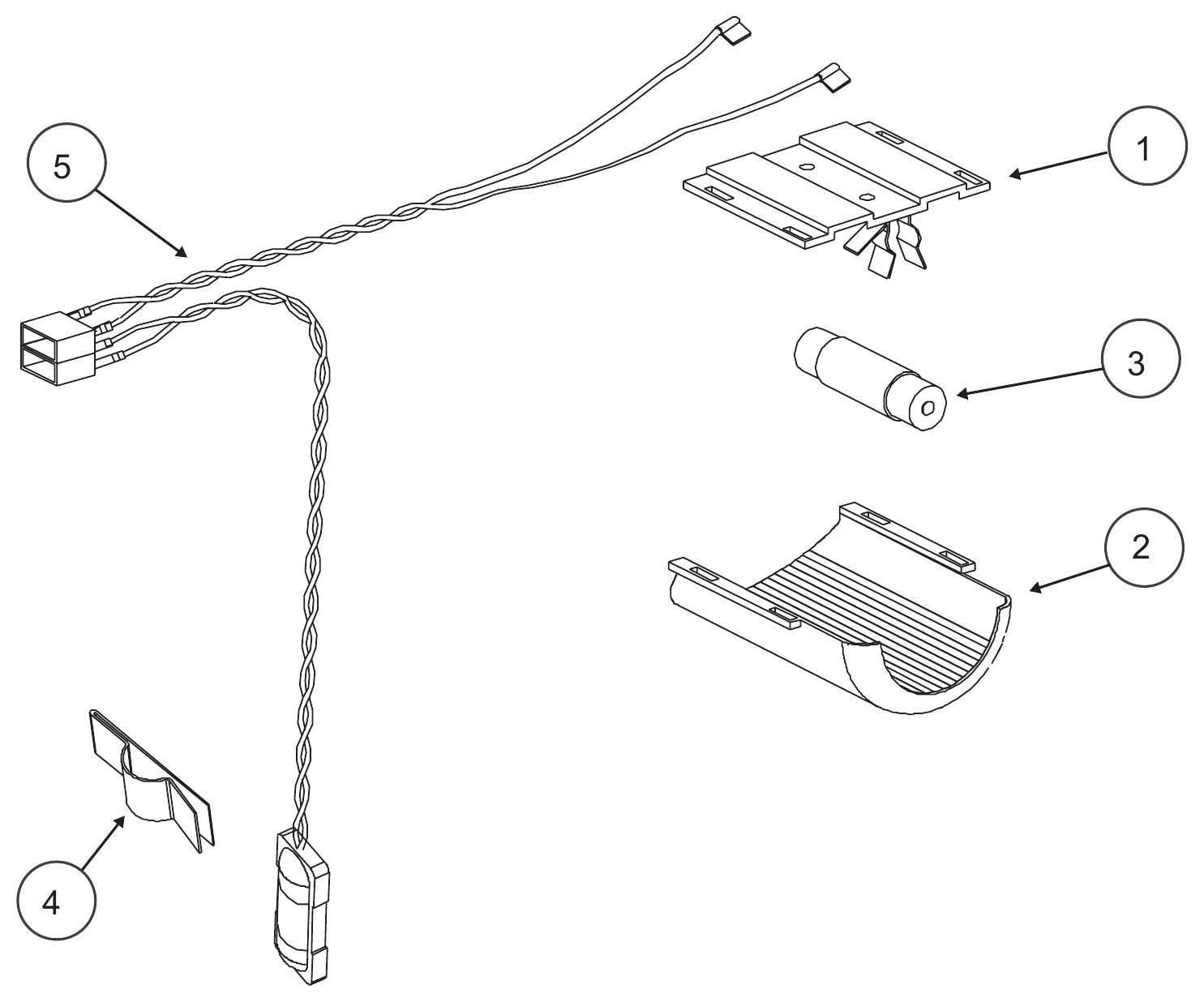

Norcold Interior Light & Thermistor Parts
| # | Part | Fits | |
|---|---|---|---|
| 3 | DC Light Bulb Part # 632545 |
All models | View part |
| 5 | Lamp / Thermistor Wire Assembly (SN 849677 & above) Part # 636658 |
All models | View part |
| 5 | Lamp / Thermistor Wire Assembly (SN 300000 to 849677) Part # 621742 |
1200LR, 1201LR | View part |

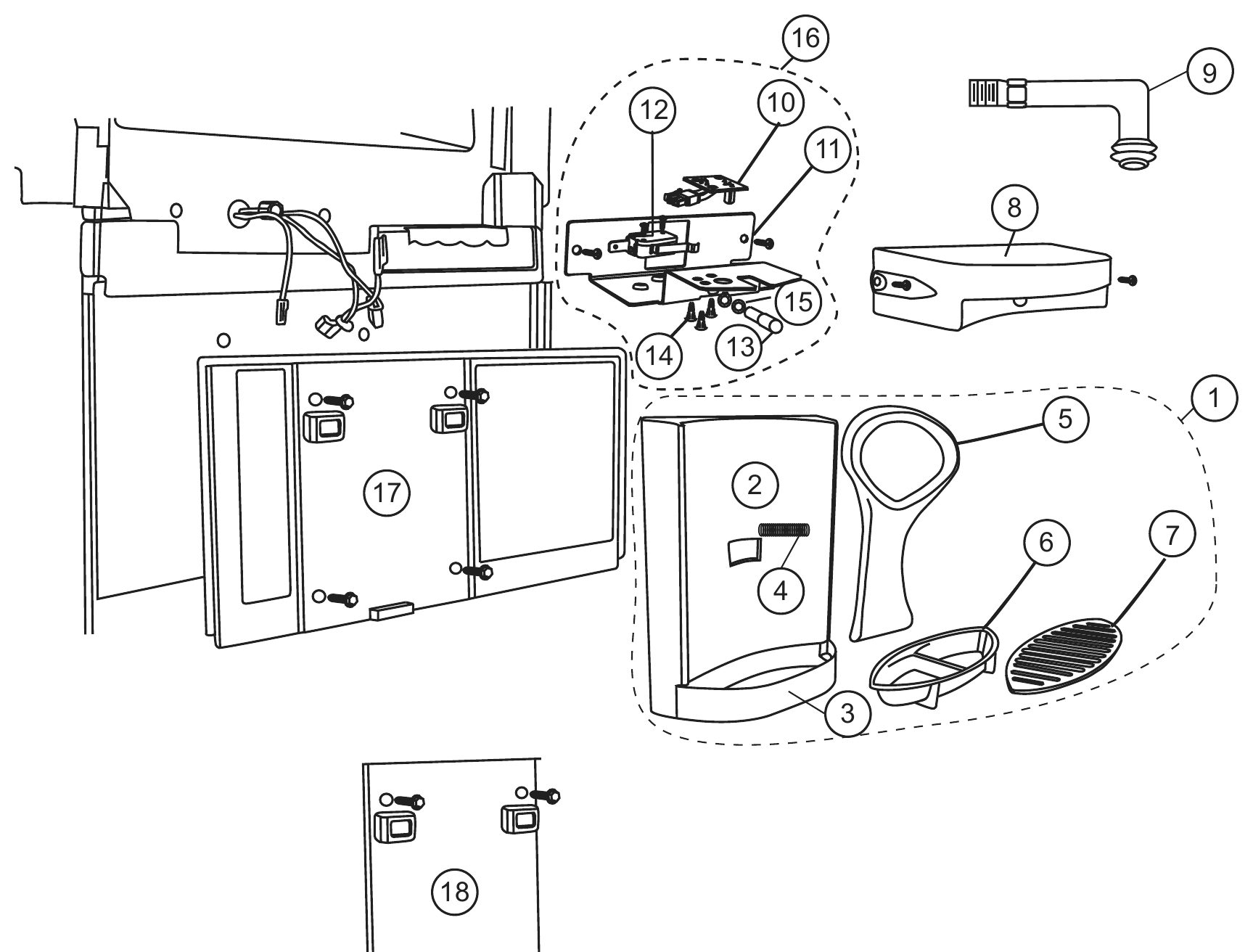

Norcold Water Dispenser Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Backsplash Assembly Part # 625854 |
All models | View part |
| NS | Water Reservoir (not shown) Part # 624502 |
All models | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold 1200 series parts list (629700, 02/2025); "Fits" shows the models marked in that list. Confirm fitment with your model and serial number before ordering.
