Find the part you need on the exploded diagrams of the Dometic RM2862 8 cu. ft. RV refrigerator. Click a highlighted number to go straight to that part. A red X means the part is currently unavailable.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Burner, Controls & Power BoardCooling UnitCabinet, Trim & HingesInterior Shelves & LightDoors & Door Bins

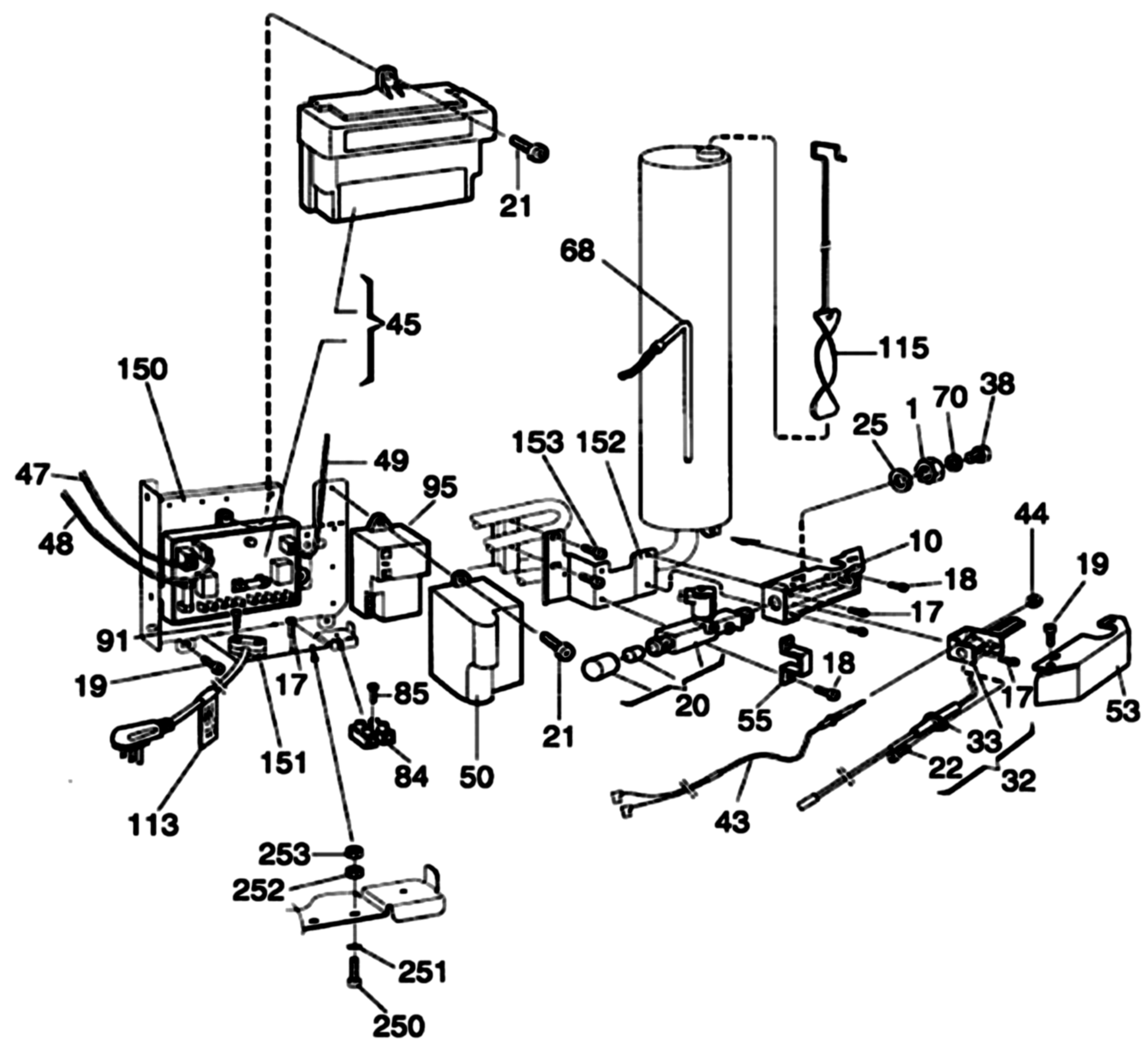

Dometic RM2862 Burner, Controls & Power Board Parts
| # | Part | Fits | |
|---|---|---|---|
| 10 | Gas Valve / Burner / Igniter Assembly (also #25, #32, #55, #70) Part # 3850730569 |
RM2862 | View part |
| 33 | Electrode with Lead Wire Part # 2932781012 |
RM2862 | View part |
| 45 | Hercules Power Control Board (replaces 3850712013) Part # 3316348.900 |
RM2862 | View part |
| 48 | Thermistor, 44 in. Lead Part # 3851210025 |
RM2862 | View part |
| 48 | Thermistor Kit with Plug and Holder Part # 38510590422 |
RM2862 | View part |
| 68 | AC Heater, 325W 120V Part # 3313107.039 |
RM2862 | View part |

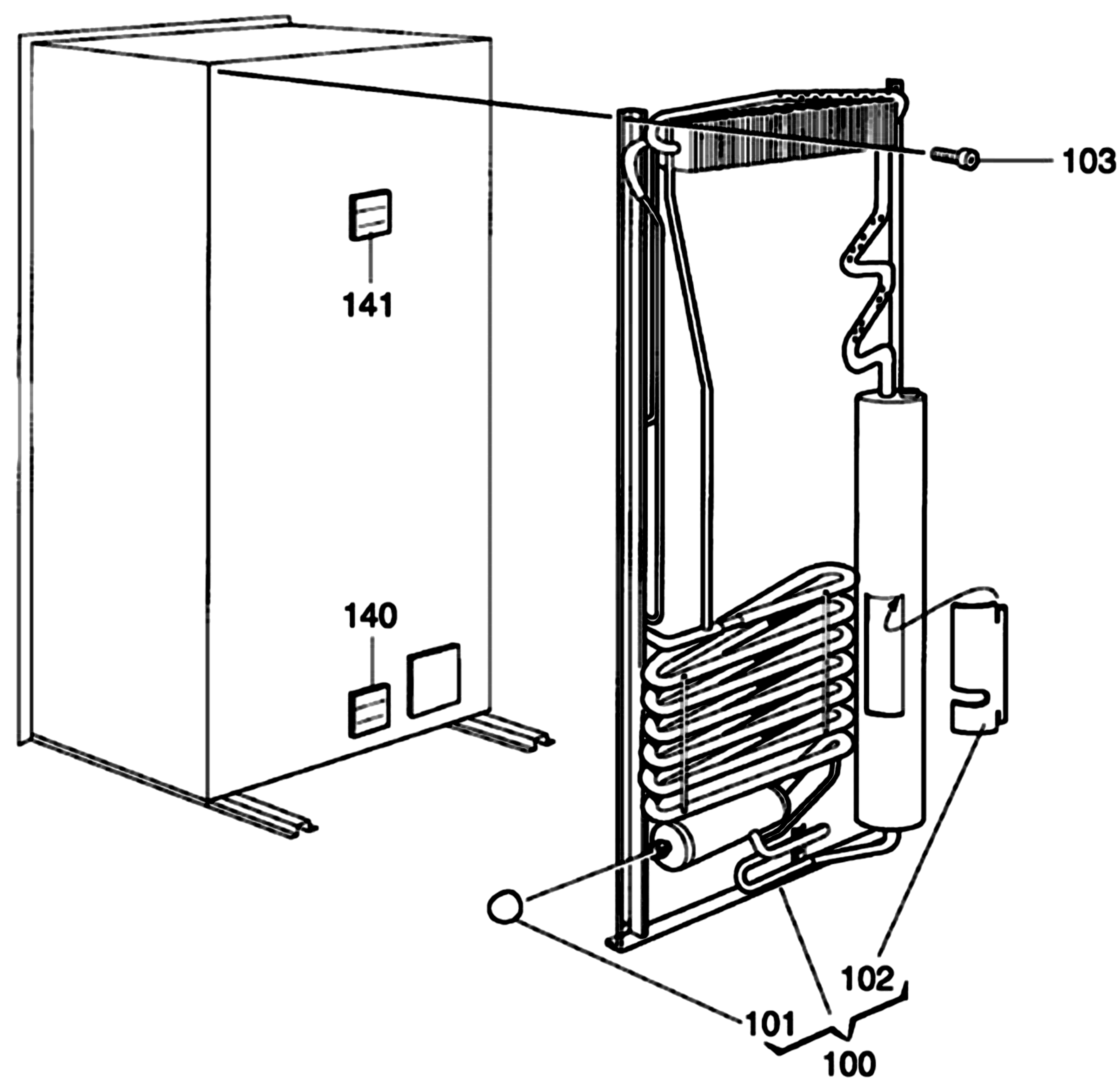

Dometic RM2862 Cooling Unit Parts
| # | Part | Fits | |
|---|---|---|---|
| 100 | Cooling Unit (Dometic OEM) Part # 3313470.008 |
RM2862 | View part |
| 100 | Cooling Unit (Nordic replacement) Part # 5582-806A |
RM2862 | Shop Nordic 5582 |

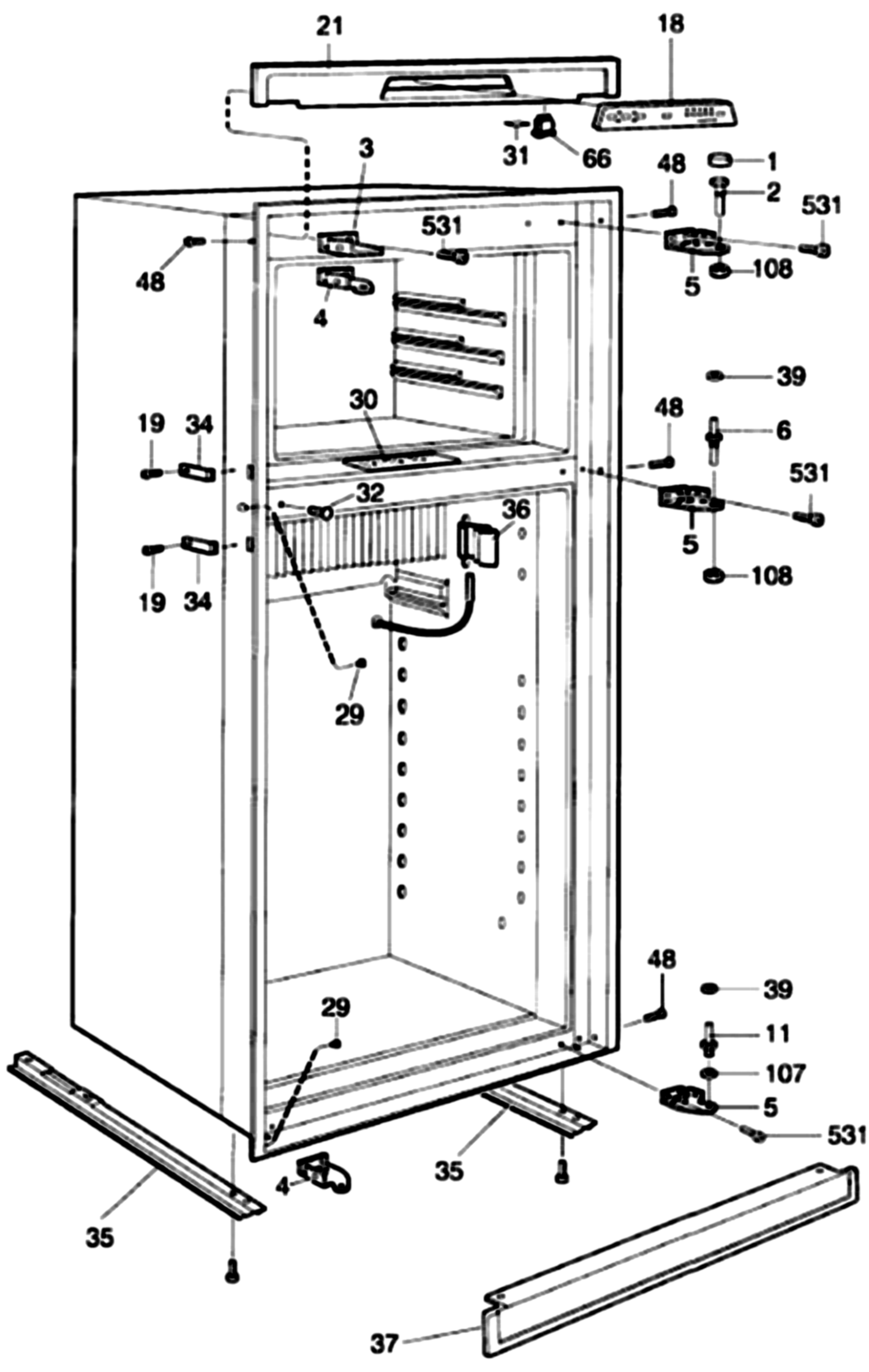

Dometic RM2862 Cabinet, Trim & Hinges Parts
| # | Part | Fits | |
|---|---|---|---|
| 21 | Top Trim, Black Part # 2932641034 |
RM2862 | View part |
| 34 | Lever Catch Part # 2932855014 |
RM2862 | View part |
| 36 | Thermistor Kit with Plug and Holder Part # 38510590422 |
RM2862 | View part |

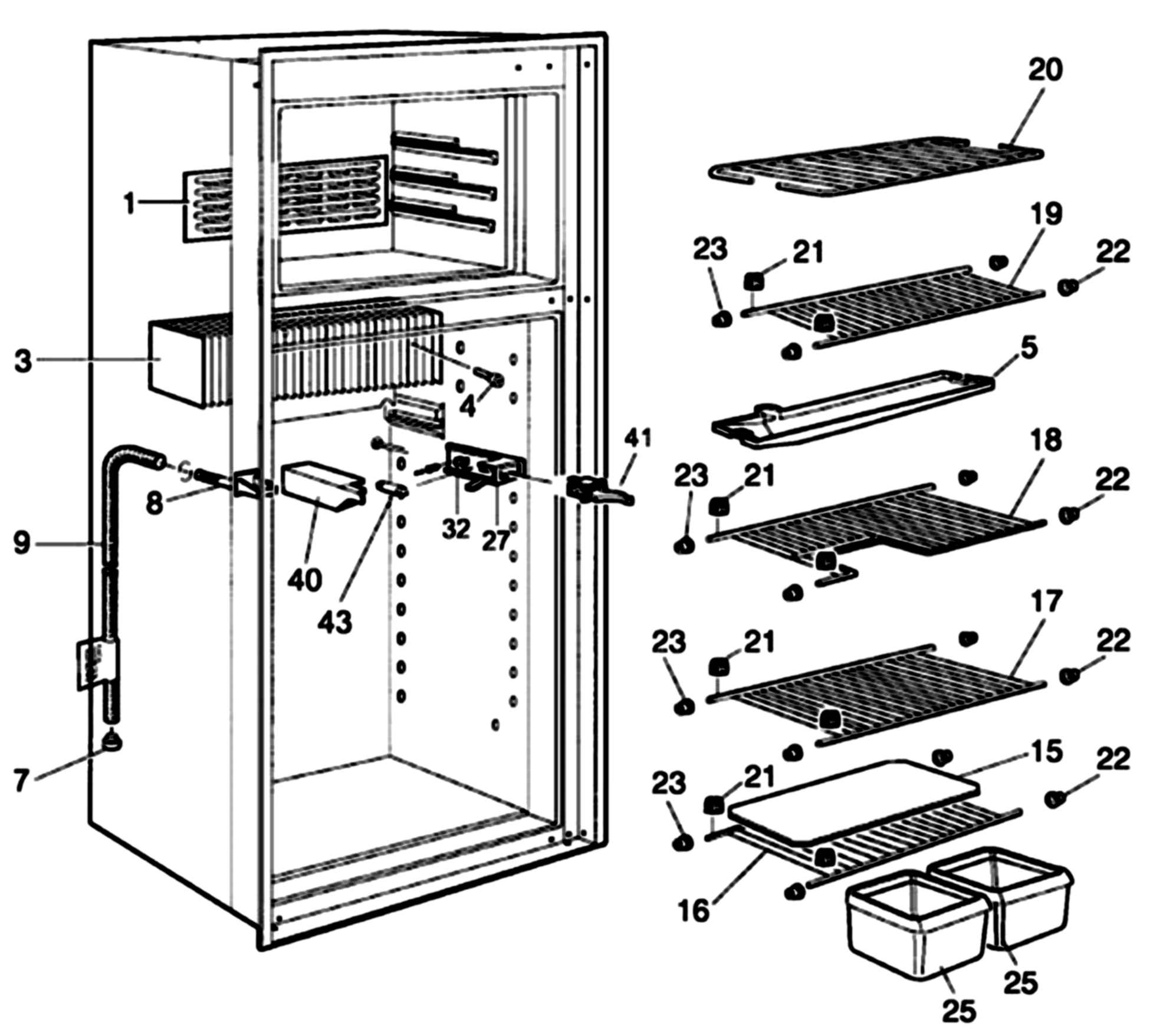

Dometic RM2862 Interior Shelves & Light Parts
| # | Part | Fits | |
|---|---|---|---|
| 19 | Wire Shelf Part # 3850324033 |
RM2862 | View part |
| 21 | Shelf Clip Part # 2932102011 |
RM2862 | View part |
| 22 | Shelf Plug Part # 2932101013 |
RM2862 | View part |
| 40 | 12V Light Cover Part # 2932106012 |
RM2862 | View part |
| 41 | Door Light Switch Part # 2932665017 |
RM2862 | View part |
| NS | Shelf Rail Combo Kit (rails not shown) Part # 20073372111 |
RM2862 | View part |

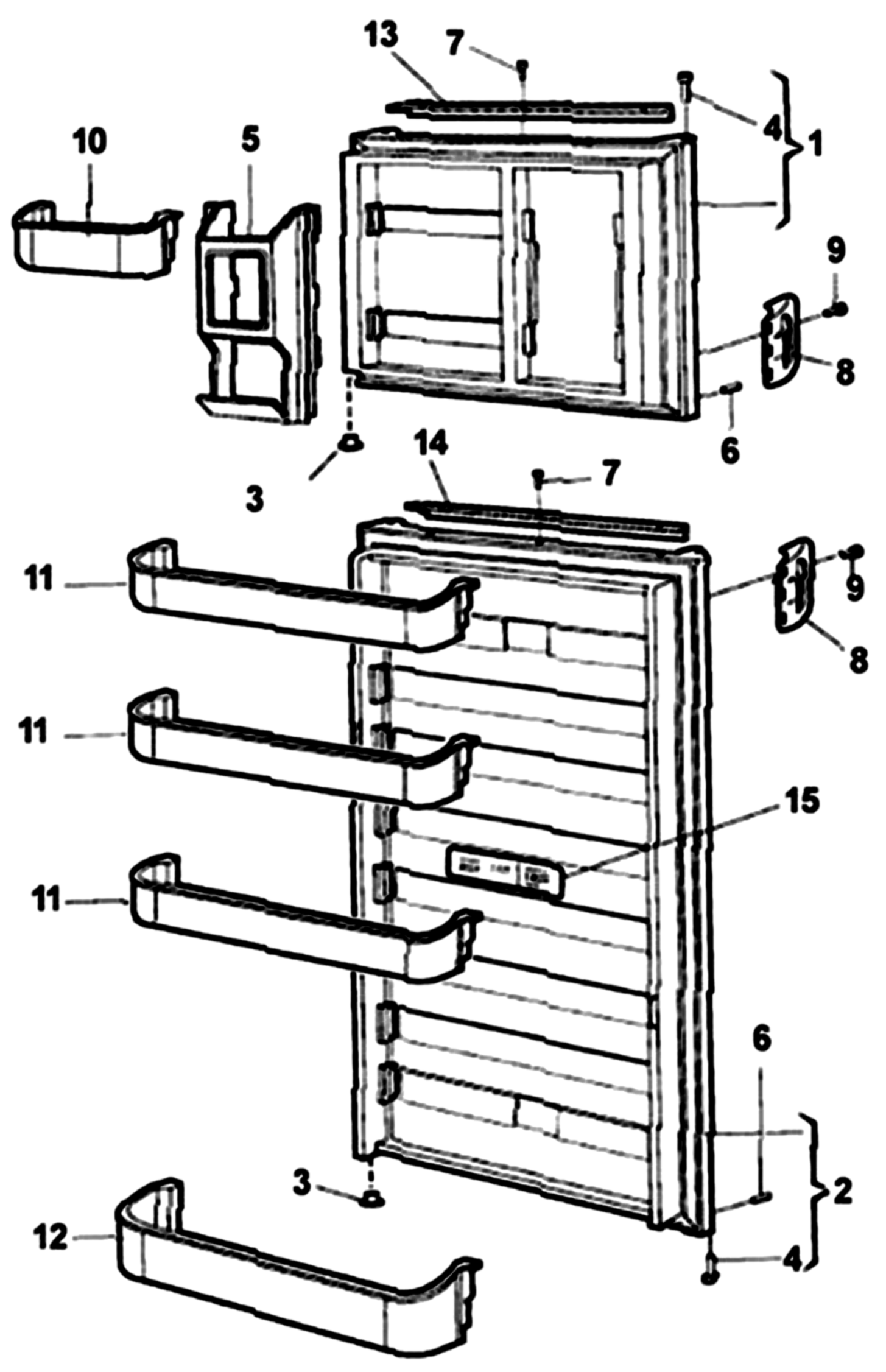

Dometic RM2862 Doors & Door Bins Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Freezer Door, Right Hand Part # 2932561190 |
RM2862 | View part |
| 2 | Lower Refrigerator Door, Left Hand Part # 2932562057 |
RM2862 | View part |
| 6 | Decorative Strip (replaces door panel support pin) Part # 38509191133 |
RM2862 | View part |
| 11 | Door Shelf Combo Kit, Clear (5 bins) (also #12) Part # 29325760655 |
RM2862 | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are based on the Dometic RM2862 (product ID 921146155) parts breakdown. Confirm fitment with your model and serial number before ordering.
