Find the part you need on the exploded diagrams of the Norcold 1210 series 4-door RV refrigerators (1210, 1210C, 1210AC, 1210IM, 1211, 1211C, 1211IM and IMC versions). Click a highlighted number to go straight to that part.
The Norcold 1210 has been replaced by the Norcold N15DC.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Cabinet, Hinges & ShelvesCooling Unit & Rear ComponentsRear Controls (Gas/Electric Models)Rear Controls (1210AC All-Electric)Upper DoorsLower DoorsIce MakerInterior Light & ThermistorWater Dispenser

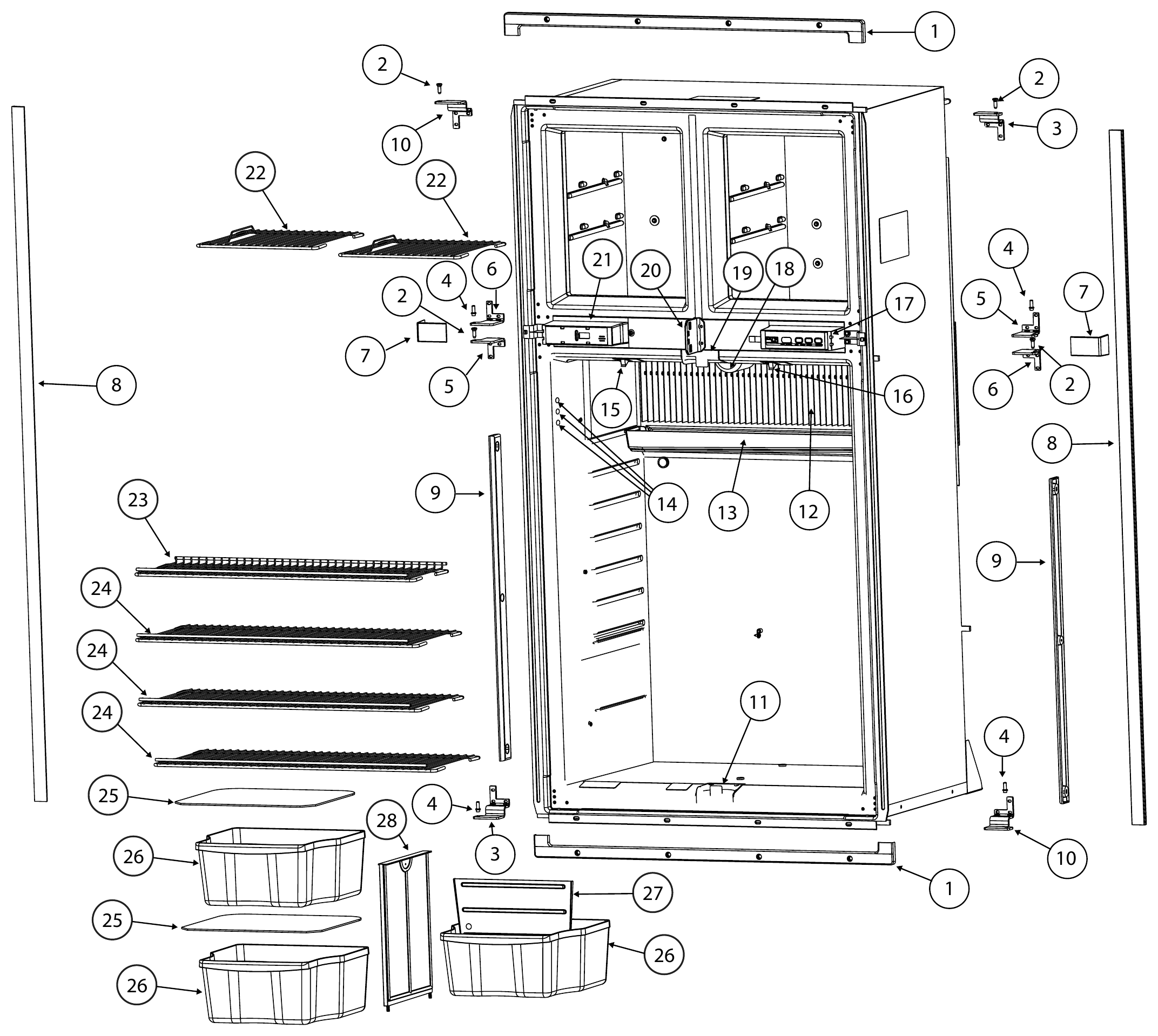

Norcold Cabinet, Hinges & Shelves Parts
| # | Part | Fits | |
|---|---|---|---|
| 5 | Inside Hinge, Upper RH / Lower LH Part # 624363 |
All models | View part |
| 6 | Inside Hinge, Upper LH / Lower RH Part # 624364 |
All models | View part |
| 7 | Hinge Cover Part # 627955 |
All models | View part |
| 9 | Shelf Retainer Part # 622033 |
All models | View part |
| 10 | Outside Hinge, Upper LH / Lower RH Part # 628945 |
All models | View part |
| 16 | Lamp / Thermistor Wire Assembly Part # 636658 |
All models | View part |
| 23 | Short Wire Shelf Part # 632436 |
All models | View part |
| 24 | Long Wire Shelf (SN 18023742 & above) Part # 632435 |
All models | View part |
| 25 | Crisper Cover Glass Shelf Part # 618757 |
All models | View part |
| 26 | Bottle / Crisper Bin Part # 628688 |
All models | View part |
| 27 | Bottle Crisper Divider Part # 628694 |
All models | View part |
| NS | Drain Hose Assembly Part # 622392 |
All models | View part |
| NS | DC Light Bulb (GE #214-2) Part # 632545 |
All models | View part |
| NS | Water Dispenser Control Panel Housing Part # 628454 |
All models | View part |

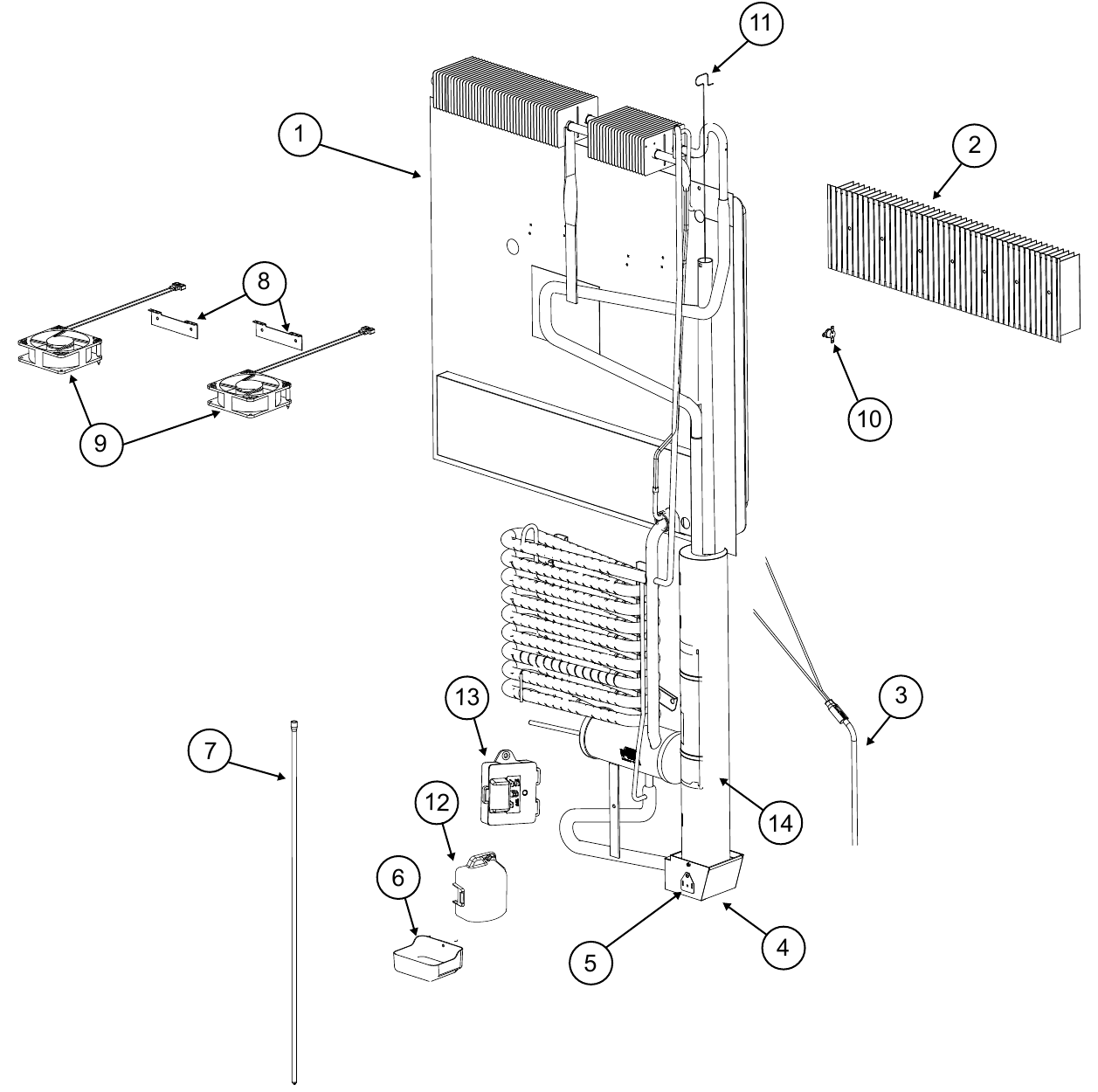

Norcold Cooling Unit & Rear Components Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Cooling Unit, Step Style (SN 14883315 & below) Part # 634746 |
All models | Shop Nordic 6610 |
| 1 | Cooling Unit, Straight Style (SN 14883316 & above) Part # 634747 |
All models | Shop Nordic 6610 |
| 3 | AC Heater, 2 per system (cooling unit SN 11231145 & below) Part # 618872 |
All models | View part |
| 3 | AC Heater Replacement Kit Part # 638372 |
All models | View part |
| 7 | Drain Hose Assembly Part # 622392 |
All models | View part |
| 8 | DC Fan Bracket (2 per system) Part # 628747 |
All models | View part |
| 10 | Fan Thermostat Part # 640235 |
All models | View part |
| 13 | Temperature Monitor Control (High Temp Switch) Part # 637360 |
All models | View part |

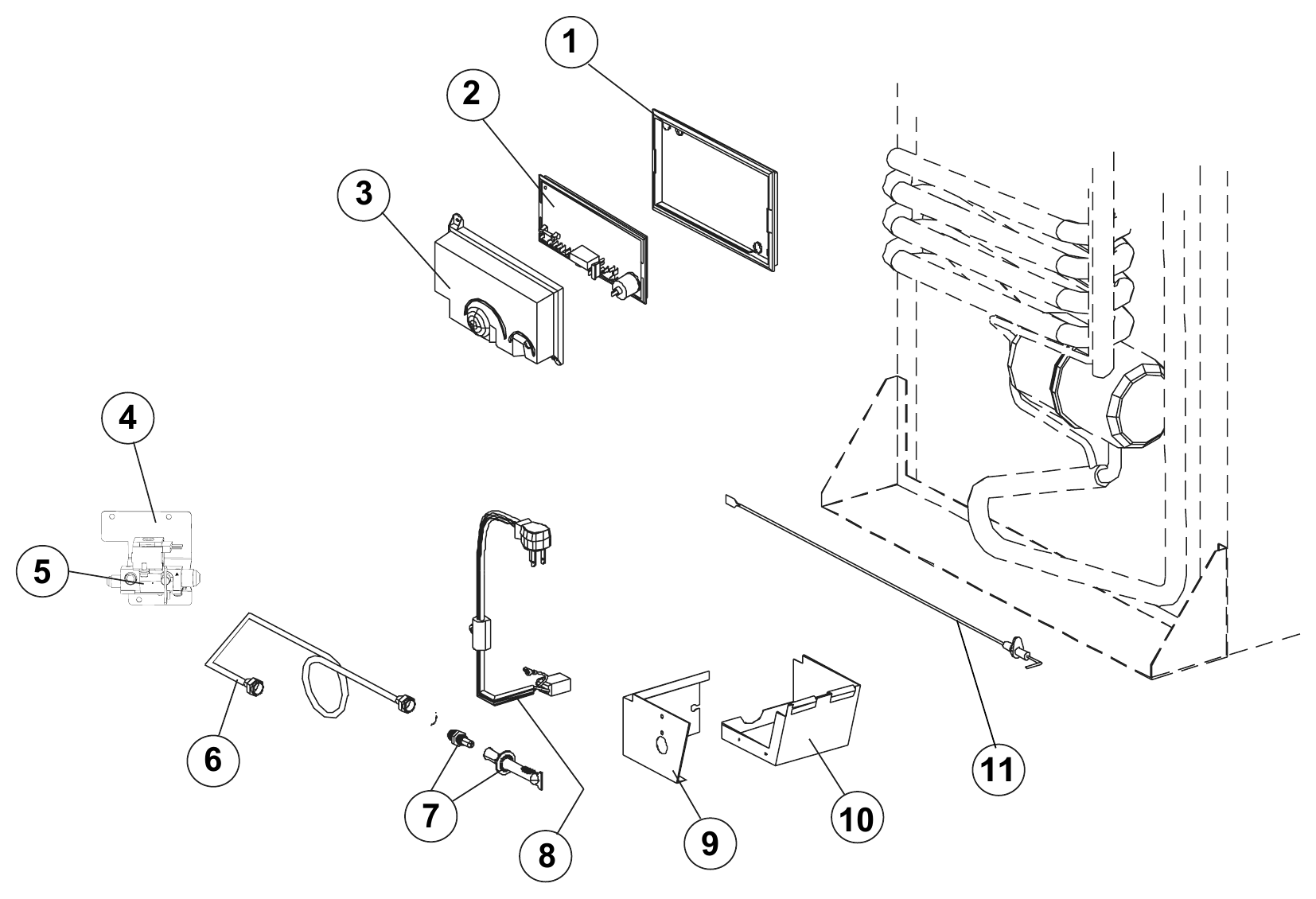

Norcold Rear Controls (Gas/Electric Models) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board Part # 628661 |
All models | View part |
| 8 | AC Power Cord, Ice Maker Models Part # 618406 |
1211IM/1211IMC | View part |
| 11 | Spark / Sense Electrode Part # 61692222 |
All models | View part |

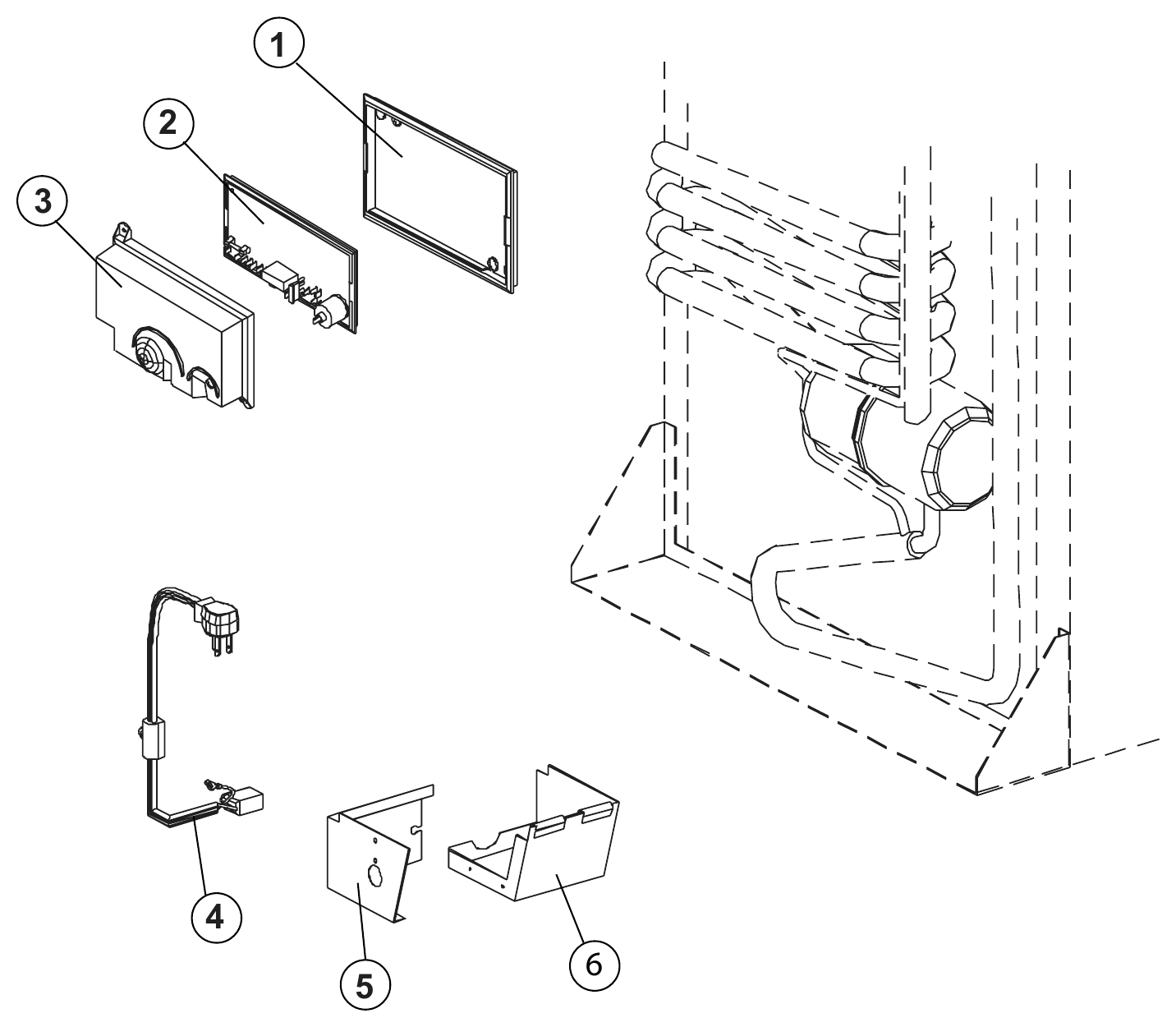

Norcold Rear Controls (1210AC All-Electric) Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Power Board Part # 628661 |
1210AC, 1210ACIM | View part |

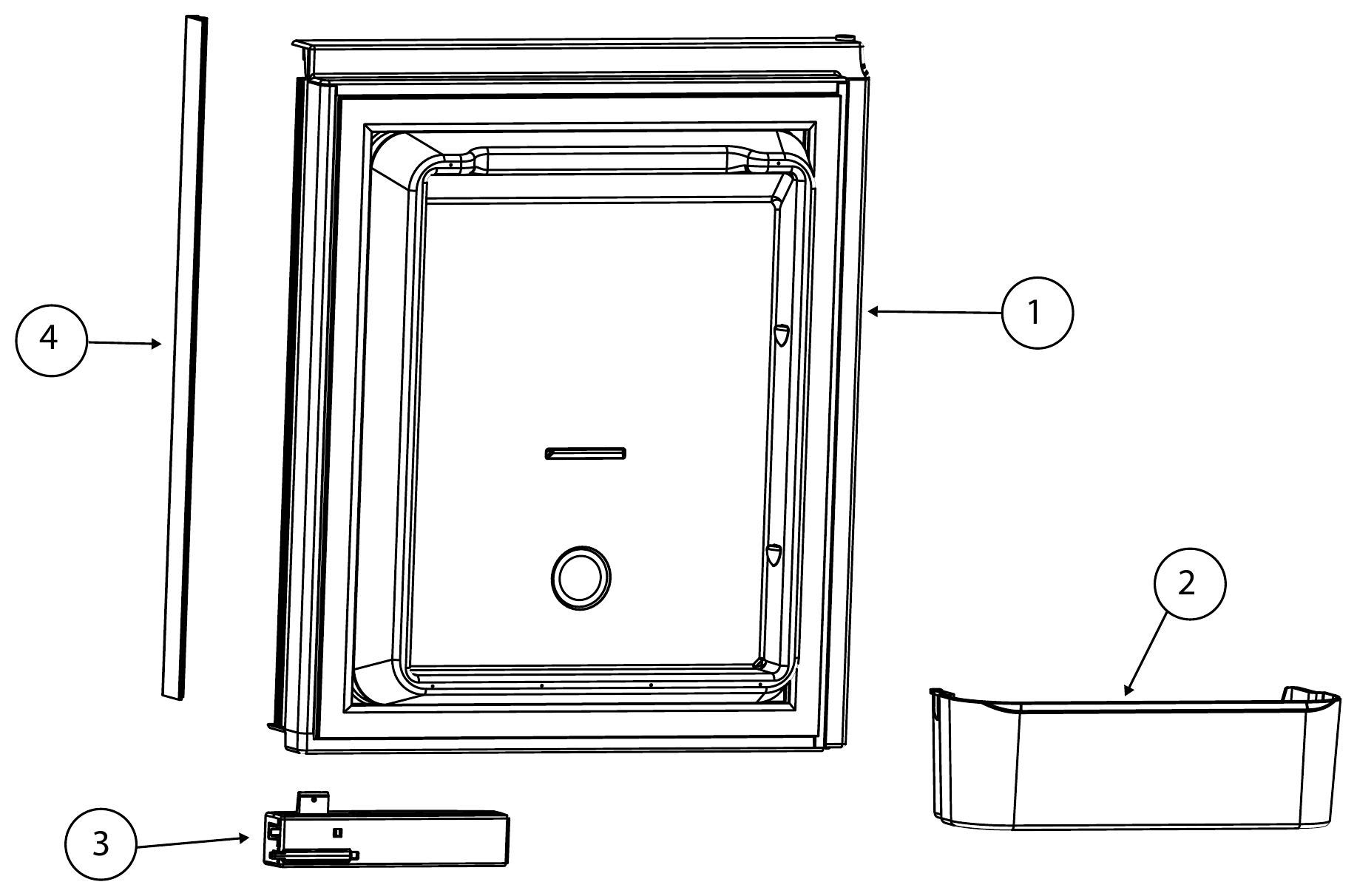

Norcold Upper Doors Parts
| # | Part | Fits | |
|---|---|---|---|
| 1 | Upper Left Door, Panel Type Part # 627941 |
1210AC (PN), 1210/1210C (PN), 1211/1211C (PN) | View part |
| 1 | Upper Left Door, Stainless Steel (SN 13081919 & above) Part # 634069 |
1210AC (SS), 1210/1210C (SS), 1211/1211C (SS) | View part |
| 4 | Upper Door Panel Retainer (panel doors) Part # 627947 |
1210AC (PN), 1210/1210C (PN), 1211/1211C (PN) | View part |

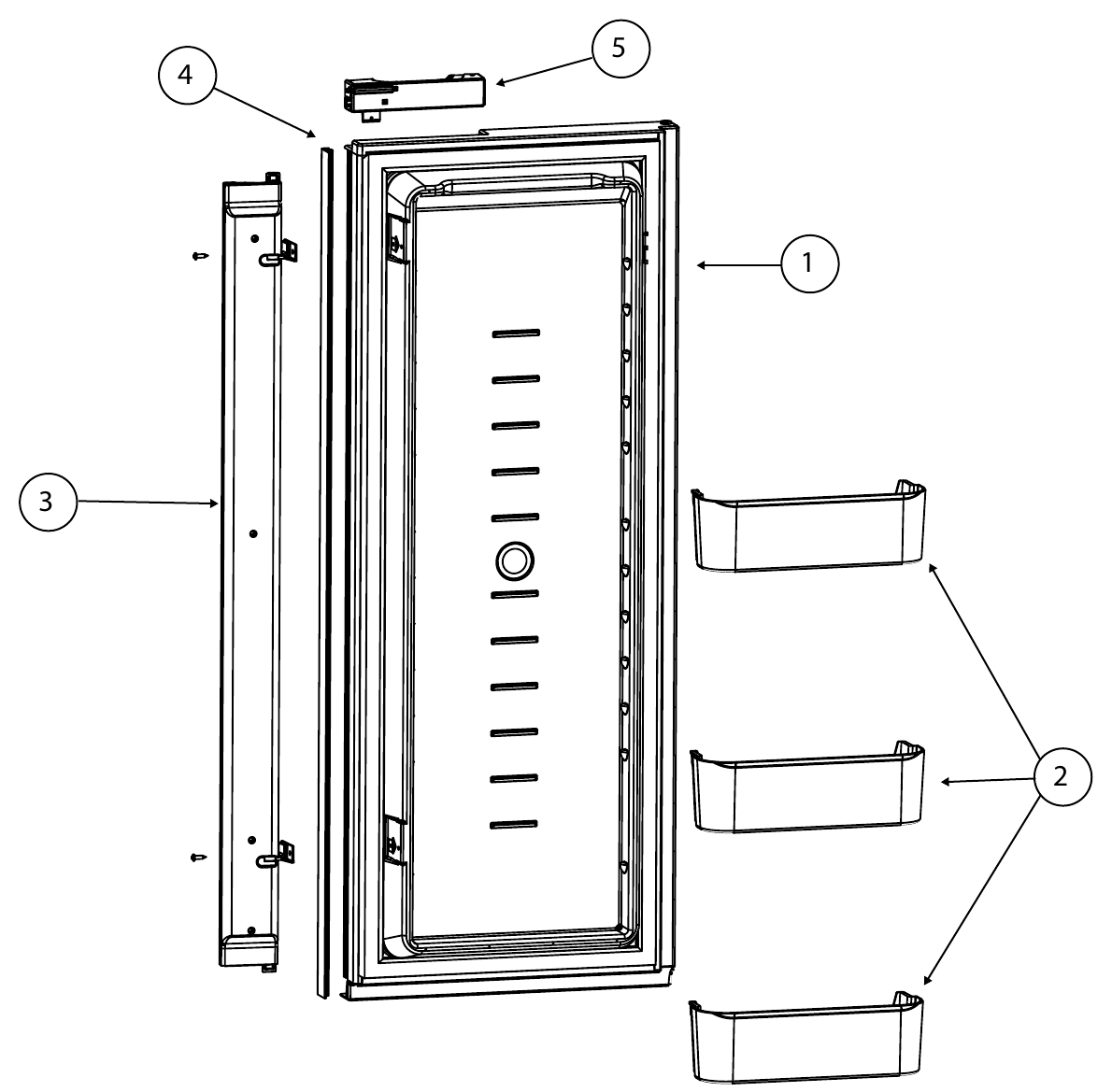

Norcold Lower Doors Parts
| # | Part | Fits | |
|---|---|---|---|
| 4 | Lower Door Panel Retainer (panel doors) Part # 627948 |
1210AC (PN), 1210/1210C (PN), 1211/1211C (PN) | View part |

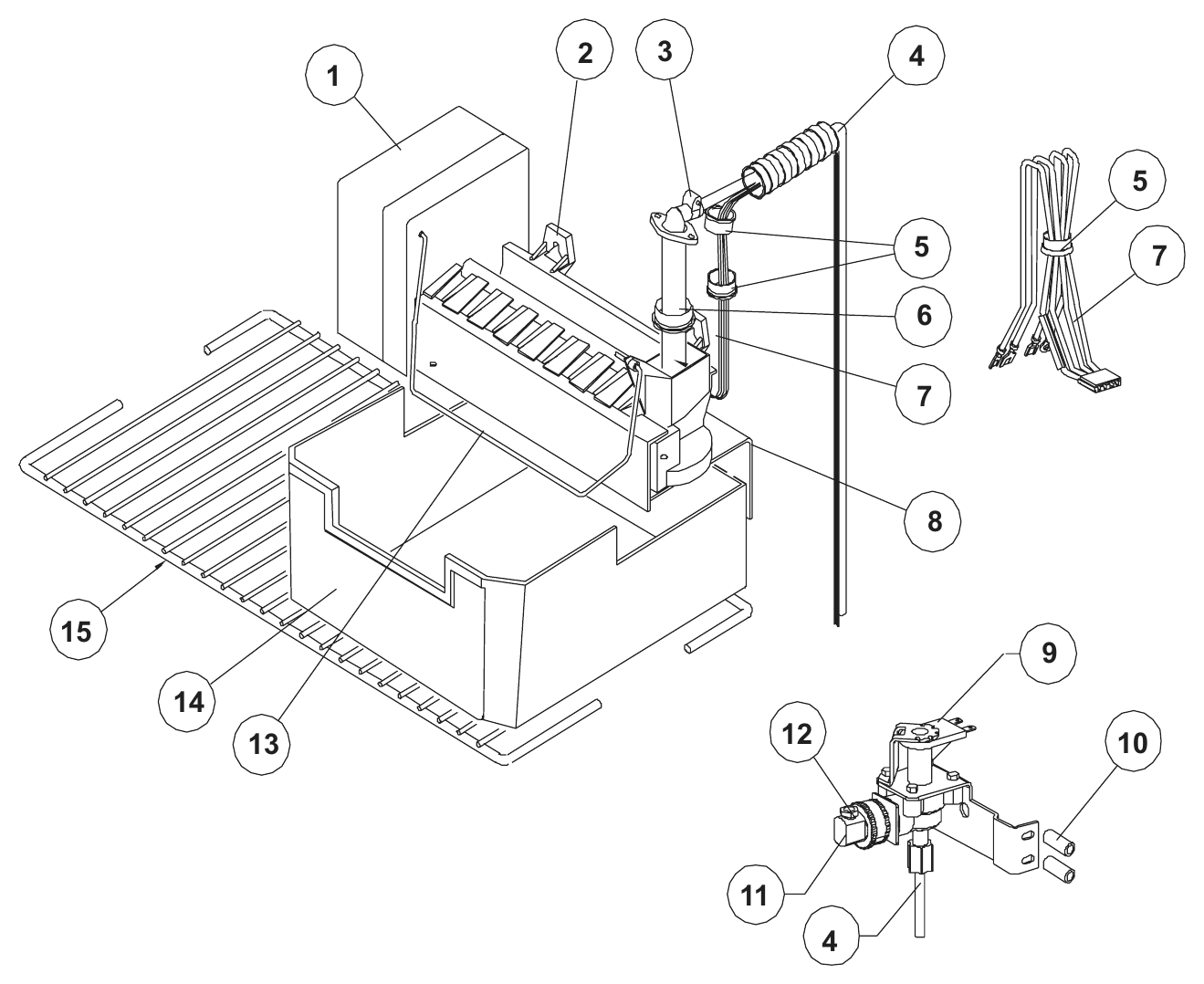

Norcold Ice Maker Parts
| # | Part | Fits | |
|---|---|---|---|
| 2 | Ice Maker Kit Part # 633324 |
All models | View part |
| 6 | Water Tube Fitting (4.17 in.) Part # 620039 |
All models | View part |
| 13 | Ice Maker Shut-Off Arm Part # 61656922 |
All models | View part |

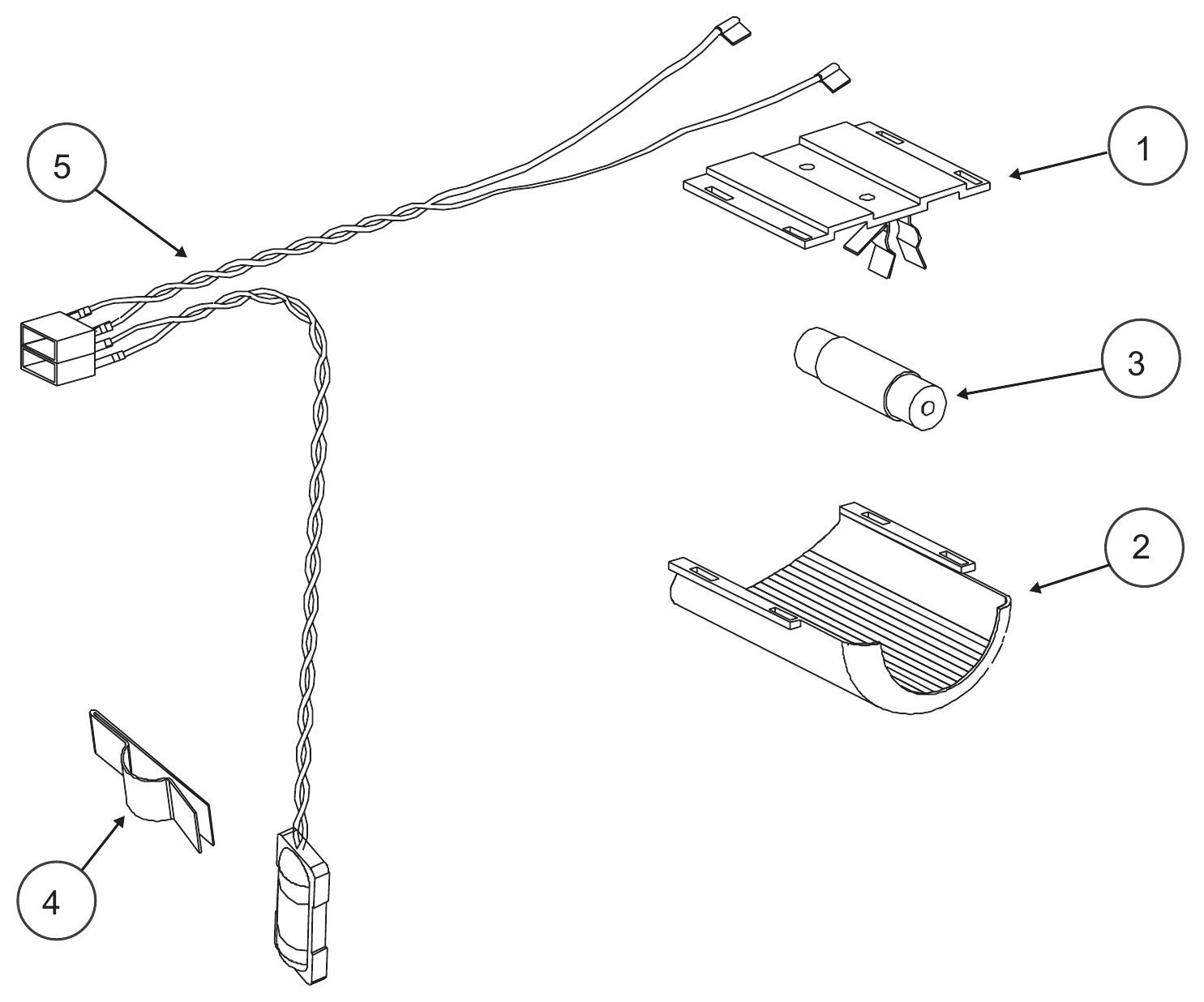

Norcold Interior Light & Thermistor Parts
| # | Part | Fits | |
|---|---|---|---|
| 3 | DC Light Bulb (GE #214-2) Part # 632545 |
All models | View part |
| 5 | Lamp / Thermistor Wire Assembly Part # 636658 |
All models | View part |

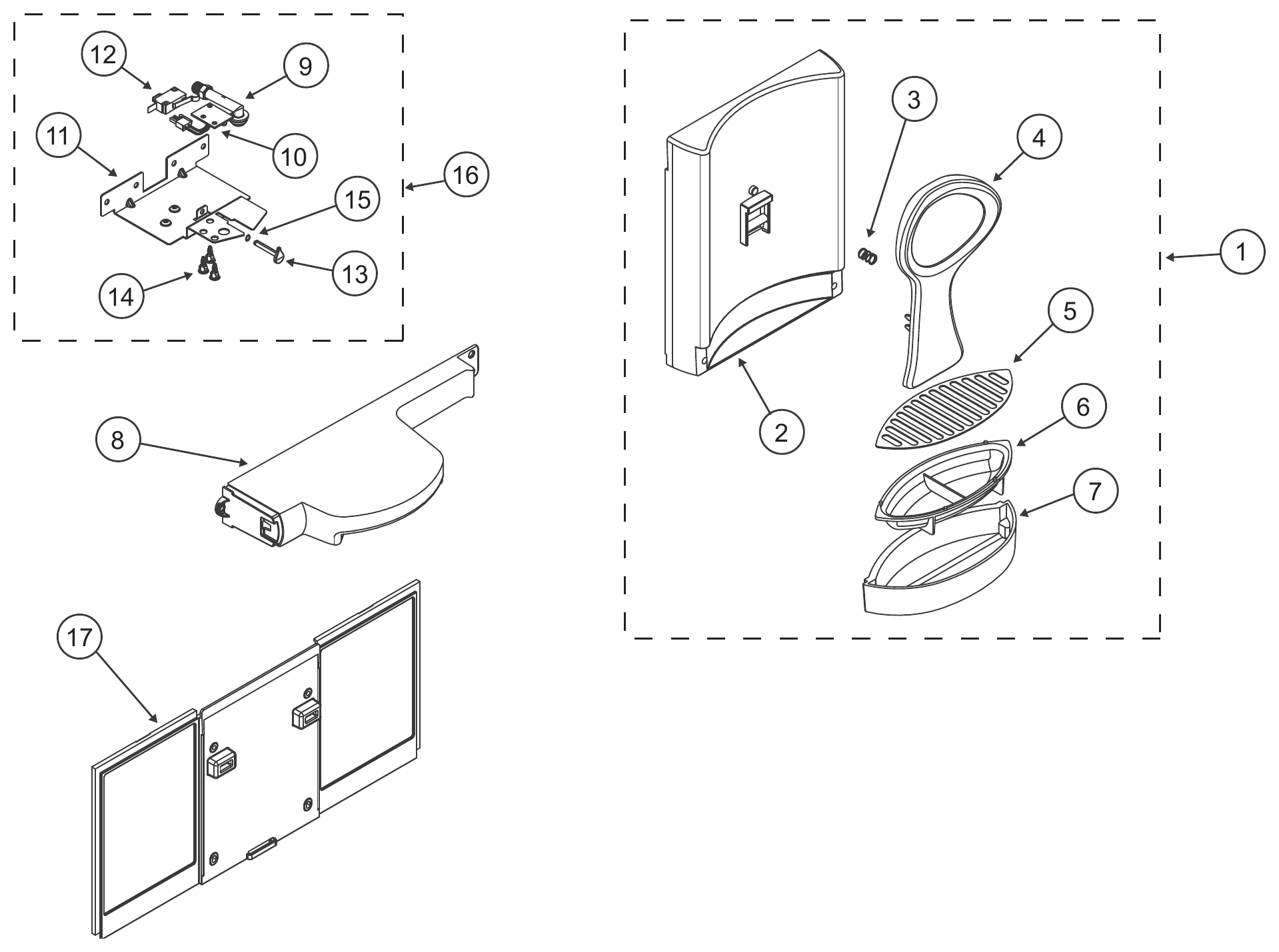

Norcold Water Dispenser Parts
| # | Part | Fits | |
|---|---|---|---|
| 8 | Water Dispenser Control Panel Housing Part # 628454 |
All models | View part |
| 16 | Switch / Bracket Assembly Part # 629526 |
All models | View part |
| NS | Water Reservoir (not shown) Part # 624502 |
All models | View part |
Only parts we currently sell are highlighted. Diagrams and part numbers are from the Norcold 1210 series parts list (629923, 08/22/2025); "Fits" shows the models and door style marked in that list (PN panel, BK black, SS stainless). Confirm fitment with your model and serial number before ordering.
