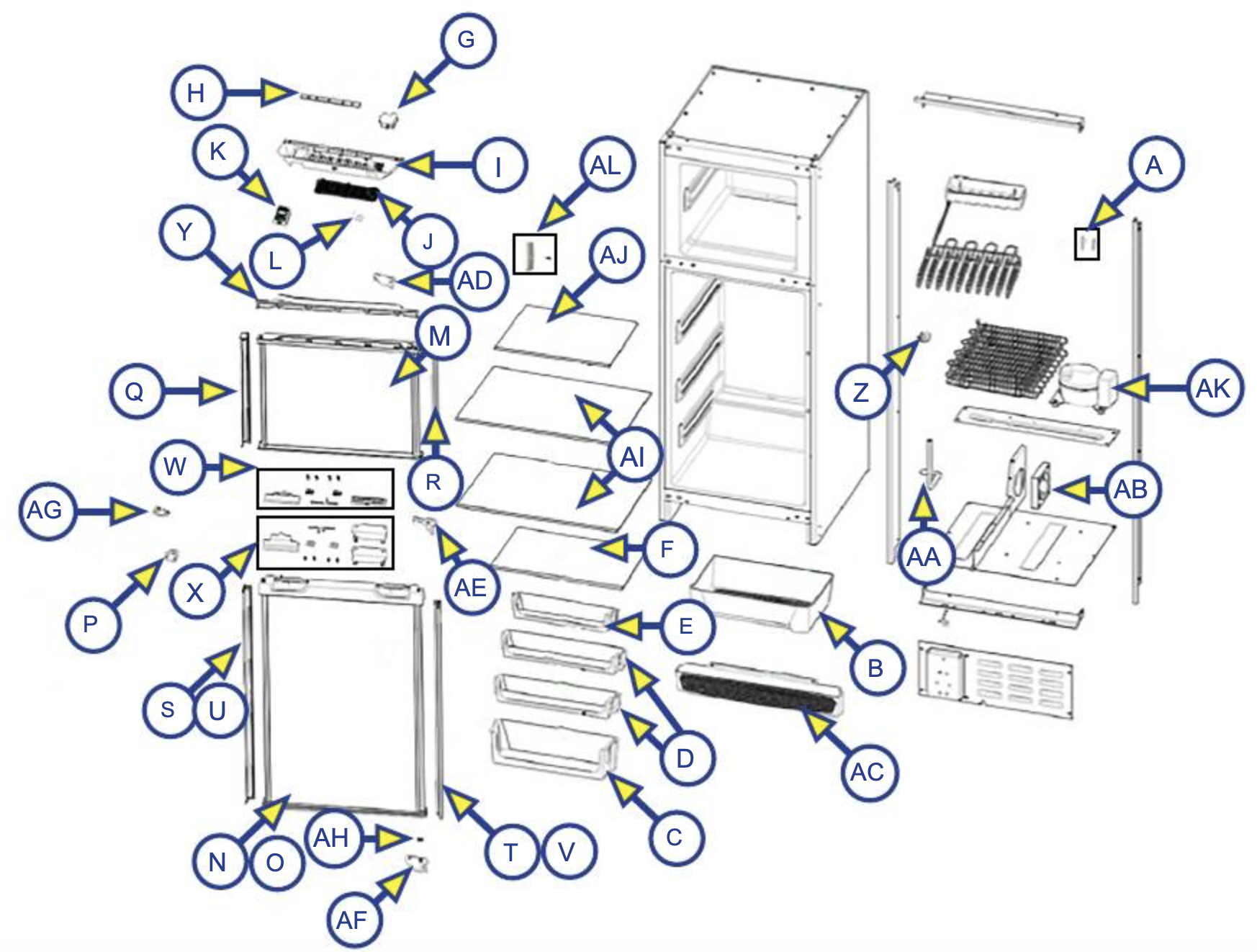

Find the part you need on the exploded diagrams of the Furrion Arctic 8 and 10 cu. ft. 12V RV refrigerators (FCR08DCGTA, FCR10DCGTA and their color and hinge versions). Click a highlighted letter to go straight to that part.
Not sure which part fits? Your model and serial number are on the label inside the fresh food compartment. Email info@rvfridgeguys.com with both numbers and we will confirm the part before you order.
Furrion Arctic 8 & 10 cu. ft. Parts
| # | Part | Fits | |
|---|---|---|---|
| B | Crisper Drawer Furrion # 2021124078 / C-FCR10DCDTA-002 | Arctic 8 & 10 | View part |
| C | Big Door Bin Furrion # 2021124225 / C-FCR10DCDTA-003 | Arctic 8 & 10 | View part |
| D | Small Door Bin Furrion # 2021124221 / C-FCR10DCDTA-004 | Arctic 8 & 10 | View part |
| E | Freezer Door Bin Furrion # 2021124118 / C-FCR10DCDTA-005 | Arctic 8 & 10 | View part |
| F | Glass Small Shelf (crisper cover) Furrion # 2021124113 / C-FCR10DCDTA-006 | Arctic 8 & 10 | View part |
| G | Spark-Free Thermostat (temperature controller) Furrion # 2021128850 / C-FCR10DCGTA-007 | Arctic 8 & 10 | View part |
| H | LED Light PCB Furrion # 2021128864 / C-FCR10DCGTA-046 | Arctic 8 & 10 | View part |
| I | Light Assembly Base Furrion # 2021123967 / C-FCR10DCDTA-011 | Arctic 8 & 10 | View part |
| J | Light Cover Furrion # 2021124087 / C-FCR10DCDTA-012 | Arctic 8 & 10 | View part |
| L | Rotary Knob Furrion # 2021123931 / C-FCR10DCDTA-014 | Arctic 8 & 10 | View part |
| M | Freezer Door Assembly (door, side covers, top end cap, seal) Furrion # 2021124507 / C-FCR10DCDTA-015 | Arctic 8 & 10 | View part |
| M | Freezer Door and Gasket Furrion # 2022302169 | Arctic 8 & 10 | View part |
| M | Upper Wrap Door, Stainless Steel (GTA models) Furrion # C-FCR10DCGTA-048 | FCR08DCGTA, FCR10DCGTA | View part |
| N | Fresher Door Assembly (8 cu. ft.) Furrion # 2023035368 / C-FCR08DCDTA-016 | Arctic 8 & 10 | View part |
| N | Lower Wrap Door, Stainless Steel (8 cu. ft. GTA) Furrion # C-FCR08DCGTA-050 | FCR08DCGTA | View part |
| O | Fresher Door Assembly (10 cu. ft.) Furrion # 2023035380 / C-FCR10DCDTA-016 | Arctic 8 & 10 | View part |
| O | Lower Glass Door (10 cu. ft. GTA) Furrion # 2021124481 / C-FCR10DCGTA-051 | FCR10DCGTA | View part |
| O | Lower Wrap Door, Stainless Steel (10 cu. ft. GTA) Furrion # C-FCR10DCGTA-052 | FCR10DCGTA | View part |
| S | Fresher Door Left Side Cover (8 cu. ft.) Furrion # 2021124482 / C-FCR08DCDTA-017 | Arctic 8 & 10 | View part |
| T | Fresher Door Right Side Cover (8 cu. ft.) Furrion # 2021124468 / C-FCR08DCDTA-018 | Arctic 8 & 10 | View part |
| U | Fresher Door Left Side Cover (10 cu. ft.) Furrion # 2021124496 / C-FCR10DCDTA-038 | Arctic 8 & 10 | View part |
| V | Fresher Door Right Side Cover (10 cu. ft.) Furrion # 2021124464 / C-FCR10DCDTA-039 | Arctic 8 & 10 | View part |
| W | Freezer Door Latch Parts Package Furrion # 2021124026 / C-FCR10DCDTA-020 | Arctic 8 & 10 | View part |
| X | Fresher Door Latch Parts Package Furrion # 2021123937 / C-FCR10DCDTA-021 | Arctic 8 & 10 | View part |
| Y | Freezer Door Top End Cap Furrion # C-FCR10DCDTA-022 | Arctic 10 | View part |
| AA | Drain Tube Furrion # C-FCR10DCDTA-024 | Arctic 10 | View part |
| AC | Ventilation Cover Furrion # 2021124037 / C-FCR10DCDTA-027 | Arctic 10 | View part |
| AD | Top Hinge (left-hand door) Furrion # C-FCR10DCDTA-028 | Arctic 10 | View part |
| AE | Middle Hinge Furrion # 2021123938 / C-FCR10DCDTA-030 | Arctic 8 & 10 | View part |
| AF | Bottom Hinge (left open) Furrion # 2021123939 / C-FCR10DCDTA-029 | Arctic 8 & 10 | View part |
| AI | Fresh Food Glass Shelf Furrion # C-FCR10DCGTA-001 | FCR10DCGTA | View part |
| AK | Compressor Control/Driver Board Furrion # 2021149633 / C-FCR10DCGTA-006 | Arctic 8 & 10 | View part |
| NS | Door Catch (not shown) Furrion # C-FCR10DCDTA-031 | Arctic 10 | View part |
| NS | Door Lock (not shown) Furrion # C-FCR10DCDTA-017 | Arctic 10 | View part |
| NS | Fresh Food Wire Shelf (not shown) Furrion # C-FCR10DCDTA-007 | Arctic 10 | View part |
| NS | Freezer Bin (not shown) Furrion # C-FCR10DCGTA-002 | Arctic 10 | View part |
| NS | Terminal Block (not shown) Furrion # 2021123981 / C-FCR10DCDTA-026 | Arctic 10 | View part |
| NS | Stainless Steel Door Panel Set (not shown) Furrion # C-FCR10DCGTA-A01 | FCR10DCGTA | View part |
| NS | Door Panel Set (not shown) Furrion # C-FCR08DCGTA-A01 | FCR08DCGTA | View part |
| NS | Power Inlet Port (not shown) Furrion # F52INS-PS-AM | Arctic 8 & 10 | View part |
Only parts we currently sell are highlighted. Diagram and part numbers are from the Furrion Arctic 8 & 10 cu. ft. service manual replaceable parts list (Rev. 01.11.24). Confirm fitment with your model and serial number before ordering.
