Description

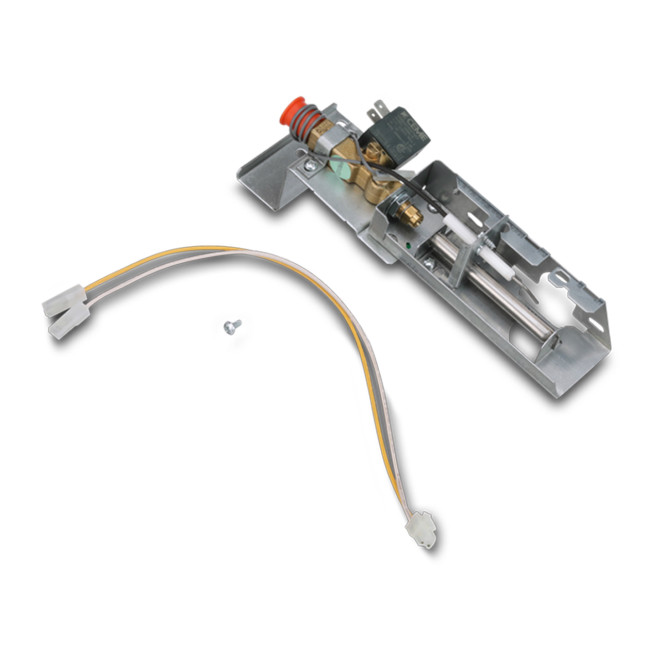

Dometic Gas Valve / Burner / Igniter Assembly 3850730569
This genuine Dometic gas valve assembly, part number 3850730569, is a complete LP (propane) kit for many Dometic 6, 7, 8 and 9 cu. ft. refrigerators. It includes the gas valve, burner #2007419217 and igniter, ready to replace the whole LP control section at the lower rear of the refrigerator.
What it does
The gas valve controls the flow of propane to the burner when the refrigerator runs in LP mode. The igniter lights the burner, and the burner heats the cooling unit's boiler. If any part of this chain fails, the refrigerator won't cool on gas.
Signs you may need it
- The refrigerator works on AC but not on LP gas
- No propane reaches the burner, even with a full tank and good ignition clicks
- The flame won't stay lit, or the valve won't open
- A corroded, sticking or leaking valve, or a damaged burner
Before replacing, confirm LP supply pressure and 12V power to the valve, and check for a clogged burner orifice.
What's included
- Gas valve
- Burner #2007419217
- Igniter (with wiring, as shown in the photo)
- LP inlet fitting: 3/8" male flare
Installation
- Turn off the refrigerator, shut off the LP supply at the tank, and disconnect 12V power.
- Through the exterior refrigerator vent, disconnect the LP line and the valve wiring.
- Remove the old valve/burner assembly and install the new one in the same position.
- Reconnect the 3/8" flare LP line and the wiring.
- Turn the LP back on and leak-test every connection with soapy water before operating.
Tools: wrenches and a screwdriver. Takes about 30–60 minutes.
Fits these Dometic refrigerator models
Before ordering, confirm the fit by matching the part number on your old part or in your refrigerator's parts list. Not sure? Send us your refrigerator's model and serial number and we'll confirm the fit.
- Dometic DM2652 parts
- Dometic DM2662 parts
- Dometic DM2663 parts
- Dometic DM2672 parts
- Dometic DM2682 parts
- Dometic DM2852 parts
- Dometic DM2862 parts
- Dometic DM2872 parts
- Dometic DM2882 parts
- Dometic RM2552 parts
- Dometic RM2554 parts
- Dometic RM2562 parts
- Dometic RM2652 parts
- Dometic RM2862 parts
Model and product numbers
Find your model and product number on the label inside the refrigerator compartment.
- DM2652
- DM2662
- DM2682
- DM2852
- DM2862
- DM2882
- RM2652
- RM2662
- RM2682
- RM2852
- RM2862
- RM2882
- RM3762
- RM3862
- RM3962
Browse all Dometic burners, gas valves and igniters.
Product details
- Brand: Dometic
- Part number: 3850730569
- Includes: gas valve, burner 2007419217, igniter
- LP inlet: 3/8" male flare
- Application: Dometic 6/7/8/9 cu. ft. refrigerators
FAQ
Do I need a technician?
No. This is a do-it-yourself replacement. If you're not comfortable getting hands-on with the gas and electrical connections, you can always hire a technician to come out. If you need help with the install, we're here for you. Just reach out.
