Dometic RM2862

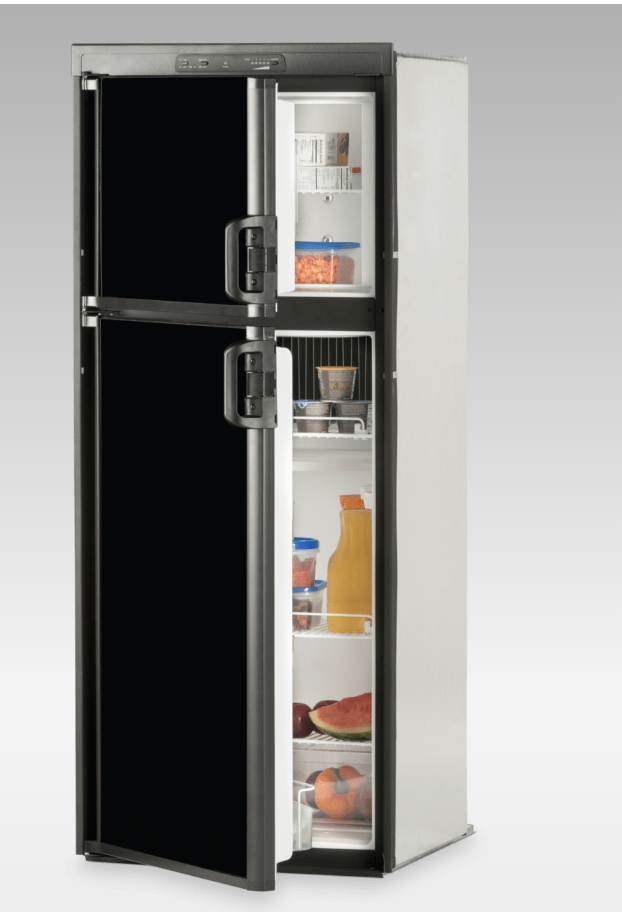

YOUR FRIDGE: DOMETIC RM2862
Everything for the Dometic RM2862
Americana 8 cu. ft., 2-way (propane and 120V AC). Dometic later sold the same fridge as the DM2862, so DM2862 parts fit too. Boards, burner parts, heater, doors and even the cooling unit are still available.
✓ GUARANTEED FIT
Give us your model and serial number. If we say it fits and it doesn’t, we cover return shipping.
What’s wrong with your RM2862?
Dead board or no powerHercules Power Board 3316348.900 →Lists the RM2862. Built-in reigniter. Replaces 3850712013. Not cooling rightThermistor Kit 38510590422 →Thermistor with plug and holder. Cheapest part to rule out first. Won’t light on propaneGas Valve / Burner / Igniter 3850730569 →Complete burner assembly. Fixes most propane problems in one part. Clicks but no flameElectrode w/ Conductor 2932781012 →Sparks the burner. A cracked or dirty tip stops ignition. Works on propane, not electricAC Heating Element 3313107.039 →325W, 120V. The usual culprit when electric mode stops cooling. Not cooling on any modeNordic Cooling Unit 5582-806A →Listed for the RM2862. Keeps your fridge in place. Light stays on or offDoor Light Switch 2932665017 →A stuck switch can leave the light on and warm the box. Cracked door binsDoor Bin Set 29325760655 →Clear, set of 5.
Two options? Here’s which one is yours
| Part | Options | How to choose |
|---|---|---|
| Cooling unit | Nordic 5582-806A ($1,087.80) or Dometic OEM 3313470.008 ($1,745.90) | Both fit. The Nordic saves about $650; the OEM is the original Dometic unit. |
| Thermistor | Kit 38510590422 or bare 3851210025 | The kit includes a new plug and holder. Choose the bare thermistor if yours are in good shape. |

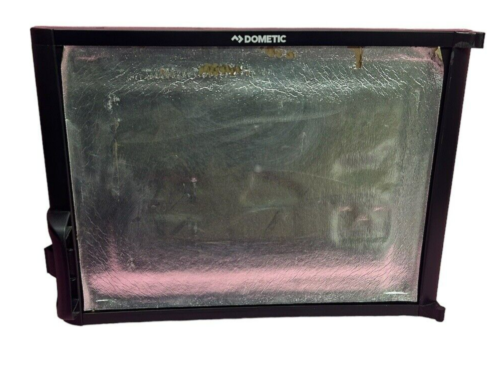

| Lower fridge door | 2932562057 (left hinge) or 2932562065 (right hinge) | Check the hinge side. The freezer door 2932561190 is right hinge. |
| Power board | Hercules 3316348.900 | The Dinosaur Micro P-711 doesn’t list the 2862, so stick with the Hercules. |
| Eyebrow control board | 2932884055 (black) | Not priced online. Send us the number on your old board and we’ll check options. |
Your model and serial number are on the label inside the fresh food compartment. Check the part number printed on your old part before ordering.
Cooling unit failed? You don’t have to replace the fridge. The Nordic 5582-806A and the Dometic OEM 3313470.008 both fit. If you’d rather start fresh, the Dometic DM2882 replaces the RM2862 in the same 59-15/16" opening, or go 12V with the Norcold N10DC, which uses nearly the same opening. Send us your model and we’ll confirm the fit.
