Dometic DM2652

YOUR FRIDGE: DOMETIC DM2652

Everything for the Dometic DM2652

Americana 6 cu. ft., 2-way (propane and 120V AC). Also sold as the RM2652, the same fridge under Dometic’s older name. Boards, burner parts, heater, door and bins are all still available.

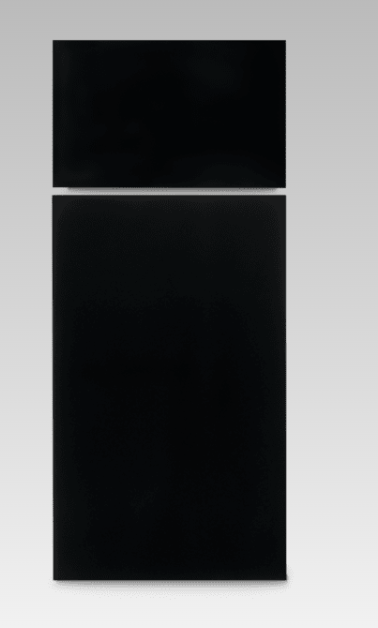

Dometic DM2652 RV refrigerator

✓ GUARANTEED FIT

Give us your model and serial number. If we say it fits and it doesn’t, we cover return shipping.

What’s wrong with your DM2652?

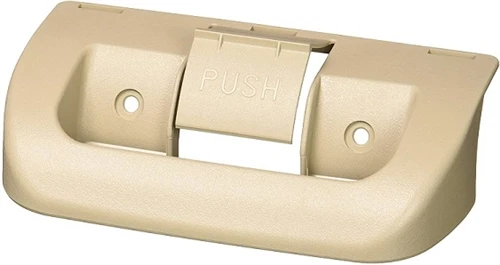

Dead board or no powerHercules Power Board 3316348.900 →Lists the DM2652. Built-in reigniter. Replaces 3850712013. Buttons or lights deadEyebrow Control Board 2932884014 →Front control board (beige). Match the number on your old board. Won’t light on propaneGas Valve / Burner / Igniter 3850730569 →Complete burner assembly. Fixes most propane problems in one part. Flame lights, then goes outThermocouple 2932052018 →Holds the gas valve open once the flame is lit. Clicks but no flameElectrode w/ Conductor 2932781012 →Sparks the burner. A cracked or dirty tip stops ignition. Works on propane, not electricAC Heating Element 3313107.039 →The usual culprit when 120V mode stops cooling. Damaged doorRefrigerator Door 2932563063 →Listed specifically for the DM2652. Broken handleMolded Door Handle 3851174015 →Single molded handle, beige.

Two options? Here’s which one is yours

Part Options How to choose
Power board Hercules 3316348.900 or Dinosaur Micro P-711 The Hercules lists the DM2652. The P-711 lists the RM2652 (same fridge) and only replaces boards whose number starts with 293.

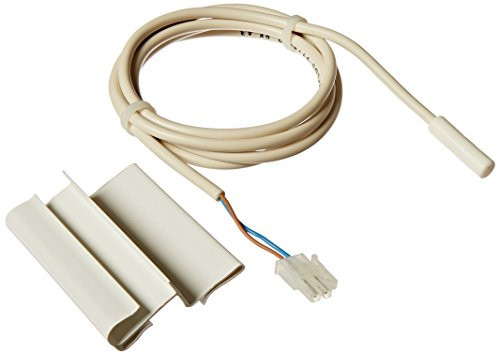

Thermistor 3851210025 or 3851059034 Send us your model and serial and we’ll confirm which one.
Eyebrow control board 2932884014 (beige) or 2932771013 Match the number on the back of your old board.
Refrigerator door 2932563063 or 2932563055 2932563063 is listed for the DM2652.

Your model and serial number are on the label inside the fresh food compartment. Check the part number printed on your old part before ordering.

Cooling unit failed? Price the repair against a new fridge before you decide. The Dometic DM2672 replaces the DM2652 in the same 6 cu. ft. opening. Your old door panels won’t carry over, so plan on new ones. Prefer 12V? The Norcold N8DC fits this opening with a little filler trim on top. Send us your model and we’ll confirm the fit.
