Dometic DM2852

YOUR FRIDGE: DOMETIC DM2852

Everything for the Dometic DM2852

Americana 8 cu. ft., 2-way (propane and 120V AC). Also sold as the RM2852, the same fridge under Dometic’s older name. Boards, burner parts, heater, doors and even the cooling unit are still available.

Hercules Board All DM2852 Parts Ask a Tech

✓ GUARANTEED FIT

Give us your model and serial number. If we say it fits and it doesn’t, we cover return shipping.

What’s wrong with your DM2852?

Dead board or no powerHercules Power Board 3316348.900 →In Dometic’s DM2852 parts list. Built-in reigniter. Won’t light on propaneGas Valve / Burner / Igniter 3850730569 →Complete burner assembly. Fixes most propane problems in one part. Clicks but no flameElectrode w/ Conductor 2932781012 →Sparks the burner. A cracked or dirty tip stops ignition. Works on propane, not electricAC Heating Element 3313107.039 →325W, 120V. Replaces 3850644422. Dead on gas and electricThermal Fuse Kit 38514090155 →A blown thermal fuse cuts power to the whole fridge. Not cooling on any modeNordic Cooling Unit 5582-806A →Listed for the RM2852, the same fridge. Keeps your fridge in place. Damaged lower doorLower Door (left hinge) 2932562057 →Black. In Dometic’s DM2852 parts list. Cracked crisperCrisper Bin 29326210100 →Fits many 6 and 8 cu. ft. Dometics.

Good to know before you order

Part	Part number	Notes

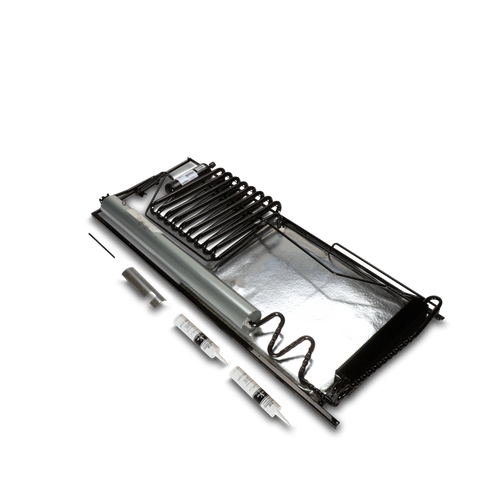

Cooling unit	Nordic 5582-806A ($1,087.80)	Listed for the RM2852. A new DM2872 is $1,749.90, so the Nordic saves about $660.
Thermistor	Not in Dometic’s DM2852 list	Send us your model and serial and we’ll confirm which one.
Lower fridge door	2932562057 (left hinge) or 2932562065 (right hinge)	Check the hinge side. The right-hinge door isn’t priced online; ask us.
Door bins	White set of 3 (29325760166)	From Dometic’s DM2852 list. Not priced online; ask us.

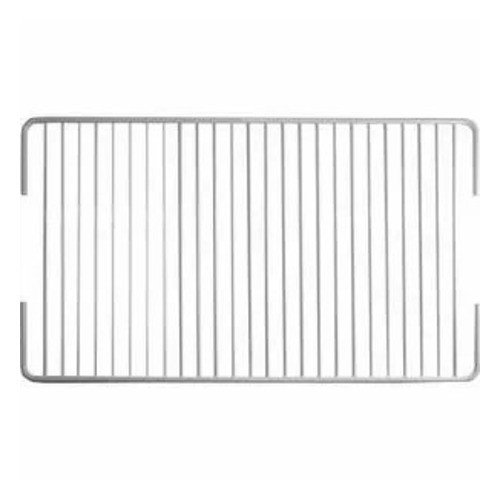

Shelves	Wire shelf kit 38503240177, rail kit 20073372111	Both from Dometic’s DM2852 list.

Your model and serial number are on the label inside the fresh food compartment. Check the part number printed on your old part before ordering.

Helpful for the DM2852

Cooling unit failed? You don’t have to replace the fridge. The Nordic 5582-806A is $1,087.80 and is listed for the RM2852, the same fridge. If you’d rather start fresh, the Dometic DM2872 ($1,749.90) replaces the DM2852 in the same 59-15/16" opening, or go 12V with the Norcold N10DC, which uses nearly the same opening. Send us your model and we’ll confirm the fit.
