Norcold N8DC | N8DCSS
Norcold N8DC and N8DCSS Refrigerator Parts for Sale!
This model is currently in production and fits in the same cut out hole as most 8 cubic ft RV refrigerators. The N8DC and N8DCSS models run off of a low draw DC compressor! Now, with less moving parts, you can focus on the important things during your travels.
Norcold N8DC Interactive Parts Diagram
Built from Norcold parts list 640138 (8/20/2025). The OEM sheet also covers the N10DC; this page is organized around N8DC, N8DCSS, N8DCBSS and N8DCBK applications.

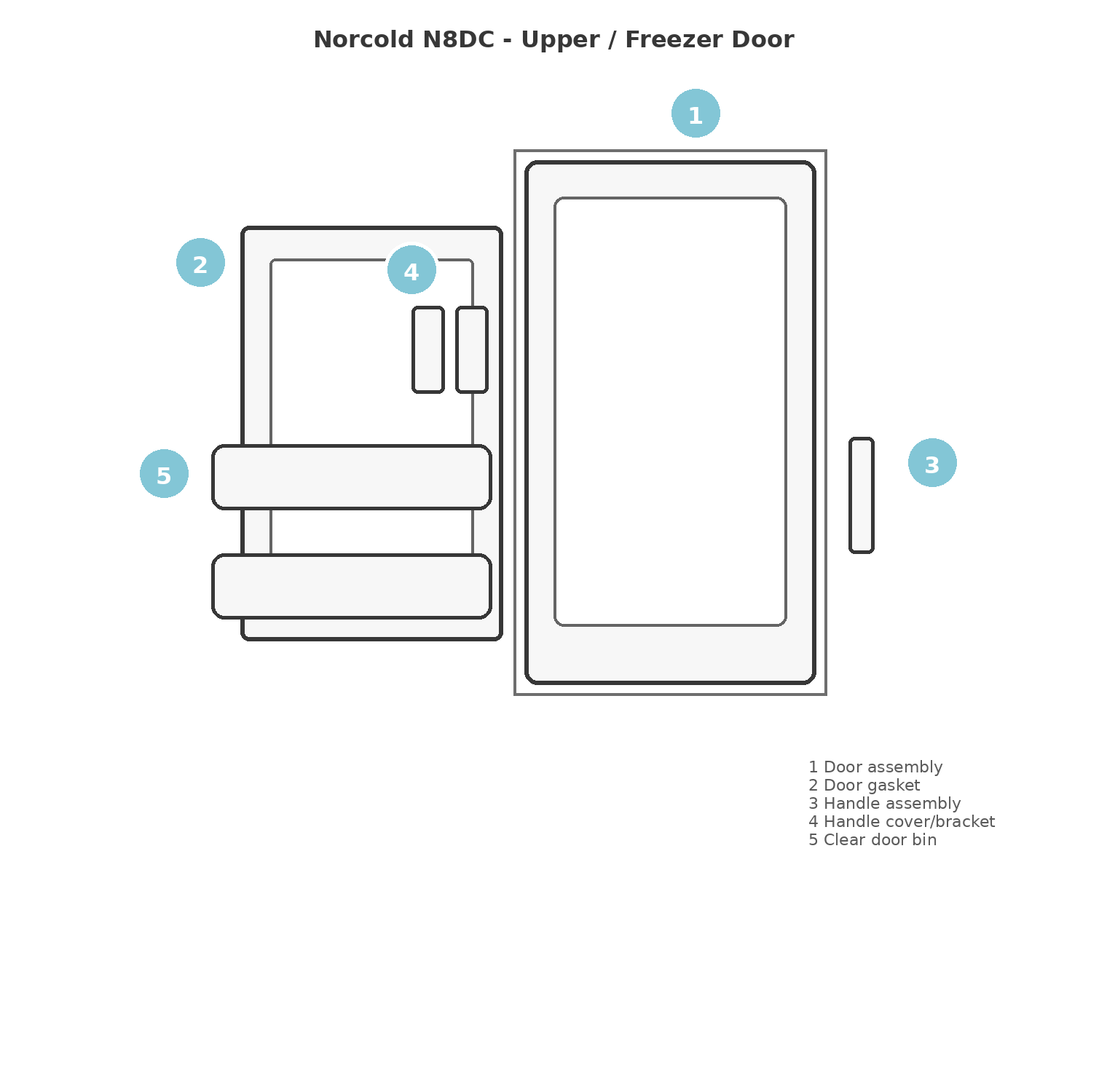

| # | Part # | N8DC Description | Link |
|---|---|---|---|
| 1 | 640153 | Freezer door assembly with gasket, stainless steel - N8DCSS | View Part |
| 1 | 640197 | Freezer door assembly with gasket, black stainless steel - N8DCBSS | No direct page mapped yet |
| 1 | 641016 | Freezer door assembly with gasket, black - N8DCBK | No direct page mapped yet |
| 2 | 640152 | Freezer door gasket | No direct page mapped yet |
| 3 | 641545 | Handle assembly - replaces 640156 & 640160 | View Part |
| 4 | 641546 | Handle cover and bracket - replaces 640154 & 640159 | No direct page mapped yet |
| 5 | 640155 | Clear door bin | View Part |

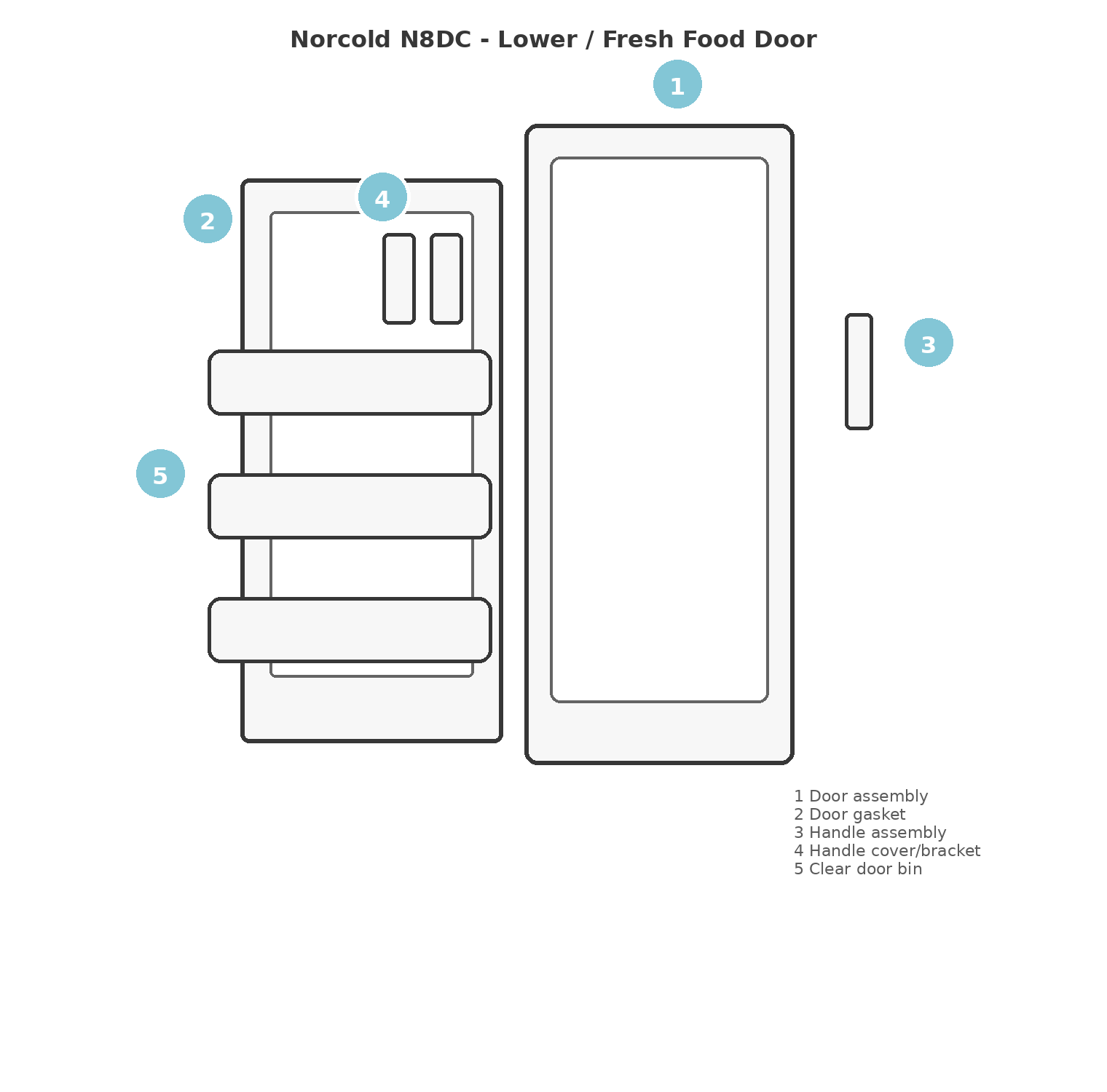

| # | Part # | N8DC Description | Link |
|---|---|---|---|
| 1 | 640467 | Lower door assembly with gasket, stainless steel - N8DCSS | View Part |
| 1 | 640198 | Lower door assembly with gasket, black stainless steel - N8DCBSS | No direct page mapped yet |
| 1 | 641017 | Lower door assembly with gasket, black - N8DCBK | No direct page mapped yet |
| 2 | 640466 | Lower door gasket for applicable N8DC variants | No direct page mapped yet |
| 3 | 641545 | Handle assembly - replaces 640156 & 640160 | View Part |
| 4 | 641546 | Handle cover and bracket - replaces 640154 & 640159 | No direct page mapped yet |
| 5 | 640155 | Clear door bin | View Part |
| NS | 640161 | Door bin retainer | No direct page mapped yet |

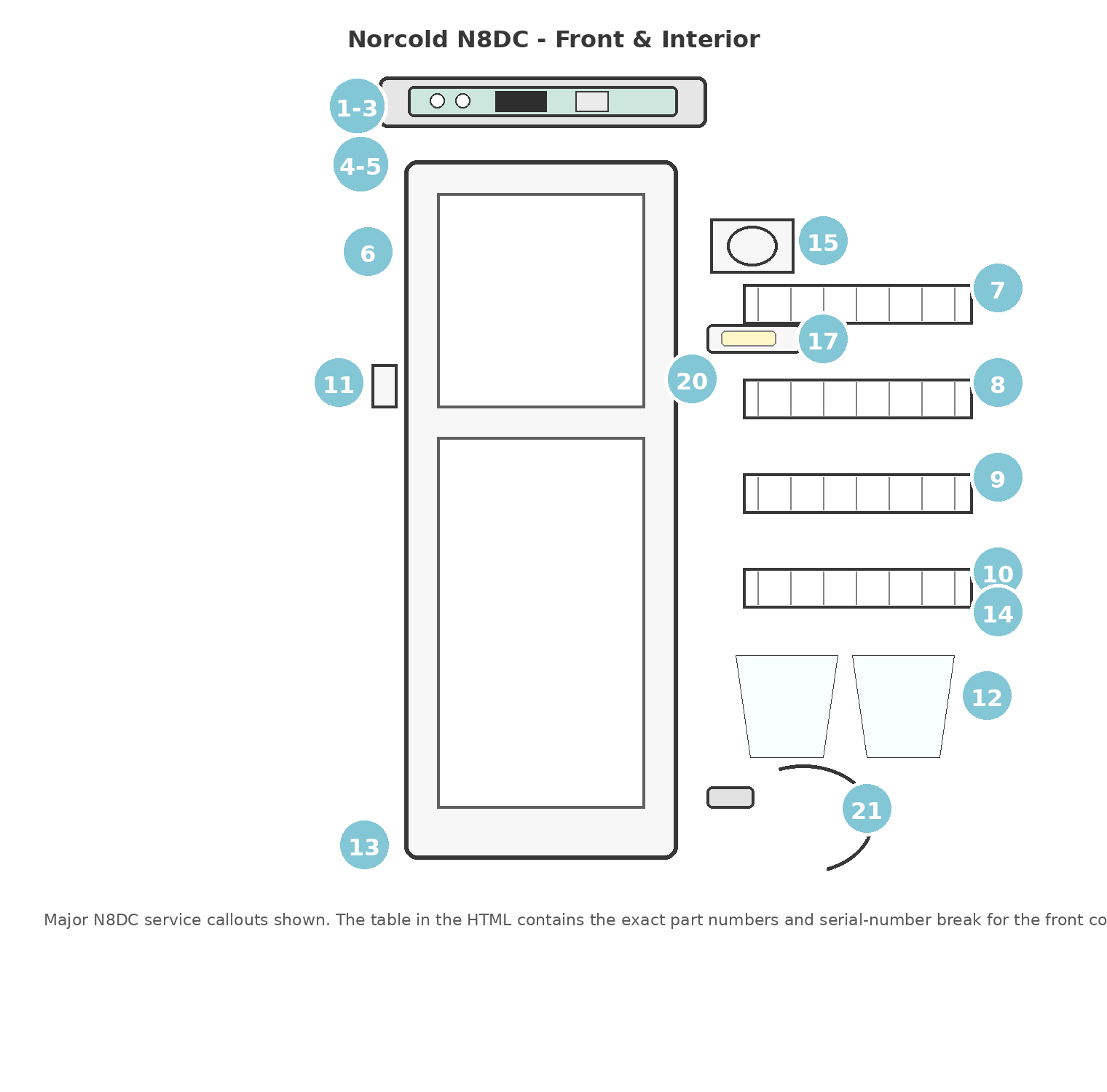

| # | Part # | N8DC Description | Link |
|---|---|---|---|
| 1-3 | 640338 | Control panel assembly - serial SE79WDW00189 and below; discontinued on RVFridgeGuys | View Part |
| 1-3 | 641592 | Control panel assembly - serial SE79WDW00190 and above | View Part |
| 7 | 640469 | Freezer wire shelf - N8DC variants | View Part |
| 8 | 640474 | Rear slide-out wire shelf - N8DC variants | View Part |
| 9 | 640475 | Front slide-out wire shelf - N8DC variants | RVFridgeGuys lists this part; direct URL not hard-coded until verified |
| 10 | 640471 | Wire shelf - N8DC variants | View Part |
| 11 | 640151 | Door latch | No direct page mapped yet |
| 12 | 640176 | Crisper bin | View Part |
| 17 | 640099 | LED light | No direct page mapped yet |
| 20 | 640150 | Door switch | No direct page mapped yet |
| 21 | 640149 | Thermistor and cover | View Part |
| 22 | 641026 | Mounting screws and caps - use 4 sets on N8 models | No direct page mapped yet |

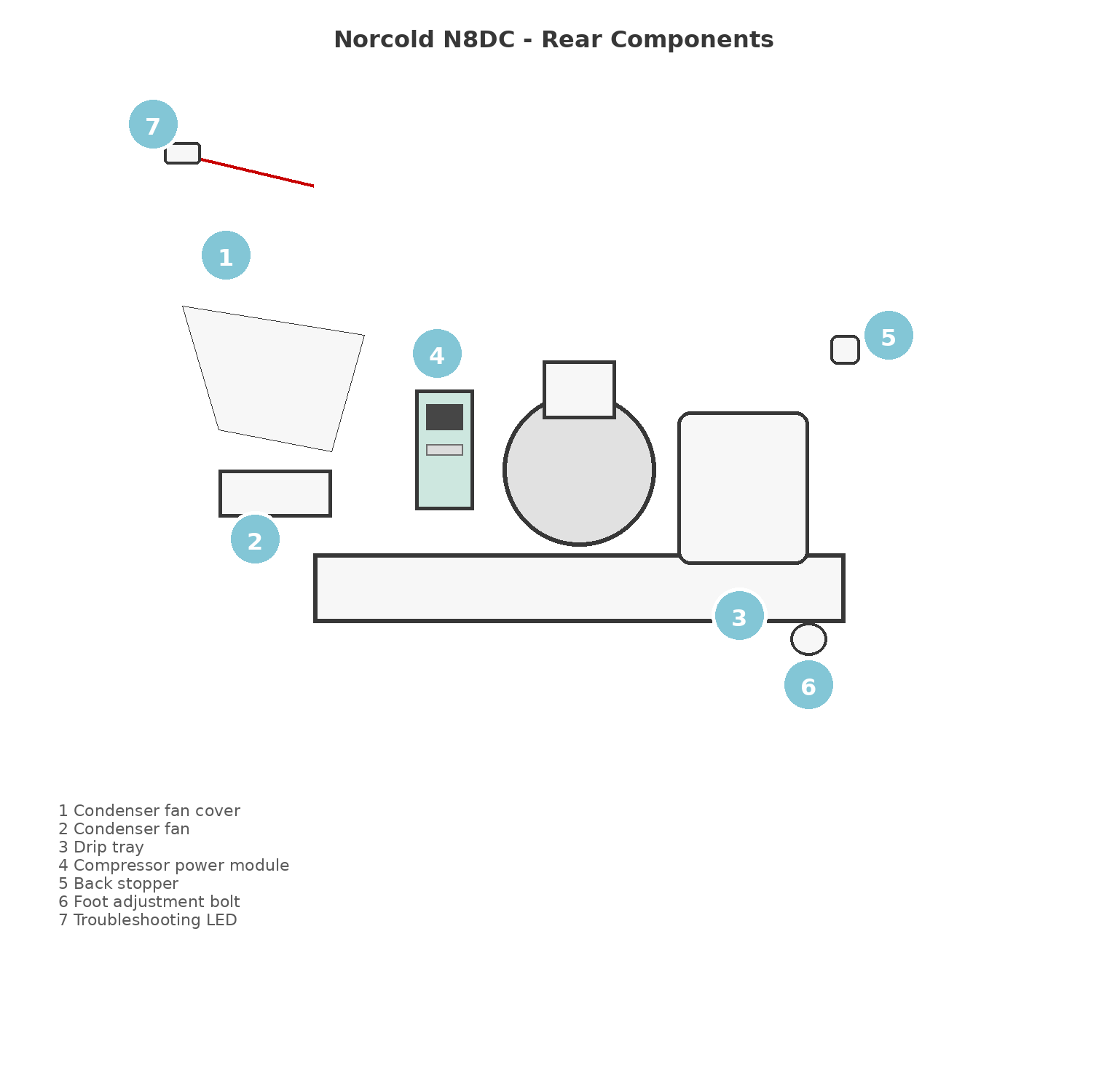

| # | Part # | N8DC Description | Link |
|---|---|---|---|
| 1-2 | 641595 | Condenser fan and cover assembly | No direct page mapped yet |
| 1 | 640105 | Condenser fan cover - limited availability | No direct page mapped yet |
| 2 | 640103 | Condenser fan | View Part |
| 3 | 640141 | Drip tray - limited availability | No direct page mapped yet |
| 4 | 640178 | Compressor power module | View Part |
| 5 | 640146 | Back stopper - limited availability | No direct page mapped yet |
| 6 | 640140 | Foot adjustment bolt - OEM sheet marks not available | No direct page mapped yet |
| 7 | 641315 | DC troubleshooting LED for compressor power module - troubleshooting use only | No direct page mapped yet |
| NS | 640145 | DC power cord - limited availability | No direct page mapped yet |
