Norcold Polar N8, N8X, and NA8 Parts for Sale!

Below are all of the parts we stock for the Norcold Polar N8 and NA8 models. This refrigerator is still in production as are all of the part for it. This refrigerator is brand new in the Norcold line of refrigerators!



Norcold N7 & N8 Polar Interactive Parts Diagram

Click the blue number on a diagram to go directly to the matching RVFridgeGuys part page where available.

Upper / Freezer Door

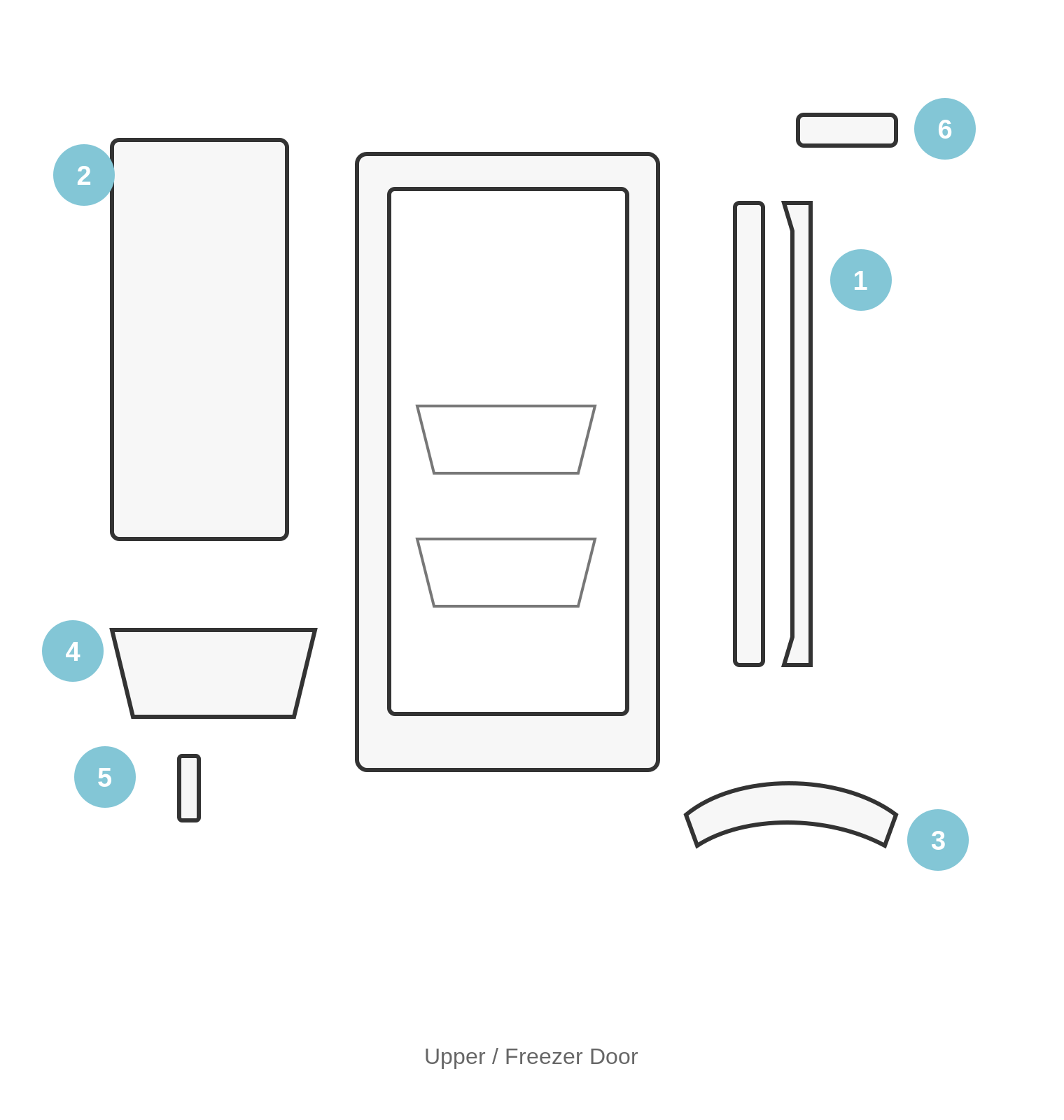

Norcold N7 N8 upper freezer door parts diagram 2 3 4 5
# Part # Description Link
1 638536 Freezer decorative door panel retainer No mapped page yet

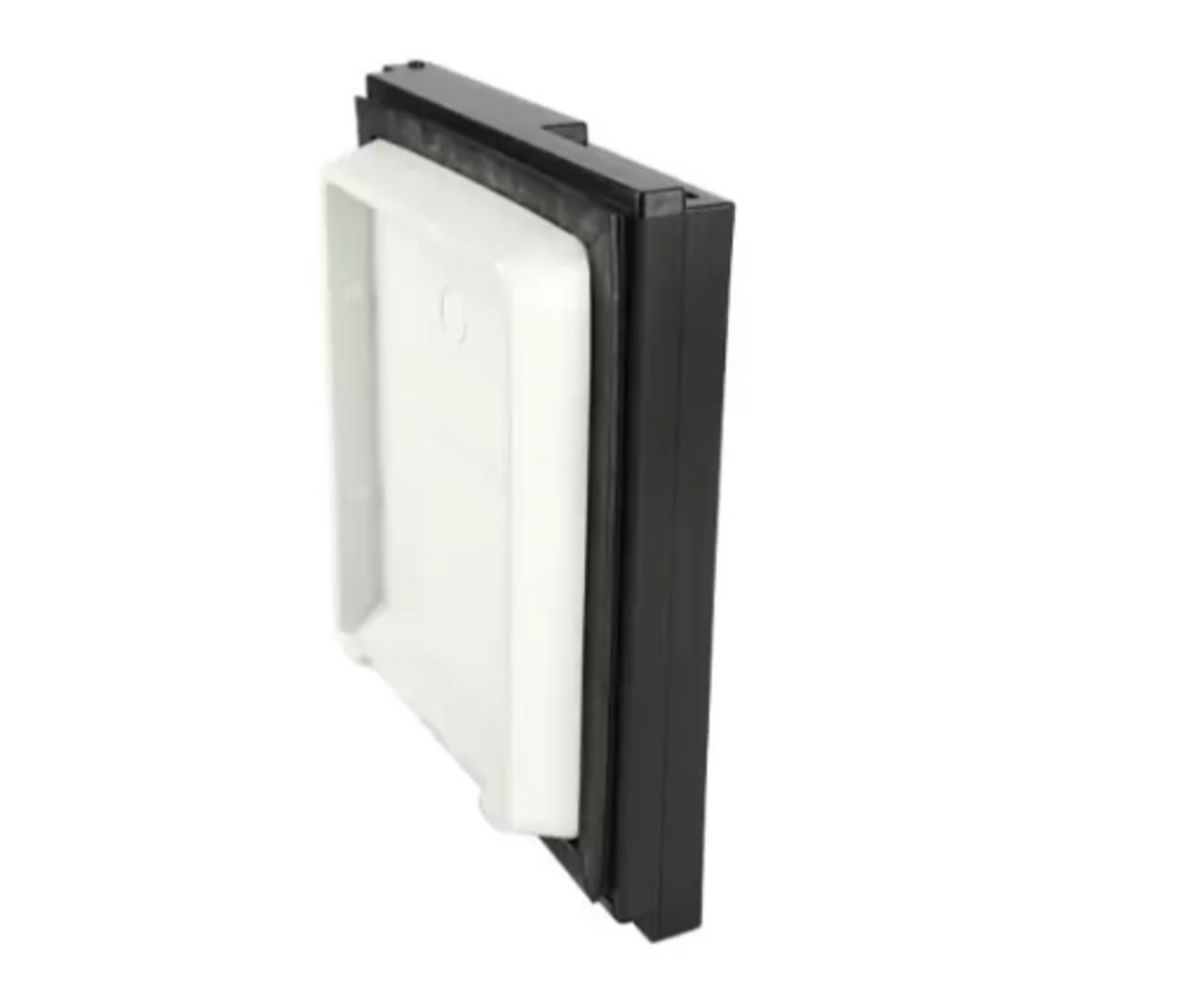

2 638530 Freezer / upper door assembly View Part
3 639506 / 639507 Door handle assemblies 639506

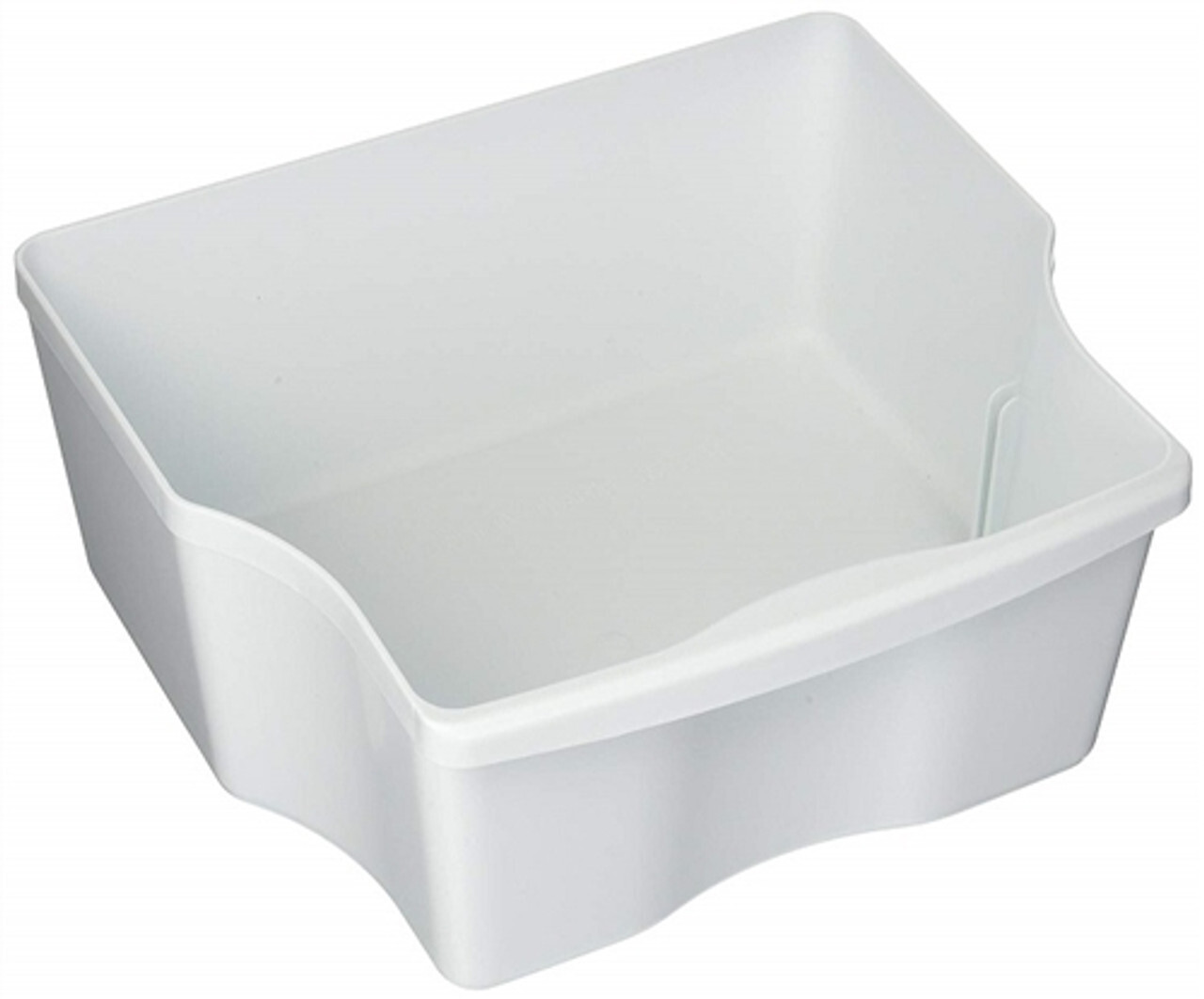

4 624863 / 624864 Door bin 624863624864
5 619008 Door bin divider View Part

Lower / Fresh Food Door

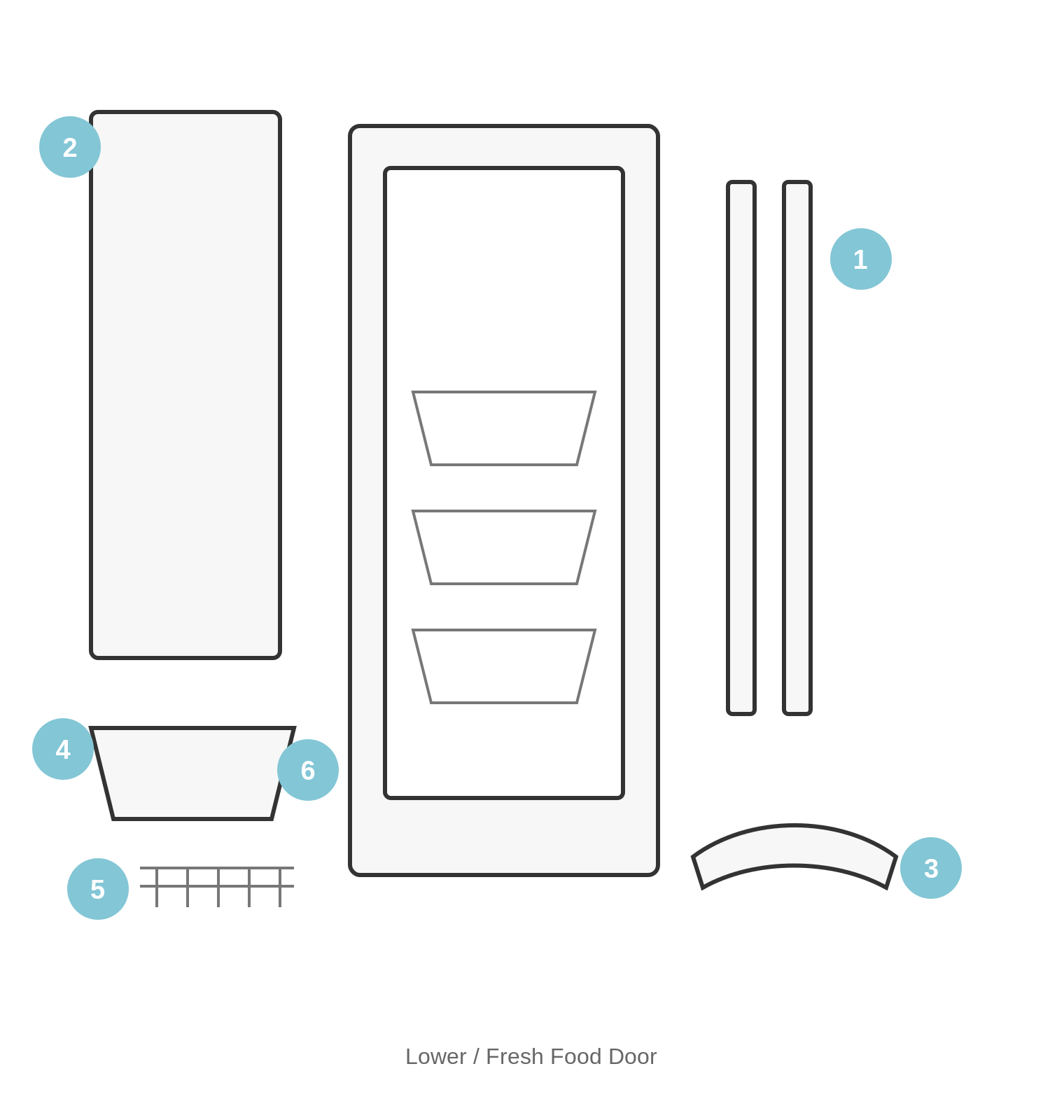

Norcold N7 N8 lower fresh food door parts diagram 2 3 4 5 6
# Part # Description Link
2 638532 N7 / NA7 lower door View 638532
2 638534 N8 / NA8 / N10 / NA10 lower door View 638534
3 639506 / 639507 Door handle assemblies 639506
4 624863 / 624864 Lower door bins 624863624864
5 624866 Door bin wire View Part
6 619008 Door bin divider View Part

Front & Interior

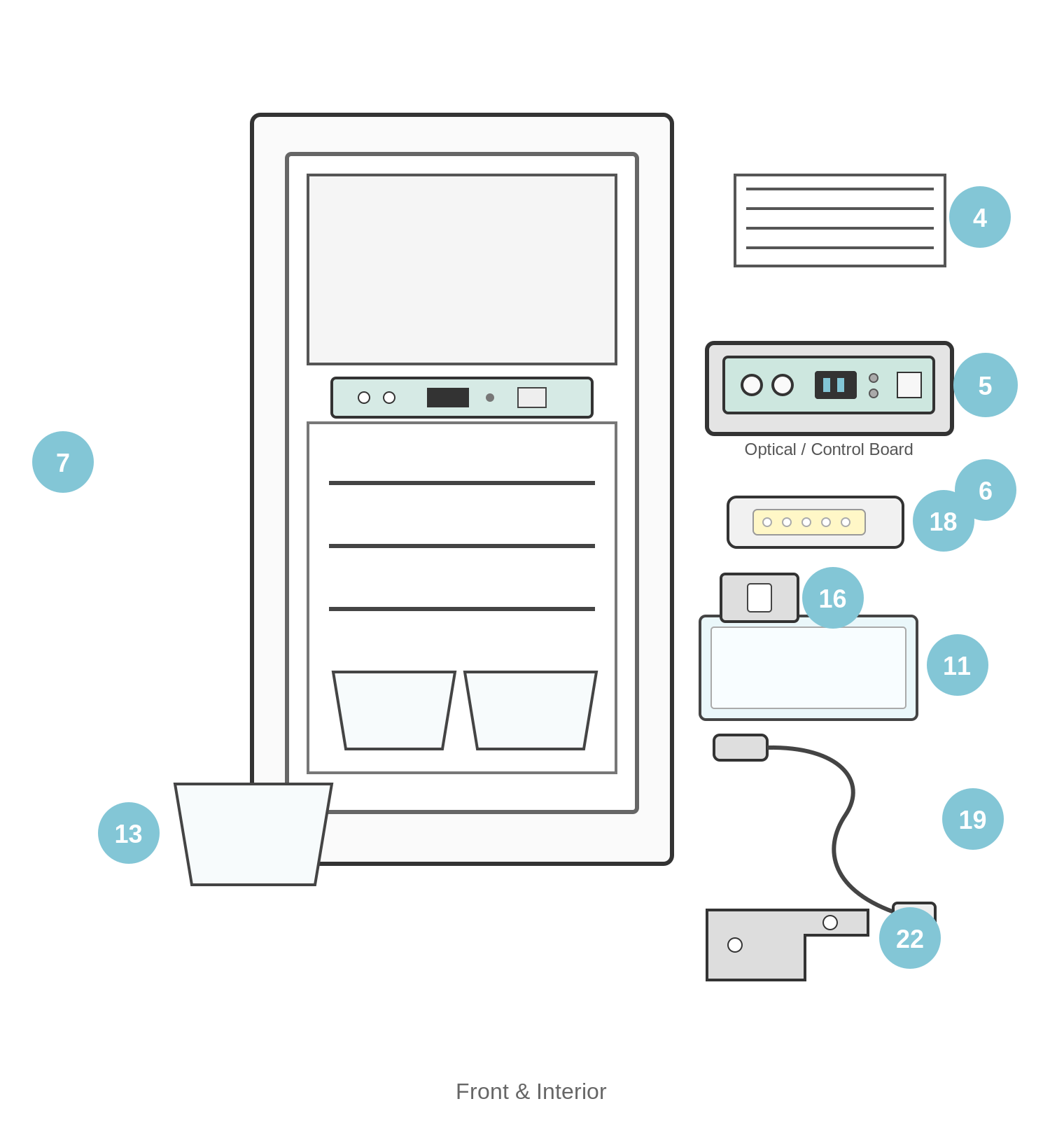

Norcold N7 N8 front interior parts diagram 5 11 13 16 18 19 22
# Part # Description Link

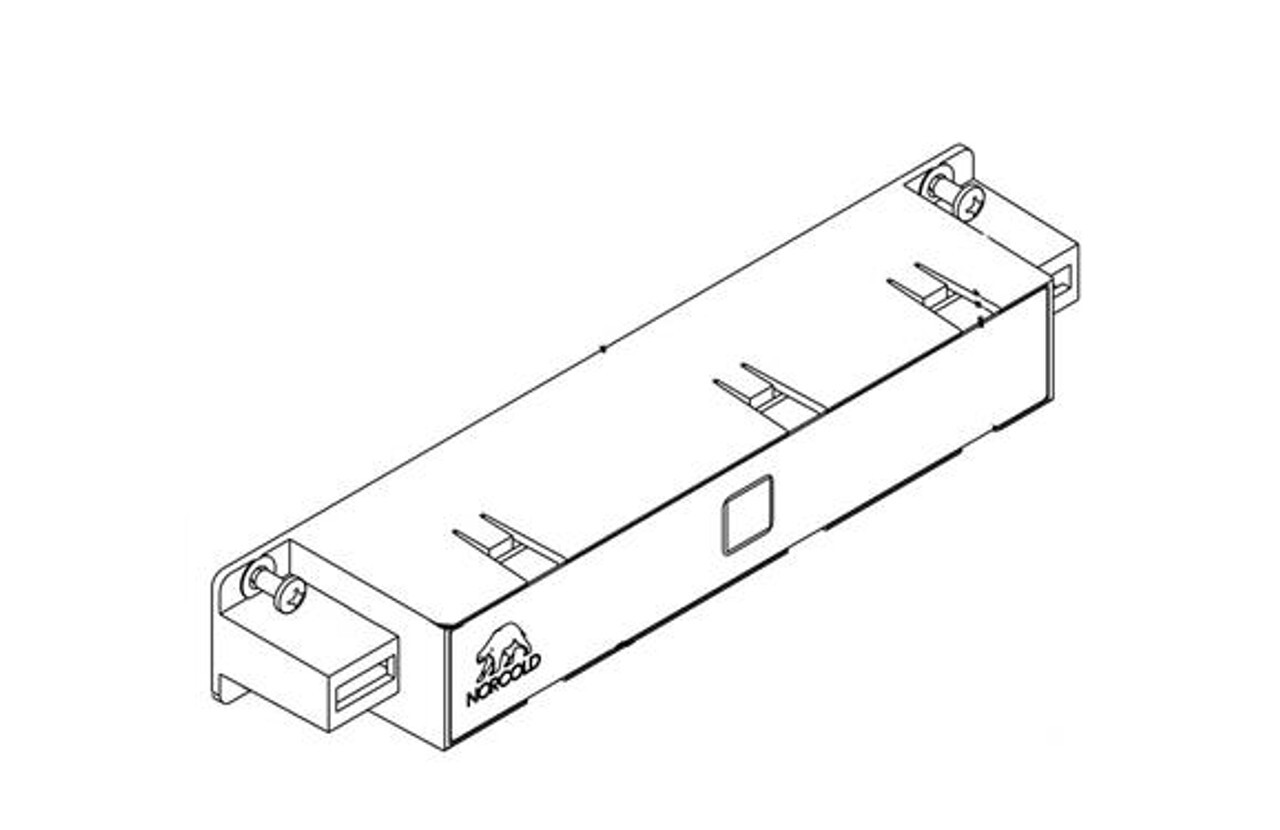

5 639509 Optical board — V models View 639509
5 639550 Optical board — select N7X / N8X View 639550
5 639551 Optical board — LX models View 639551
11 618158 Crisper glass cover View Part
13 619007 Small clear crisper / ice bin View Part
16 638545 Strike plate View Part
18 640615 Interior LED light View Part
19 638391 Thermistor View Part
22 640435 Bottom hinge support View Part

Rear / Cooling Unit

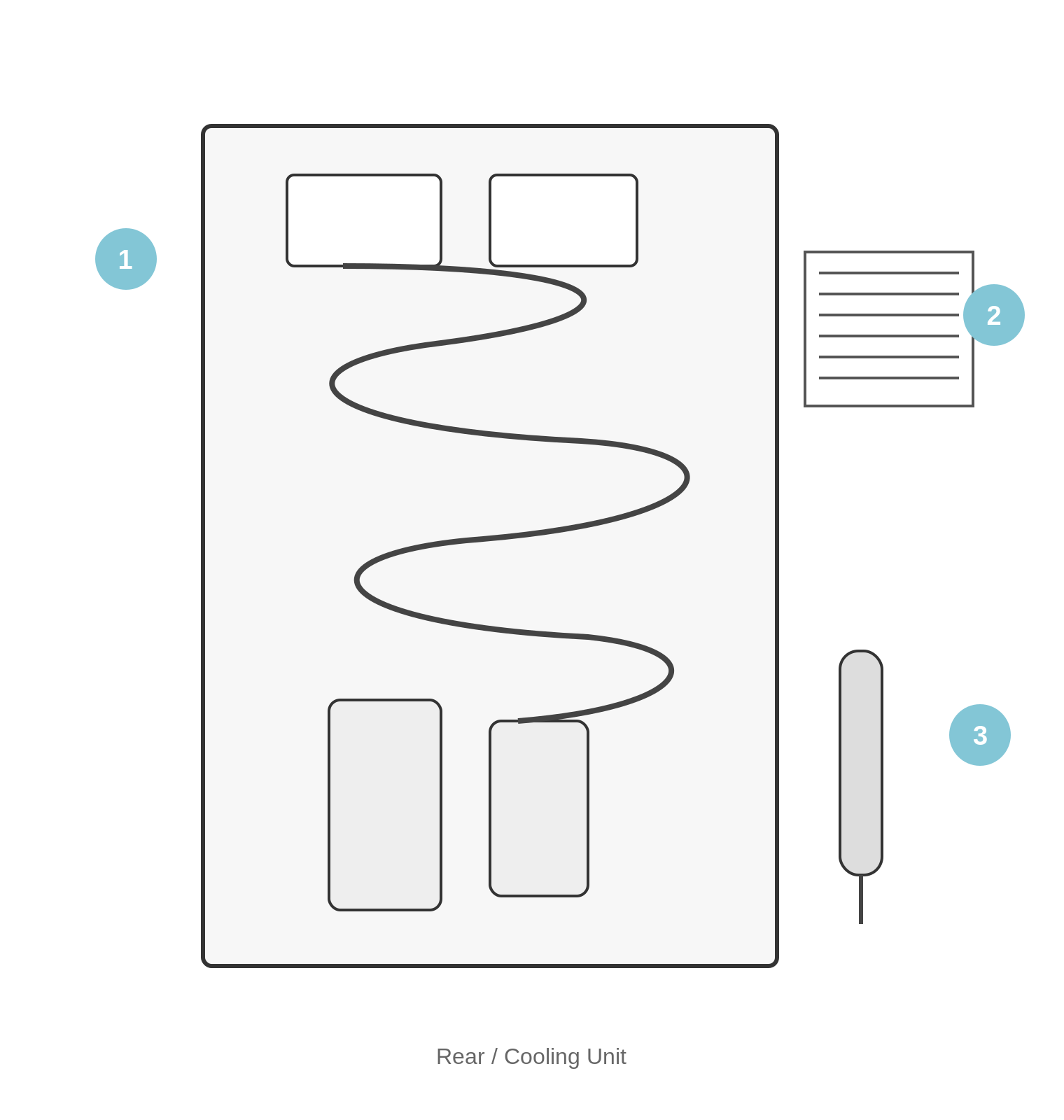

Norcold N7 N8 cooling unit diagram 1 3
# Part # Description Link

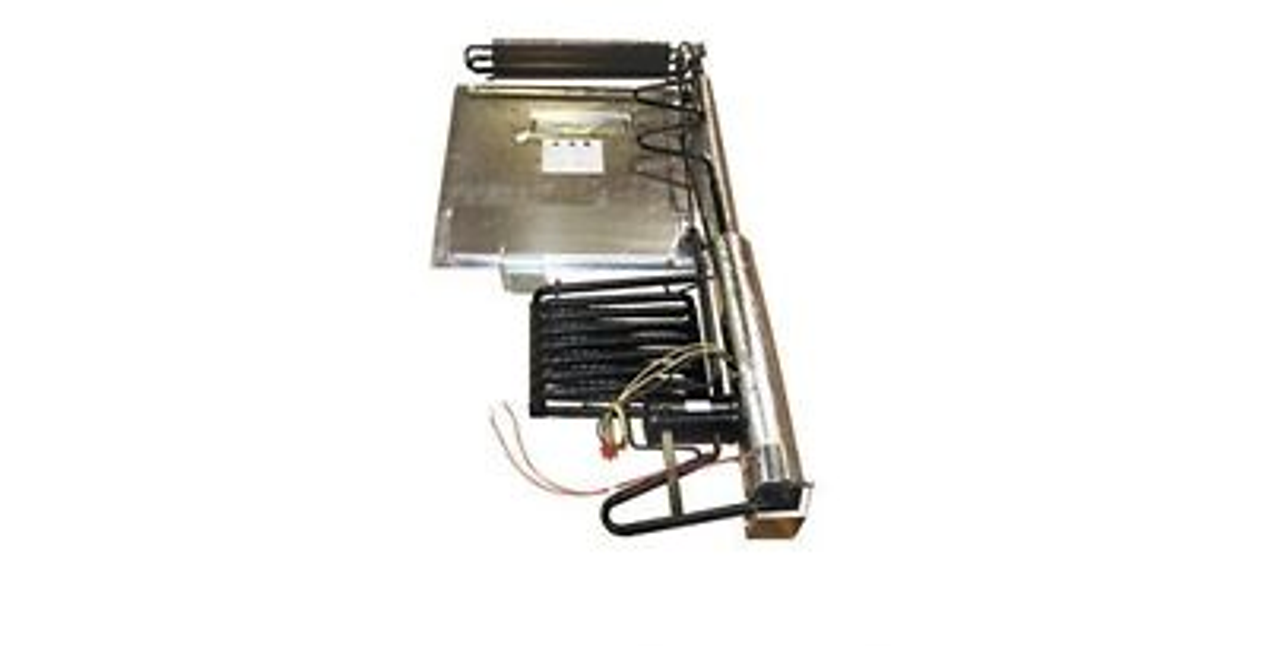

1 693298 N7 / NA7 cooling unit View 693298
1 693299 N8 / NA8 / N10 / NA10 cooling unit View 693299
3 638374 AC heater View Part

Rear Controls

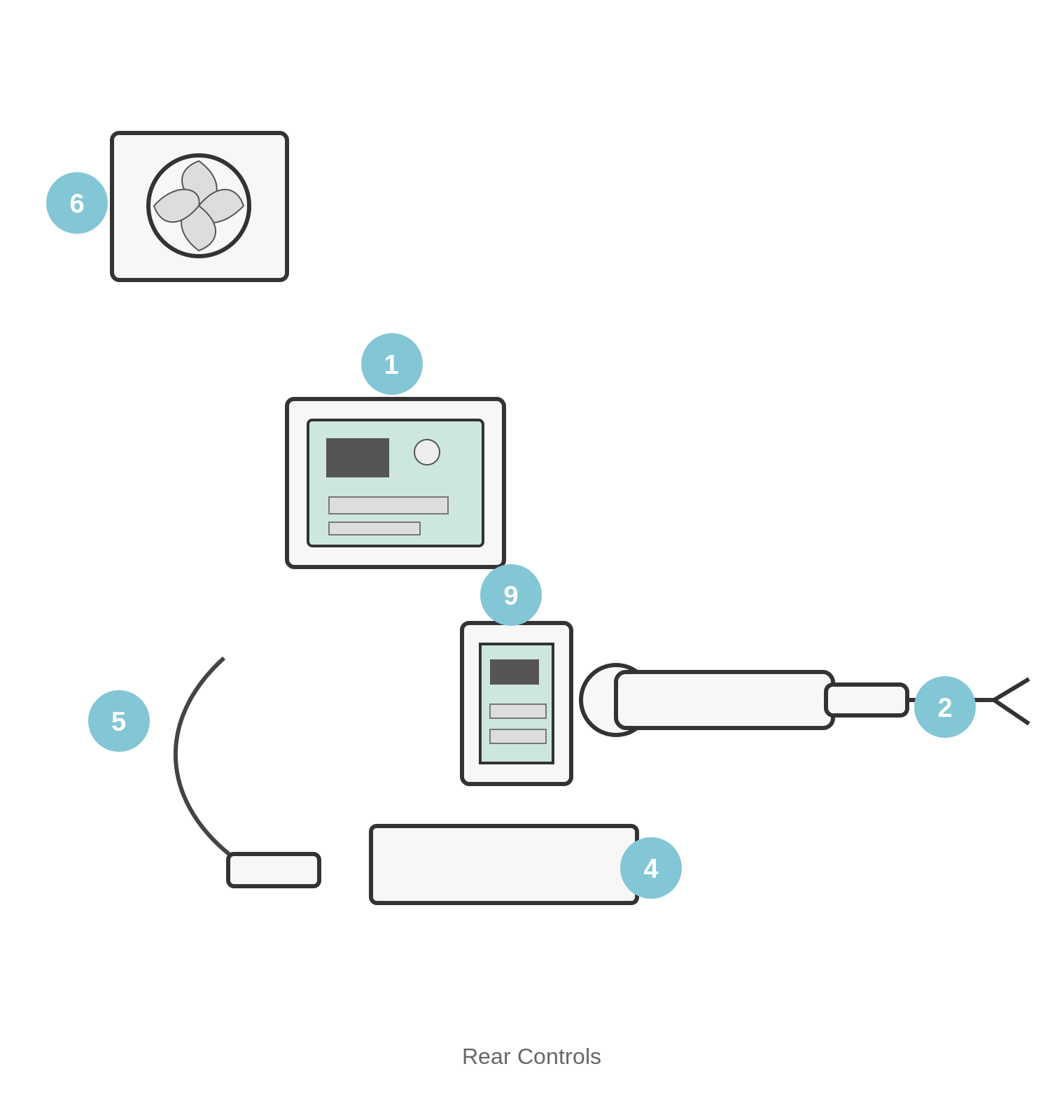

Norcold N7 N8 rear controls diagram 1 2 5 6 9
# Part # Description Link

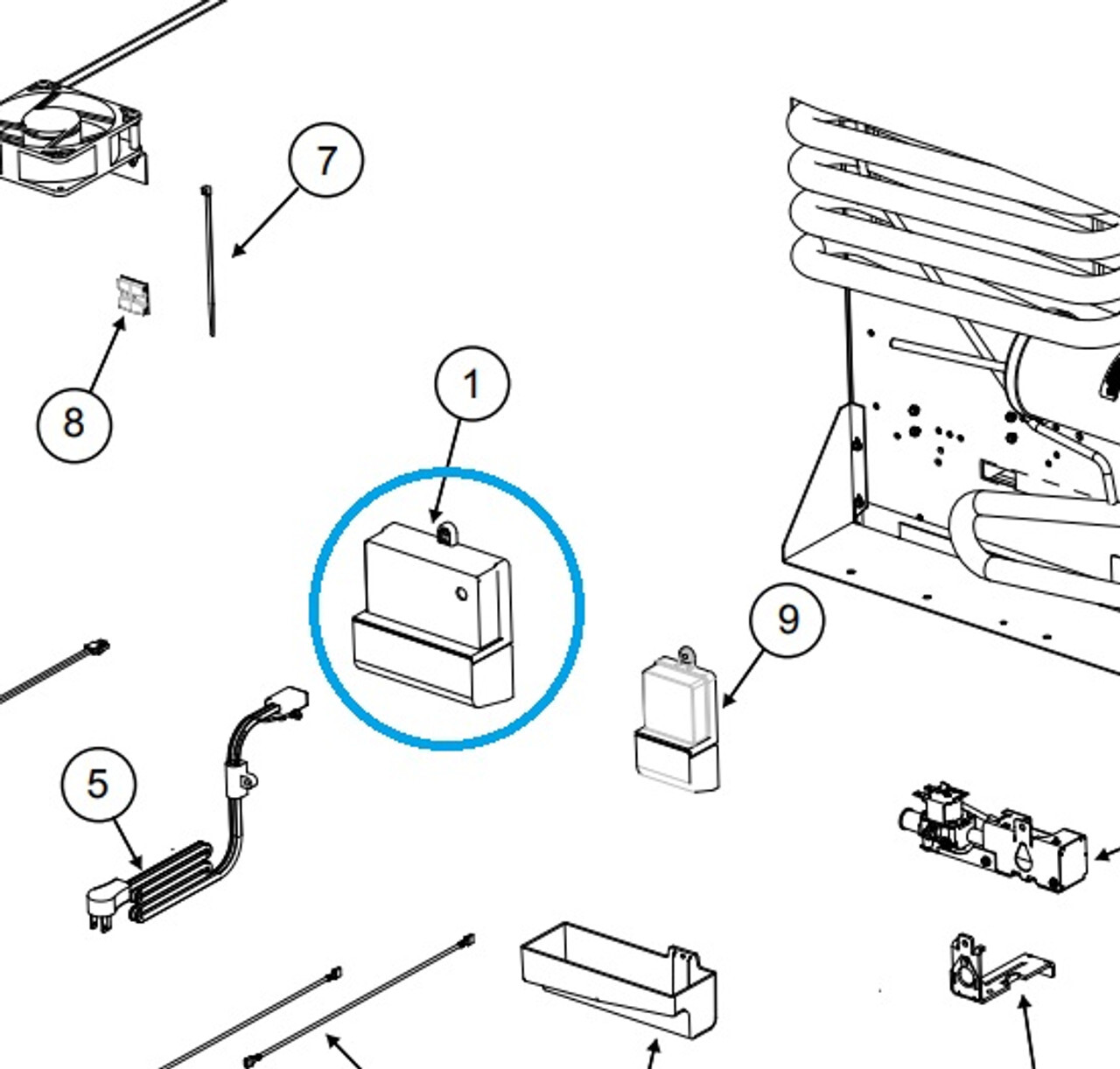

1 639593 Main rear power board View Part
2 639572 Gas train assembly View Part
5 639683 AC power cord View Part
6 639702 Condenser fan View Part
9 639577 3-way DC power module View Part

Ice Maker

Norcold N7 N8 ice maker diagram 9 15
# Part # Description Link
9 640908 Ice maker water valve View Part
15 619007 Small clear ice / crisper bin View Part
