YOUR FRIDGE: NORCOLD NX611 / NX641 / NXA641

Everything for the Norcold NX611, NX641 & NXA641

Fits every Norcold NX641 and NXA641 model: NX641, NX641IM, NX641.3, NXA641, NXA641L, NXA641R, NXA641IM, NXA641IMR, NXA641.3, NXA641.3R. NX611 owners: Norcold's NX parts list doesn't cover the NX611, so check the model list on each part. (L / R = left or right door hinge, IM = ice maker, .3 = 3-way.) Norcold uses other suffixes too (C = cold weather, SS / BK / WH = wrapped doors, F / V = fan), so if yours has extra letters, it is still in this family. 6 cu. ft. two-door absorption fridges with front-panel button controls. Cooling, propane and power board parts are shared. The front display board is not.

✓ GUARANTEED FIT

Give us your model and serial number. If we say it fits and it doesn’t, we cover return shipping.

What’s wrong with your NX611, NX641 or NXA641?

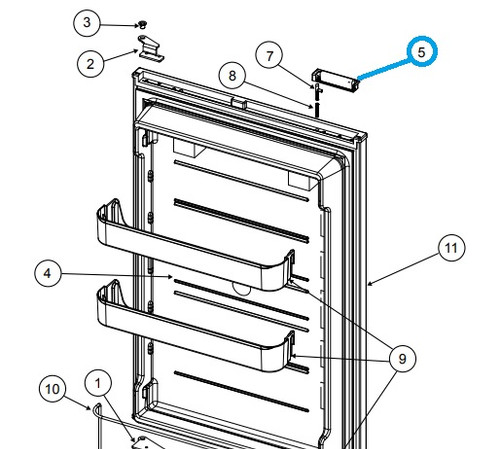

Norcold 621742 Thermistor Not cooling / lockoutThermistor 621742 →Cheapest part to rule out first. Fits all NX and NXA models. Norcold 3361A Nordic Cooling Unit Cooling unit failedNordic Cooling Unit 3361A →Fits the NX611, NX641 and NXA641. 45° heater well. If yours is 90°, add a new AC heater. Norcold 621957 Burner / Orifice Won’t light on propaneBurner / Orifice 621957 →Weak or yellow flame? Clean first, then replace. Norcold 61692222 Spark / Sense Electrode Clicks but no flameSpark / Sense Electrode 61692222 →Lights the burner and senses the flame. Norcold 638374 AC Heater Kit Works on propane, not electricAC Heater Kit 638374 →Service kit that replaces the original 630811 backer heater. Norcold 628661 Power Board Dead board / no powerPower Board 628661 →One board for every NX and NXA model. No serial split. Norcold 638996 Front Optical Board Dead display (NX611 only)Front Optical Board 638996 →Still available for the NX611, regardless of serial. Norcold 635636 Door Handle (LH) Broken door handleDoor Handle (LH) 635636 →Lower handle on left-hinged doors, upper on right-hinged.

NX611 vs. NX641 / NXA641: which part fits

Part NX611 NX641 / NXA641
Front optical (display) board 638996 (available) 638997 (discontinued)
Button retainer 635624 635624
Power board 628661 628661
DC board (3-way versions) Send us your model 637764
Door handle Send us your model 635636 LH / 635637 RH
Upper door retainer Send us your model 635678
Drip tray drain hose Send us your model 622390
Thermistor, AC heater, burner, cooling unit Same Same

The model and serial number are on the label inside the fresh food compartment. Norcold’s NX641 / NXA641 parts list (PDF).

Display dark or buttons not working? On the NX611, the 638996 front board is still available. On the NX641 and NXA641, Norcold has discontinued the front board (638997). Before you decide anything, run the checks in our optical board guide. A dark display is often a power or fuse problem, and sticky buttons can be just the 635624 button retainer. If the board has truly failed, the Norcold N7XF keeps propane and electric, or go 12V compressor with the Norcold N8DC. Send us your model and we’ll confirm the fit for your opening.
