YOUR FRIDGE: NORCOLD 900 / 9000 SERIES

Everything for the Norcold 900 & 9000 Series

Fits the 962, 963, 982, 983, 9162, 9163, 9182 and 9183, including IM (ice maker) and F (fan) versions. Two-door absorption fridges: 96x and 916x are the 6 cu. ft. models, 98x and 918x the 8 cu. ft. Most parts are shared; the cooling unit and drain hose depend on size.

✓ GUARANTEED FIT

Give us your model and serial number. If we say it fits and it doesn’t, we cover return shipping.

What’s wrong with your 900 or 9000 series?

Norcold 621742 Thermistor Not cooling / lockoutThermistor 621742 →Replaces the original 618548. Cheapest part to rule out first. Norcold N991 Dinosaur Power Board Dead board or no powerDinosaur Power Board N991 →Built for the 900/9000 series. Works on 2-way and 3-way models. Norcold 3361A Nordic Cooling Unit Cooling unit failed (96x / 916x)Nordic Cooling Unit 3361A →Fits the 962 and 9162 (we’ll confirm the 963/9163). 45° heater well. If yours is 90°, add a new AC heater. Norcold 3381A Nordic Cooling Unit Cooling unit failed (98x / 918x)Nordic Cooling Unit 3381A →Replaces Norcold 632314. Fits the 982 and 9182. Norcold 621957 Burner / Orifice Won’t light on propaneBurner / Orifice 621957 →Replaces the original 5-slot burner and jeweled orifice. Norcold 61692222 Spark / Sense Electrode Clicks but no flameSpark / Sense Electrode 61692222 →Lights the burner and senses the flame. Norcold 621702 AC Heater Works on propane, not electricAC Heater 621702 →For older cooling units. Check the serial in the table below. Norcold 622391 Drip Tray Drain Hose Water under the fridgeDrip Tray Drain Hose 622391 →32" hose for the 98x / 918x. The 96x / 916x uses 622390.

6 cu. ft. vs. 8 cu. ft.: which part fits

Part 962 / 963 / 9162 / 9163 982 / 983 / 9182 / 9183
Cooling unit Nordic 3361A Nordic 3381A
Drain hose 622390 (26") 622391 (32")
AC heater, older cooling unit 621702 (CU SN 11231023 and below) 621702 (CU SN 11232007 and below)
AC heater, newer cooling unit 630811 backer heater: send us your serial 630811 backer heater: send us your serial
Power board Dinosaur N991 Dinosaur N991
Thermistor, burner, electrode, hinges Same Same

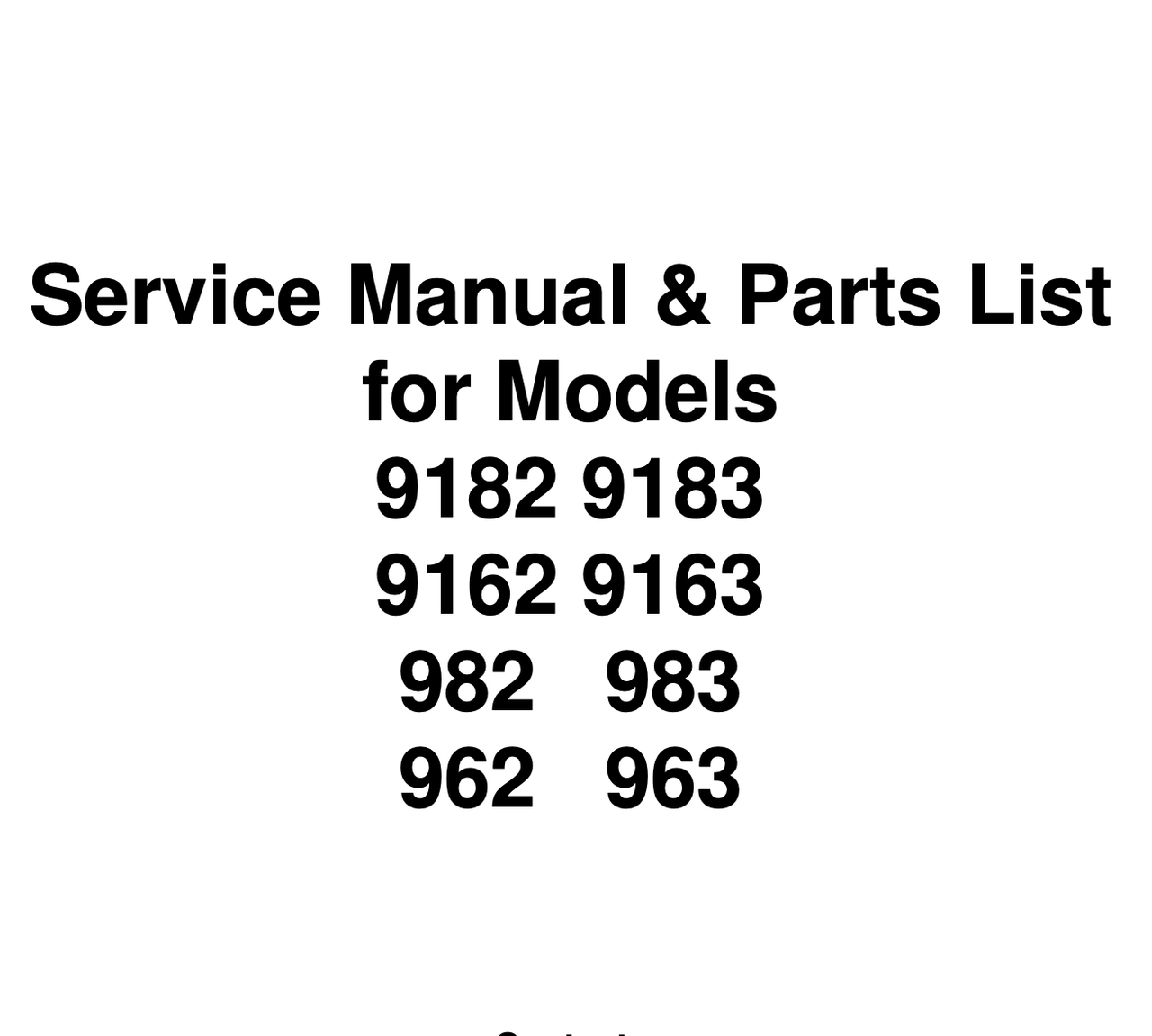

The model and serial number are on the label inside the fresh food compartment. The cooling unit serial is on the unit itself, behind the rear side panel. Norcold parts lists: 900 series (PDF) · 9100 series (PDF)

Board dead? You don’t need a new fridge. Norcold’s original boards for the 900/9000 series are hard to find, but the Dinosaur N991 is built for these models and comes with a 3-year warranty. Cooling units are still made too: the 3361A and 3381A. If it’s time to replace the fridge anyway, see our Norcold replacement guide and send us your model and cutout size so we can confirm the fit.
