Norcold N4150
NORCOLD N4150 REFRIGERATOR PARTS (5.3 CUBIC FT REFRIGERATOR)
This Norcold N4150 refrigerator is a 3-way unit, able to operate on DC, AC, and propane.
Type: Dual Compartment 2 Door Refrigerator With Freezer
Capacity: 5.3 Cubic Feet
Power Source: 3-Way Alternating Current/ LP Gas
Temperature Control: Auto LCD Control
Norcold N4150 Interactive Parts Diagram
Built from Norcold / Thetford parts list 640323 dated 08/20/2025. This version covers the N4150 exploded views for the control panel, front/interior, and rear sections. Click a blue number to go to a matching RVFridgeGuys part page when available, or to the N4150 parts category page when a direct product page has not been hard-mapped yet.

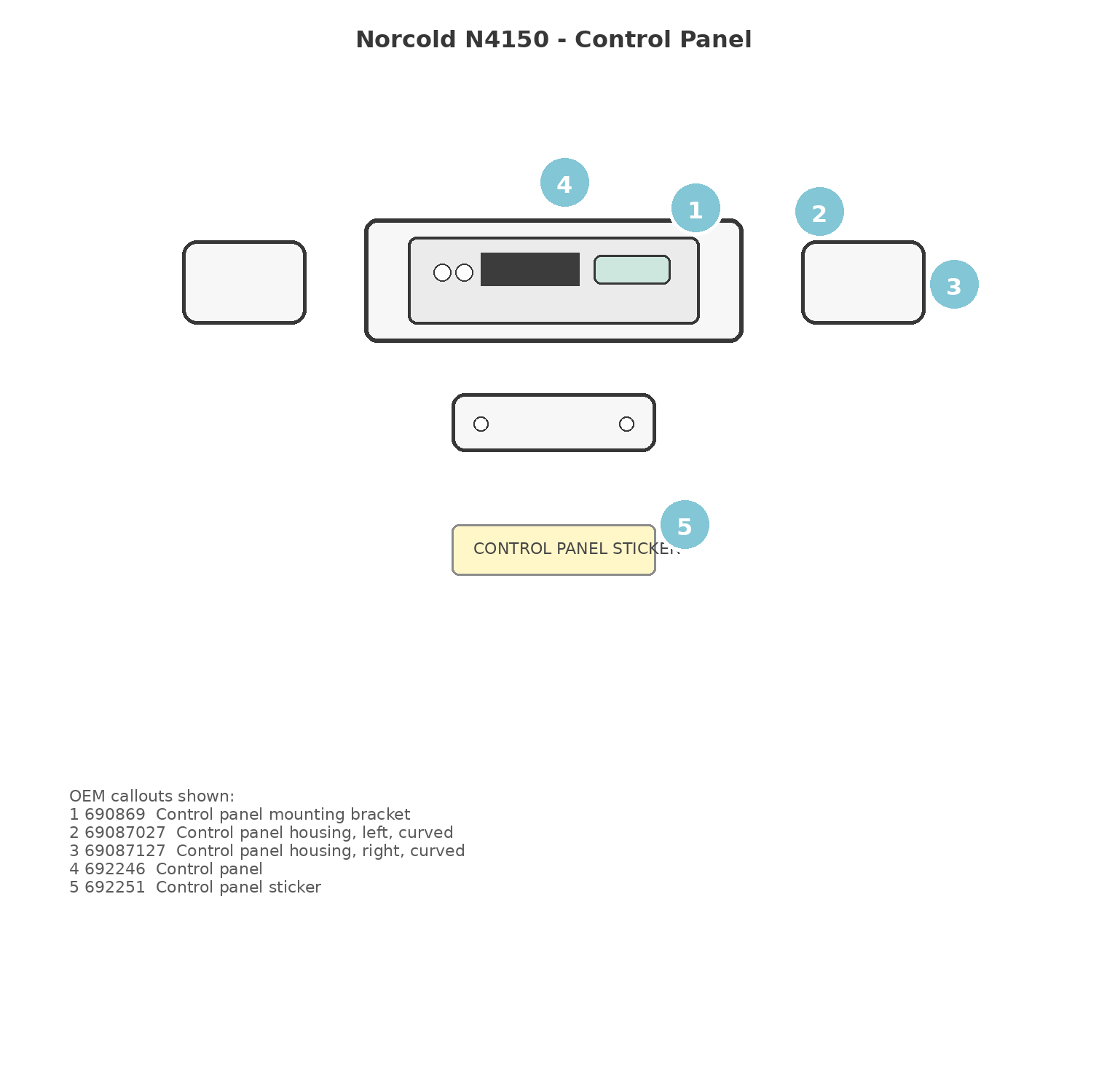

| # | Part # | Description | Link |
|---|---|---|---|
| 1 | 690869 | Control panel mounting bracket | Browse N4150 Parts |
| 2 | 69087027 | Control panel housing, left, curved | Browse N4150 Parts |
| 3 | 69087127 | Control panel housing, right, curved | Browse N4150 Parts |
| 4 | 692246 | Optical control board / control panel | View Part |
| 5 | 692251 | Control panel sticker | Browse N4150 Parts |

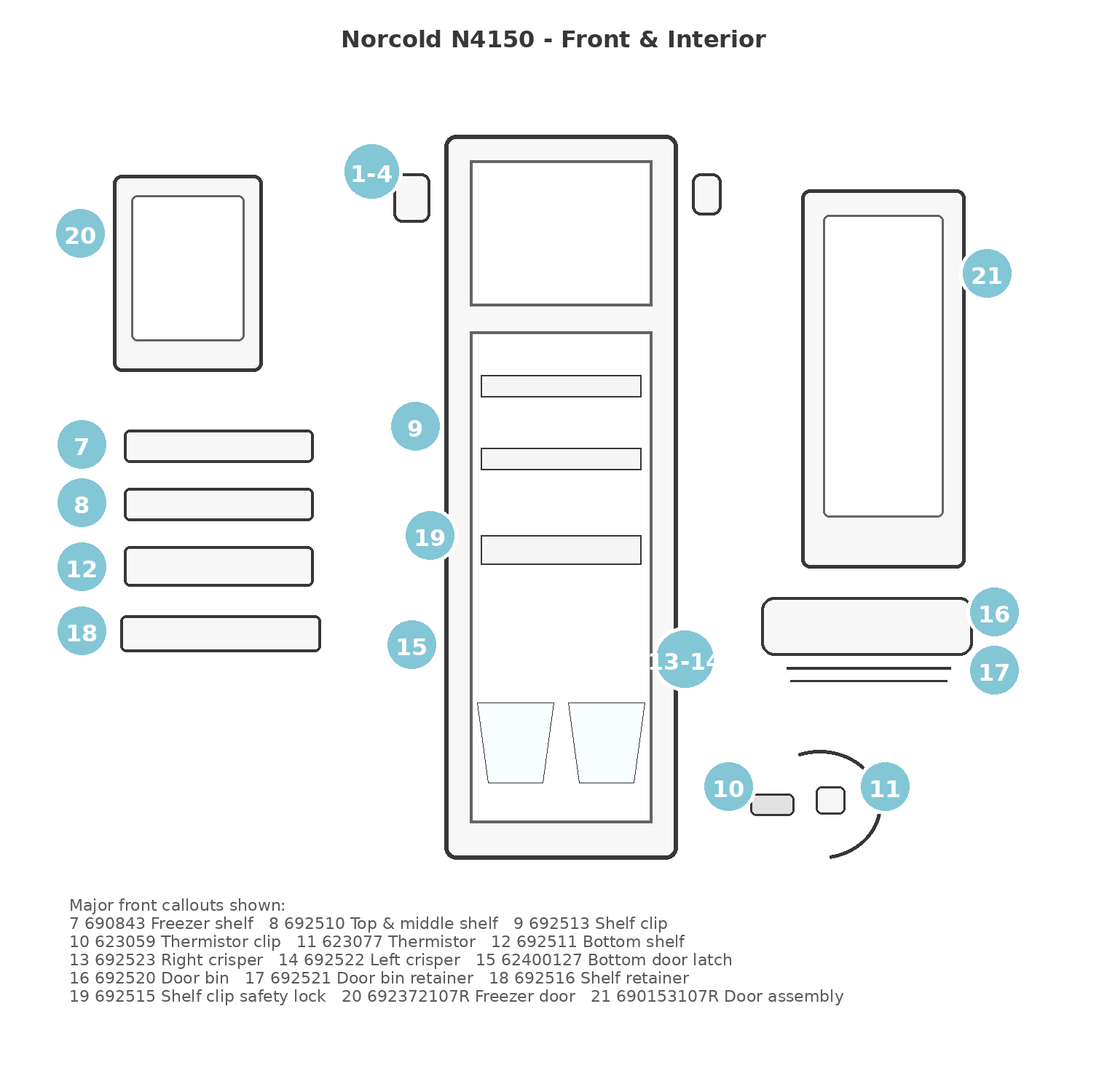

| # | Part # | Description | Link |
|---|---|---|---|
| 1-4 | 69173927 | Door latch and door hole cover | Browse N4150 Parts |
| 5 | 62362208 | Screw hole plug (qty. 2) | Browse N4150 Parts |
| 6 | 62447908 | Freezer screw hole plug (qty. 6) | Browse N4150 Parts |
| 7 | 690843 | Freezer shelf (15.9" x 9.4"). RVFridgeGuys lists replacement/superseding shelf 69083608. | View 69083608 |
| 8 | 692510 | Top and middle shelf (16.3" x 5.9") | Browse N4150 Parts |
| 9 | 692513 | Fresh food shelf clip | Browse N4150 Parts |
| 10 | 623059 | Thermistor clip | Browse N4150 Parts |
| 11 | 623077 | Thermistor | View Part |

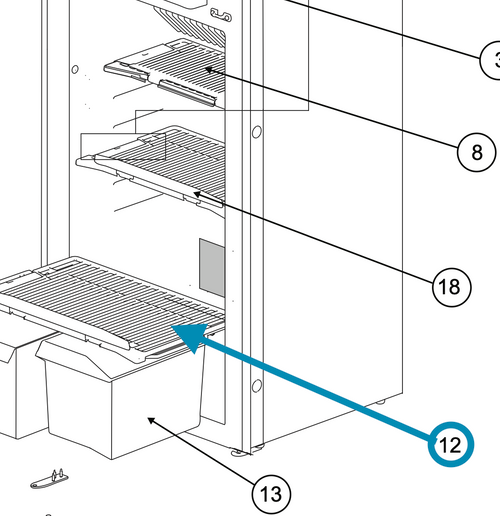

| 12 | 692511 | Bottom shelf (16.3" x 7.9") | View Part |
| 13 | 692523 | Right crisper bin | Browse N4150 Parts |
| 14 | 692522 | Left crisper bin | Browse N4150 Parts |
| 15 | 62400127 | Bottom door latch | Browse N4150 Parts |

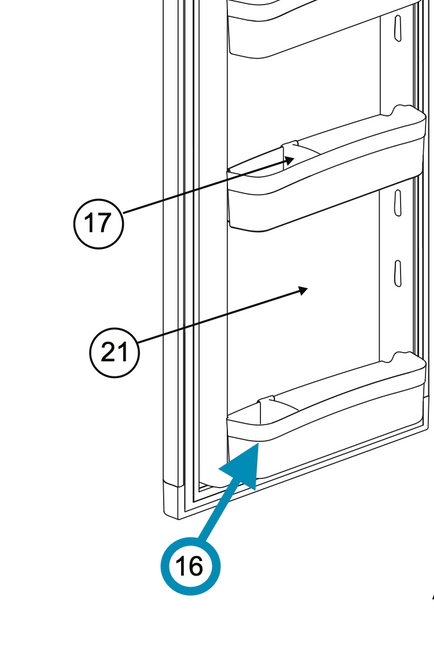

| 16 | 692520 | Door bin. RVFridgeGuys currently lists N4150 door bin SKU 692520144. | View 692520144 |
| 17 | 692521 | Door bin retainer | Browse N4150 Parts |
| 18 | 692516 | Shelf retainer | Browse N4150 Parts |
| 19 | 692515 | Fresh food shelf clip safety lock | Browse N4150 Parts |
| 20 | 692372107R | Freezer door assembly | View Part |
| 21 | 690153107R | Door assembly | View Part |

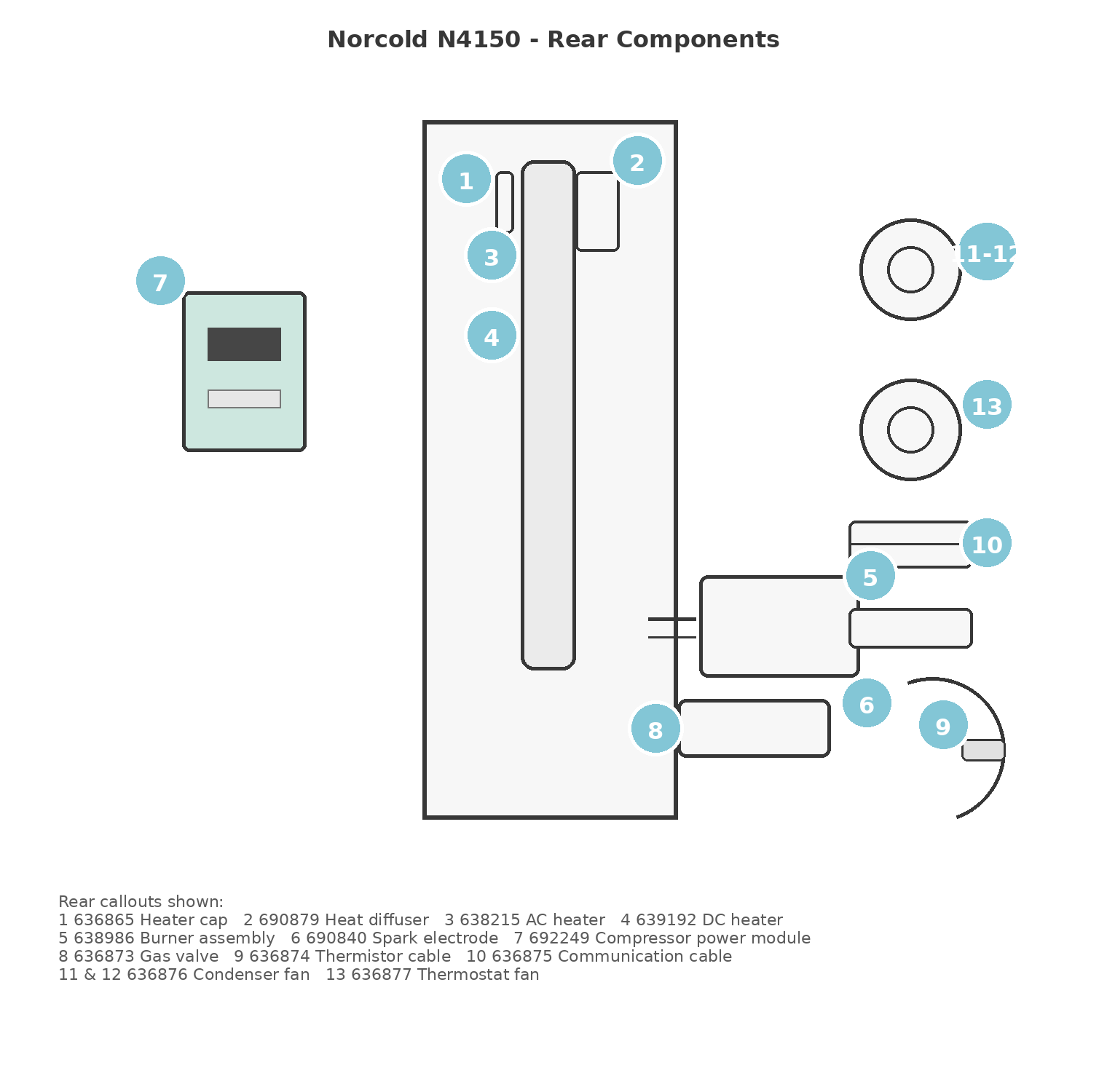

| # | Part # | Description | Link |
|---|---|---|---|
| 1 | 636865 | Heater cap | Browse N4150 Parts |
| 2 | 690879 | Heat diffuser | Browse N4150 Parts |
| 3 | 638215 | AC heater | View Part |
| 4 | 639192 | DC heater | View Part |

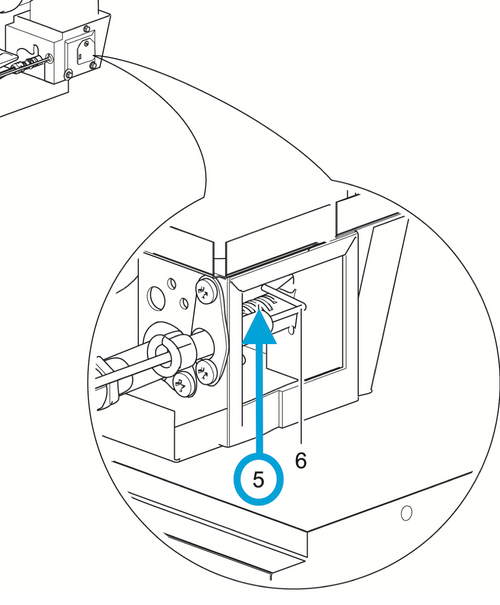

| 5 | 638986 | Burner / orifice assembly | View Part |

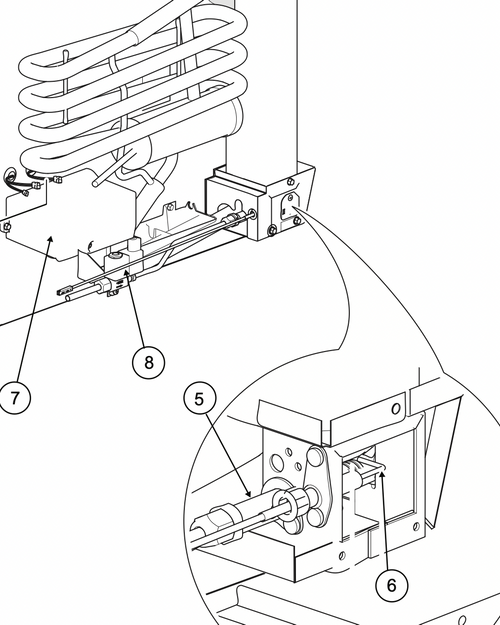

| 6 | 690840 | Spark electrode | View Part |
| 7 | 692249 | Power board / compressor power module | View Part |
| 8 | 636873 | Gas valve | View Part |
| 9 | 636874 | Thermistor cable with connectors | Browse N4150 Parts |
| 10 | 636875 | Communication cable | Browse N4150 Parts |
| 11 & 12 | 636876 | Condenser fan | Browse N4150 Parts |
| 13 | 636877 | Thermostat fan | Browse N4150 Parts |
| NS | 691446 | 120V AC power cord | Browse N4150 Parts |
| NS | 634987 | Solenoid valve wire harness | Browse N4150 Parts |
RVFridgeGuys N4150 Parts Currently Linked
These are the direct product pages currently surfaced on the RVFridgeGuys N4150 category page. Where RVFridgeGuys uses a later SKU than the OEM sheet, that distinction is noted in the main table.
