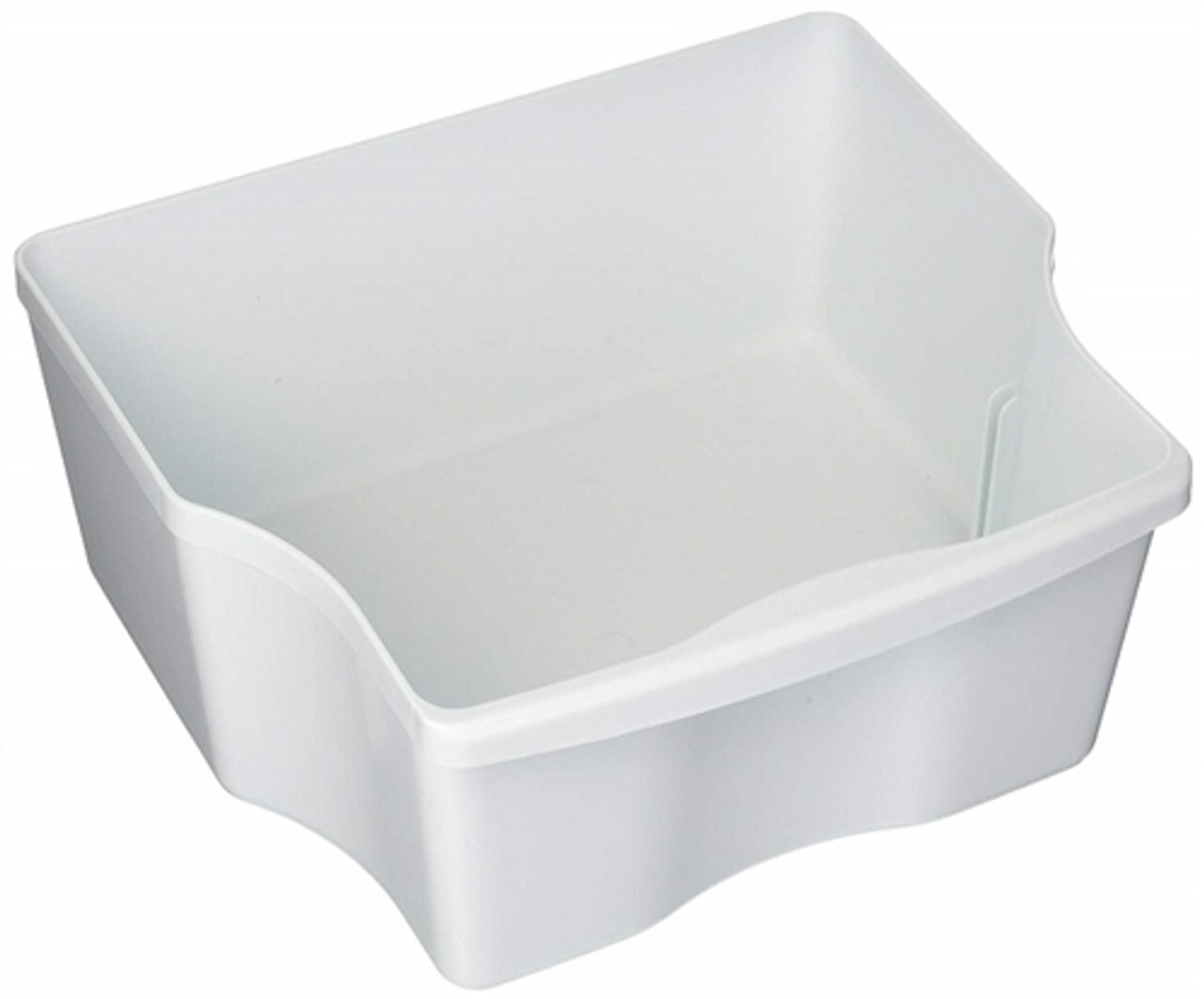

Norcold N1095 Door Bins, Refrigerator Bins, Shelves, Thermistor Hardware, etc.

The parts listed below fits ALL N1095 model efrigerators.

These are the available bins, shelves, and thermistor for inside the refrigerator. For bins, make sure to read the product descriptions to make sure that it will fit your exact model N1095 refrigerator. Some bins only work with specific models.

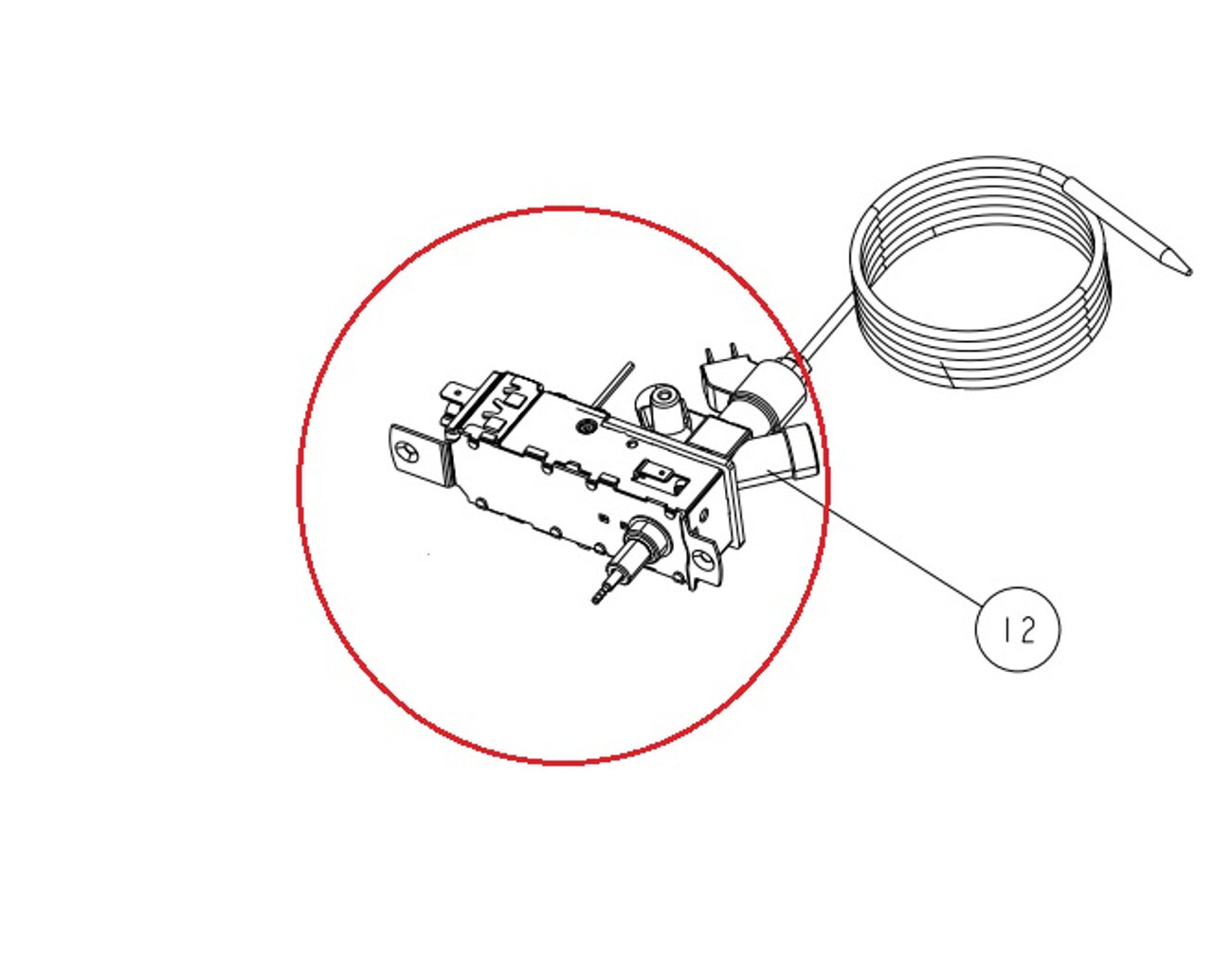

Norcold Gas Valve for the N1095 Model Refrigerator

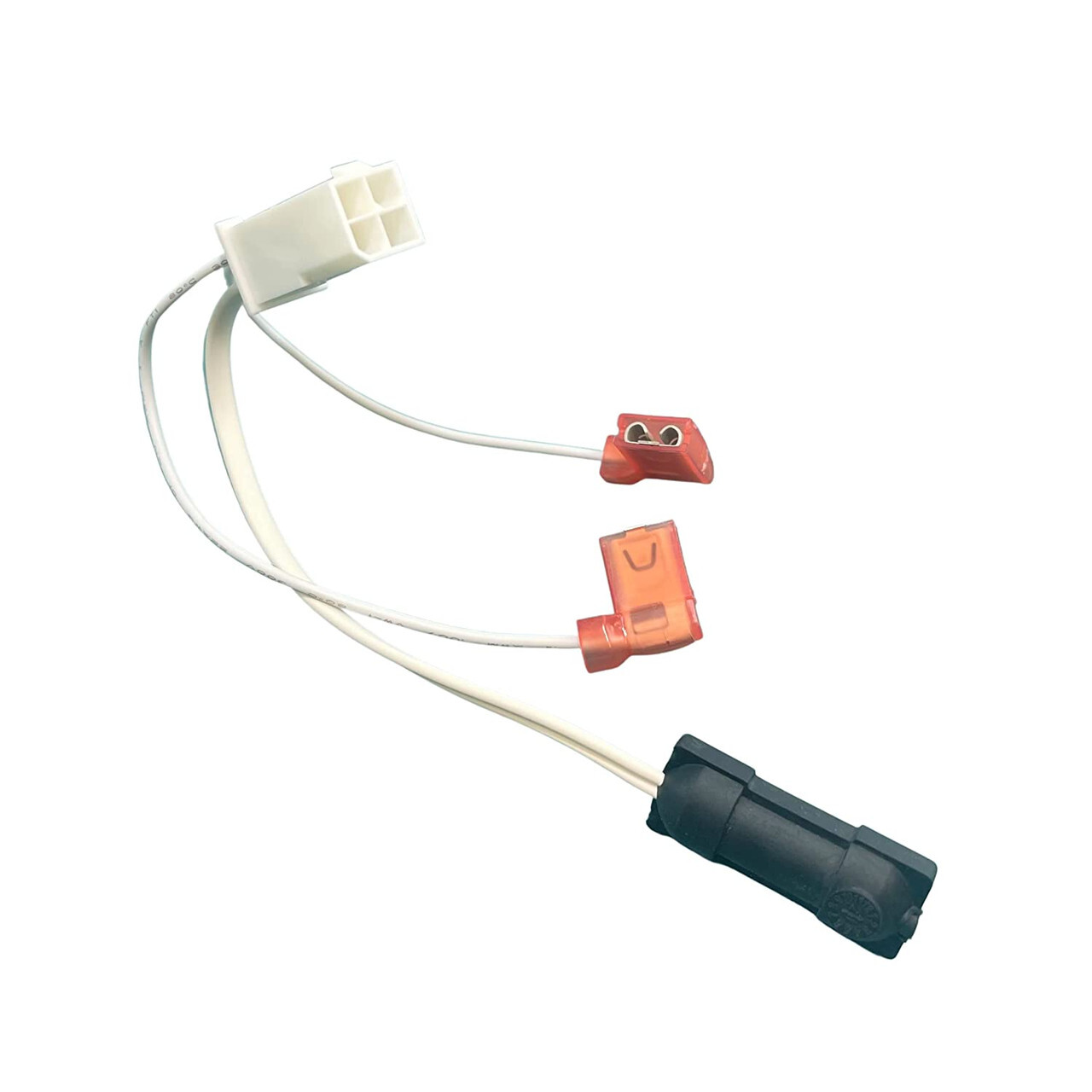

Norcold N1095 Thermistor for Sale!

This is the current thermistor for all Norcold N1095 refrigerators. Any numbers or letters after the model numbers are not important for this part. The thermistor has a 4 prong connector that will snap into the light fixture located up at the light bracket. The other end clips to the 2nd fin from the right hand side.

Fits all:

• N1095 (all models)

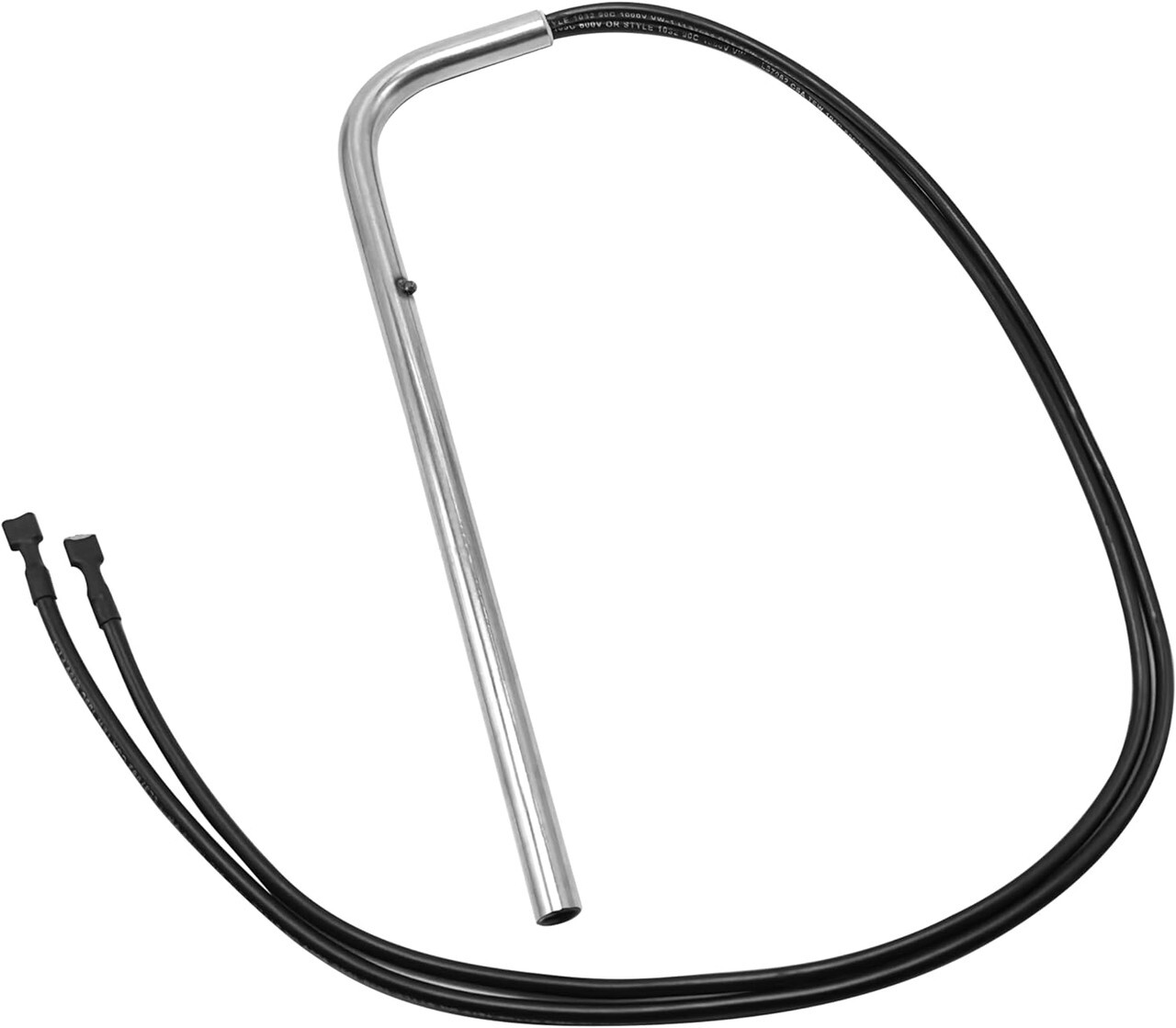

Norcold N1095 AC Heating Elements/ AC Heaters for sale!

The heaters below fit the N1095 model refrigerators. There are two different AC heating elements made for this model refrigerators. They both operate in the same way and both have the same technical specifications. The only difference is that older model N1095 refrigerator cooling units have a different diameter AC heater slot than newer model N1095 refrigerators. To determine which will work with your refrigerator, you'll need the cooling unit serial number. This number is located on a white decal on the cooling unit itself.

If you have an N1095 model refrigerator and your cooling unit serial number is below 11231023, you need:

• AC Heater 621702. Click the link to the left to view that product.

If you have an N1095 model refrigerator and your cooling unit serial number is above 11231023, you need:

• AC Heater 630811. Click the link to the left to view that product.

You'll find both of those heaters listed below. Both are in stock and ready for immediate shipment!

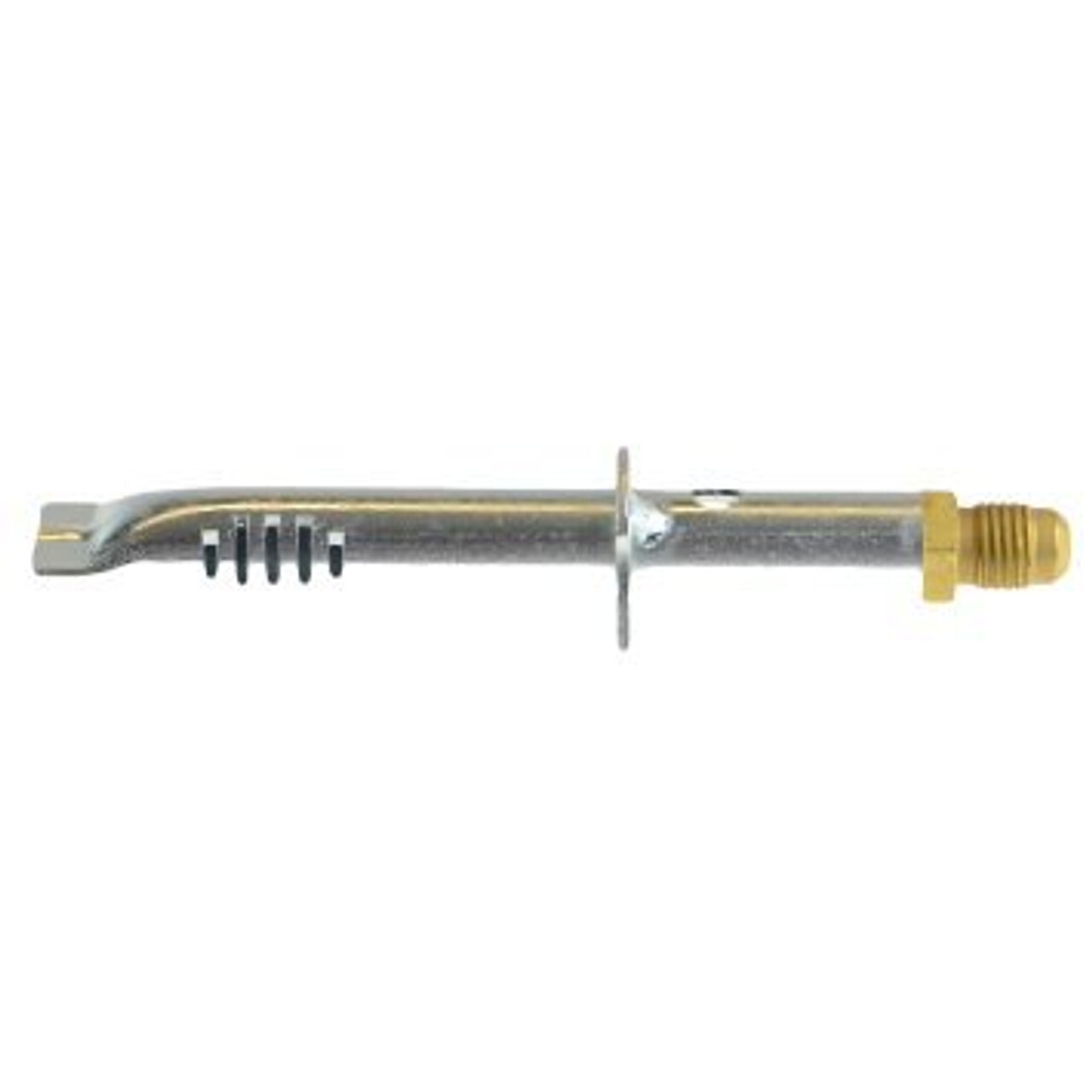

Norcold Burner/ Orifice Assembly for N1095

Norcold Burner & Orifice Assembly

Will work with the following models regardless of the refrigerator's serial number:

• N1095

Burner 621957 can be viewed and purchased at the link below!

Norcold Optical Boards for the N1095 Models

• N1095

For every N1095 model refrigerator, there is a newer style optical board that fits most models post 2006, and for all of the rest you will need a board kit that replaces both of the boards (front optical and rear power board).  This is determined by the serial number of the refrigerator which is listed in the decription of each part below.

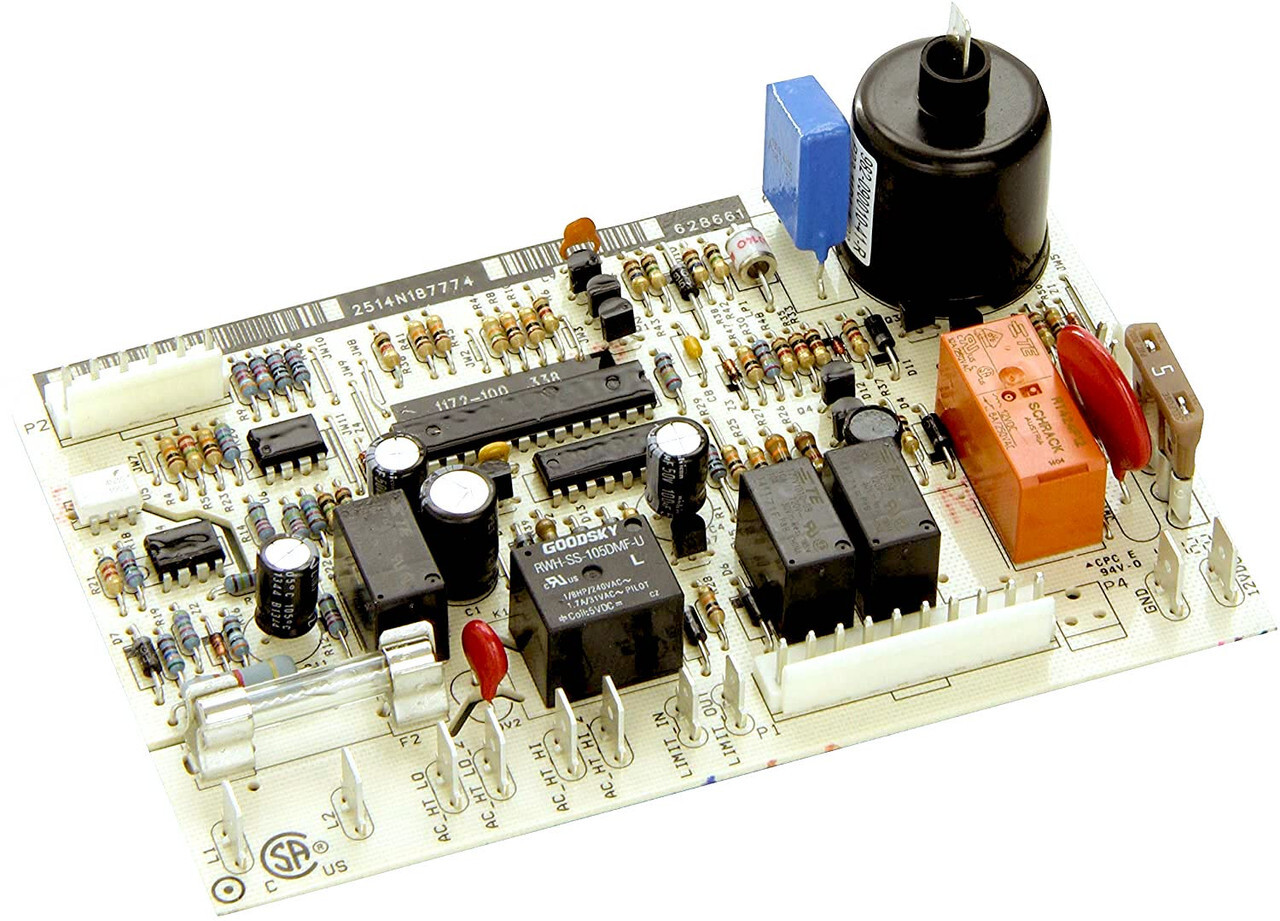

Norcold Power Boards for the N1095 Model Refrigerator

There are two different style power boards made for the N1095. The older style board (pre 2006) has a 16 pin plug connector at the bottom of the board. The newer style board fits ALL post 2006 N1095 models, regardless of the serial number. In order to determine which board fits your Norcold refrigerator, you will need to locate the refrigerator's serial number. This serial number is located on a decal inside the refrigerator box on the right hand side. The serial number break can be found in the description of each board below as well as in the description for each power board.

Norcold N1095 Refrigerator Power Board Reference Guide:

N1095

• serial number below 9044285:
• Norcold 6212XX <--CLICK
• serial number above 9044285:
• Norcold 628661 <--CLICK

Norcold N1095 Refrigerator Doors for Sale!

These doors fit all Norcold N1095 models, regardless of the numbers or letters after the model number.

There are two different style doors for these model refrigerators, waffle interior texture and smooth interior texture. They are completely proprietary so you will need to make sure you've selected the correct door. You'll find that in the description of each, it will clearly explain if the interior texture of the door is smooth or waffled.

Norcold N1095 Model Cooling Unit for Sale!

This cooling unit fits all N1095 model refrigerators. These include:

• N1095
