Description

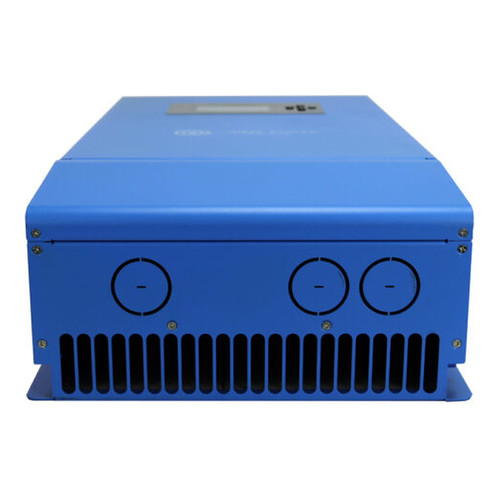

AIMS Power 60A MPPT Solar Charge Controller SCC60AMPPT
A 60 A MPPT controller from AIMS Power for 12, 24, 36 and 48 V systems, with up to 150 V PV input and fanless cooling.
Features
- MPPT tracking extracts peak power from the array
- Heatsink cooling with no fans and no thermal derating
- Battery type selector and user-defined charging voltages
- 4-stage charging with load control
- Works with sealed, flooded, lithium, gel and AGM batteries
Specifications
- Brand: Aims Power
- Part Number: SCC60AMPPT
- Charge current: 60 A
- Power: 800/1700/2400/3400 W (12/24/36/48 V)
- Max PV: 150 V
- Efficiency: 98.5%
- Dimensions: 14.5 x 10.5 x 4.5 in
- IP43; ETL to UL1741
