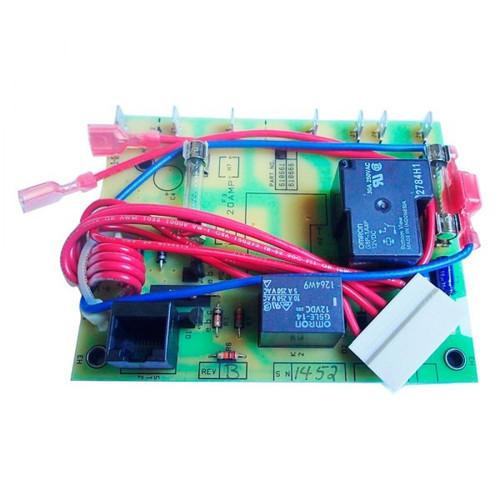

Norcold Power Board for 600 & 6000 Series Part #618661

This is the Power Supply Board for the 600 & 6000 Series line of refrigerators.  This board works with all 2-way model refrigerators which means that the model number must end in "2".

Works with the following models:

• 652
• 662
• 682
• 6052
• 6062
• 6082
• 6162
• 6182
• 6621M
• 6821M

Troubleshooting

Potential problems that a new power board could solve:

• Refrigerator not sensing AC power
• Refrigerator not sensing AC heating element
• Refrigerator not sensing a flame
• Refrigerator not powering on
• Refrigerator incapable of resetting
• Intermittent issues
• SR code display
• If any electrical burn marks are present anywhere on front or back of power board, you should replace it.

Installation

Time:

• 30 minutes or less

Tools:

• Ratchet set
• Screwdriver

Steps:

• Turn your battery switch to OFF
• Remove power board cover
• Take a picture of the board before disconnecting any wires
• Disconnect all wires and remove defective board
• Place new board on old board cover base and connect wires
• Before placing board cover on, turn battery switch ON and power up refrigerator to verify everything is connected and that there are no faults present. If everything is working, put cover back on.
