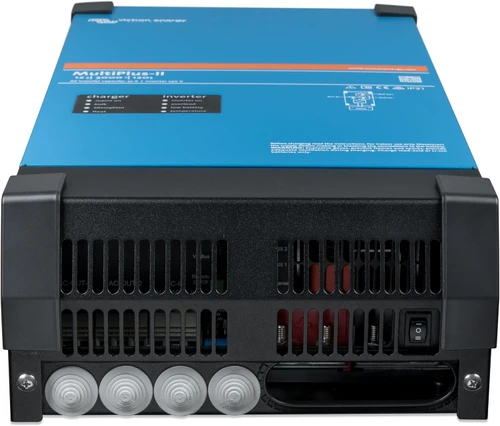

Victron Energy MultiPlus II 12/3000/120-50 230V Inverter Charger (PMP123021010)
The Victron Energy MultiPlus II 12/3000/120-50 (PMP123021010) combines a powerful 3000VA pure sine wave inverter, a 120-amp battery charger, and a 50-amp automatic transfer switch into one unit. Designed for 12V electrical systems, the MultiPlus is an excellent solution for RVs, camper vans, motorhomes, boats, and off-grid applications that use 230V AC power.
When shore power or generator power is available, the MultiPlus can recharge your batteries and supply power to connected equipment. When external AC power is disconnected, it automatically switches to inverter operation, allowing your battery bank to supply AC electricity without manually changing power sources.
One of the MultiPlus's standout features is PowerAssist, which allows the inverter to supplement limited shore power or generator capacity using energy from your batteries.
Key Features
-
3000VA Pure Sine Wave Inverter: Supplies clean 230V AC power from a 12V battery system.
-
120A Battery Charger: Built-in multistage charging helps maintain and recharge your house battery bank.
-
50A Transfer Switch: Automatically switches between incoming AC power and battery-powered inverter operation.
-
PowerAssist Technology: Supplements limited generator or shore power using battery power when needed.
-
PowerControl: Allows you to set an AC input current limit to help avoid overloading shore power connections or generators.
-
Lithium Battery Compatibility: Supports properly configured lithium battery systems as well as traditional lead-acid batteries.
-
VE.Bus Connectivity: Supports system configuration, integration, and monitoring with compatible Victron equipment.
-
All-in-One Design: Combines multiple power management functions into one unit.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Manufacturer Part Number | PMP123021010 |
| Product Family | MultiPlus |
| Model | 12/3000/120-50 |
| Battery Voltage | 12V DC |
| Inverter Capacity | 3000VA |
| AC Output | 230V |
| Maximum Battery Charging Current | 120A |
| Transfer Switch Rating | 50A |
| Inverter Type | Pure Sine Wave |
| Communication | VE.Bus |
| PowerAssist / PowerControl | Yes |
Important Compatibility Information
This is the 230V AC version of the Victron MultiPlus. It is not the standard 120V inverter charger used in most North American RV electrical systems.
Before ordering, verify your battery voltage, AC input and output requirements, and the manufacturer's part number printed on your existing equipment.
The Victron MultiPlus 12/3000/120-50 is an excellent choice for building or upgrading a reliable 12V off-grid power system where 230V AC output is required.
