Description

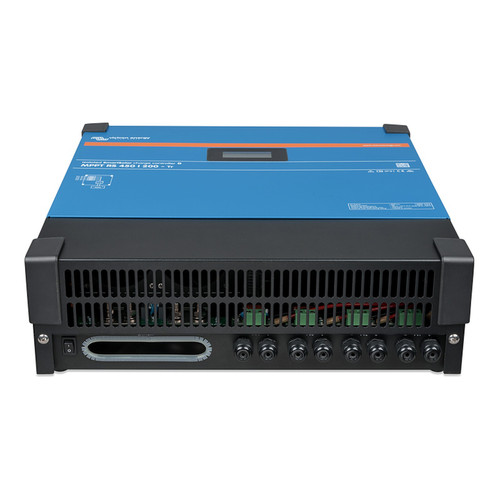

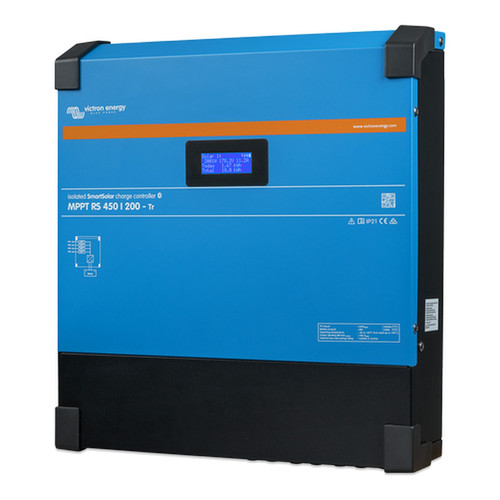

Victron Energy SmartSolar MPPT RS 450/200-Tr Solar Charge Controller SCC145120410
The Victron RS 450/200-Tr is a 200 A MPPT solar charge controller for 48 V battery banks with up to 450 V of PV open-circuit voltage. Victron's MPPT tracking drives your panels to full charge in the shortest possible time while protecting battery health. The RS series is designed for large 48 V systems.
Features
- Ultra-fast MPPT tracking harvests more energy, especially under passing clouds
- Built-in Bluetooth: monitor and configure with the VictronConnect app
- Adaptive multi-stage charging extends battery life
- Can recharge a deeply depleted battery (down to 0 V if cells are not damaged)
- Compatible with lead-acid and lithium (LiFePO4) batteries
- Limited 5-year warranty
- VE.Can interface
- Steel enclosure, IP21
Specifications
- Brand: Victron Energy
- Part Number: SCC145120410
- Max PV voltage: 450 V
- Charge current: 200 A
- Battery voltage: 48 V
- Nominal PV power: 11,520 W (48 V systems)
- Dimensions: 19.17 x 17.08 x 5.74 in
- Certifications: EN/IEC 62109-1, UL 1741, CSA C22.2
- Peak efficiency: 98%
