Dometic Americana II DM2672RB1 RV Refrigerator – 6 Cu. Ft., 2-Door, 2-Way (AC/LP)
The Dometic Americana II DM2672 is a 6 cubic foot, two-door absorption refrigerator for RVs. It runs on 120V AC shore power or LP gas, with 12V DC for the controls. It has a full-surround steel frame, eye-level electronic controls with automatic LP ignition, and a bright LED interior light. It's a common direct replacement in travel trailers, fifth wheels and motorhomes built for a 6 cu. ft. Americana-size opening.
Key features
- Two-way power: automatic selection between 120V AC and LP gas

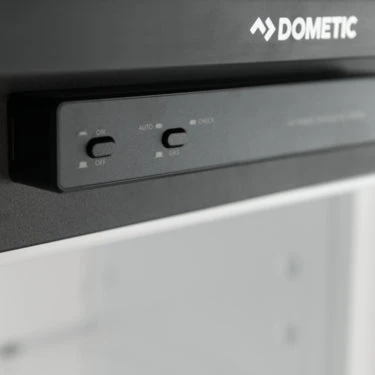

- Automatic electronic LP ignition. No manual lighting.
- LED fresh-food light that runs cooler and uses less energy than an incandescent bulb
- "Click Lock" door handles that open in one motion and lock for travel
- Strong steel frame with black trim
- Flexible storage: adjustable and removable shelves and door bins, two crispers, and a bottle-retaining door shelf
- Magnetic door seals. No frost limiter required.
- Reversible doors: ships right-hinged; hinges can be swapped to the left
- Thermostat accessible behind the freezer door
- Accepts optional decorative door panels (sold separately)
Specifications
- Model: DM2672RB1
- Total capacity: 6.11 cu. ft. (fresh food 4.6 cu. ft., freezer 1.7 cu. ft.)
- Exterior dimensions: 54-21/32" H x 24-7/8" W x 26" D
- Cut-out (recess) dimensions: approx. 53-3/4" H x 23-11/16" W x 24" D
- Net weight: 115 lbs
- AC power: 120V, 60 Hz, 2.7 A, 440 W
- DC power: 12V (controls)
- LP consumption: 1,500 BTU/hr at 11" water column
- Cooling: absorption (ammonia, R717). No compressor and no moving parts in the cooling system.
- Hinge: right-hand, reversible
- Ice maker: no
- Certification: CSA
Will it fit my RV?
Measure your current refrigerator opening (height, width and depth) and compare it to the cut-out dimensions above. The DM2672 is commonly used to replace older Dometic 6 cu. ft. Americana models, such as the RM2652, DM2652 and DM2662, in openings of the same size. Always confirm against your measurements and the Dometic installation manual, including the required roof or sidewall venting.
Why choose an absorption refrigerator?
Absorption refrigerators like the Americana II can run on LP gas when you're off-grid without draining your batteries (the controls draw only a small amount of 12V power). That makes them a favorite for boondocking and dry camping.
Browse all new Dometic RV refrigerators.
FAQ
Is the DM2672 a replacement for the RM2652 or DM2652?
In many RVs, yes. It's the current Dometic 6 cu. ft. two-door, two-way model. Compare your opening to the cut-out dimensions above to confirm.
Can I change the door swing?
Yes. The doors ship right-hinged and are reversible.
Does it run on 12V DC alone?
No. This is a two-way model: 120V AC or LP gas. 12V DC powers the controls.
Do I need a technician?
No. With some help lifting it, most owners can install it themselves. If you're not comfortable with the gas and electrical connections, you can always hire a technician to come out. If you need help with the install, we're here for you. Just reach out.
