Description

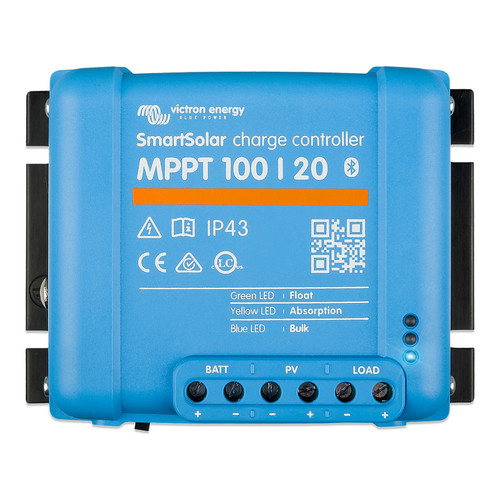

Victron Energy SmartSolar MPPT 100/20 Solar Charge Controller SCC110020160R
The Victron 100/20 is a 20 A MPPT solar charge controller for 12/24/48 V battery banks with up to 100 V of PV open-circuit voltage. Victron's MPPT tracking drives your panels to full charge in the shortest possible time while protecting battery health.
Features
- Ultra-fast MPPT tracking harvests more energy, especially under passing clouds
- Built-in Bluetooth: monitor and configure with the VictronConnect app
- Adaptive multi-stage charging extends battery life
- Can recharge a deeply depleted battery (down to 0 V if cells are not damaged)
- Compatible with lead-acid and lithium (LiFePO4) batteries
- Limited 5-year warranty
Specifications
- Brand: Victron Energy
- Part Number: SCC110020160R
- Max PV voltage: 100 V
- Charge current: 20 A
- Battery voltage: 12/24/48 V
- Nominal PV power: 290 W at 12 V / 580 W at 24 V / 1160 W at 48 V
- Dimensions: 4.4 x 4 x 2.36 in
- Certifications: EN/IEC 62109-1, UL 1741, CSA C22.2
- Peak efficiency: 98%
