Description

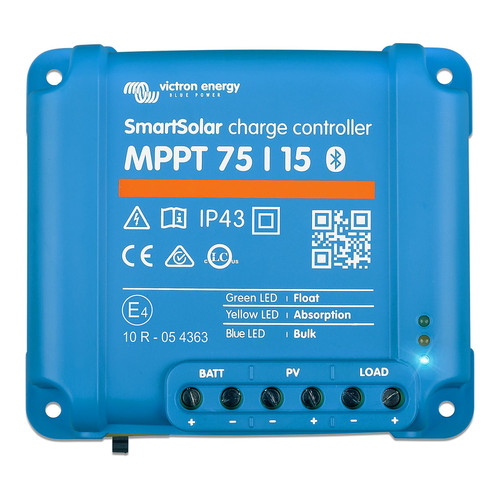

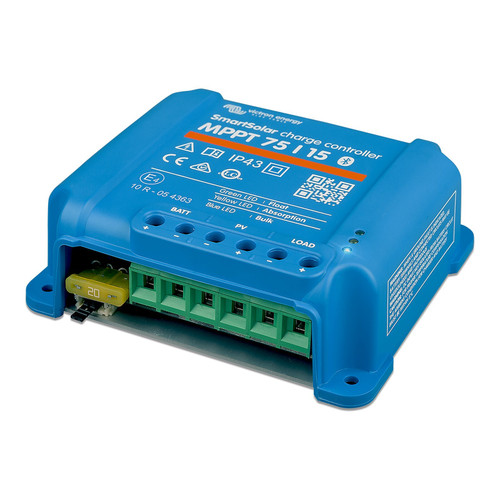

Victron Energy SmartSolar MPPT 75/15 Solar Charge Controller SCC075015060R
The Victron 75/15 is a 15 A MPPT solar charge controller for 12/24 V battery banks with up to 75 V of PV open-circuit voltage. Victron's MPPT tracking drives your panels to full charge in the shortest possible time while protecting battery health.
Features
- Ultra-fast MPPT tracking harvests more energy, especially under passing clouds
- Built-in Bluetooth: monitor and configure with the VictronConnect app
- Adaptive multi-stage charging extends battery life
- Can recharge a deeply depleted battery (down to 0 V if cells are not damaged)
- Compatible with lead-acid and lithium (LiFePO4) batteries
- Limited 5-year warranty
Specifications
- Brand: Victron Energy
- Part Number: SCC075015060R
- Max PV voltage: 75 V
- Charge current: 15 A
- Battery voltage: 12/24 V
- Nominal PV power: 220 W at 12 V / 440 W at 24 V
- Dimensions: 4.4 x 4 x 1.57 in
- Certifications: EN/IEC 62109-1, UL 1741, CSA C22.2
- Peak efficiency: 98%
