Description

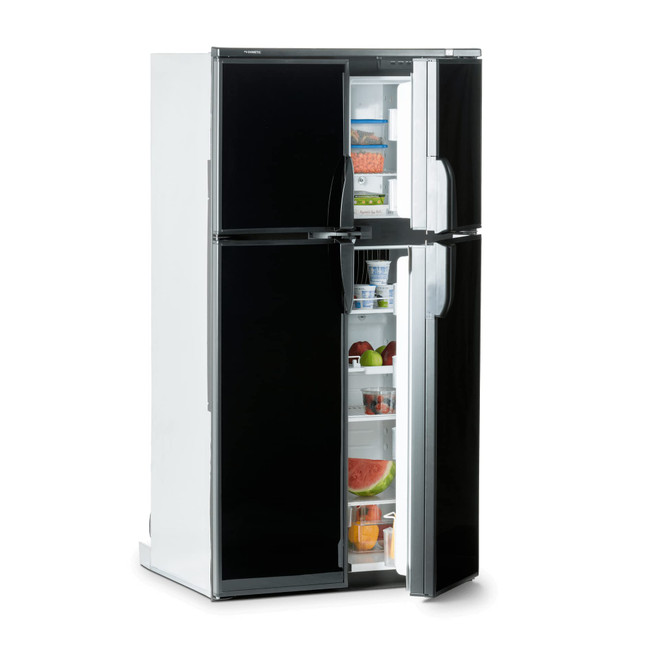

Dometic Elite 2+2 RM1350 RV Refrigerator – 13 Cu. Ft., 4-Door, AC/LP (Manual Lock)
The Dometic Elite 2+2 RM1350 (model RM1350SLM, Dometic item 9108823667) is Dometic's large four-door absorption refrigerator for motorhomes and fifth wheels. It runs on 120V AC or LP gas, with 12V DC for the controls. It has two fresh-food doors and two freezer doors, plus a divider-less freezer for wall-to-wall frozen storage. Inside you get fully adjustable shelves, three crisper drawers, an electronic thermostat with digital display, and a built-in fan. This is the manual-lock version.
Key features
- 13 cu. ft. class capacity (12.5 cu. ft. AHAM-measured: 9.03 fresh food, 3.47 freezer)
- Four-door "2+2" design with a divider-less freezer compartment
- Two-way power: 120V AC or LP gas, 12V DC controls
- Electronic thermostat and digital display
- Built-in fan and slim-depth design
- Three crisper drawers and fully adjustable shelves
- Interior light
- Manual door locks. Door panels sold separately.
Specifications
- Model: RM1350SLM (label: RM1350SLMX), Dometic item 9108823667
- Exterior dimensions: 64-1/4" H x 33-11/16" W x 29-1/2" D
- Cut-out (recess): approx. 63-3/16" H x 32-3/4" W x 27-1/16" D
- Net weight: 231 lbs
- AC power: 120V, 60 Hz, 3.5 A, 610 W
- DC power: 12V, 2.5 A
- LP consumption: approx. 2,081 BTU/hr at 11" water column
- Cooling: absorption (ammonia, R717)
- Certifications: CSA, UL
Door panels
Door panels are sold separately so you can match your coach's interior. For black acrylic panels, see the Dometic RM1350 black acrylic door panel set 9108750664.
Installation
Measure your opening and compare it to the cut-out dimensions above. Follow the Dometic RM1350 installation instructions (PDF) for venting, gas and electrical connections.
Browse all new Dometic RV refrigerators.
Shop Dometic RM1350 parts.
FAQ
Is the RM1350 a residential (compressor) refrigerator?
No. It's an absorption refrigerator that runs on 120V AC or LP gas, so it keeps cooling off-grid on propane.
Are door panels included?
No. Panels are sold separately.
Do I need a technician?
No. With a few helpers for lifting, it can be a do-it-yourself install. If you're not comfortable with the gas and electrical connections, you can always hire a technician to come out. If you need help with the install, we're here for you. Just reach out.
