Norcold N6XX / N8XX AC LO Code (AC Voltage Low)

AC.↔LO.

AC LO

Norcold N6XX / N8XX AC LO Code (AC Voltage Low)

The fridge is getting less than 108 volts AC. Low voltage means less heat at the AC heater and weaker cooling. It’s usually the power source: a weak campground pedestal, generator, inverter or a long extension cord.

Before you start

  • Where things are. The power board, fuses and burner are behind the lower outside vent, under a cover on the back of the fridge. The optical control (display) assembly is in the front box at the top.
  • Note the power source. Check whether the code shows up only on one source: generator, shore power or inverter.
  • No extension cords. Nothing else should be on the fridge’s AC circuit.

Fits these models

N61XN62XN64XN64XIMN64X.3N81XN82XN84XN84XIMN84X.3

Includes 2-way and 3-way versions, plus the .3 and IM (ice maker) versions.

What you’ll see on your model

N61X / N81X (LED lights)

No code. These models don’t show this fault.

N62X / N82X (one-letter display)

No code. These models don’t show this fault.

N64X / N84X (two-part display)

Alternates AC.↔LO..

STEP 1

Measure AC at the power board

Measure AC volts where the power cord connects to the power board, with the fridge running on AC.

▼
?

Is it lower than 108 volts AC?

YES
▼

Fix the AC supply

The problem is in the RV’s AC power or wiring feeding the fridge. Try another power source and check the pedestal, cord and connections. A surge protector with voltage readout shows you what you’re plugged into.

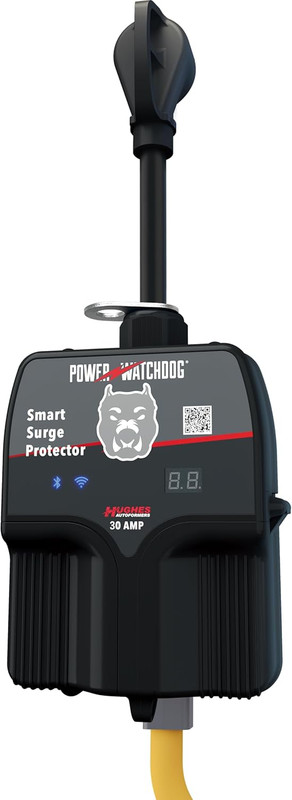

Progressive Industries EMS-PT30X Progressive Industries EMS-PT30X →30A portable EMS. Guards against voltage swings, surges and miswired pedestals. Hughes Watchdog Gen II 30A Hughes Watchdog Gen II 30A →Bluetooth surge protector with on-screen error codes.
← N6XX parts   N8XX parts   Parts diagrams
Still stuck? ask a tech with your model, serial number and the readings you got. We’ll confirm the part before you order.
Covers the Norcold N61X, N62X, N64X, N81X, N82X and N84X families. Based on the Norcold N6XX/N8XX service manual (publication 619394E), AC LO troubleshooting flowchart.
!
