RV Fridge Fuse Locations: Where the Fuses Are on Norcold and Dometic Refrigerators (and What a Blown One Does)
ELECTRICAL · FUSES
RV Fridge Fuse Locations: Where the Fuses Are on Norcold and Dometic Refrigerators (and What a Blown One Does)
A blown fuse is the cheapest fix there is, and it can look exactly like a dead control board. Here’s where each fuse lives, what it protects and how to test it.
Before you touch the board
Unplug the fridge’s 120V cord and turn off its 12V supply first. The fuses sit on the power board behind the lower outside vent, right next to live 120V terminals.
The short version
- Most absorption fridges have two small fuses on the power board: a 12V control fuse (usually 3 A) and a 120V AC heater fuse (usually 5 A). Three-way models add a big 30–35 A fuse for the 12V heater.
- A blown 12V control fuse usually means nothing works: no display, no gas, no electric. A blown AC fuse usually means it cools on propane but not on shore power.
- Fuses can look fine and still be open. Test with a meter, don’t judge by eye.
- A fuse that blows again right away is a symptom. Find the short (heater element, fan, wiring) before you buy a board.
Covers these models
Where the manufacturer’s manual gives the number, we say so. Where it only comes from owners, we say that too.
Fuse locations and ratings by model
| Fridge | Where the fuses are | Fuse ratings | Source |
|---|---|---|---|
| Norcold N6XX / N8XX N611, N621, N641, N811, N821, N841 |
On the power board at the back, under the board cover (behind the lower vent) | 12V control: 3 A purple blade 120V AC: 5 A glass cartridge 12V heater (3-way only): 30 A green blade |
Norcold N600/800 service manual |
| Dometic RM2652 / RM2852 / DM2652 / DM2852 | On the power module behind the lower outside vent | 12V control: 3 A 120V AC heater circuit: 5 A 12V heater (3-way only): 30/35 A |
Dometic Service Tips & diagnostic manual |
| Dometic RM3762 / RM3962 | On the board behind the lower outside vent | 12V control: 3 A 120V AC: 5 A glass fuse |
Owner reports (Dometic training material quoted) |
| Norcold 1200 / 1210 | On the control board (fuse F1) | 12V: 5 A | Owner reports |
| Norcold 2117 / 2118 | On the motherboard, under a black cover | 12V: 5 A automotive | Owner reports |
| Norcold N8DC / N10DC (12V Polar) | In-line in the DC supply leads at the fridge | 15 A automotive | Norcold (Thetford) installation & owner’s manuals |
| Norcold DE0041 / EV0041 / DE0061 / EV0061 | In-line with the DC connector at the fridge, plus one near the battery | 15 A at the fridge, 15 A near the battery | Norcold installation manual |
Always replace a fuse with the same type and rating printed on the board. Never put a bigger fuse in to stop it blowing.
What each blown fuse looks like
| Fuse | What you’ll usually see |
|---|---|
| 12V control fuse (3 A / 5 A) | Dark display, no lights, won’t try to light on propane and won’t run on electric either. RV lights work fine. |
| 120V AC fuse (5 A) | Cools on propane but not on shore power. On Norcold models with codes you may see an AC heater fault. |
| 12V heater fuse (30–35 A, 3-way only) | Won’t cool in 12V DC mode. Propane and 120V still work. |
| In-line DC fuse (12V compressor fridges) | Nothing at all: no power light, no compressor. Check it first. |
The 12V and AC symptoms are what owners and techs report. Norcold’s N6/N8 manual says to use the fault codes to find which fuse is open.
How to test a fuse
STEP 1
Power off and pull the fuse
Unplug the 120V cord and switch off the fridge’s 12V breaker or fuse. Remove the vent cover and the board cover. Pull the fuse straight out (needle-nose pliers help).
STEP 2
Check continuity with a meter
Set the meter to continuity or ohms. A good fuse beeps or reads near 0 ohms. An open fuse reads OL. Owners regularly find fuses that look perfect but test open.
STEP 3
Or test it in place
With power on and the fridge switched on, measure voltage on both sides of the fuse. Voltage on one side only means it’s open. Be careful near the 120V terminals.
Fuse open?
Find the short first

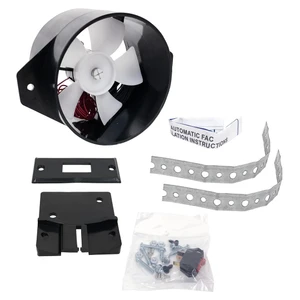

AC fuse: test the heating element (a shorted element blows it). 12V fuse: owners trace repeat blowing to seized cooling fans, a bad fan relay, pinched wiring or water on the board. On 12V fridges, check polarity: reversed wiring stops them working.
Watch it for a few days

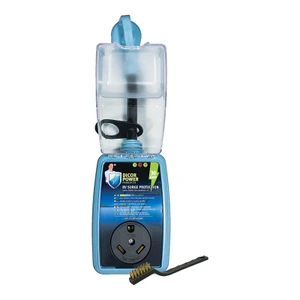

A one-off can follow a power surge or a brief short. If it blows again, go back and look for the cause. Plugging into a surge protector helps protect the board.
Don’t forget the fuse in your RV’s 12V panel
Every fridge needs a fused 12V feed from the RV’s fuse panel or battery. If the fridge is completely dead, check that fuse or breaker before opening the vent. Norcold’s N6/N8 manual calls for a fuse of no more than 6 A on 2-way models with at least 18 AWG wire, and 30 A with 10 AWG on 3-way models up to 20 ft from the battery. Dometic asks for at least 14 AWG on the RM2652/2852 and a 12V circuit fused at no more than 5 A. Norcold’s 12V Polar fridges say to size the battery fuse to the RVIA low-voltage standard.
Fuses vs thermal fuses
A thermal fuse is a different part. It’s a heat-triggered safety cut-off. On many newer Dometic cooling units it sits on the boiler, can’t be replaced on its own, and if it has opened, Dometic says that usually means the cooling unit needs replacing. Some Dometic models use a separate thermal fuse near the burner that is sold as a part. Norcold’s N6/N8 manual lists a thermal fuse only in the ice maker circuit.
Parts for this repair

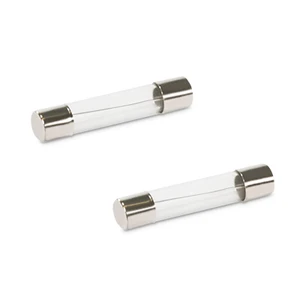

Dometic 5 Amp Glass Fuse 3308897.902View part →
Dometic Thermal Fuse 38514090155View part →
Norcold Upgraded 6212XX Power Board by Dinosaur (1200 / N6XX / N8XX)View part →

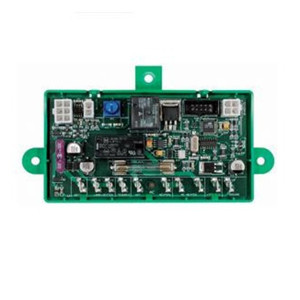

Dometic Circuit Board 3850415.01 by Dinosaur (fits many Dometic models)View part →

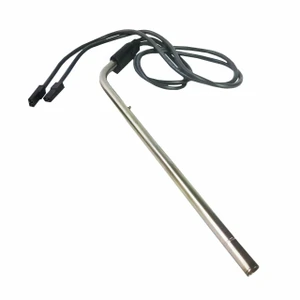

Norcold Temperature Monitor / High Temp Switch 637360View part →Shop by category: Norcold power boards, Dometic circuit boards, Dometic thermal fuses, Norcold AC heaters, Dometic heating elements.
FAQ
Where is the fuse on my Norcold RV fridge?
On absorption models it’s on the power board behind the lower outside vent (N6XX/N8XX: 3 A, 5 A and on 3-way units 30 A). On the 1200/1210 it’s fuse F1 on the control board and on the 2117/2118 it’s on the motherboard. On 12V Polar models it’s a 15 A fuse in the DC leads.
What size fuse does a Dometic RV fridge use?
On the RM/DM2652 and 2852: 3 A for the 12V control circuit and 5 A for the 120V heater circuit. Three-way models add a 30/35 A fuse for the 12V heater.
My fridge works on propane but not electric. Is it a fuse?

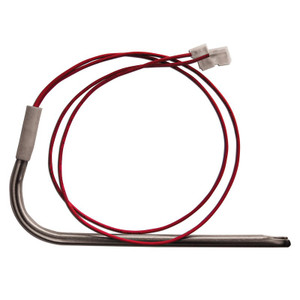

It can be the 5 A AC fuse, but the most common cause is a burned-out heating element, which can also blow that fuse. Test both.
Why does my RV fridge keep blowing fuses?
A shorted heating element, seized cooling fan, failing relay or damaged wiring. Replacing the board won’t help until the short is fixed.
Still stuck? Ask a tech with your model, serial number and what you’ve found. We’ll confirm the part before you order.
From the Norcold N600/800 service manual, Norcold N8DC/N10DC and DE/EV0041/0061 installation and owner’s manuals, Dometic Service Tips 81 and the Dometic diagnostic service manual. Ratings marked “owner reports” come from owner forums, not a manual.
