Norcold Door Seal Replacement: Gasket or Whole Door? (and How to Test the Seal)
HOW-TO · DOORS
Norcold Door Seal Replacement: Gasket or Whole Door? (and How to Test the Seal)
A bad door seal causes sweating, frost and warm food. Here’s how to test it, and whether your Norcold needs a gasket or a new door.
The short version
- Test the seal with a sheet of paper: close the door on it and pull. You should feel slight resistance on all four sides.
- Most seal problems are a dirty gasket or a door out of alignment, not a torn seal. Check those first.
- Norcold N15DC and N20DC (and the DC105/DE105 and NR751) have gaskets you can buy separately.
- On most older Norcold absorption models, Norcold doesn’t sell the seal by itself, so a torn seal means a replacement door.
Signs your door seal is failing
- Water or sweat around the door edge or on the cabinet face.
- Frost building up fast in the freezer, especially near the door.
- Food warmer near the door than at the back.
- E4 (door open) on an N15DC / N20DC with the door shut. See N15DC/N20DC E4.
Step-by-step: test and fix the seal
STEP 1
Do the paper test
Close the door on a sheet of paper (about dollar-bill size) and pull it out slowly. You should feel slight resistance. Repeat every few inches on all four sides of each door, including the hinge side.
Resistance all the way around?
The seal is fine
Look elsewhere for warm-fridge problems: ventilation, hot weather or your model’s error codes.
STEP 2
Clean the gasket
Wash the gasket and the cabinet face it seals against with warm, soapy water and dry them. Sticky residue and crumbs in the folds stop it sealing. Don’t use solvents on the rubber.
STEP 3
Check the door alignment and the latch
A door that sags or a loose hinge leaves a gap on one side even with a good gasket. Tighten the hinge screws and check that the latch closes and holds.
Still a gap, or the gasket torn, flattened or hard?
Replace the gasket
These gaskets are sold separately: fresh food and freezer, N15DC and N20DC.

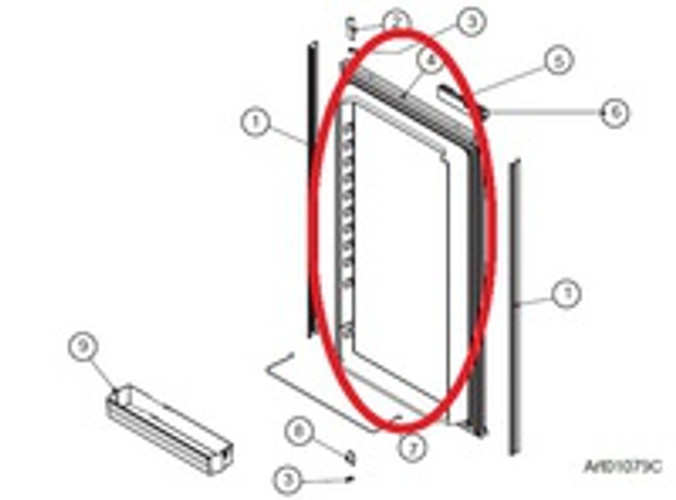

Replace the door
For most older Norcold absorption fridges, the seal isn’t sold on its own, so the fix is a new door assembly. Check whether your door’s inside is smooth (most common) or waffle-textured; every door we sell says which. Browse Norcold doors or ask a tech with your model number.
Compact Norcold models
The DC105 / DE105 and NR751 also have separate gaskets.
Parts for this repair
Norcold Fresh Food Door Gasket 641325 (N15DC)View part →
Norcold Fresh Food Door Gasket 641330 (N20DC)View part →
Norcold Freezer Door Gasket Seal 640982 (N15DC)View part →
Norcold Freezer Door Gasket 641066 (N20DC)View part →
Norcold Door Gasket 640681 (DC105 / DE105)View part →
Norcold Door Gasket 638246 (NR751)View part →Shop by category: Norcold doors, N15DC parts, N20DC parts.
FAQ
Can I buy just the door seal for my Norcold?
For the N15DC, N20DC, DC105/DE105 and NR751, yes. For most older Norcold absorption models, Norcold doesn’t sell the seal separately, so you replace the door.
How do I know if my fridge door seal is bad?
Close the door on a sheet of paper and pull it out. If it slides out with no resistance anywhere around the door, that spot isn’t sealing.
Why is my RV fridge sweating around the door?
Usually a gap in the seal letting warm, humid air in. Clean the gasket, check the door alignment, then do the paper test.
Still stuck? Ask a tech with your model, serial number and what you’ve found. We’ll confirm the part before you order.
Paper test from the Norcold N15DC owner’s manual. Updated October 2026.
