Norcold 1200 / 1210 L1 oP Code (High Temperature Limit Switch Open)
L1 oP CODE
Norcold 1200 / 1210 L1 oP Code (High Temperature Limit Switch Open)
The display alternates between L1 and oP and the alarm beeps. The high temperature limit switch on the cooling unit boiler is open or disconnected. It opens when the boiler gets hotter than 378°F (192°C), to protect against overheating and fire. Don’t reset it yourself. Work through every check below first. The reset comes last, and we recommend a certified RV technician do it.
Before you start
- Level first. Make sure the RV is parked level. Running off-level is a common cause of overheating on absorption fridges.
- Don’t reset it first. Resetting the switch without finding the cause is a fire risk. It’s the last step, and we recommend a certified RV technician do it. If yours is the older non-resettable type, Norcold says to replace it with a resettable switch.
- Where it is. On the cooling unit’s boiler canister, behind the lower outside vent.
STEP 1
Rule out AC ripple
Dirty power from the converter can trip this code even when nothing is overheating. Set your meter to AC volts and measure across the fridge’s 12V DC supply while plugged into shore power. See how to check for AC ripple.
Is there more than 0.3 volts AC on the 12V DC supply?
Fix the converter first
The converter isn’t filtering its output, and the ripple can cause this code. Replace or repair the converter before you replace any fridge parts, then turn the fridge off and back on. If the code is still there, go to Step 2. Read AC Ripple: The Silent Killer of RV Refrigerator Power Boards.
STEP 2
Think back
Before L1 oP showed up, was the fridge cooling normally?
Was the fridge cooling before the code appeared?
Suspect the cooling unit
If it wasn’t cooling well before the code, the cooling unit is likely failing. See what causes cooling unit failures, then go to Step 8 to check it for leaks.
STEP 3
Look at the burner area
Check the burner and flue area for signs of overheating (blue).
Did the burner overheat (blue)?
No burner overheating
No sign of burner overheating. Skip to Step 5 to check the airflow.
STEP 4
Check for insulation in the way
Look at the heat deflector cap on top of the flue and at the burner box.
Is the heat deflector cap or burner box blocked with insulation?
Clear the insulation
Pull the insulation away from the deflector cap and burner box. Then finish with Steps 8 and 9: check the cooling unit for leaks and have a technician reset the switch.
NOT THE BURNER
Check the airflow and the fans that move it.
STEP 5
Check the airflow
Look at the roof or side vent and the lower vent, and the space behind the fridge. Anything blocking air from moving through the enclosure counts: leaves, nests, stored items, loose insulation.
Is something blocking airflow through the enclosure?
Clear the obstructions
Clear everything out of the vent path. See why venting matters. Then finish with Steps 8 and 9: check the cooling unit for leaks and have a technician reset the switch.
STEP 6
Check the fans
With the fridge running, check that the cooling fans behind the fridge spin when the back gets hot.
Are the fans okay?
Replace the fans
Replace the cooling fans (two per fridge). Ask a tech to match the right fans to your serial number. Then finish with Steps 8 and 9: check the cooling unit for leaks and have a technician reset the switch.
STEP 7
Check the fan switch
The fan thermostatic switch turns the fans on when the cooling unit gets hot. Test that it closes when heated.
Is the fan switch okay?
Replace the fan thermostat
Replace the fan thermostatic switch. Then finish with Steps 8 and 9: check the cooling unit for leaks and have a technician reset the switch.

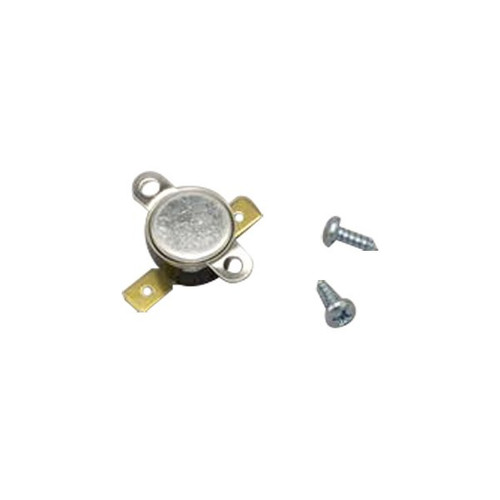

Norcold Fan Thermostat 640235 →Turns on the rear cooling fans. Service replacement 638278.Suspect the cooling unit
The burner, venting and fans all check out, so the cooling unit itself may be overheating. Go to Step 8 to check it for leaks.
LAST · BEFORE ANY RESET
Rule out a cooling unit leak, then have a technician reset the switch.
STEP 8
Inspect the cooling unit for leaks
With the fridge off and cooled down, look over the cooling unit through the lower and upper vents: the boiler, the absorber coils and the area under the fridge. Look for yellow, powdery residue (leaking sodium chromate) and smell for ammonia.
Do you see yellow residue or smell ammonia?
Replace the cooling unit
Those are signs of a leak. The cooling unit is sealed and can’t be repaired. Don’t reset the switch or run the fridge. Replace the cooling unit.
Norcold Nordic Cooling Unit 6610 →Replaces the discontinued OEM 634746 and 634747. Fits the 1200 and 1210.STEP 9
Reset the switch: have a technician do it
Only after every step above checks out, or the cause has been found and fixed. The switch has to be reset to get the fridge running again, but resetting it is a fire risk if the cause of the overheating wasn’t found.
We recommend a certified RV technician
Have a certified RV technician reset the high temperature limit switch and test the fridge after it’s turned back on, on both AC and LP. If the code comes back, turn the fridge off and don’t use it until the cause is found. Need help? Ask a tech.
Norcold High Temp Limit Switch 637360 →Resettable switch on the cooling unit boiler. Fits the 1210.Still stuck? ask a tech with your model, serial number and the readings you got. We’ll confirm the part before you order.
Based on the Norcold 1200/1210 service manual, L1 oP Code (Open High Temperature Limit Switch) flowchart.
